Wellington Hutt Valley: 4 Details

PropertyValue
Rupture Count7,937
Ruptures Above Sect Min Mag7,935
Ruptures w/ Nonzero Rates699
Magnitude Range[6.89, 8.45]
Length Range[18, 639] km
Total Rate0.001587581 /yr
Multi-Fault Rate0.001587581 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults106

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

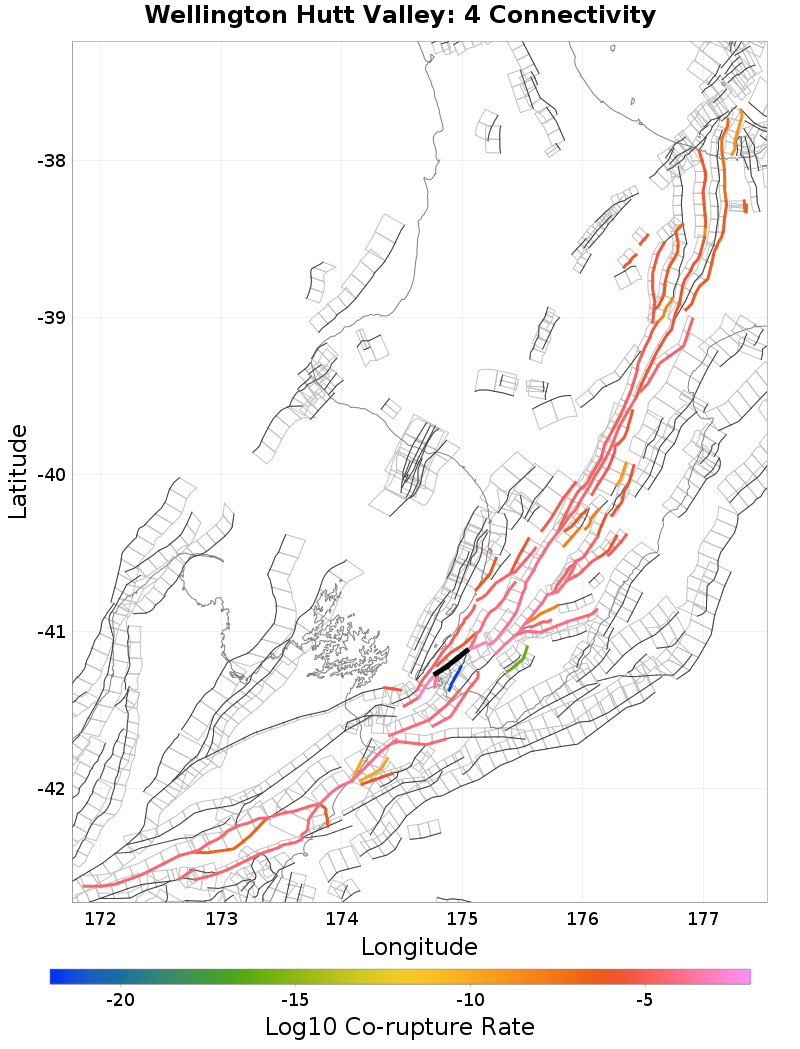

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 3, 0 km awayMoonshine, 4.31 km away
Akatarawa, 0.01 km awayOhariu, 4.6 km away
Wellington Hutt Valley: 5, 0.01 km awayPukerua - Shepherds Gully: 2, 8.22 km away
Wharekauhau, 0.09 km awayPukerua - Shepherds Gully: 3, 8.98 km away
Whitemans Valley, 0.09 km awayPukerua - Shepherds Gully: 1, 9.04 km away
Aotea - Evans Bay, 1.2 km awayShepherds Gully - Mana, 10.91 km away
Wairarapa: 1, 2.73 km awayWellington Hutt Valley: 2, 10.98 km away
Wairarapa: 2, 3.98 km awayOtaki Forks: 1, 14.19 km away

Wellington Hutt Valley: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count1,367
Co-rupture Rate0.0012976571

Akatarawa, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count3,000
Co-rupture Rate7.689847E-5

Wellington Hutt Valley: 5, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count3,800
Co-rupture Rate9.4958686E-4

Wharekauhau, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count2,941
Co-rupture Rate6.308382E-5

Whitemans Valley, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate2.4815418E-22

Aotea - Evans Bay, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count2,851
Co-rupture Rate1.596783E-4

Wairarapa: 1, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?false
Co-rupture Count296
Co-rupture Rate3.329265E-5

Wairarapa: 2, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?false
Co-rupture Count508
Co-rupture Rate2.3599922E-4

Moonshine, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count279
Co-rupture Rate4.9901737E-6

Ohariu, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?true
Co-rupture Count653
Co-rupture Rate4.256112E-5

Pukerua - Shepherds Gully: 2, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Shepherds Gully - Mana, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?false
Co-rupture Count669
Co-rupture Rate0.0012401362

Otaki Forks: 1, 14.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?true
Directly Connected?false
Co-rupture Count2,905
Co-rupture Rate7.497139E-5
