Whangamoa Details

Property	Value
Rupture Count	186
Ruptures Above Sect Min Mag	186
Ruptures w/ Nonzero Rates	14
Magnitude Range	[8.48, 8.63]
Length Range	[595, 806] km
Total Rate	1.0397639E-9 /yr
Multi-Fault Rate	1.0397639E-9 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

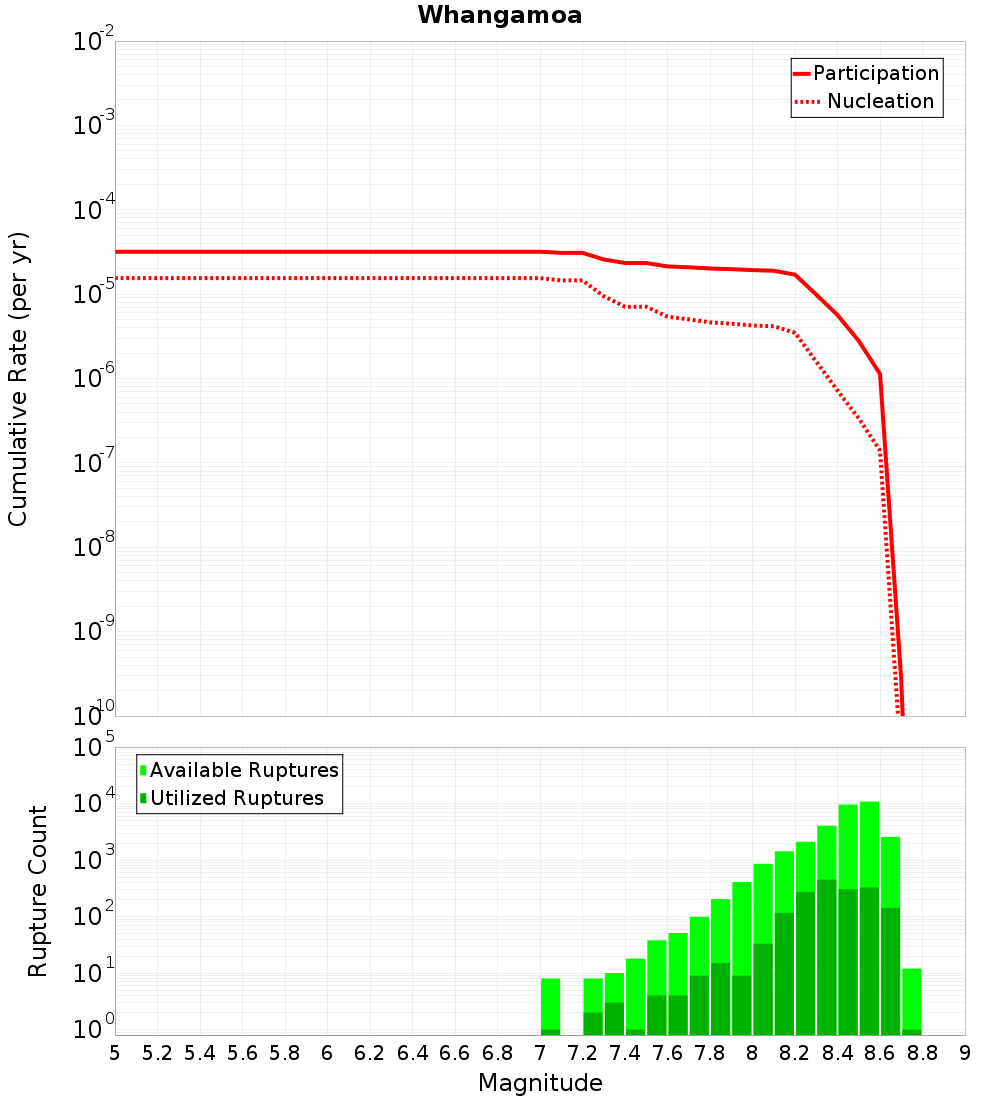

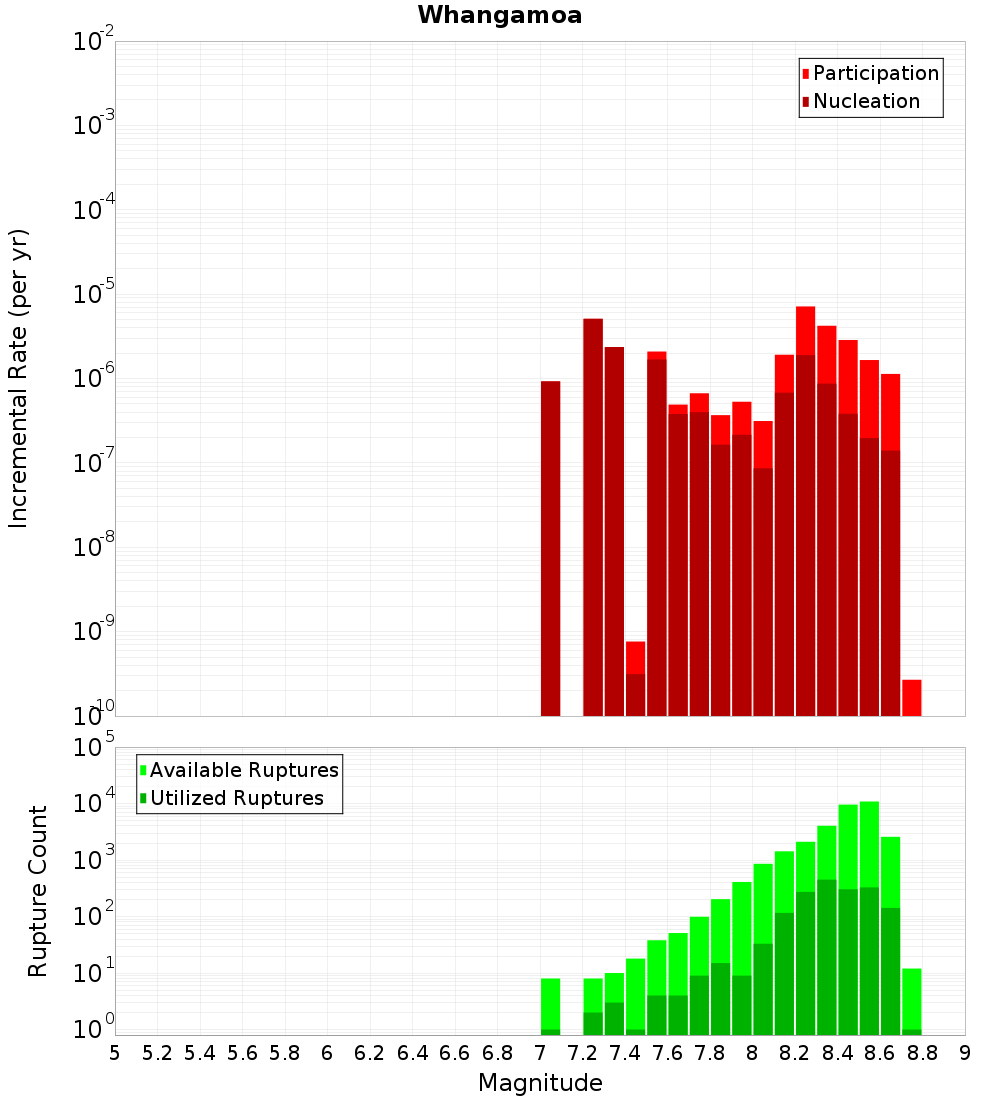

Magnitude-Frequency Distribution

Incremental	Cumulative

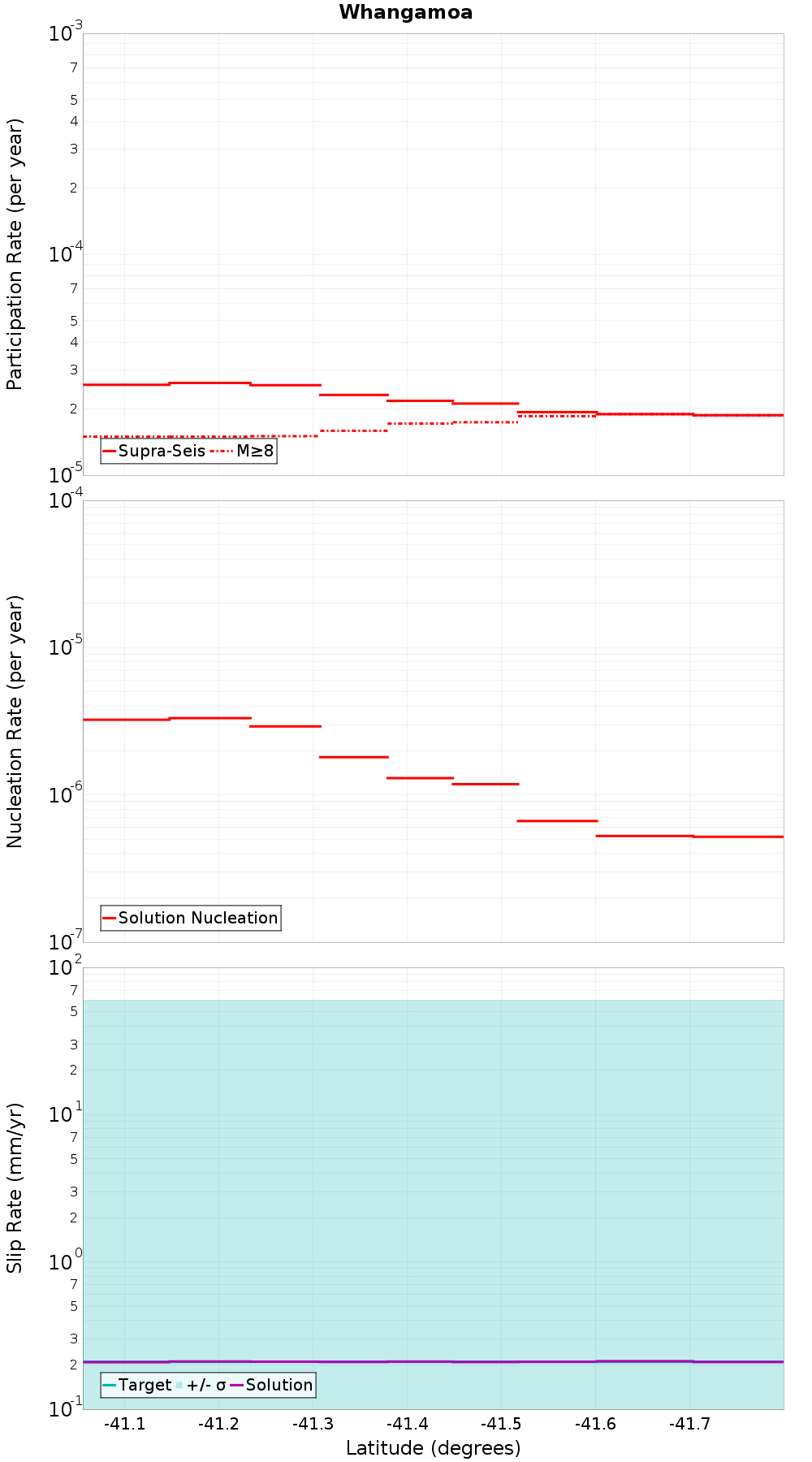

Along-Strike Values

Moment-Rates and b-Values

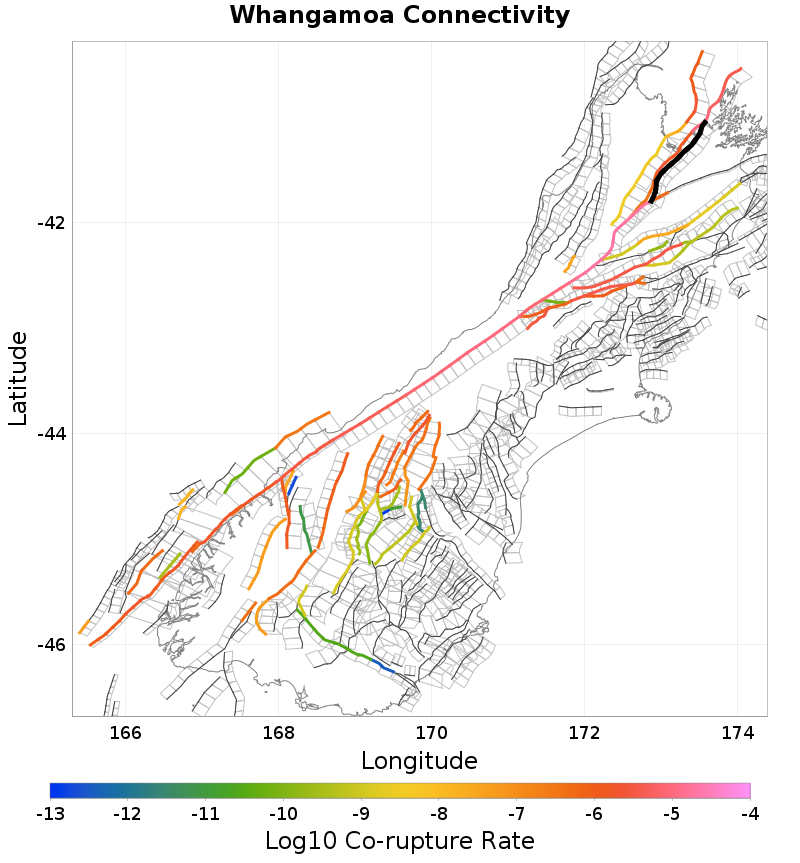

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Waimea Offshore, 0.82 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Surville, 14.06 km away
Tutaki, 14.86 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?	true
Directly Connected?	true
Co-rupture Count	31,470
Co-rupture Rate	1.9182675E-5

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?	true
Directly Connected?	true
Co-rupture Count	5,375
Co-rupture Rate	6.3151197E-7

Waimea Offshore, 0.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?	true
Directly Connected?	true
Co-rupture Count	12,245
Co-rupture Rate	9.01303E-6

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?	true
Directly Connected?	true
Co-rupture Count	4,716
Co-rupture Rate	2.4100611E-6

Surville, 14.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,882
Co-rupture Rate	2.4454614E-6

Tutaki, 14.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMDhKV3k1
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	2.937354E-9
