Campbell Hills Details

PropertyValue
Rupture Count112
Ruptures Above Sect Min Mag111
Ruptures w/ Nonzero Rates23
Magnitude Range[7.02, 8.04]
Length Range[20, 224] km
Total Rate1.2499326E-5 /yr
Multi-Fault Rate6.014469E-6 /yr (48.12%)
Directly-Connected Faults3
All Co-Rupturing Faults12

Table Of Contents

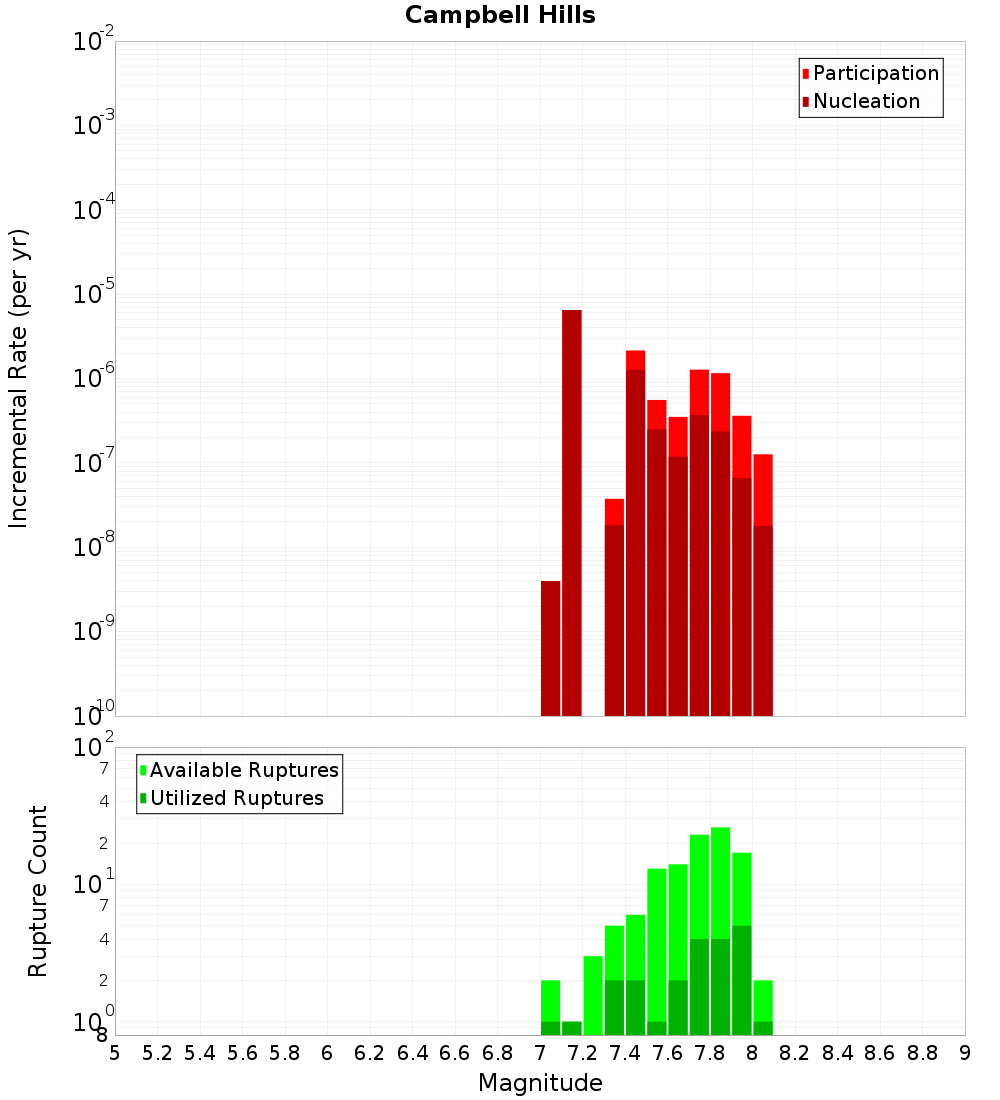

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

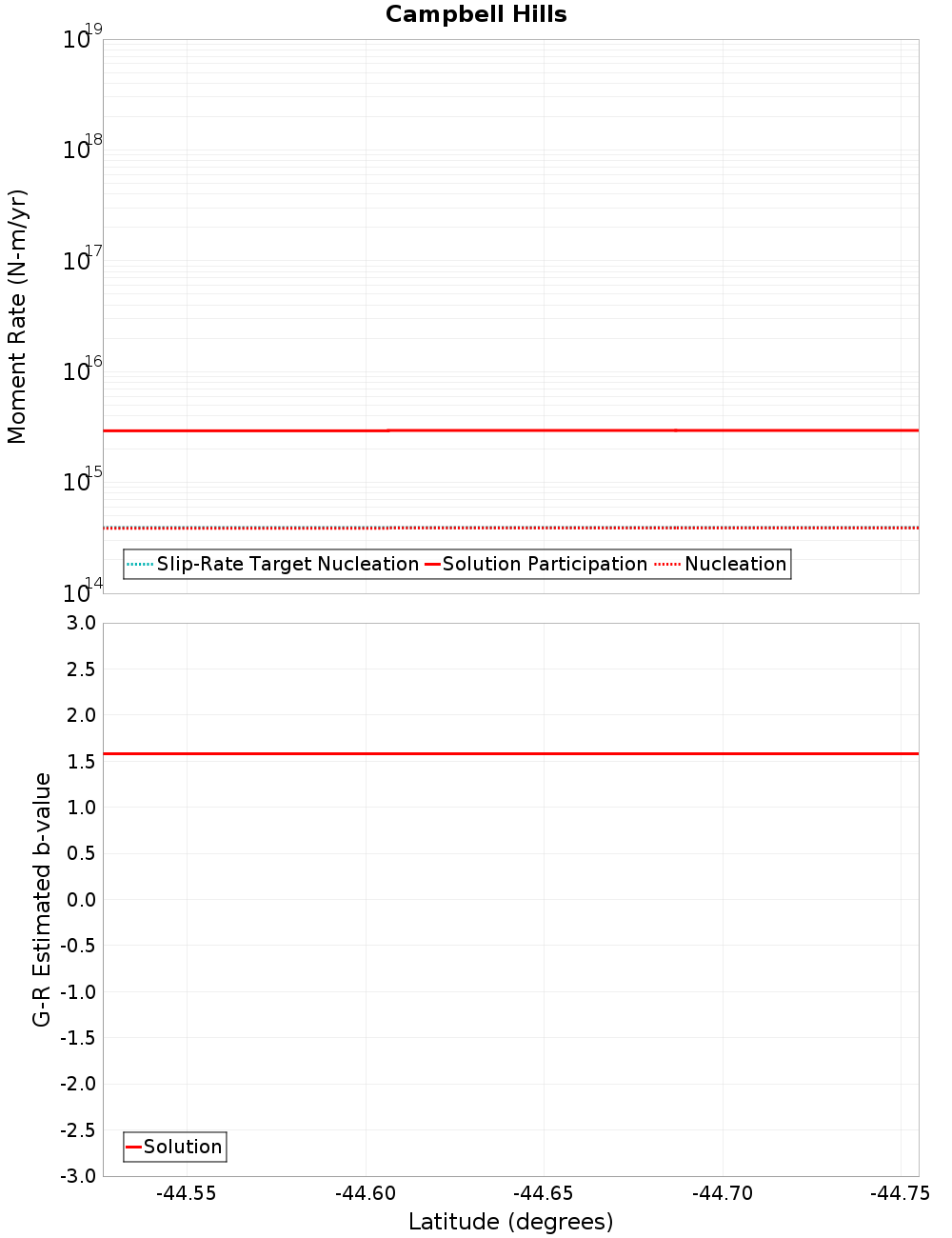

Moment-Rates and b-Values

(top)

Along-strike plot

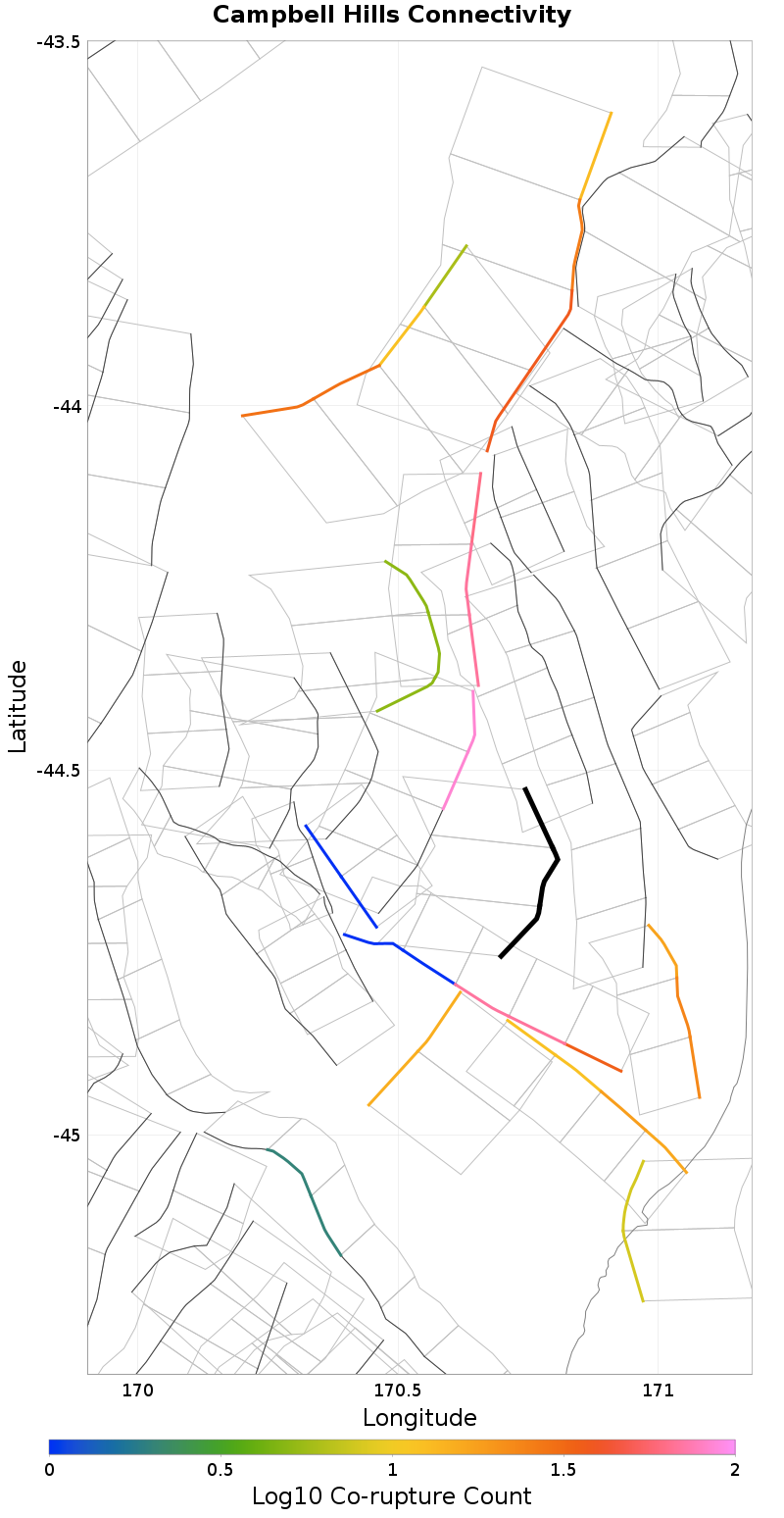

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dryburgh, 0.27 km away
Stonewall, 0.27 km away
Kirkliston, 6.26 km away
Middle Range, 6.3 km away
Black Hill, 7.16 km away
Chamberlain, 7.26 km away
Waitaki, 9.85 km away
Hunters, 11.24 km away
Fern Gully, 11.61 km away
Waitangi, 12.79 km away
Awahokomo, 13.6 km away
Dalgety, 13.77 km away
Waimate, 14.94 km away

Dryburgh, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Stonewall, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate3.9345161E-7

Kirkliston, 6.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate3.0043088E-6

Middle Range, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Black Hill, 7.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate5.3241433E-6

Chamberlain, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitaki, 9.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate3.9298902E-7

Hunters, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitangi, 12.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 13.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dalgety, 13.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate1.6462335E-6

Waimate, 14.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5NzYuMFk2WFZI
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate8.755792E-12
