Pylap Details

PropertyValue
Rupture Count3,020
Ruptures Above Sect Min Mag3,020
Ruptures w/ Nonzero Rates93
Magnitude Range[7.10, 8.31]
Length Range[24, 353] km
Total Rate8.693681E-6 /yr
Multi-Fault Rate8.693681E-6 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults43

Table Of Contents

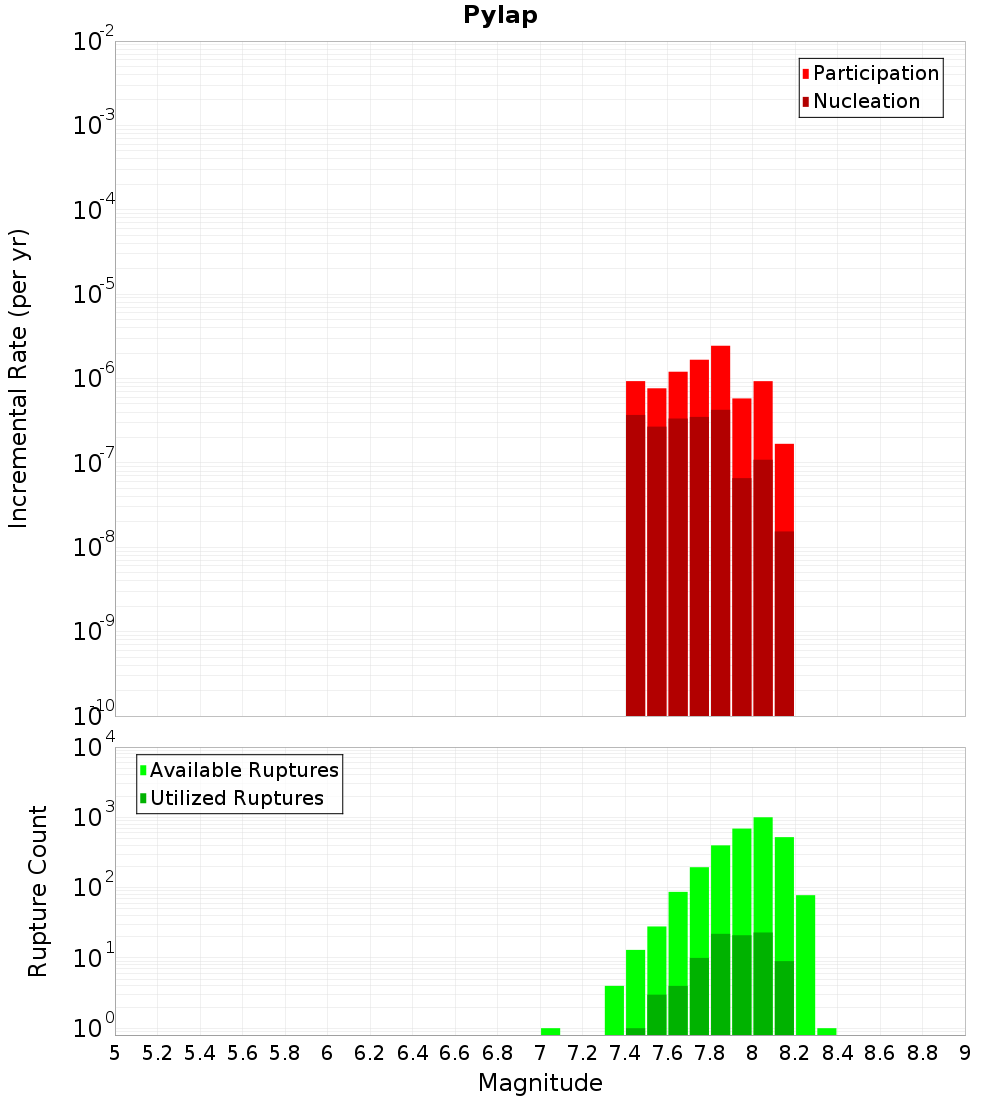

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

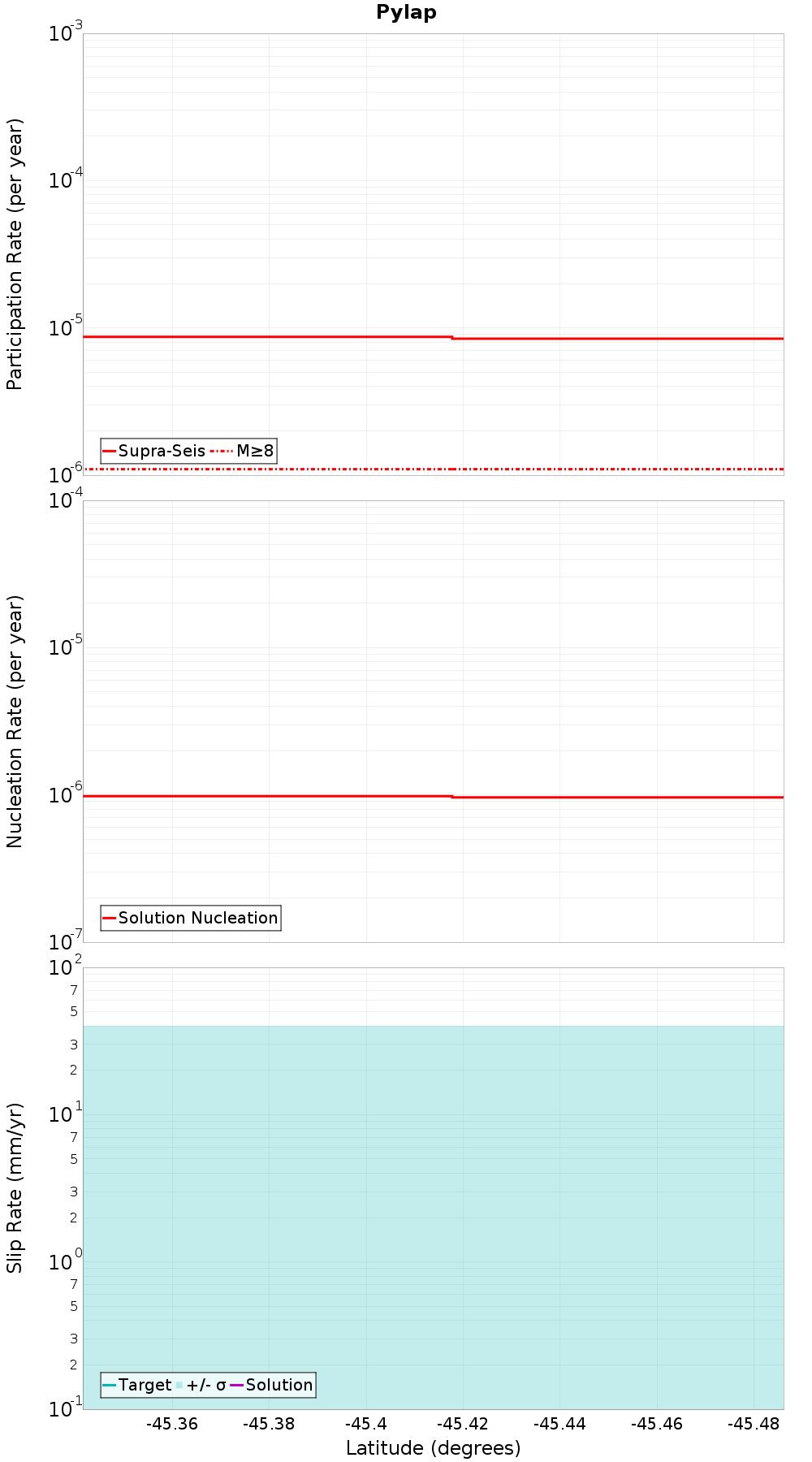

Along-Strike Values

(top)

Along-strike plot

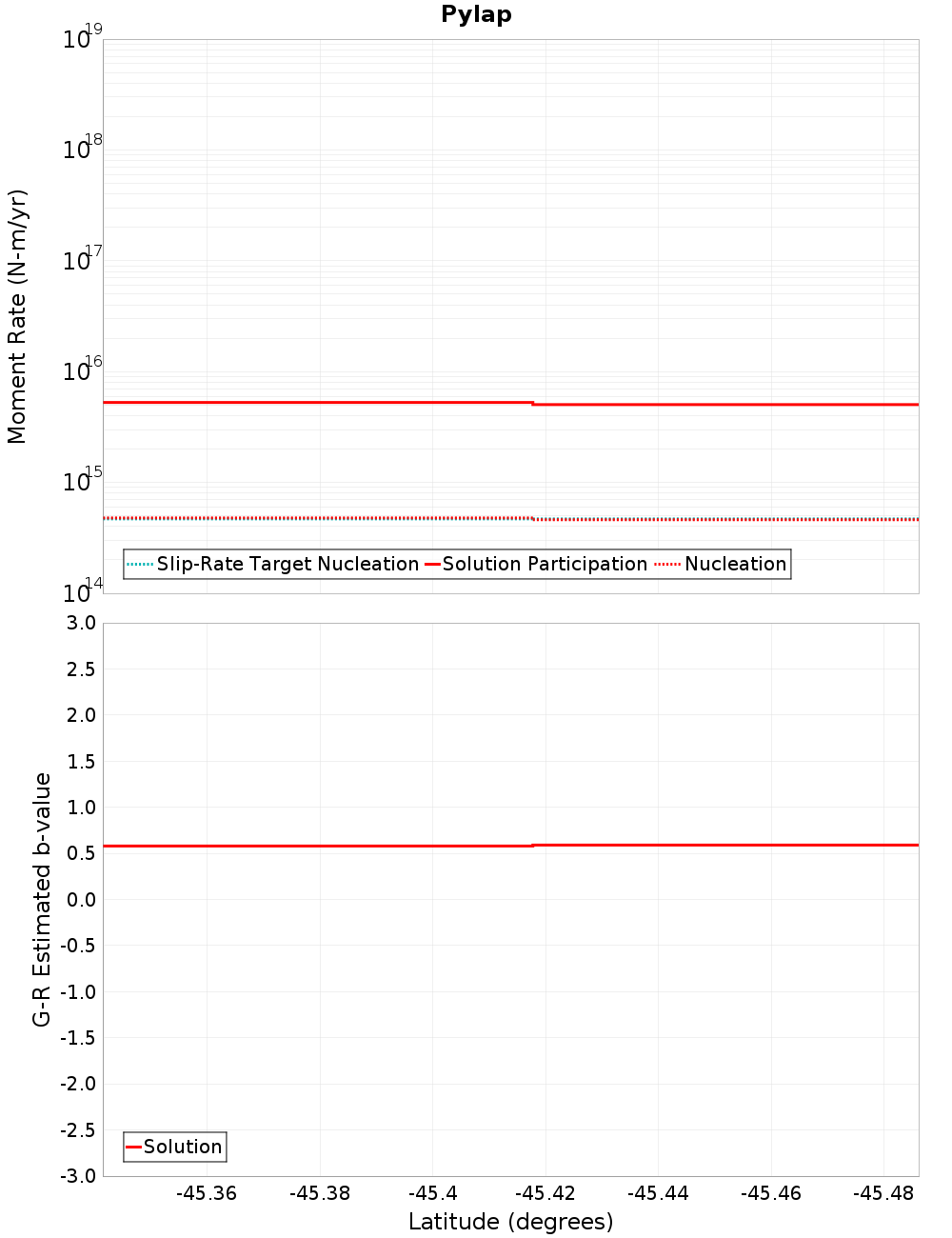

Moment-Rates and b-Values

(top)

Along-strike plot

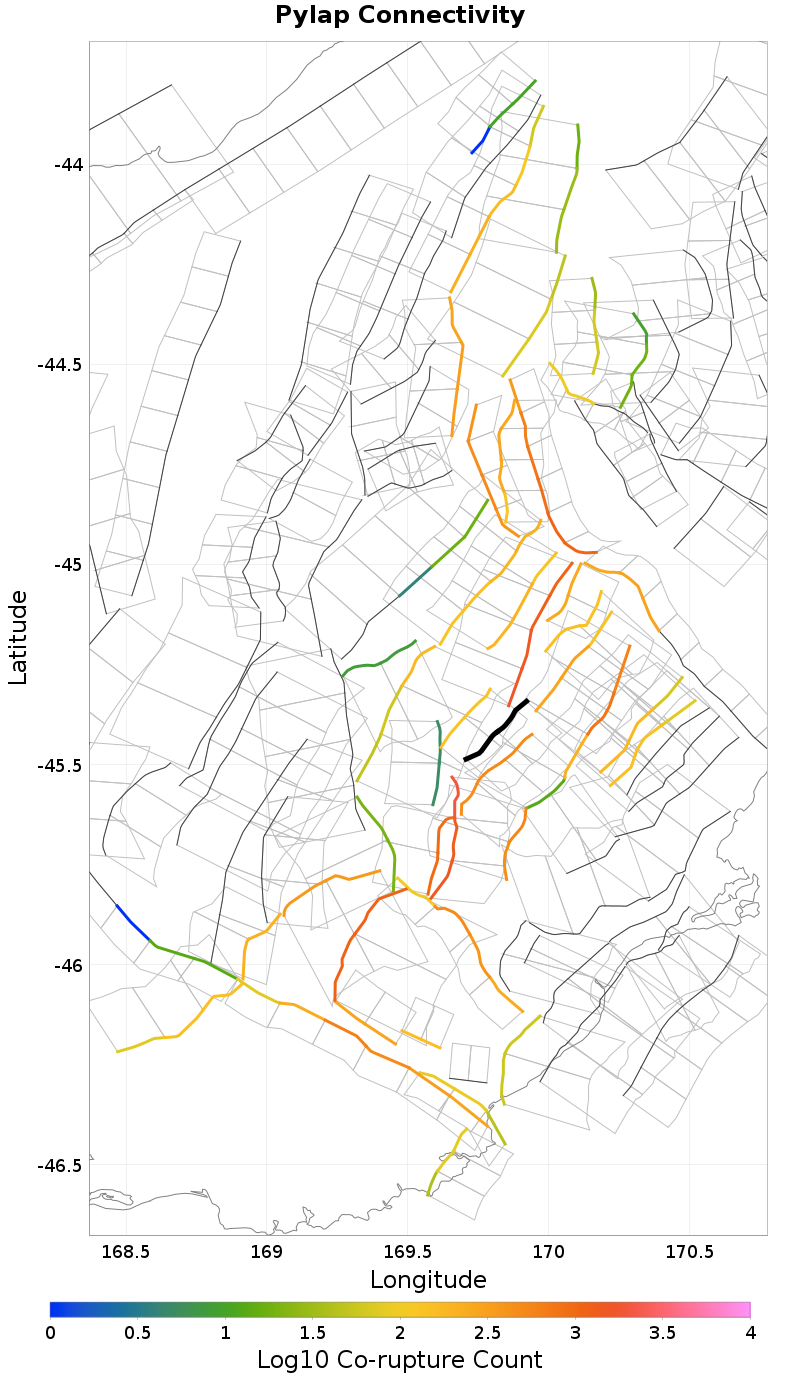

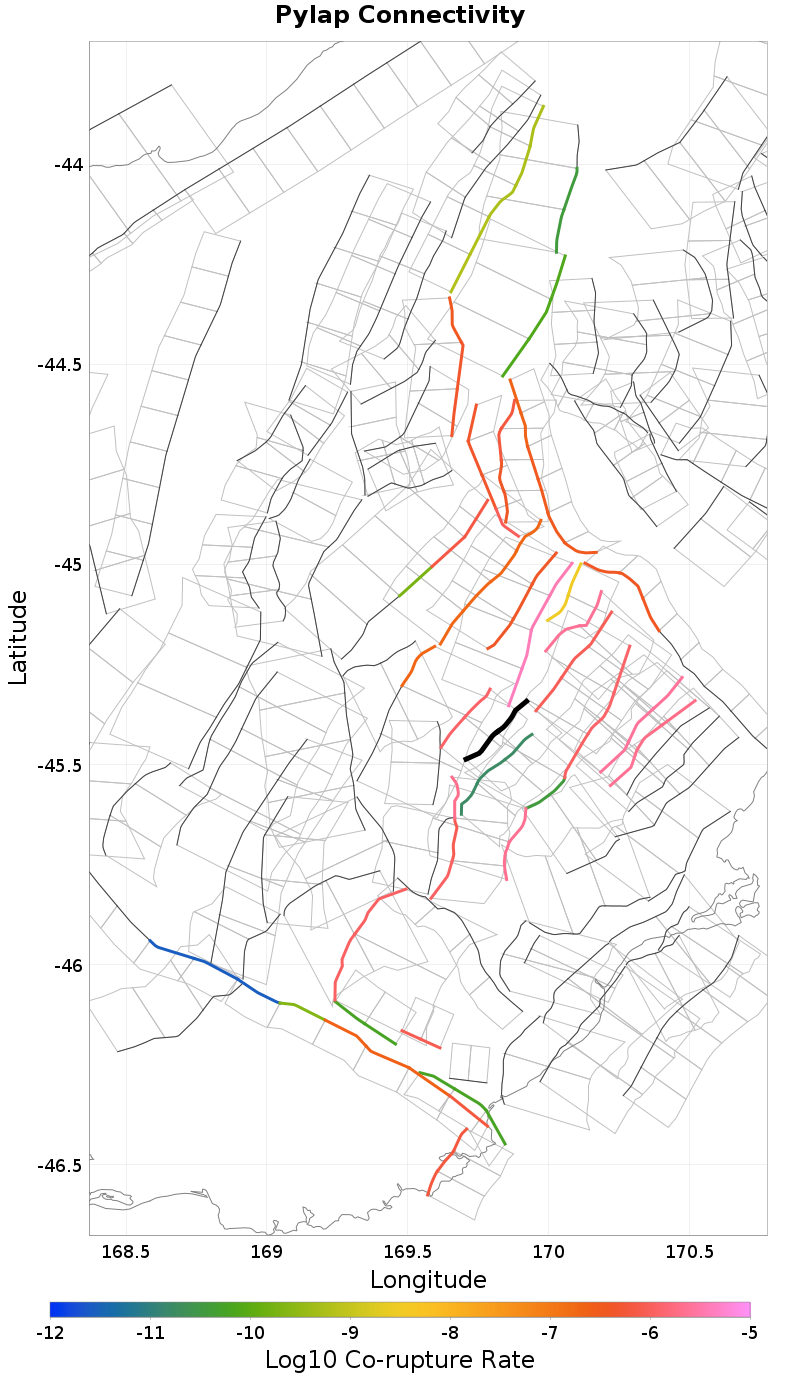

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hyde North, 0.03 km awayLong Valley, 6.52 km away
Beaumont River, 0.16 km awayNichols Rock, 6.94 km away
Horse Flat, 0.45 km awayLake Onslow, 7.26 km away
Gimmerburn, 2.27 km awayDunback Hill, 9.81 km away
Billys Ridge, 2.61 km awayLittle Valley, 11.66 km away
Waipiata, 3.22 km awayFlat Stream - Glenpark, 12.38 km away
Logan Burn, 4.69 km awayRanfurly, 13.83 km away
Hyde South - The Twins, 4.96 km awayMaungatua - North Taieri, 14.96 km away
Murphys Creek, 6.31 km away

Hyde North, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count817
Co-rupture Rate1.2194467E-6

Beaumont River, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count2,329
Co-rupture Rate2.2331603E-6

Horse Flat, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate2.541918E-6

Gimmerburn, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count1,692
Co-rupture Rate4.2405095E-6

Billys Ridge, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count154
Co-rupture Rate3.0283334E-6

Waipiata, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count302
Co-rupture Rate9.3059185E-7

Logan Burn, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate1.6836612E-11

Hyde South - The Twins, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?true
Co-rupture Count535
Co-rupture Rate2.2341756E-6

Murphys Creek, 6.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?false
Co-rupture Count134
Co-rupture Rate1.1969084E-6

Nichols Rock, 6.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lake Onslow, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Dunback Hill, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Little Valley, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?false
Co-rupture Count178
Co-rupture Rate1.9399647E-7

Flat Stream - Glenpark, 12.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ranfurly, 13.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?true
Directly Connected?false
Co-rupture Count148
Co-rupture Rate2.3728346E-6

Maungatua - North Taieri, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
