Waimea Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 14,387 |
| Ruptures Above Sect Min Mag | 14,384 |
| Ruptures w/ Nonzero Rates | 459 |
| Magnitude Range | [7.26, 8.72] |
| Length Range | [29, 976] km |
| Total Rate | 4.0282284E-5 /yr |
| Multi-Fault Rate | 1.8688788E-5 /yr (46.39%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 101 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

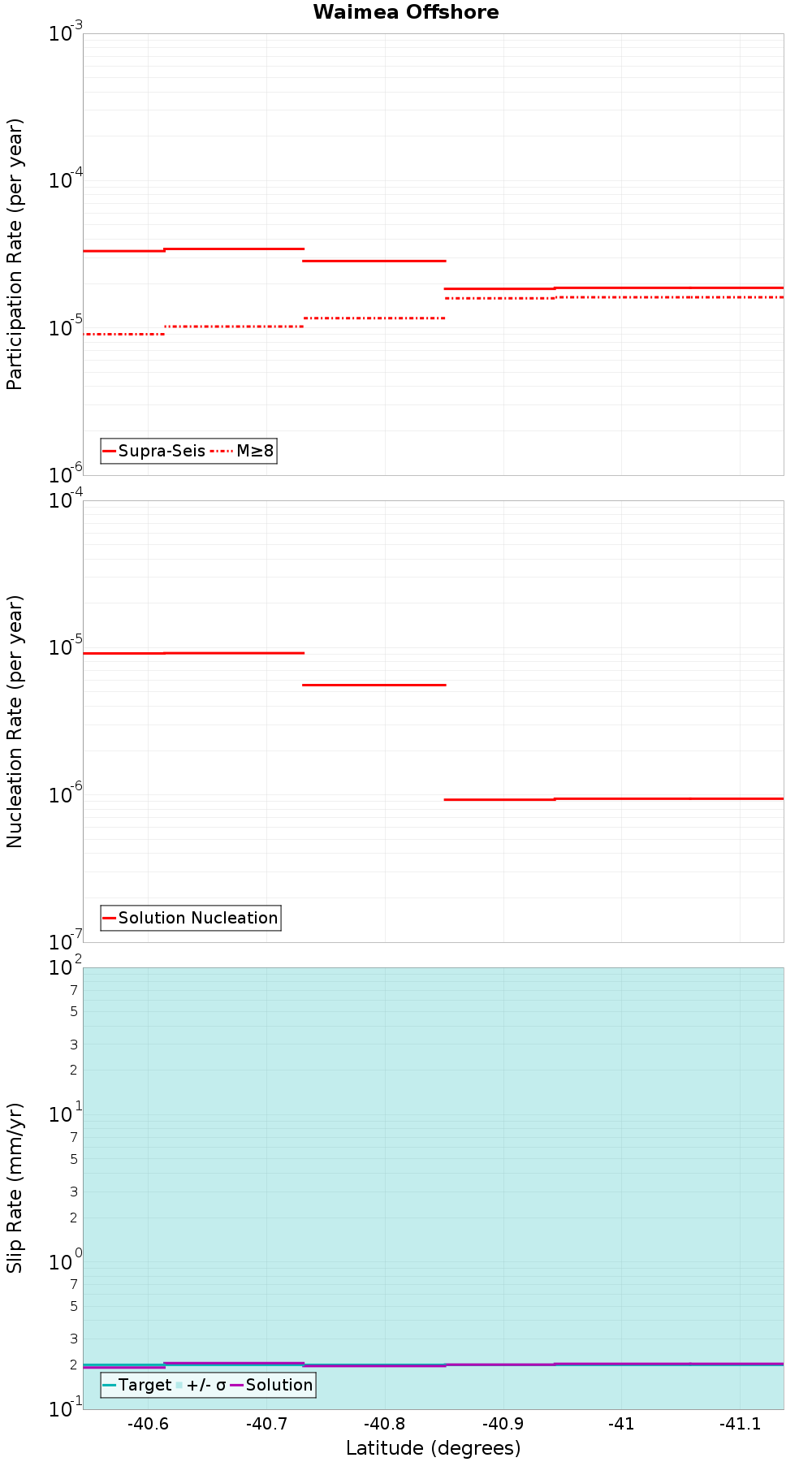

Along-Strike Values

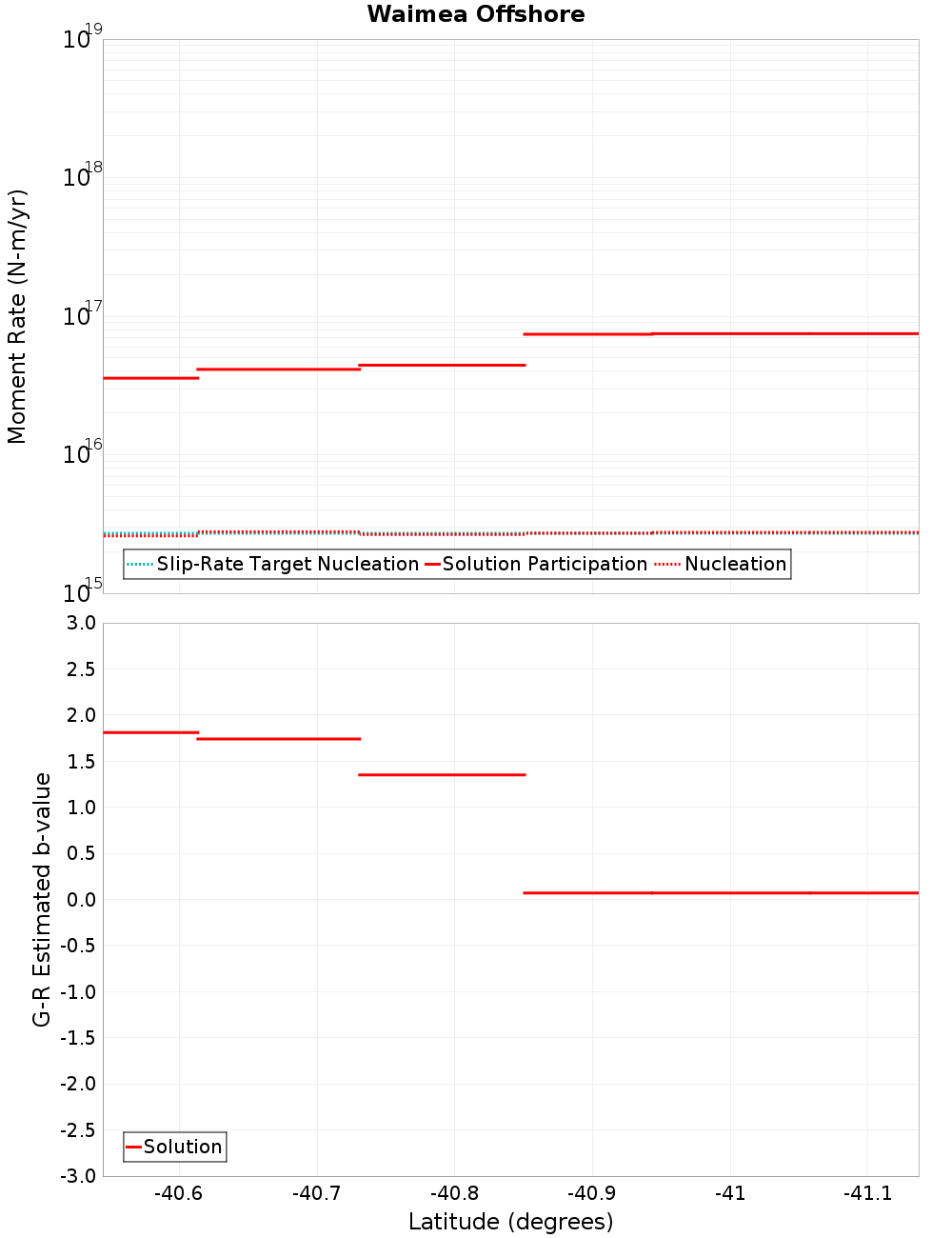

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Flaxmore - Waimea - Tahunanui, 0 km away |
| Whangamoa, 0.82 km away |
| Surville, 9.76 km away |
Flaxmore - Waimea - Tahunanui, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,756 |
| Co-rupture Rate | 1.14083105E-5 |
Whangamoa, 0.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12,245 |
| Co-rupture Rate | 9.142148E-6 |
Surville, 9.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODEuMEIzRXhB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 415 |
| Co-rupture Rate | 5.603419E-11 |
