Logan Burn Details

Property	Value
Rupture Count	2,047
Ruptures Above Sect Min Mag	2,046
Ruptures w/ Nonzero Rates	148
Magnitude Range	[7.06, 8.25]
Length Range	[21, 316] km
Total Rate	8.550188E-6 /yr
Multi-Fault Rate	8.550188E-6 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	42

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

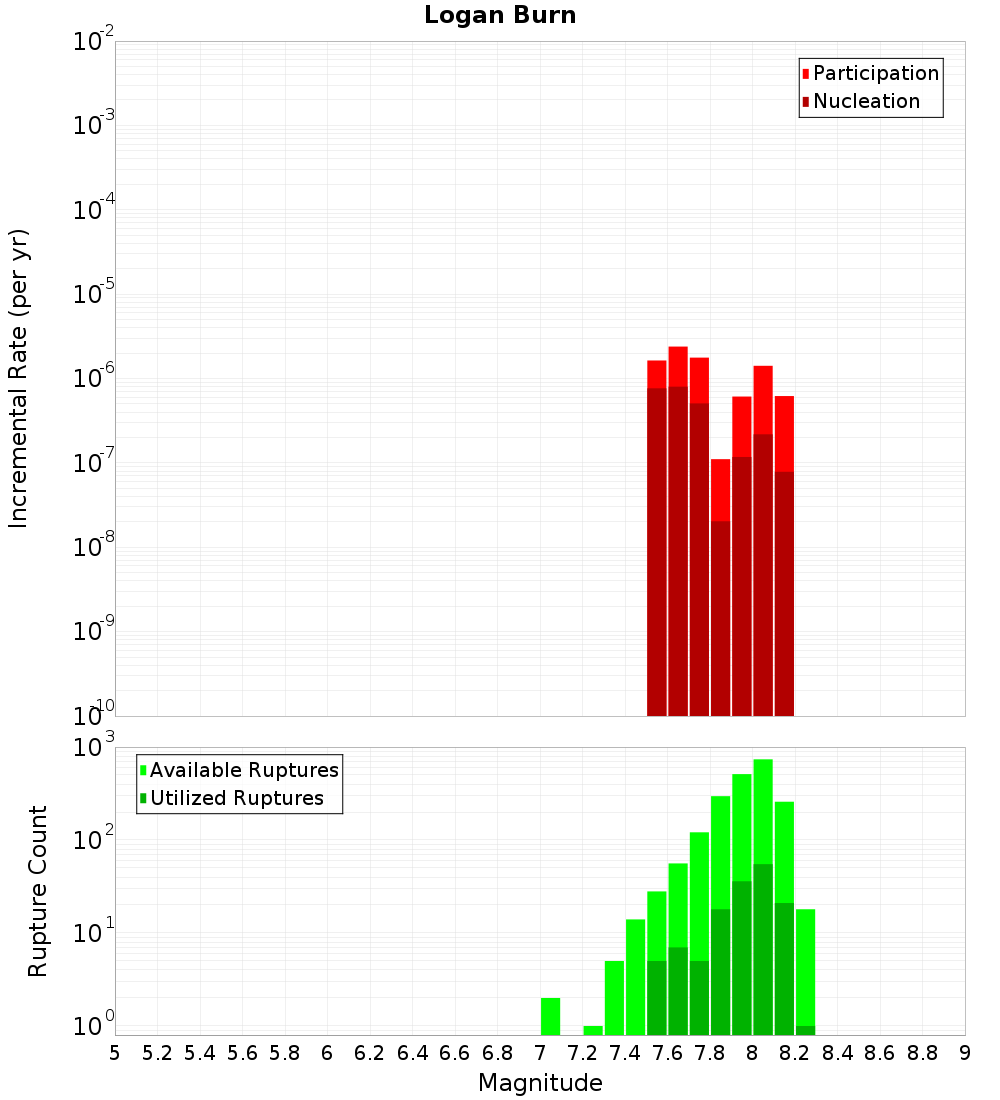

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

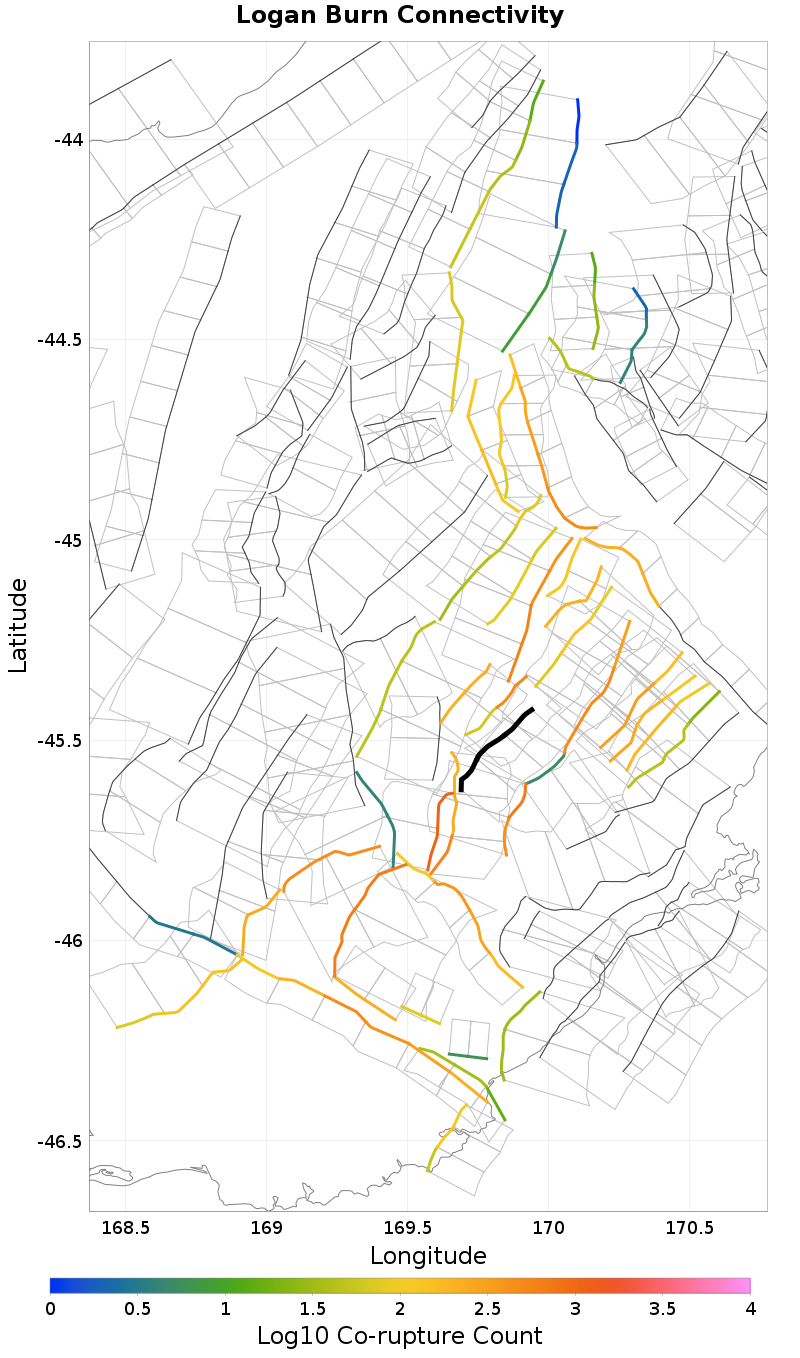

Connectivity

Nearby Sections

Fault Section	Fault Section
Hyde North, 0.07 km away	Horse Flat, 3.91 km away
Beaumont River, 0.16 km away	Murphys Creek, 4.58 km away
Hyde South - The Twins, 0.19 km away	Pylap, 4.69 km away
Maungatua - North Taieri, 0.95 km away	Waipiata, 6.25 km away
Nichols Rock, 1.4 km away	Flat Stream - Glenpark, 6.4 km away
Backbone, 2.62 km away	Lake Onslow, 7.67 km away
Dunback Hill, 3.59 km away	Gimmerburn, 10.21 km away
Billys Ridge, 3.75 km away	Long Valley, 12.01 km away

Hyde North, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	492
Co-rupture Rate	2.6392594E-17

Beaumont River, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	557
Co-rupture Rate	8.202361E-7

Hyde South - The Twins, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	699
Co-rupture Rate	3.2084836E-6

Maungatua - North Taieri, 0.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Nichols Rock, 1.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Backbone, 2.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	1,151
Co-rupture Rate	1.8280213E-6

Dunback Hill, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	8.103692E-7

Billys Ridge, 3.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	270
Co-rupture Rate	3.864999E-6

Horse Flat, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	324
Co-rupture Rate	3.4791578E-6

Murphys Creek, 4.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	1.3223762E-6

Pylap, 4.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	true
Co-rupture Count	498
Co-rupture Rate	5.5833255E-11

Waipiata, 6.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	false
Co-rupture Count	137
Co-rupture Rate	1.4242706E-10

Flat Stream - Glenpark, 6.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lake Onslow, 7.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gimmerburn, 10.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	false
Co-rupture Count	589
Co-rupture Rate	5.48375E-8

Long Valley, 12.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMFBuVlVL
Connected?	true
Directly Connected?	false
Co-rupture Count	218
Co-rupture Rate	5.478167E-8
