Backbone Details

Property	Value
Rupture Count	8,788
Ruptures Above Sect Min Mag	8,788
Ruptures w/ Nonzero Rates	525
Magnitude Range	[7.17, 8.42]
Length Range	[24, 448] km
Total Rate	6.2658555E-6 /yr
Multi-Fault Rate	6.2658555E-6 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	60

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

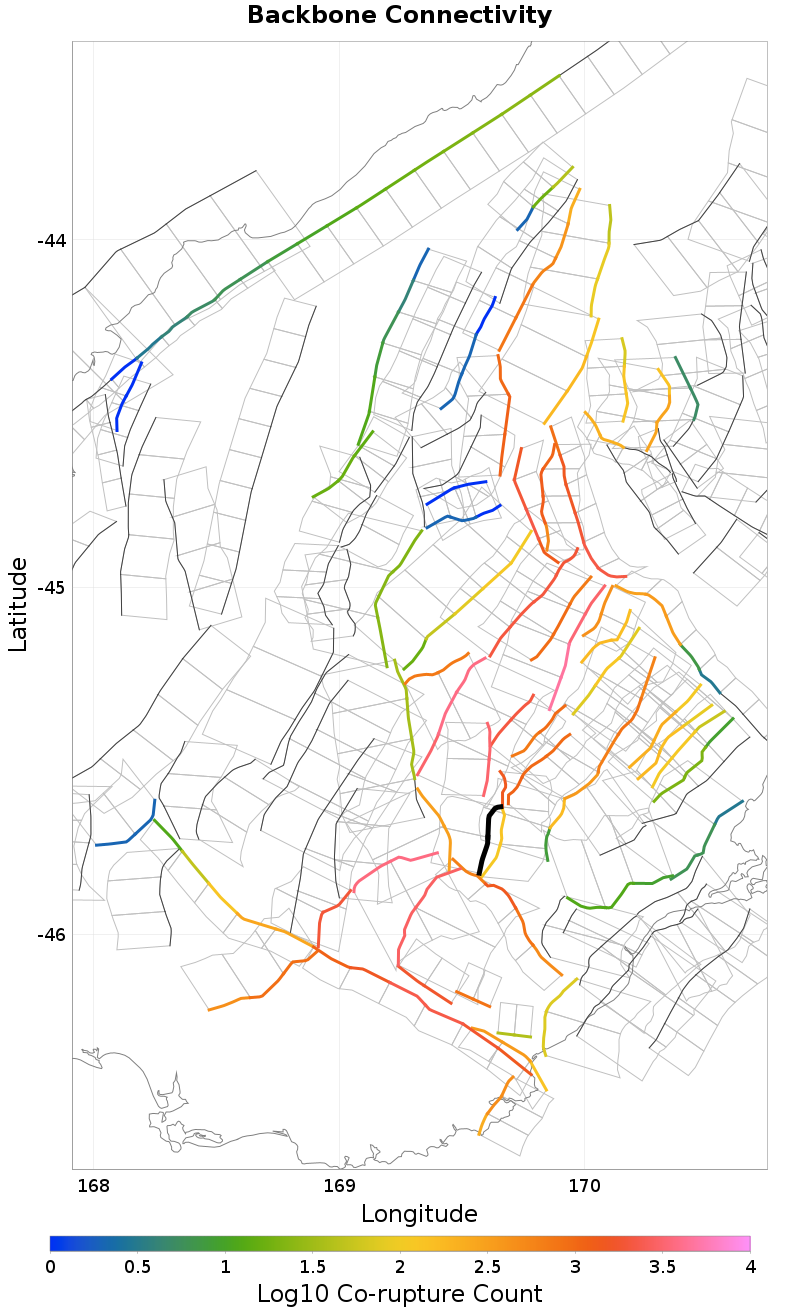

Connectivity
- Nearby Sections

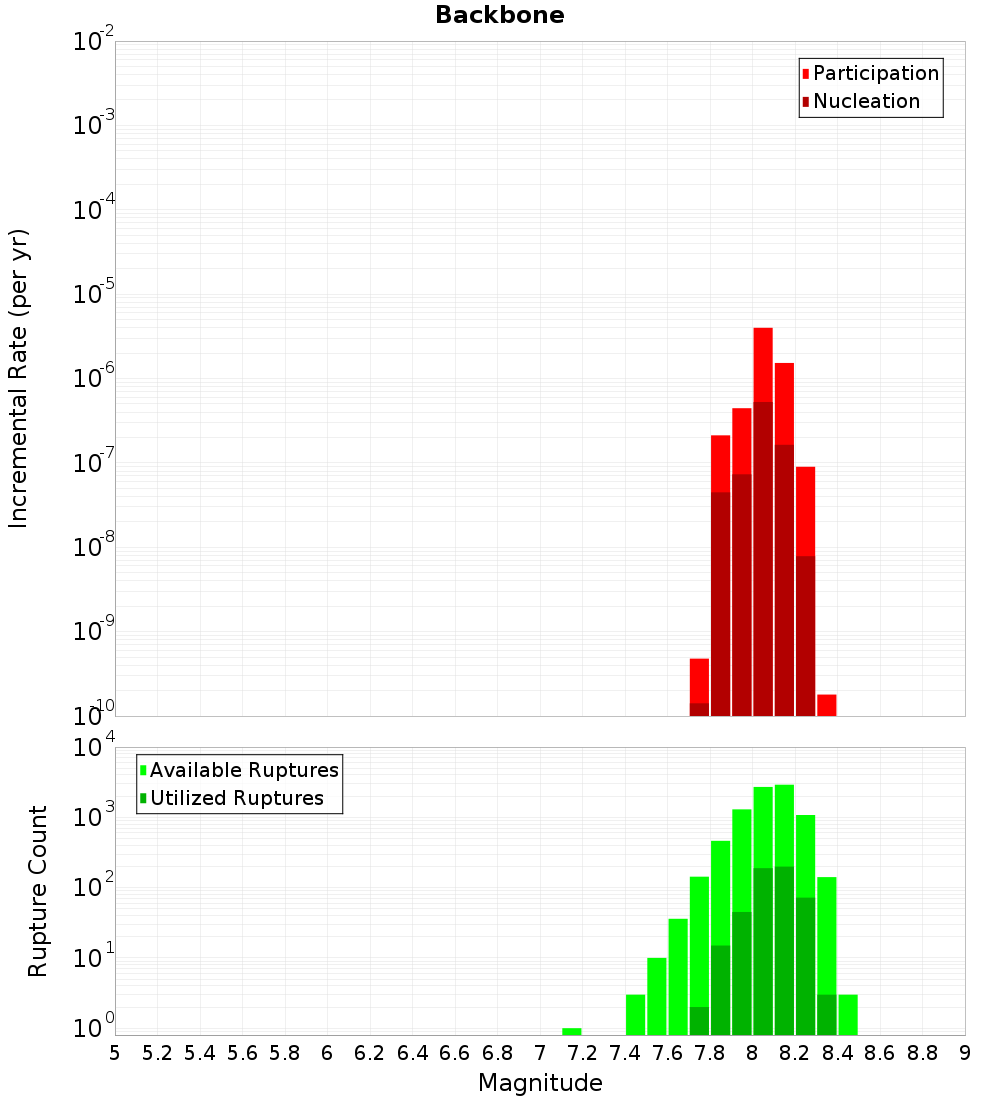

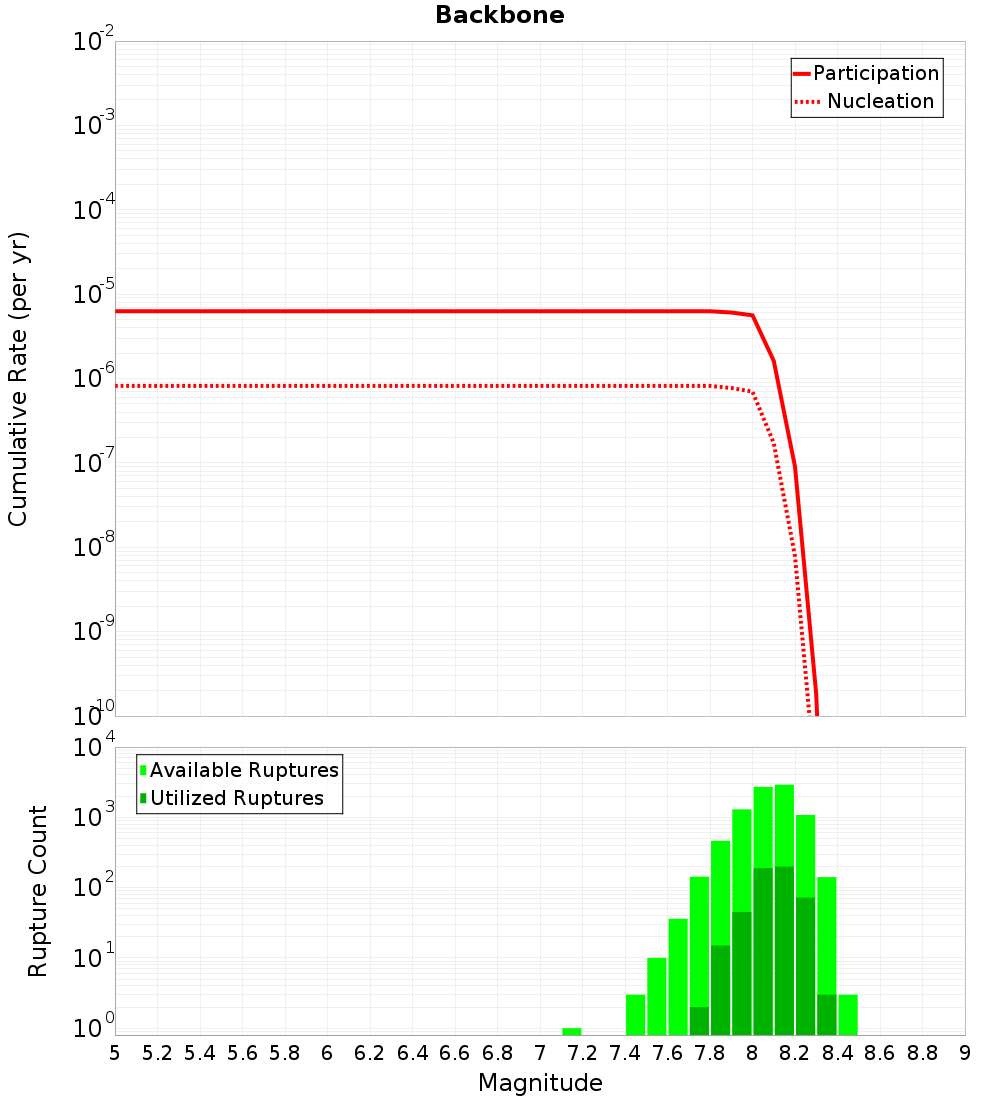

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Little Valley, 0.55 km away
Beaumont River, 0.6 km away
Blue Mountain, 1.02 km away
Tuapeka, 1.03 km away
Logan Burn, 2.62 km away
Lake Onslow, 3.64 km away
Spylaw, 4.47 km away
Hyde South - The Twins, 6.59 km away
Teviot, 8.3 km away
Wendon Valley, 10.78 km away
Waikaia, 14.16 km away

Little Valley, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	true
Co-rupture Count	4,556
Co-rupture Rate	2.249092E-6

Beaumont River, 0.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	true
Co-rupture Count	1,485
Co-rupture Rate	1.229868E-6

Blue Mountain, 1.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	true
Co-rupture Count	2,828
Co-rupture Rate	4.3231194E-6

Tuapeka, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	true
Co-rupture Count	1,429
Co-rupture Rate	1.6695125E-7

Logan Burn, 2.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	true
Co-rupture Count	1,151
Co-rupture Rate	1.518144E-6

Lake Onslow, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	true
Co-rupture Count	3,103
Co-rupture Rate	1.6489296E-6

Spylaw, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	true
Co-rupture Count	3,699
Co-rupture Rate	1.7753061E-6

Hyde South - The Twins, 6.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	false
Co-rupture Count	172
Co-rupture Rate	4.323079E-8

Teviot, 8.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	true
Directly Connected?	false
Co-rupture Count	320
Co-rupture Rate	0.0

Wendon Valley, 10.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaia, 14.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
