Riversdale Details

PropertyValue
Rupture Count1,919
Ruptures Above Sect Min Mag1,912
Ruptures w/ Nonzero Rates109
Magnitude Range[6.79, 8.33]
Length Range[16, 505] km
Total Rate9.997318E-4 /yr
Multi-Fault Rate9.997318E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults58

Table Of Contents

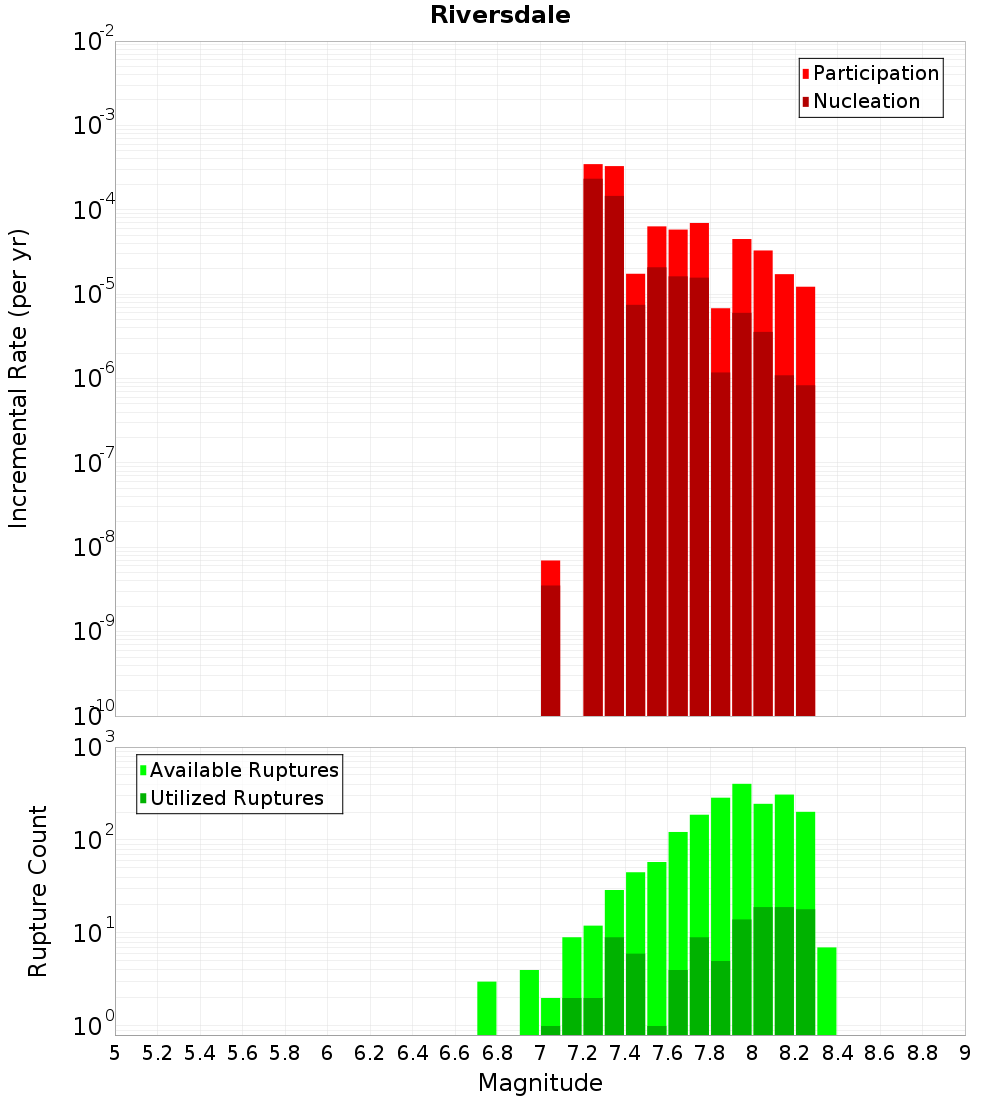

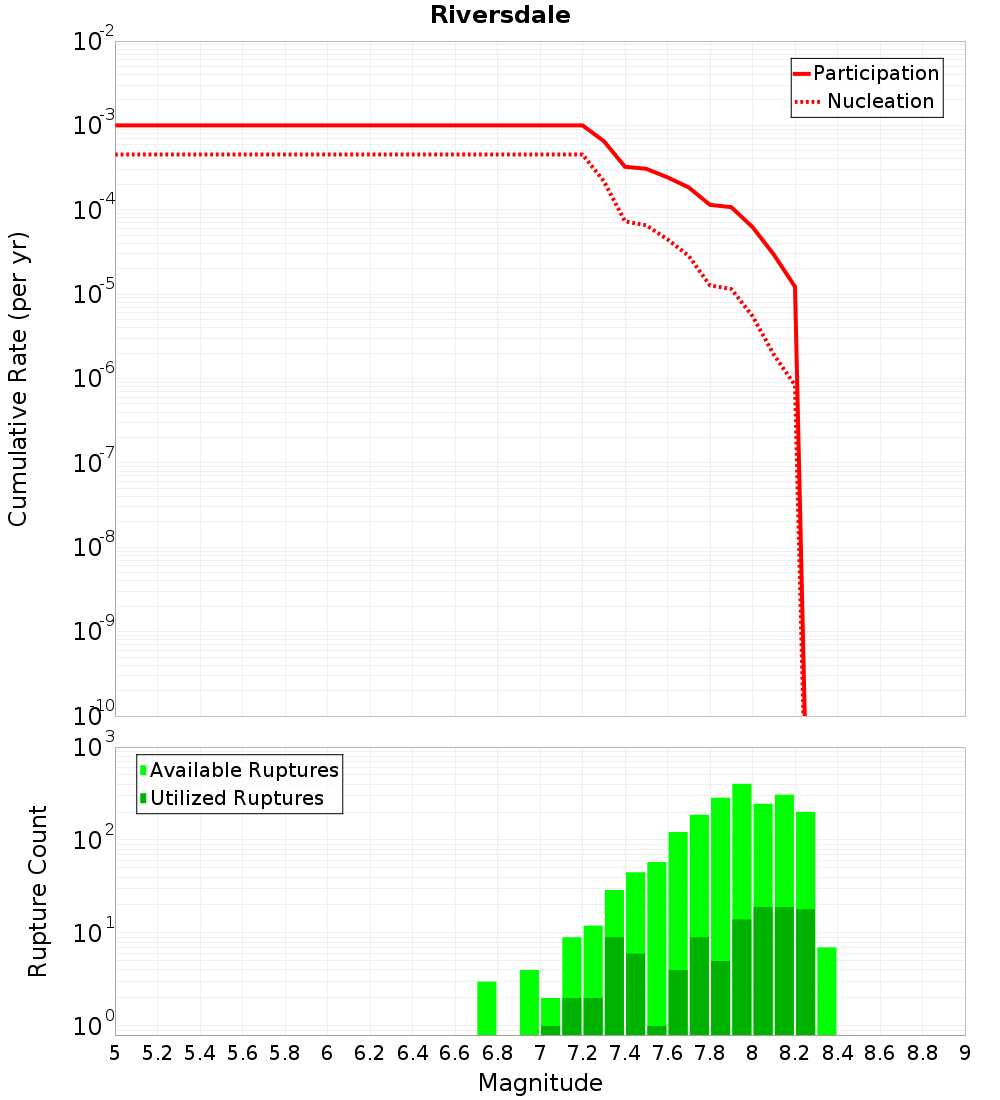

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

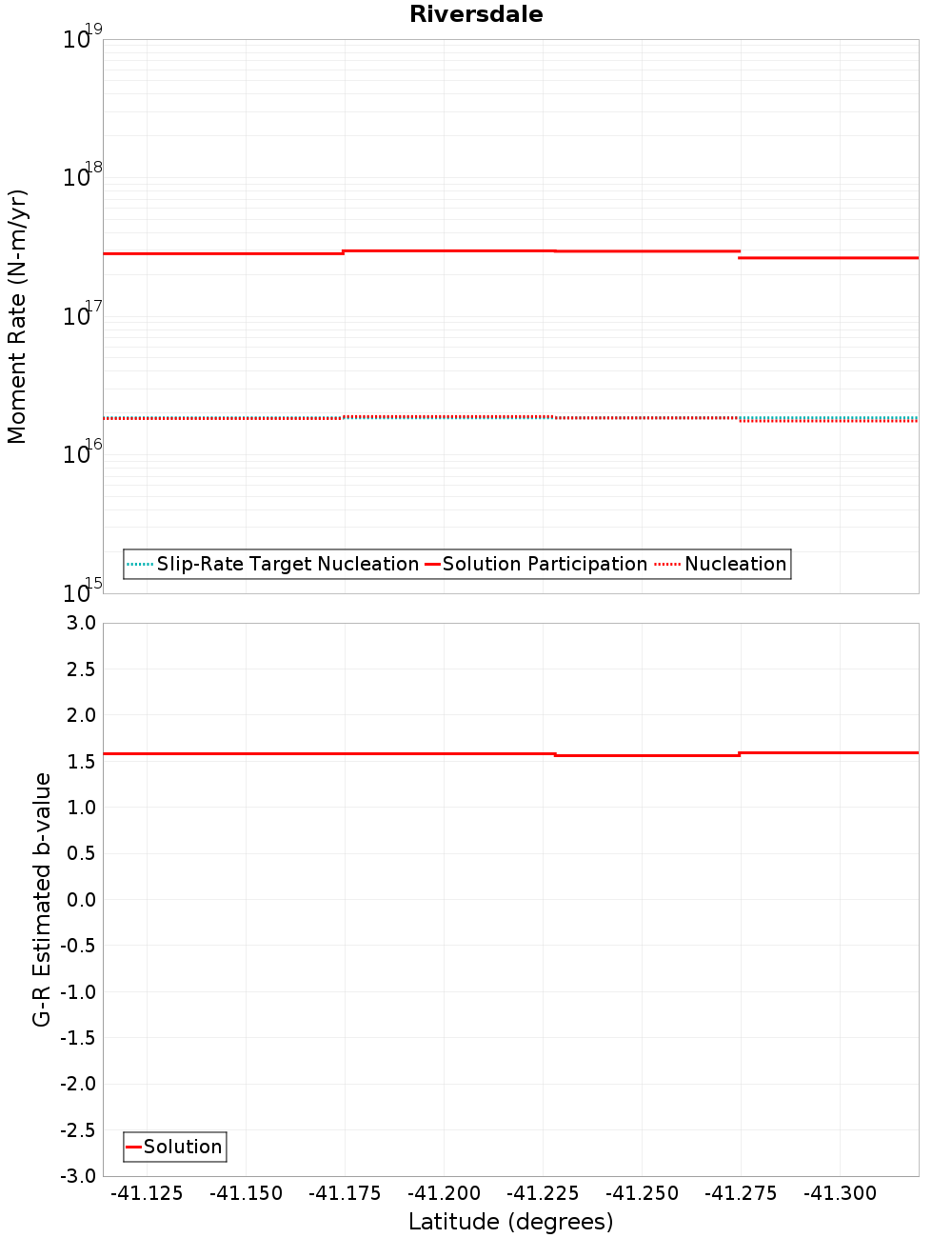

Moment-Rates and b-Values

(top)

Along-strike plot

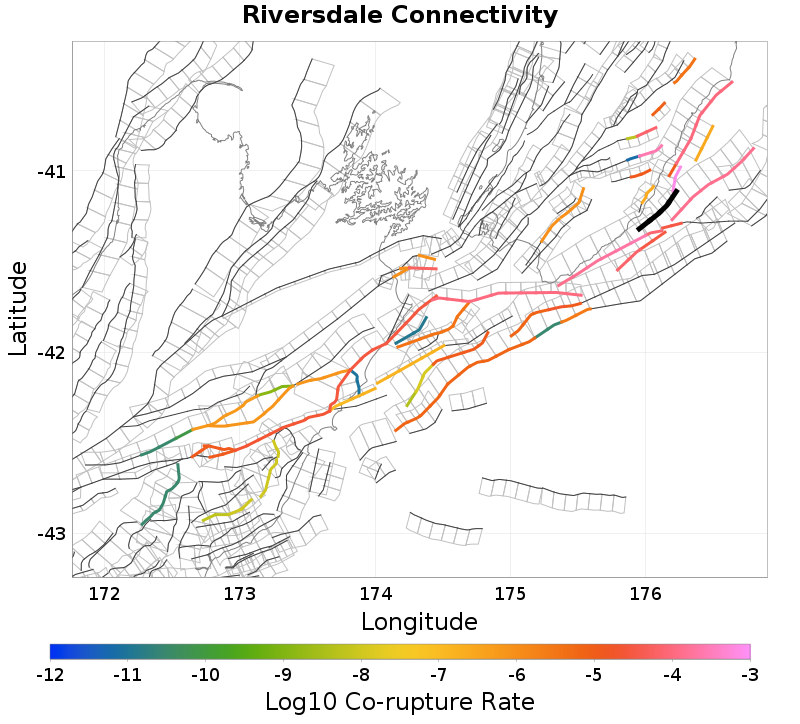

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Point, 0.2 km away
Riversdale North, 1.12 km away
Palliser - Kaiwhata, 3.25 km away
Whareama Bank, 5.42 km away
Mataikona, 6.53 km away
Honeycomb, 6.88 km away
Uruti Basin, 8.5 km away
Kaumingi, 9.84 km away
Carterton, 10.74 km away

Uruti Point, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?true
Co-rupture Count47
Co-rupture Rate2.3814485E-7

Riversdale North, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?true
Co-rupture Count803
Co-rupture Rate7.3976046E-4

Palliser - Kaiwhata, 3.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?true
Co-rupture Count1,798
Co-rupture Rate2.5672952E-4

Whareama Bank, 5.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate1.3676571E-4

Mataikona, 6.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?false
Co-rupture Count822
Co-rupture Rate1.0501345E-4

Honeycomb, 6.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate9.445471E-5

Uruti Basin, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate3.372133E-5

Kaumingi, 9.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?true
Co-rupture Count157
Co-rupture Rate1.1530084E-5

Carterton, 10.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate2.6038746E-4
