South Wedge 1 Details
| Property | Value |
|---|---|
| Rupture Count | 253 |
| Ruptures Above Sect Min Mag | 253 |
| Ruptures w/ Nonzero Rates | 70 |
| Magnitude Range | [7.32, 8.62] |
| Length Range | [32, 864] km |
| Total Rate | 6.5538785E-5 /yr |
| Multi-Fault Rate | 6.5538785E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 37 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

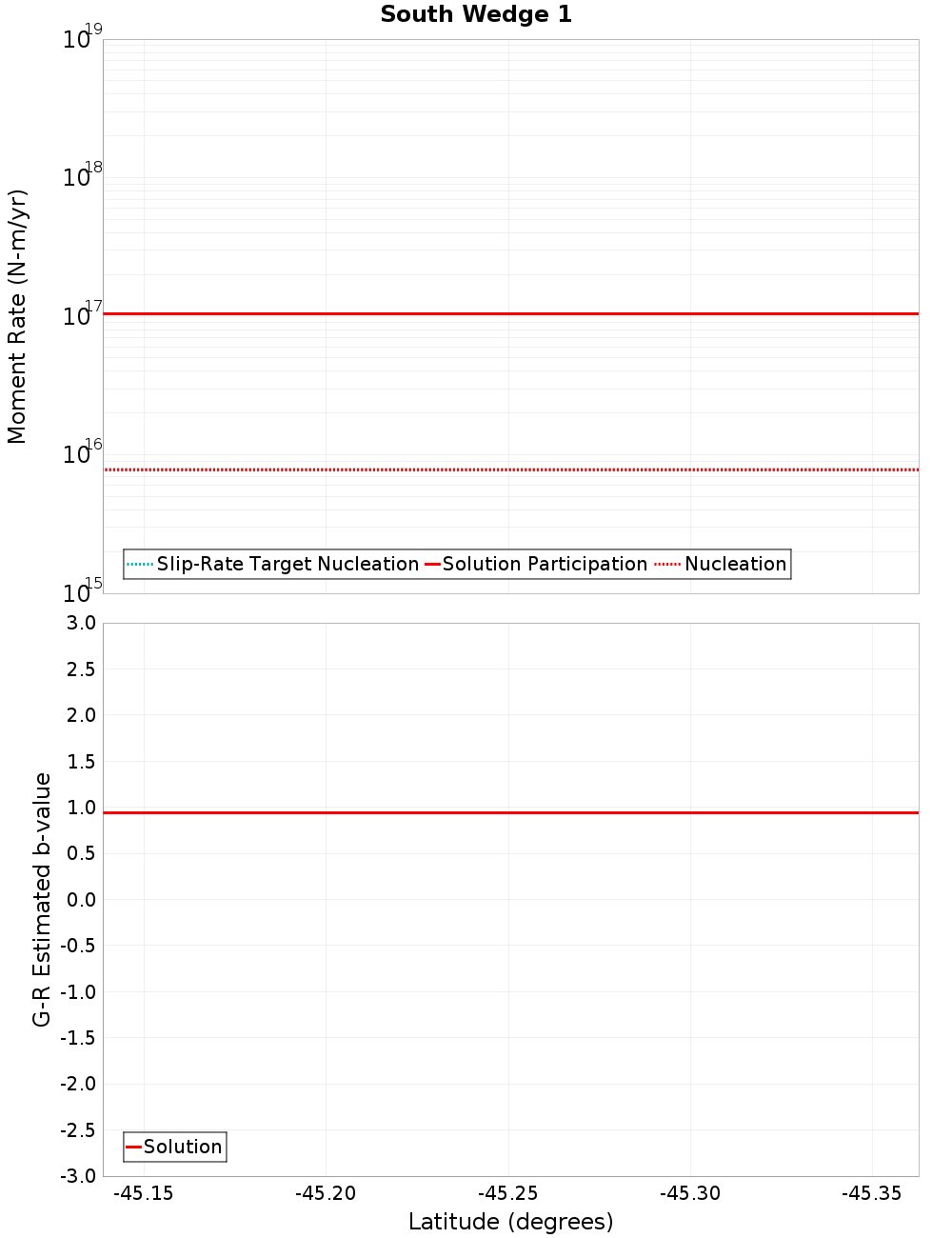

Moment-Rates and b-Values

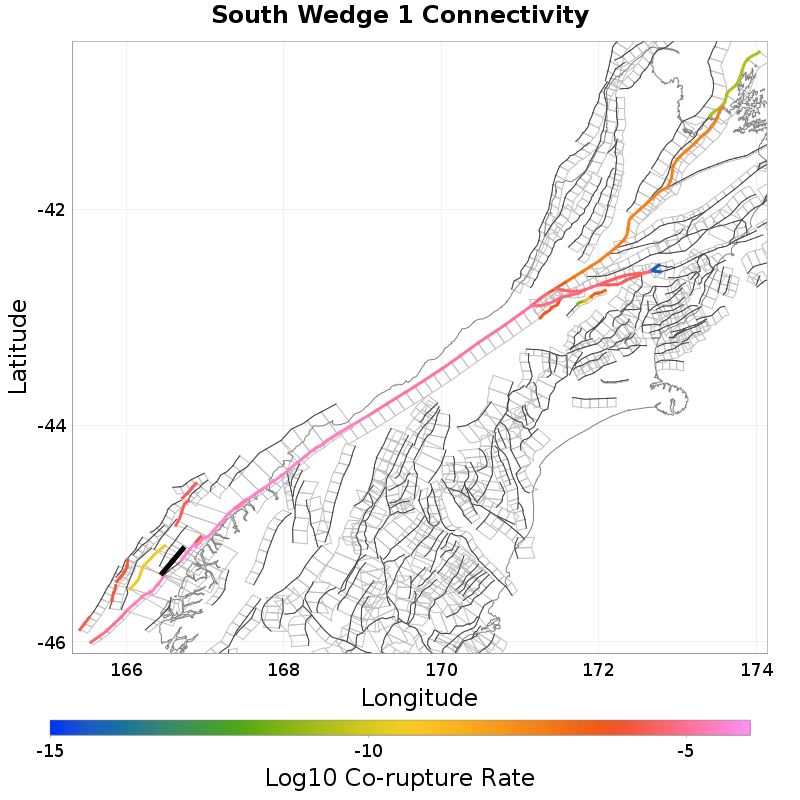

Connectivity
 |  |
|---|
Nearby Sections
South Wedge 2, 0.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
South Wedge 5, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Resolution - Dagg, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 251 |
| Co-rupture Rate | 6.553841E-5 |
South Wedge 3-6-10, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 3.818787E-10 |
Central Wedge 4 - South Wedge 411, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Nancy, 8.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 215 |
| Co-rupture Rate | 3.7092504E-5 |
Alpine: Resolution - Charles, 10.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODYuMHdONm5X | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.4123019E-6 |
