Waiotahi: North Details

PropertyValue
Rupture Count7
Ruptures Above Sect Min Mag7
Ruptures w/ Nonzero Rates0
Magnitude Range[8.23, 8.31]
Length Range[352, 422] km
Total Rate0.0 /yr
Multi-Fault Rate0.0 /yr (NaN)
Directly-Connected Faults2
All Co-Rupturing Faults9

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

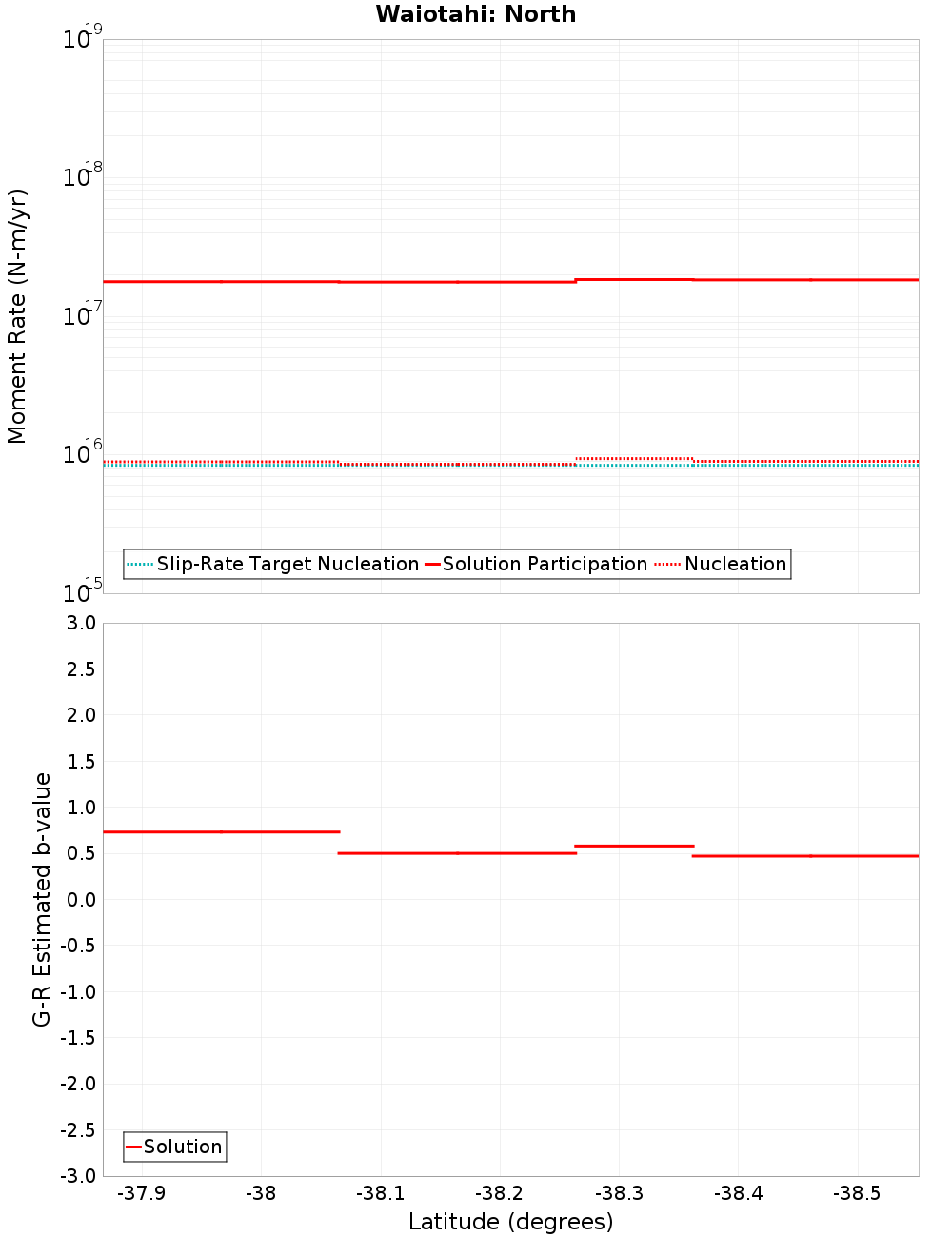

Moment-Rates and b-Values

(top)

Along-strike plot

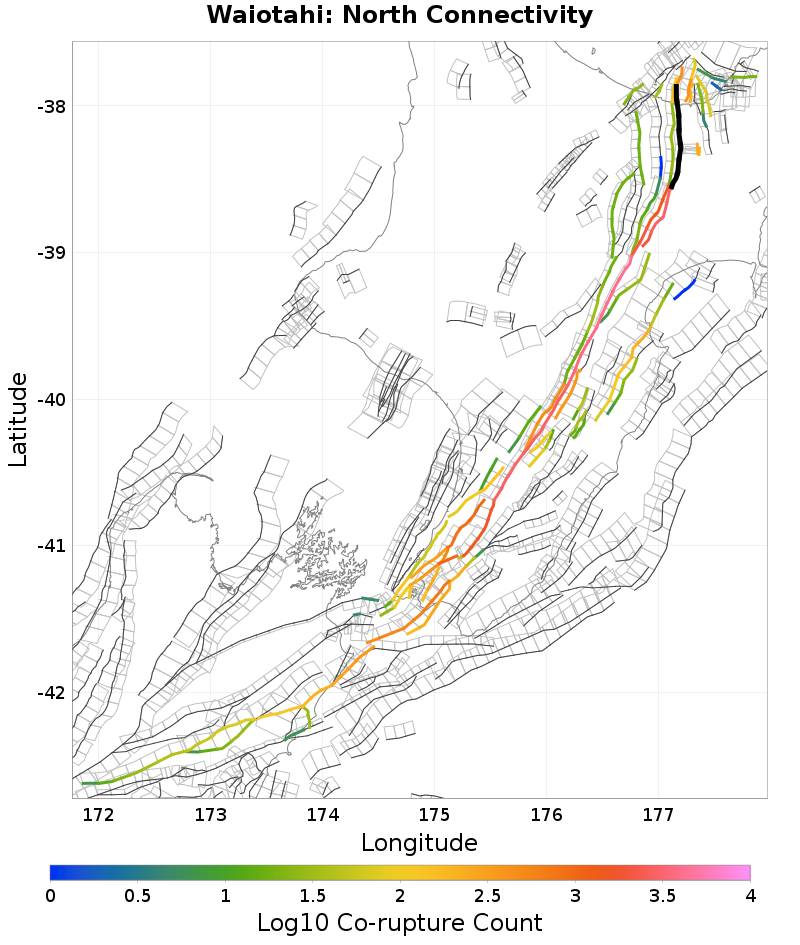

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiotahi: South, 0 km awayOpotiki 2, 10.14 km away
Waimanawa - Waikaremoana, 0.38 km awayWhakatane: North, 10.4 km away
Waimana: North, 1.8 km awayKeepa, 11.27 km away
Waimana: South, 2.4 km awayOhae 2, 12.28 km away
Opotiki 3, 3.94 km awayWhite Island 2, 12.85 km away
Wairata, 5.27 km awayTirohanga, 13.3 km away
Raukumara 9, 6.8 km awayRangitaiki 1, 13.71 km away
Ohae 1, 8.91 km awayOtakiri, 13.76 km away
White Island 1, 9.79 km awayOhiwa 1, 14.52 km away
Whakatane: South, 10.09 km awayRangitaiki 2, 14.87 km away

Waiotahi: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count2,893
Co-rupture Rate1.6129854E-4

Waimanawa - Waikaremoana, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count454
Co-rupture Rate1.2525829E-4

Waimana: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count157
Co-rupture Rate1.886085E-6

Waimana: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count2,202
Co-rupture Rate4.817797E-11

Opotiki 3, 3.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count411
Co-rupture Rate3.109049E-5

Wairata, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count239
Co-rupture Rate3.940959E-5

Raukumara 9, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count196
Co-rupture Rate3.3694423E-13

Ohae 1, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: South, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate2.7405433E-5

Opotiki 2, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?true
Co-rupture Count213
Co-rupture Rate2.1487329E-5

Whakatane: North, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.1640587E-5

Keepa, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate1.886085E-6

Ohae 2, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate7.271642E-6

White Island 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tirohanga, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 13.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5ODguMDdhZ29m
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
