Hope: Seaward Details

Property	Value
Rupture Count	13,726
Ruptures Above Sect Min Mag	13,721
Ruptures w/ Nonzero Rates	1,013
Magnitude Range	[6.72, 8.62]
Length Range	[16, 946] km
Total Rate	7.6888694E-4 /yr
Multi-Fault Rate	7.566135E-4 /yr (98.40%)
Directly-Connected Faults	4
All Co-Rupturing Faults	155

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

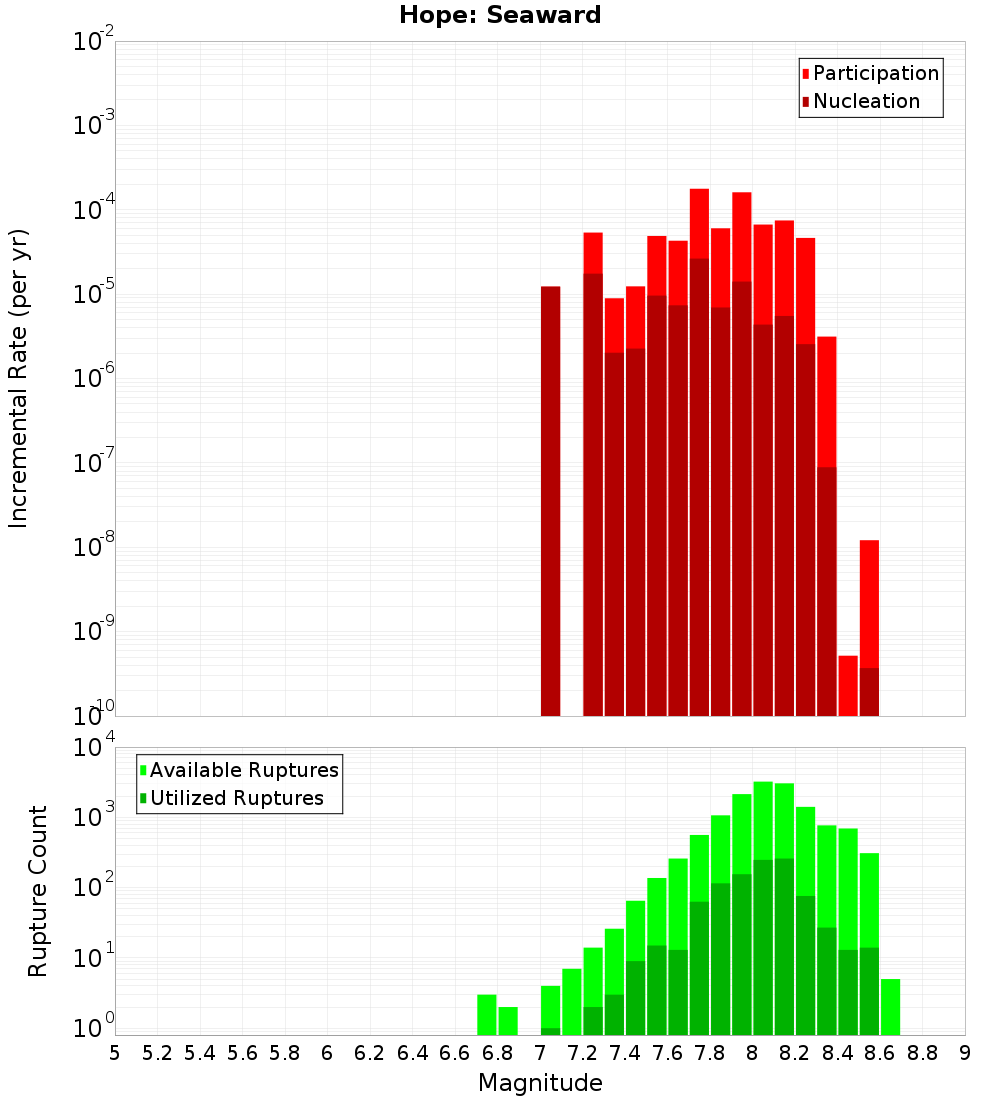

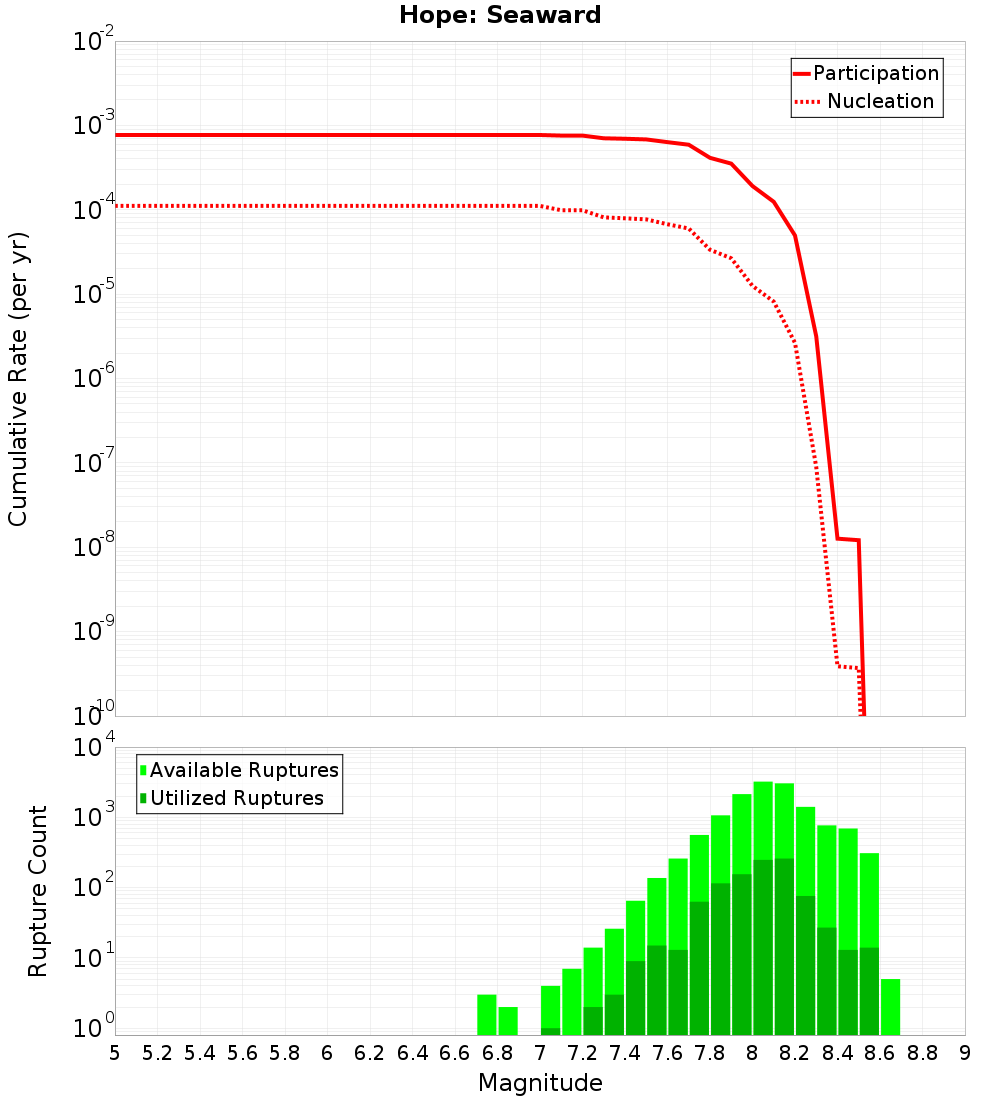

Magnitude-Frequency Distribution

Incremental	Cumulative

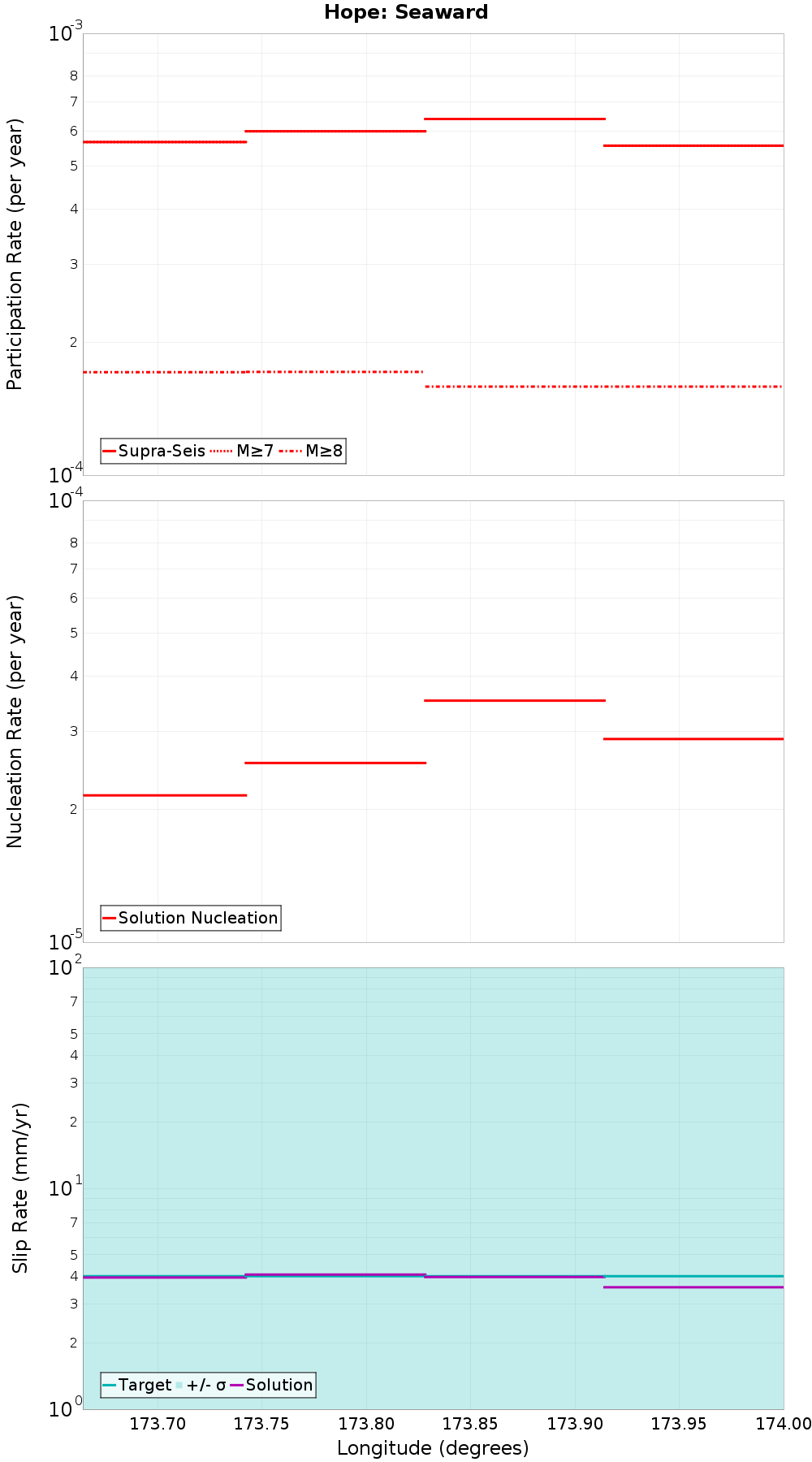

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hope: Conway, 0 km away
Jordan, 0 km away
Papatea, 0.03 km away
Kaikoura - Mangamaunu, 1.03 km away
Hope: Te Rapa, 3.47 km away
Upper Slope, 10.39 km away
Fidget, 13.67 km away

Hope: Conway, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTIuMDV6QTZQ
Connected?	true
Directly Connected?	true
Co-rupture Count	12,247
Co-rupture Rate	5.1982567E-4

Jordan, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTIuMDV6QTZQ
Connected?	true
Directly Connected?	false
Co-rupture Count	118
Co-rupture Rate	1.1574508E-4

Papatea, 0.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTIuMDV6QTZQ
Connected?	true
Directly Connected?	true
Co-rupture Count	3,358
Co-rupture Rate	1.3865286E-4

Kaikoura - Mangamaunu, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTIuMDV6QTZQ
Connected?	true
Directly Connected?	true
Co-rupture Count	19
Co-rupture Rate	1.173326E-4

Hope: Te Rapa, 3.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTIuMDV6QTZQ
Connected?	true
Directly Connected?	true
Co-rupture Count	9,186
Co-rupture Rate	4.303142E-4

Upper Slope, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTIuMDV6QTZQ
Connected?	true
Directly Connected?	false
Co-rupture Count	1,113
Co-rupture Rate	2.1856486E-5

Fidget, 13.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTIuMDV6QTZQ
Connected?	true
Directly Connected?	false
Co-rupture Count	14
Co-rupture Rate	0.0
