Acton Details
| Property | Value |
|---|---|
| Rupture Count | 4,435 |
| Ruptures Above Sect Min Mag | 4,434 |
| Ruptures w/ Nonzero Rates | 253 |
| Magnitude Range | [7.19, 8.72] |
| Length Range | [23, 963] km |
| Total Rate | 2.8923845E-5 /yr |
| Multi-Fault Rate | 2.8158494E-5 /yr (97.35%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 64 |
Table Of Contents

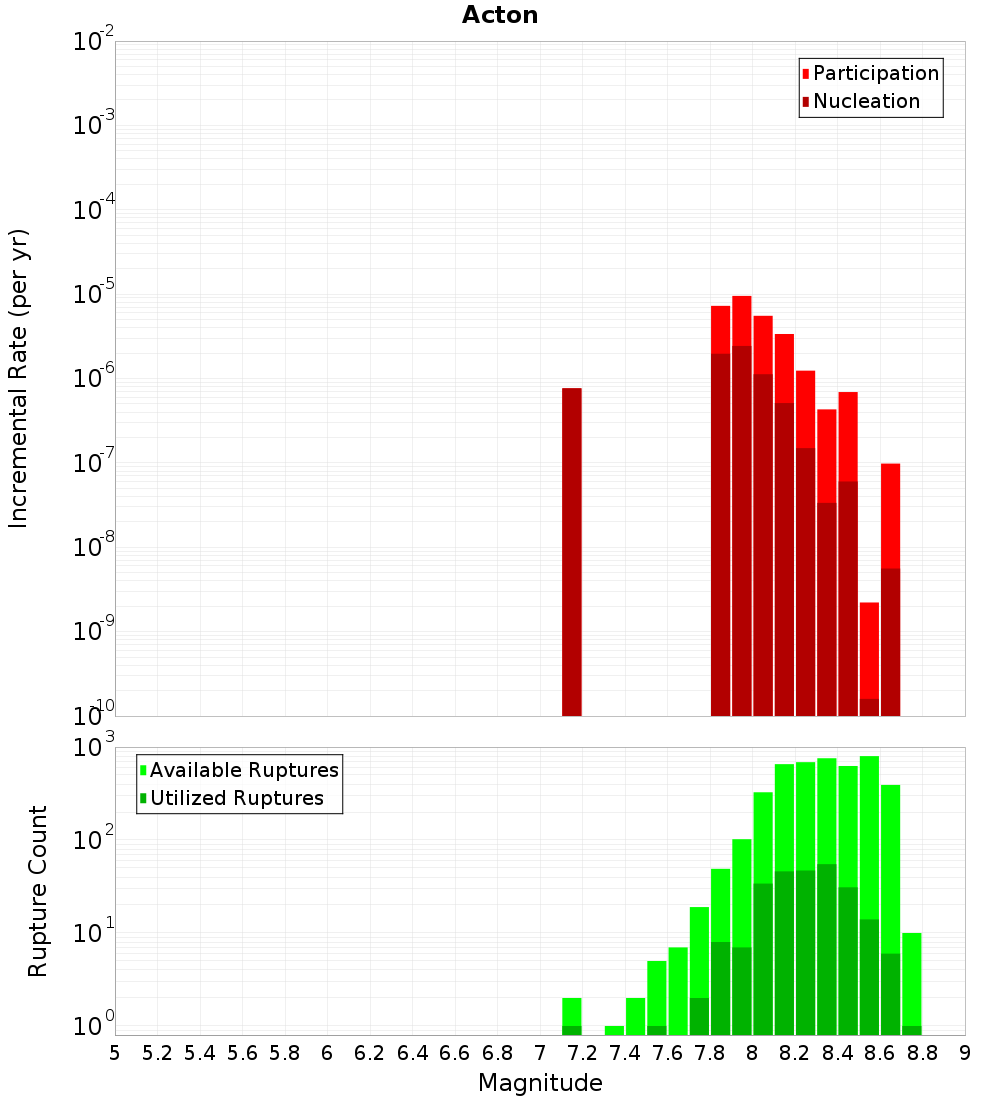

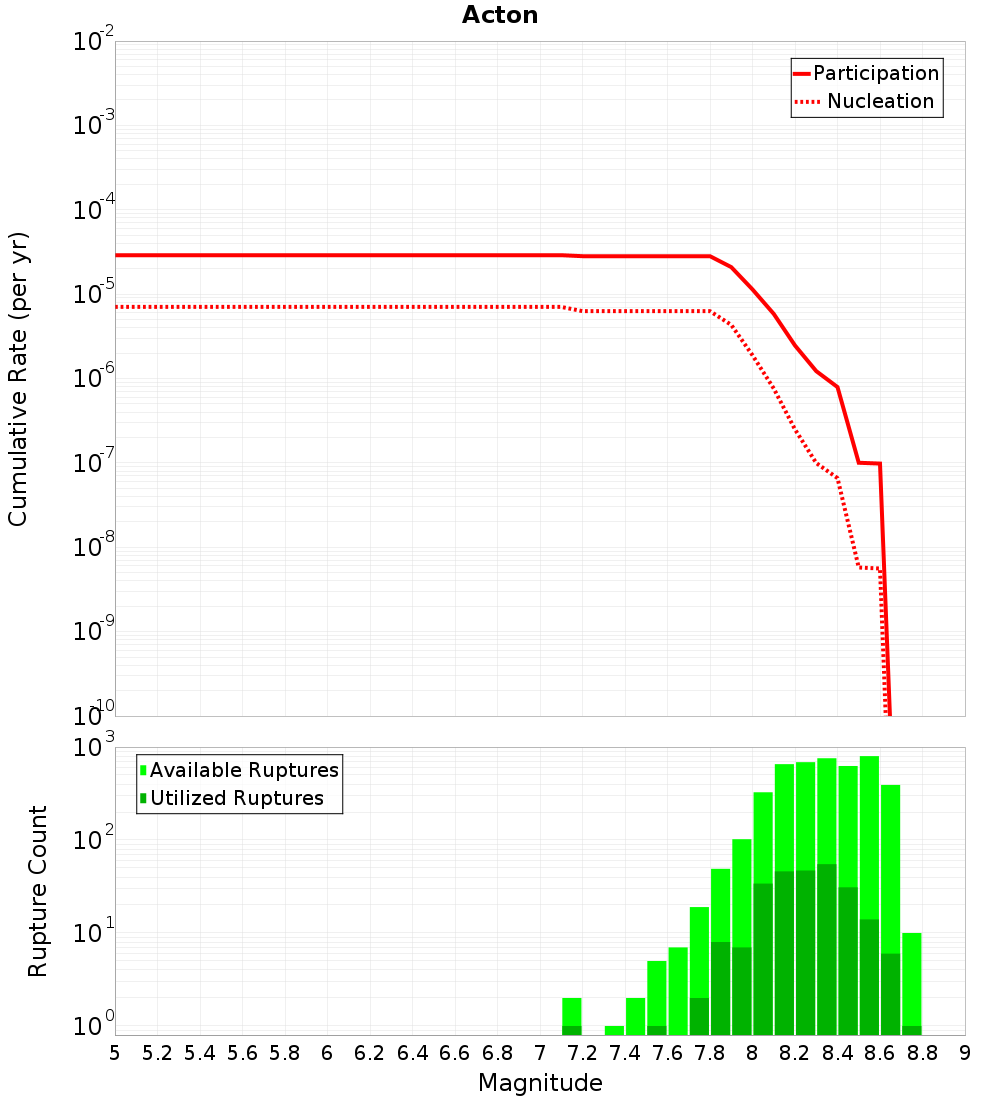

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Nevis, 0.95 km away |
| Mossburn, 1.57 km away |
| Hokonui, 1.83 km away |
| White Hill, 3.1 km away |
| Mid Dome, 3.19 km away |
| Moonlight South, 11.93 km away |
Nevis, 0.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTYuMGhNY2NV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4,201 |
| Co-rupture Rate | 2.7751199E-5 |
Mossburn, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTYuMGhNY2NV | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hokonui, 1.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTYuMGhNY2NV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,902 |
| Co-rupture Rate | 6.1523033E-6 |
White Hill, 3.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTYuMGhNY2NV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 86 |
| Co-rupture Rate | 5.6702E-6 |
Mid Dome, 3.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTYuMGhNY2NV | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Moonlight South, 11.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTU5OTYuMGhNY2NV | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 194 |
| Co-rupture Rate | 4.0729446E-7 |
