Cape Egmont: South Details
| Property | Value |
|---|---|
| Rupture Count | 33 |
| Ruptures Above Sect Min Mag | 29 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.92, 7.50] |
| Length Range | [21, 79] km |
| Total Rate | 2.793371E-4 /yr |
| Multi-Fault Rate | 1.796855E-4 /yr (64.33%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

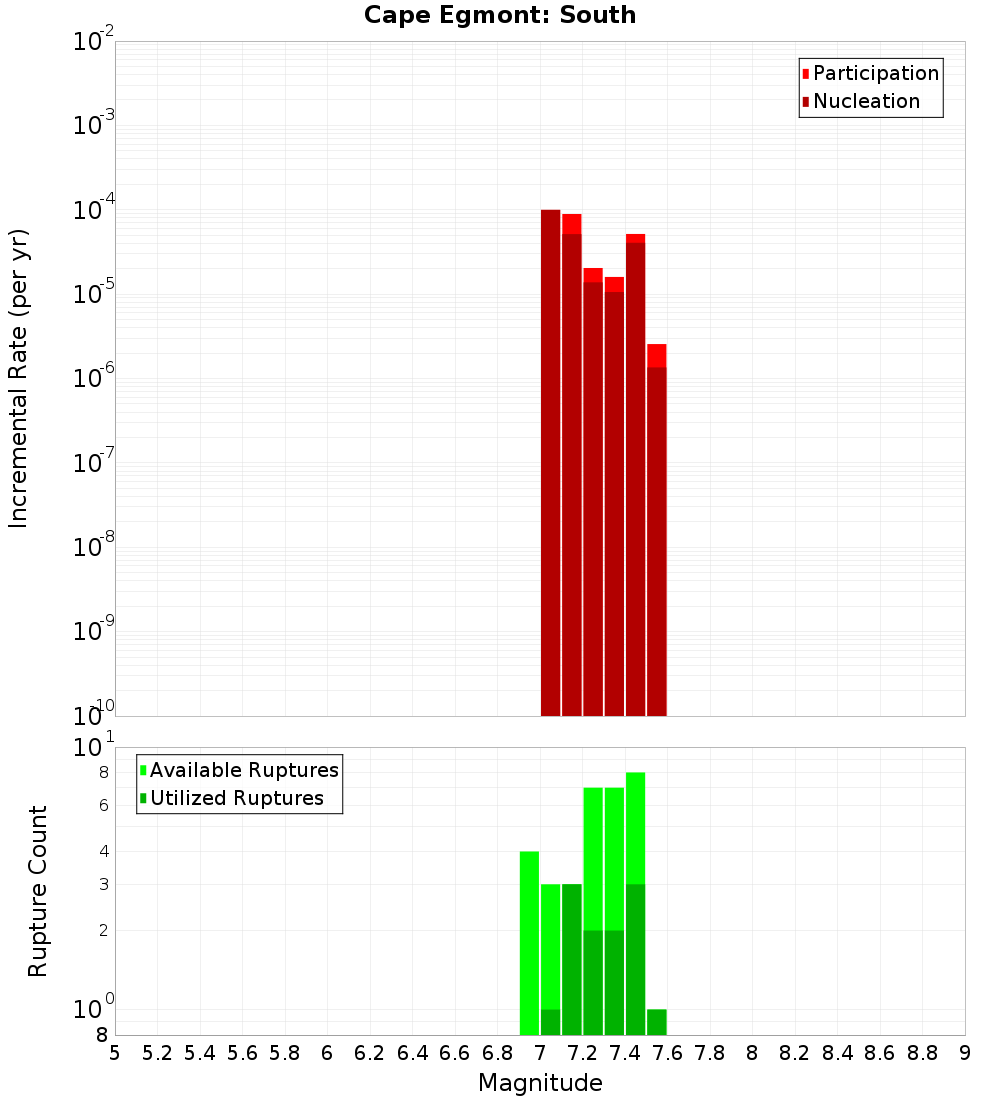

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Cape Egmont: Central, 0.35 km away |
| Pihama, 0.38 km away |
| Manahi 1, 7.93 km away |
| Cape Egmont: North, 10.11 km away |
Cape Egmont: Central, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MDYuMG1EVFJu | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15 |
| Co-rupture Rate | 9.303046E-5 |
Pihama, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MDYuMG1EVFJu | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 8.665504E-5 |
Manahi 1, 7.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MDYuMG1EVFJu | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 6.3611915E-6 |
Cape Egmont: North, 10.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MDYuMG1EVFJu | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
