Browning Pass Details
| Property | Value |
|---|---|
| Rupture Count | 23,455 |
| Ruptures Above Sect Min Mag | 23,449 |
| Ruptures w/ Nonzero Rates | 1,395 |
| Magnitude Range | [6.70, 8.57] |
| Length Range | [16, 963] km |
| Total Rate | 3.1952932E-4 /yr |
| Multi-Fault Rate | 3.1952932E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 124 |
Table Of Contents

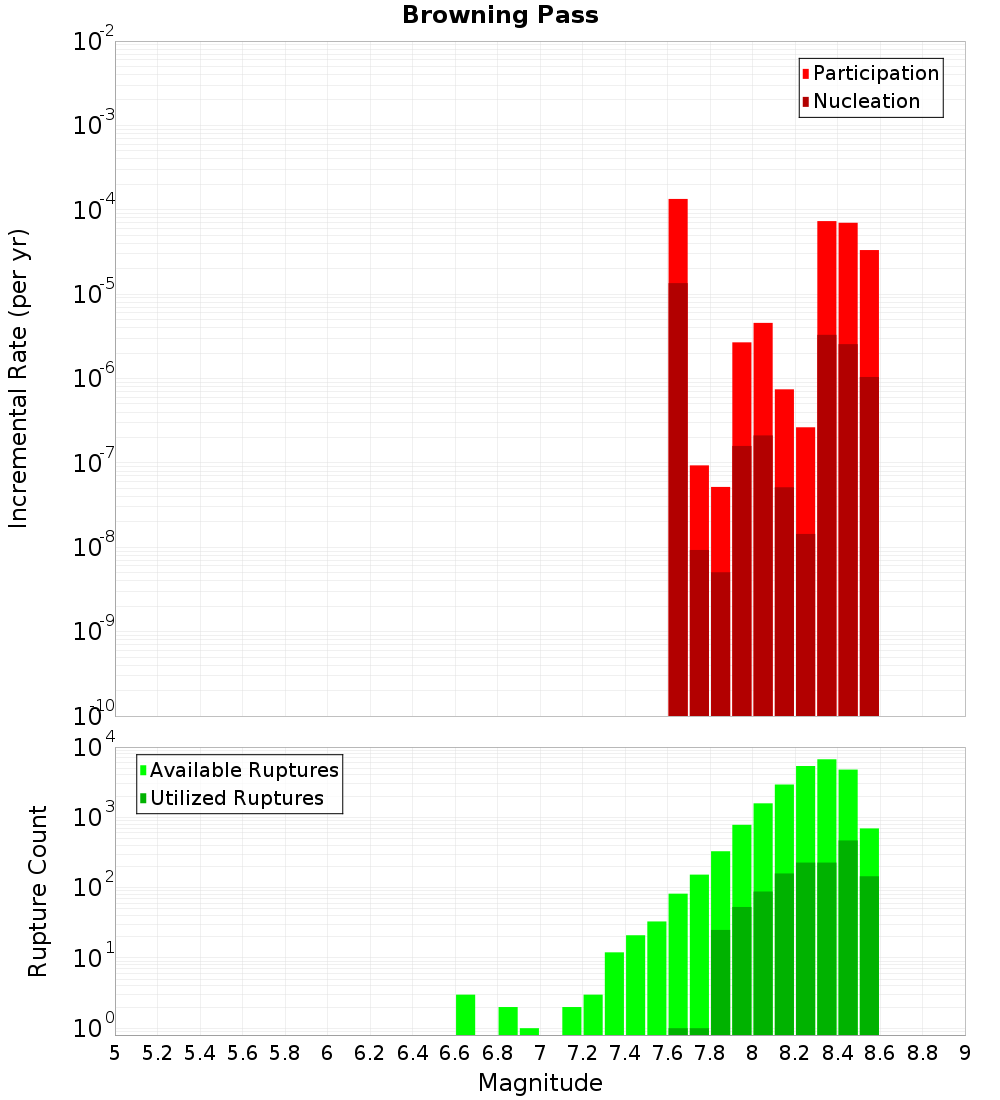

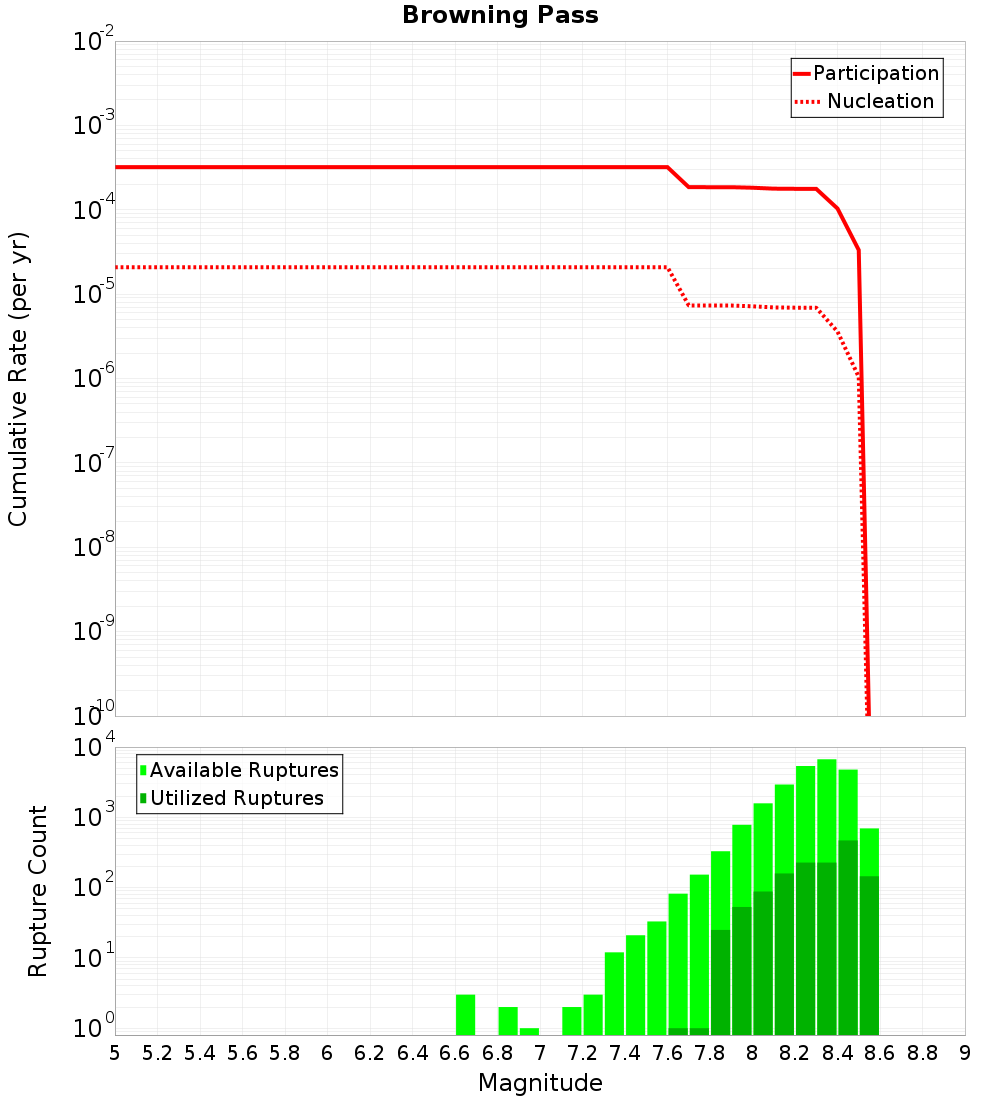

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

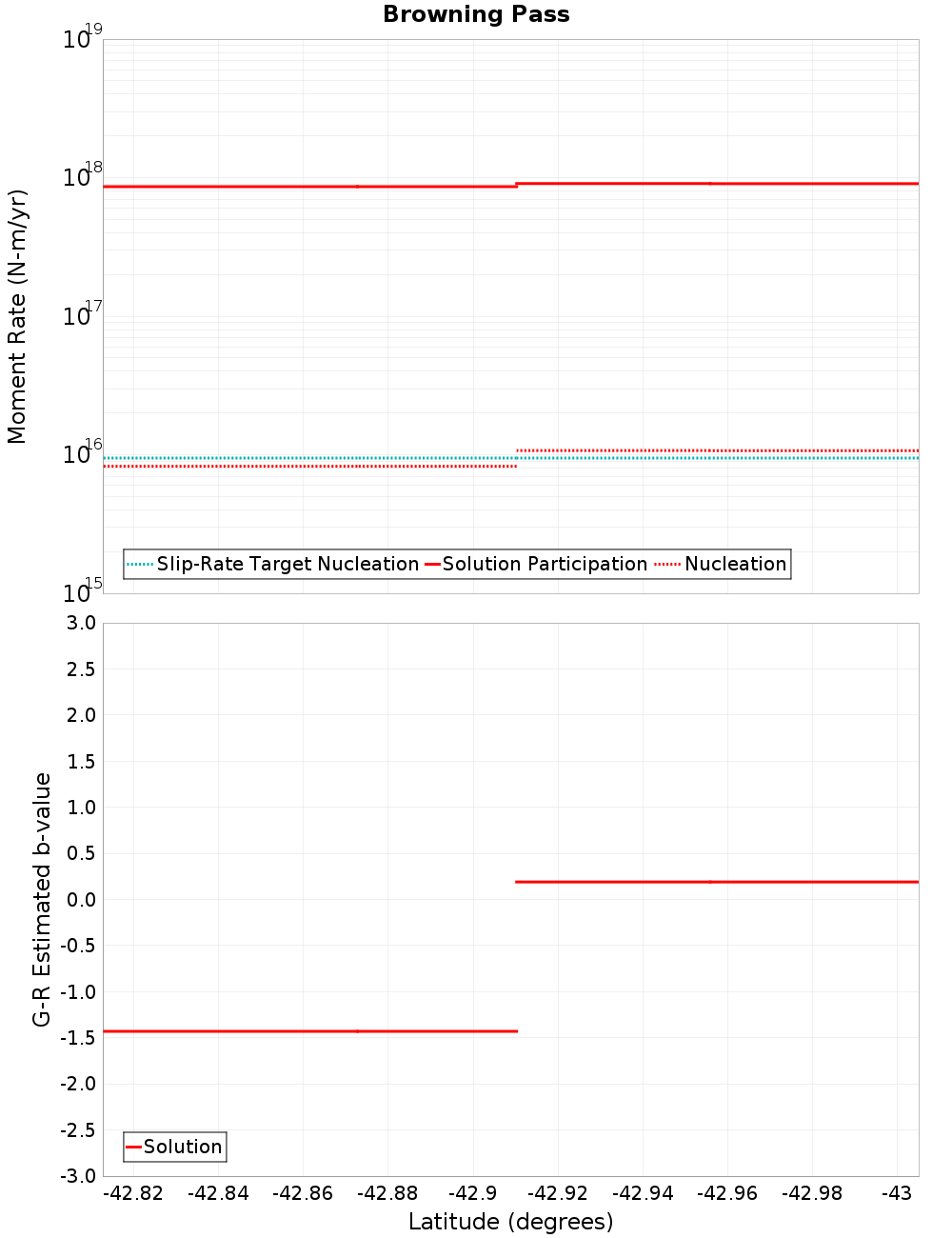

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kelly, 0.1 km away |
| Alpine: Kaniere to Springs Junction, 0.16 km away |
| Hope: Taramakau, 0.25 km away |
| Alpine: Jacksons to Kaniere, 0.34 km away |
| Poulter, 14.55 km away |
Kelly, 0.1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MjEuMHJlQWF6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 321 |
| Co-rupture Rate | 1.34448E-4 |
Alpine: Kaniere to Springs Junction, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MjEuMHJlQWF6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22,035 |
| Co-rupture Rate | 3.1952723E-4 |
Hope: Taramakau, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MjEuMHJlQWF6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Alpine: Jacksons to Kaniere, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MjEuMHJlQWF6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22,670 |
| Co-rupture Rate | 1.7783538E-4 |
Poulter, 14.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MjEuMHJlQWF6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
