Hope: Seaward Details
| Property | Value |
|---|---|
| Rupture Count | 13,726 |
| Ruptures Above Sect Min Mag | 13,717 |
| Ruptures w/ Nonzero Rates | 1,699 |
| Magnitude Range | [6.62, 8.52] |
| Length Range | [16, 946] km |
| Total Rate | 7.397535E-4 /yr |
| Multi-Fault Rate | 7.397535E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 155 |
Table Of Contents

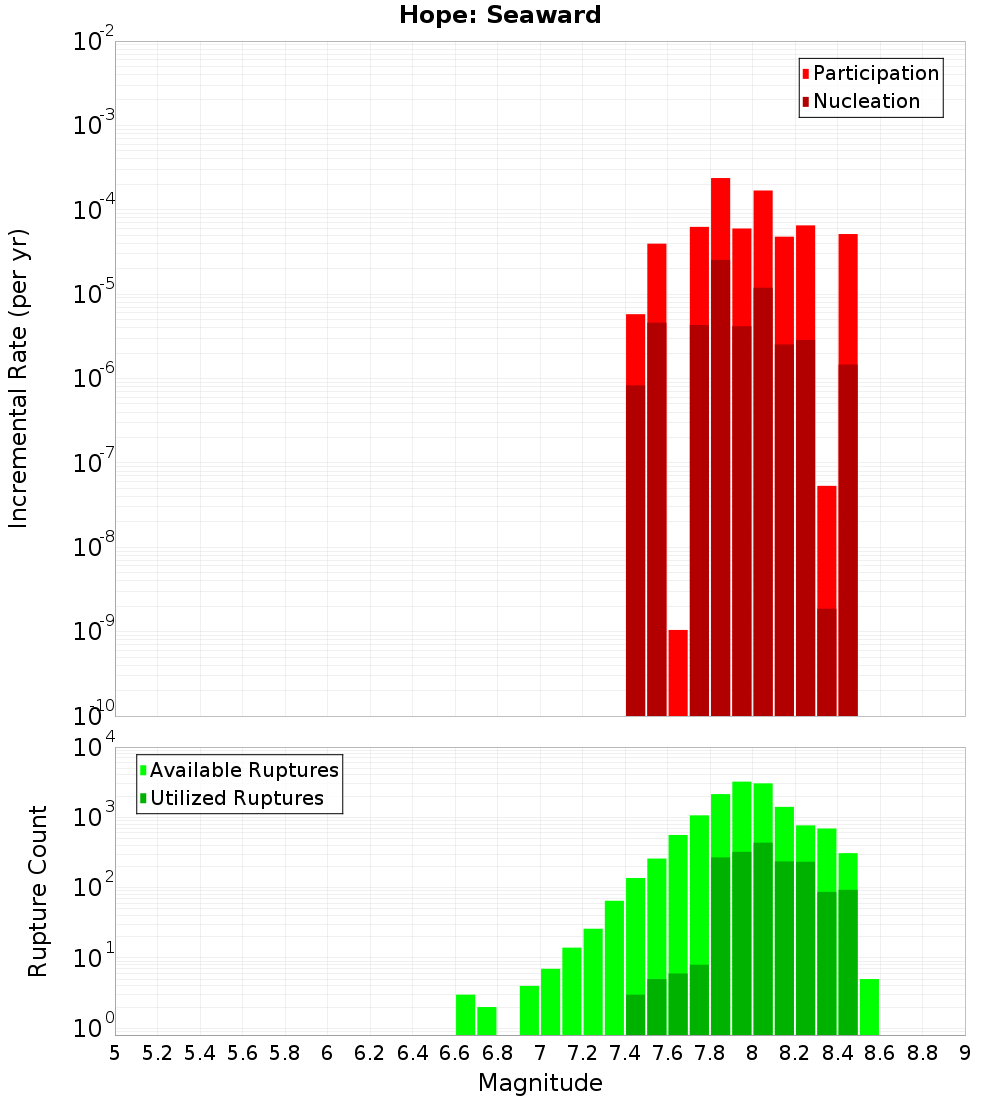

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

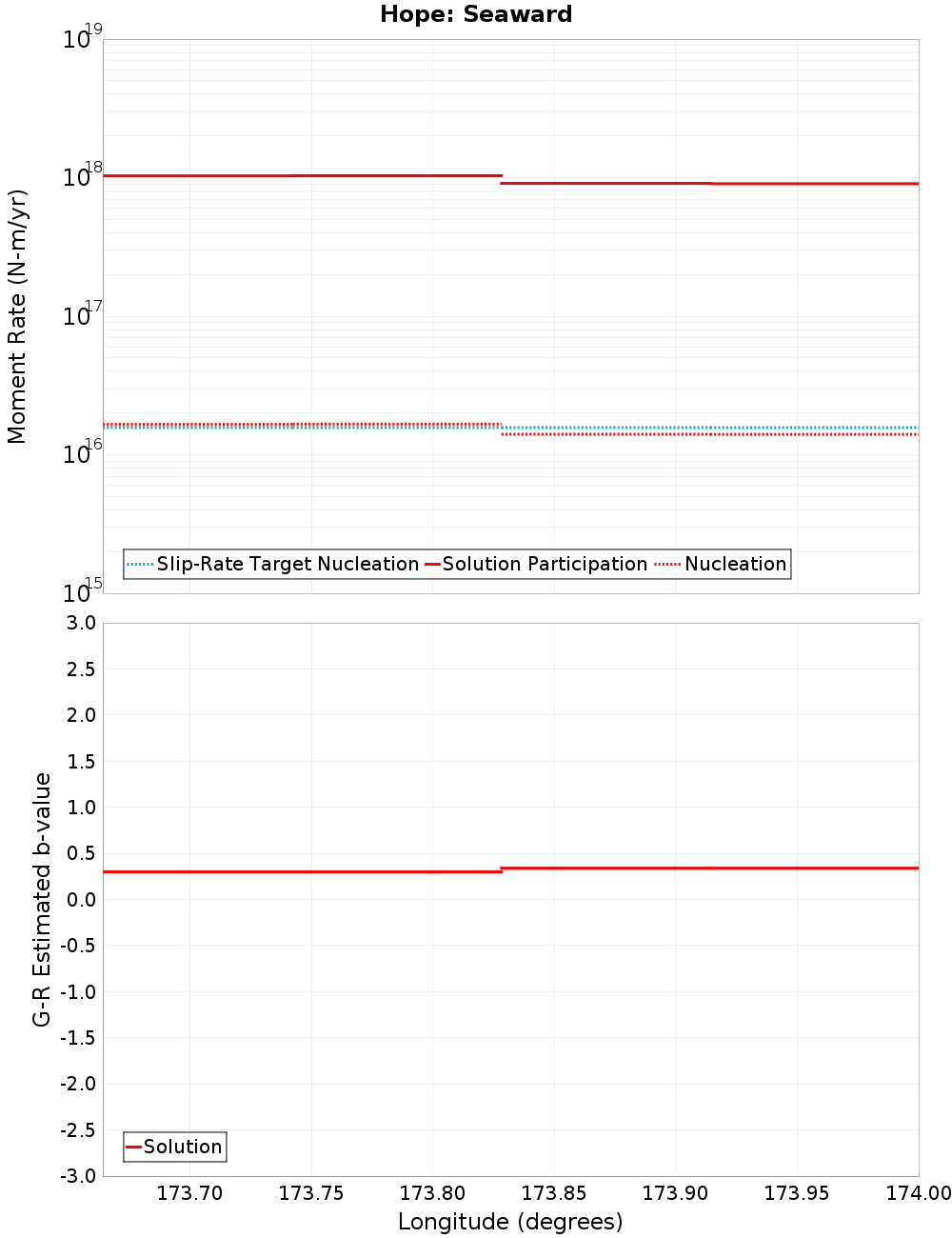

Moment-Rates and b-Values

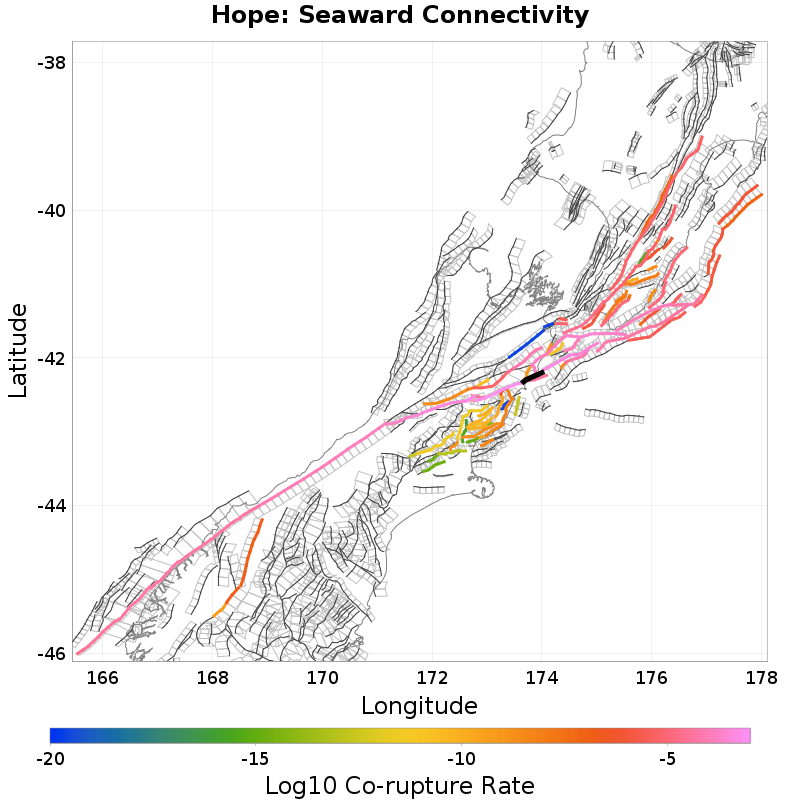

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hope: Conway, 0 km away |
| Jordan, 0 km away |
| Papatea, 0.03 km away |
| Kaikoura - Mangamaunu, 1.03 km away |
| Hope: Te Rapa, 3.47 km away |
| Upper Slope, 10.39 km away |
| Fidget, 13.67 km away |
Hope: Conway, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMFR3c3di | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12,247 |
| Co-rupture Rate | 6.820411E-4 |
Jordan, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMFR3c3di | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 118 |
| Co-rupture Rate | 7.9423274E-10 |
Papatea, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMFR3c3di | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,358 |
| Co-rupture Rate | 1.5779065E-4 |
Kaikoura - Mangamaunu, 1.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMFR3c3di | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 19 |
| Co-rupture Rate | 4.5424516E-5 |
Hope: Te Rapa, 3.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMFR3c3di | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,186 |
| Co-rupture Rate | 4.35499E-4 |
Upper Slope, 10.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMFR3c3di | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,113 |
| Co-rupture Rate | 7.518695E-5 |
Fidget, 13.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMFR3c3di | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 14 |
| Co-rupture Rate | 0.0 |
