Lake Onslow Details

PropertyValue
Rupture Count3,391
Ruptures Above Sect Min Mag3,390
Ruptures w/ Nonzero Rates210
Magnitude Range[7.00, 8.30]
Length Range[23, 423] km
Total Rate1.0816789E-5 /yr
Multi-Fault Rate1.0816789E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults46

Table Of Contents

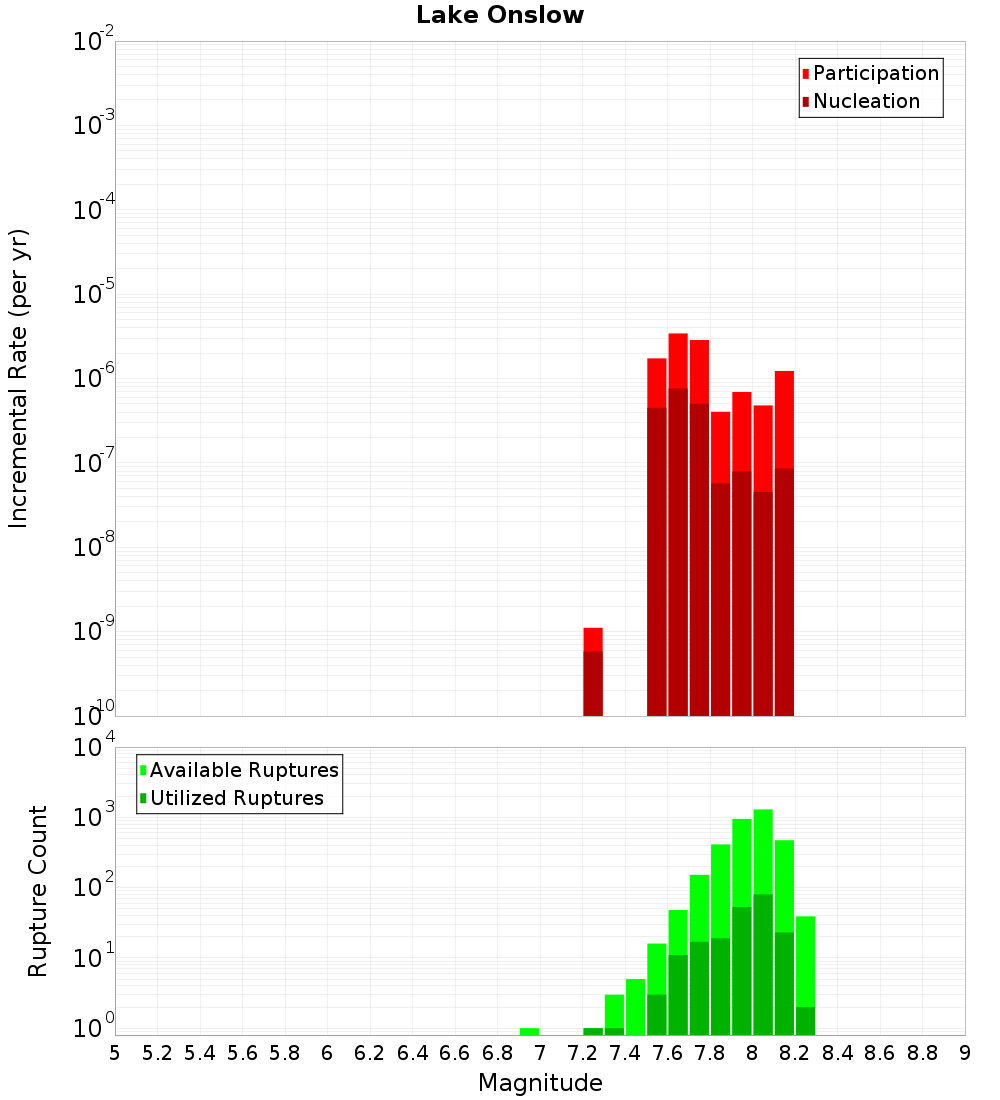

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Galloway, 0.3 km away
Little Valley, 0.37 km away
Long Valley, 0.52 km away
Backbone, 3.64 km away
Beaumont River, 3.85 km away
Pylap, 7.26 km away
Logan Burn, 7.67 km away
Garvie, 7.88 km away
Waikaia, 9.49 km away
Wendon Valley, 11.68 km away
Hyde South - The Twins, 11.72 km away
Roaring Lion, 12.03 km away
Teviot, 13.96 km away

Galloway, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?true
Co-rupture Count815
Co-rupture Rate5.2811706E-6

Little Valley, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?true
Co-rupture Count1,597
Co-rupture Rate1.4897803E-6

Long Valley, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?true
Co-rupture Count983
Co-rupture Rate4.464771E-6

Backbone, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?true
Co-rupture Count3,103
Co-rupture Rate2.7849746E-6

Beaumont River, 3.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Pylap, 7.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.32271884E-11

Logan Burn, 7.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 7.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikaia, 9.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wendon Valley, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde South - The Twins, 11.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate6.0752887E-12

Roaring Lion, 12.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Teviot, 13.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzEuMHFvRE1w
Connected?true
Directly Connected?false
Co-rupture Count161
Co-rupture Rate5.178219E-10
