Shepherds Gully - Mana Details
| Property | Value |
|---|---|
| Rupture Count | 625 |
| Ruptures Above Sect Min Mag | 624 |
| Ruptures w/ Nonzero Rates | 150 |
| Magnitude Range | [6.90, 8.26] |
| Length Range | [21, 486] km |
| Total Rate | 4.19359E-5 /yr |
| Multi-Fault Rate | 4.19359E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 53 |
Table Of Contents

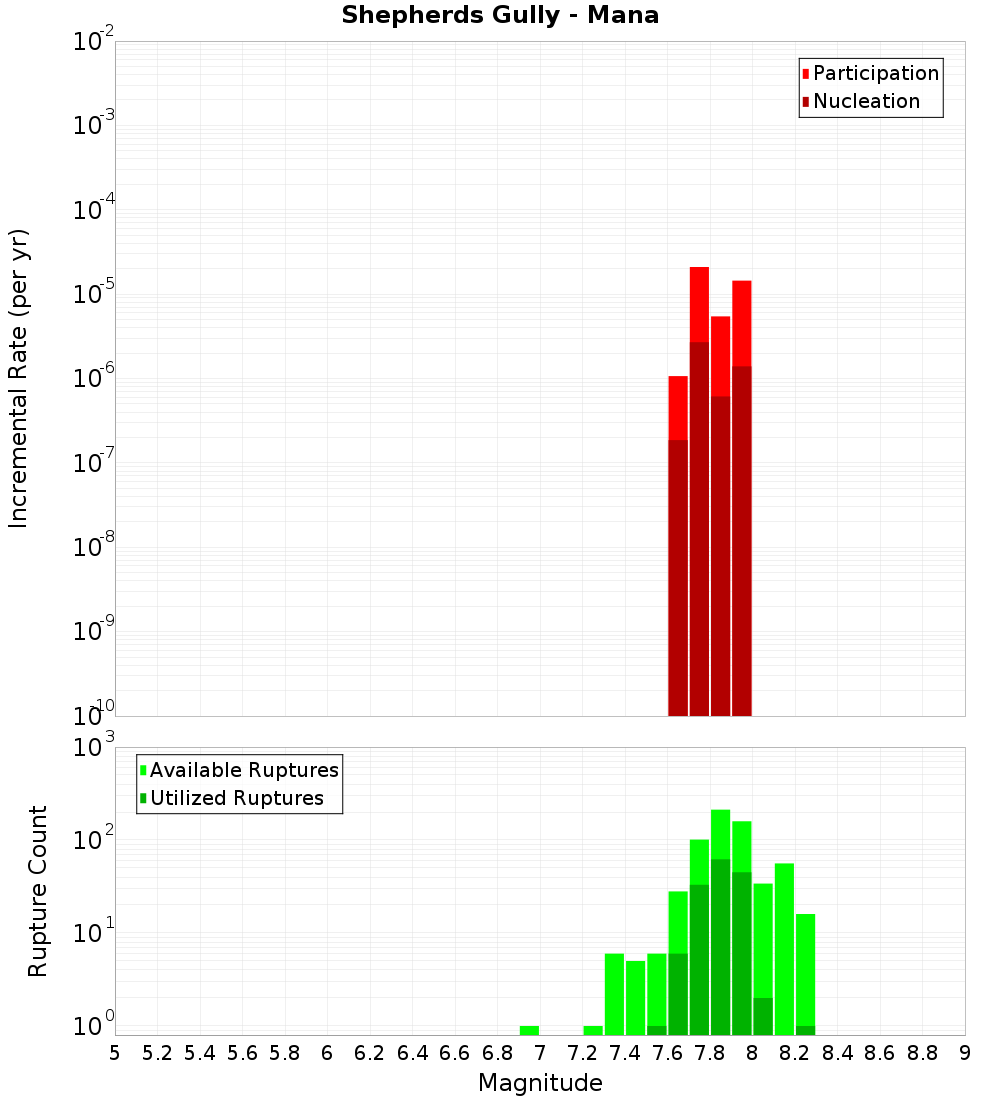

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

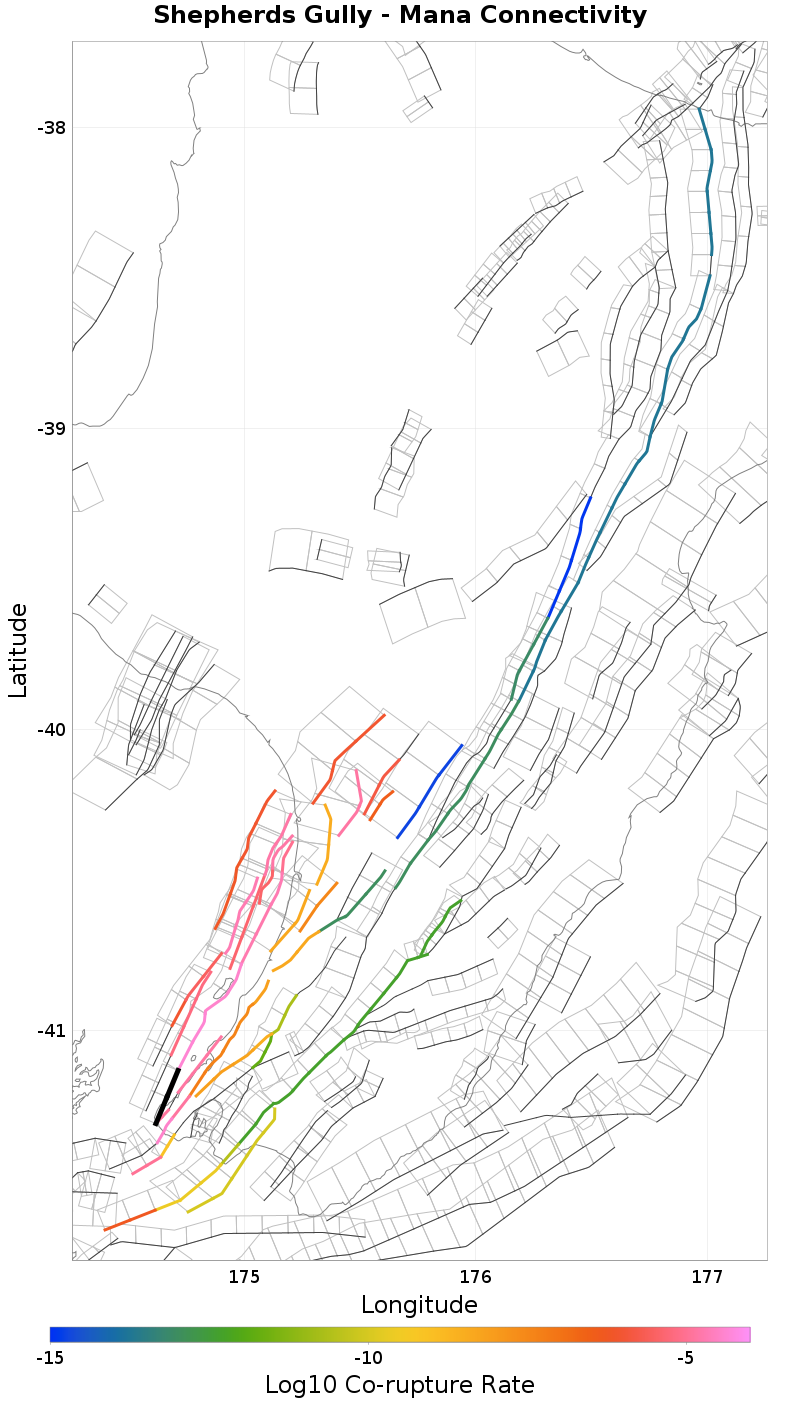

Connectivity
 |  |
|---|
Nearby Sections
Pukerua - Shepherds Gully: 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.1995699E-5 |
Otaheke South, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 471 |
| Co-rupture Rate | 4.193147E-5 |
Pukerua - Shepherds Gully: 2, 2.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukerua - Shepherds Gully: 3, 3.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 79 |
| Co-rupture Rate | 1.37166135E-5 |
Ohariu South 2, 3.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohariu, 3.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 500 |
| Co-rupture Rate | 3.517856E-5 |
Okupe 1, 4.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 122 |
| Co-rupture Rate | 6.021222E-6 |
Ohariu South 1, 5.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 2, 7.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 32 |
| Co-rupture Rate | 7.801641E-10 |
Wellington Hutt Valley: 3, 7.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wellington Hutt Valley: 1, 8.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 39 |
| Co-rupture Rate | 1.024959E-5 |
Fisherman 1, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonshine, 9.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 95 |
| Co-rupture Rate | 7.700023E-9 |
Wellington Hutt Valley: 4, 10.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Aotea - Evans Bay, 12.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wairau 3, 12.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzYuMERoUXJv | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
