Garibaldi Details

Property	Value
Rupture Count	2,129
Ruptures Above Sect Min Mag	2,127
Ruptures w/ Nonzero Rates	99
Magnitude Range	[7.00, 8.24]
Length Range	[22, 347] km
Total Rate	1.3272861E-5 /yr
Multi-Fault Rate	1.2468948E-5 /yr (93.94%)
Directly-Connected Faults	5
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

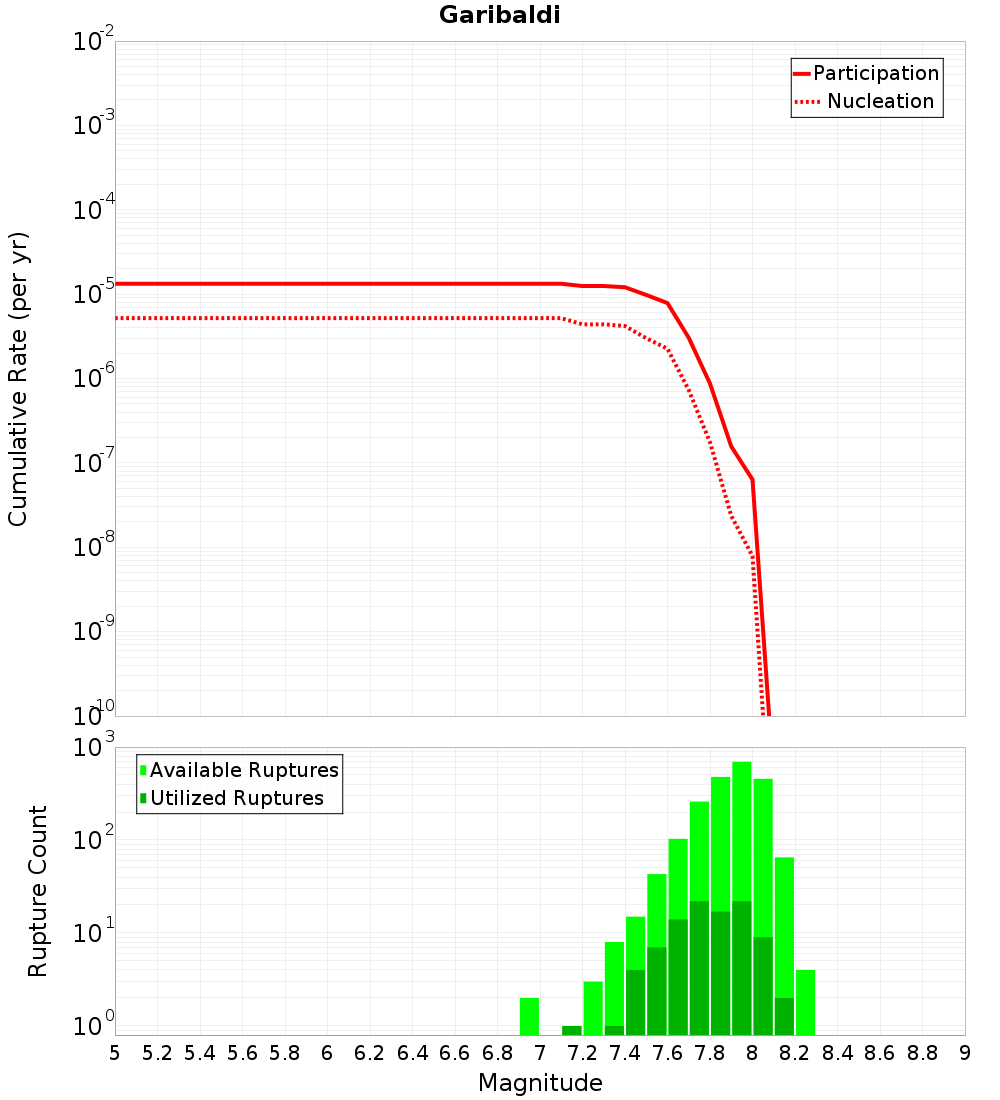

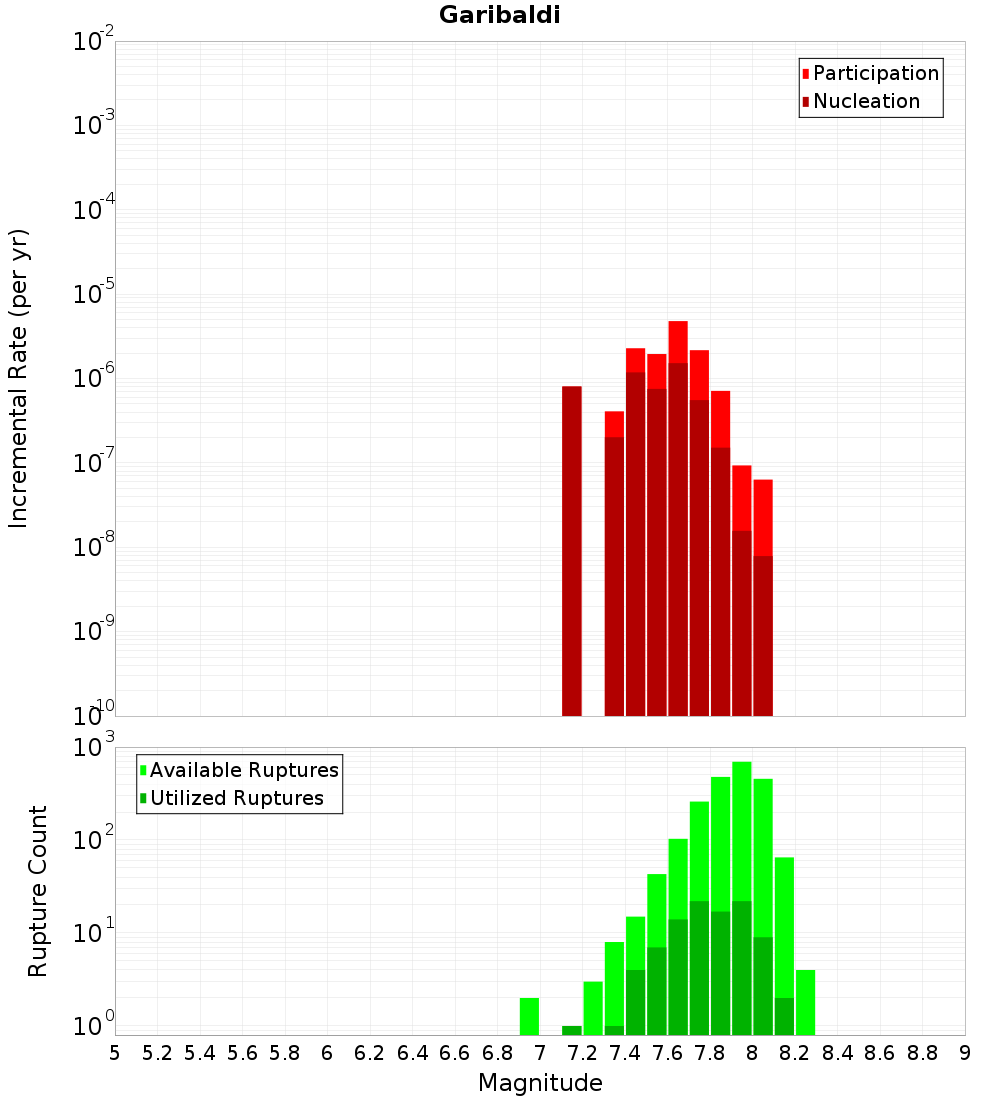

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

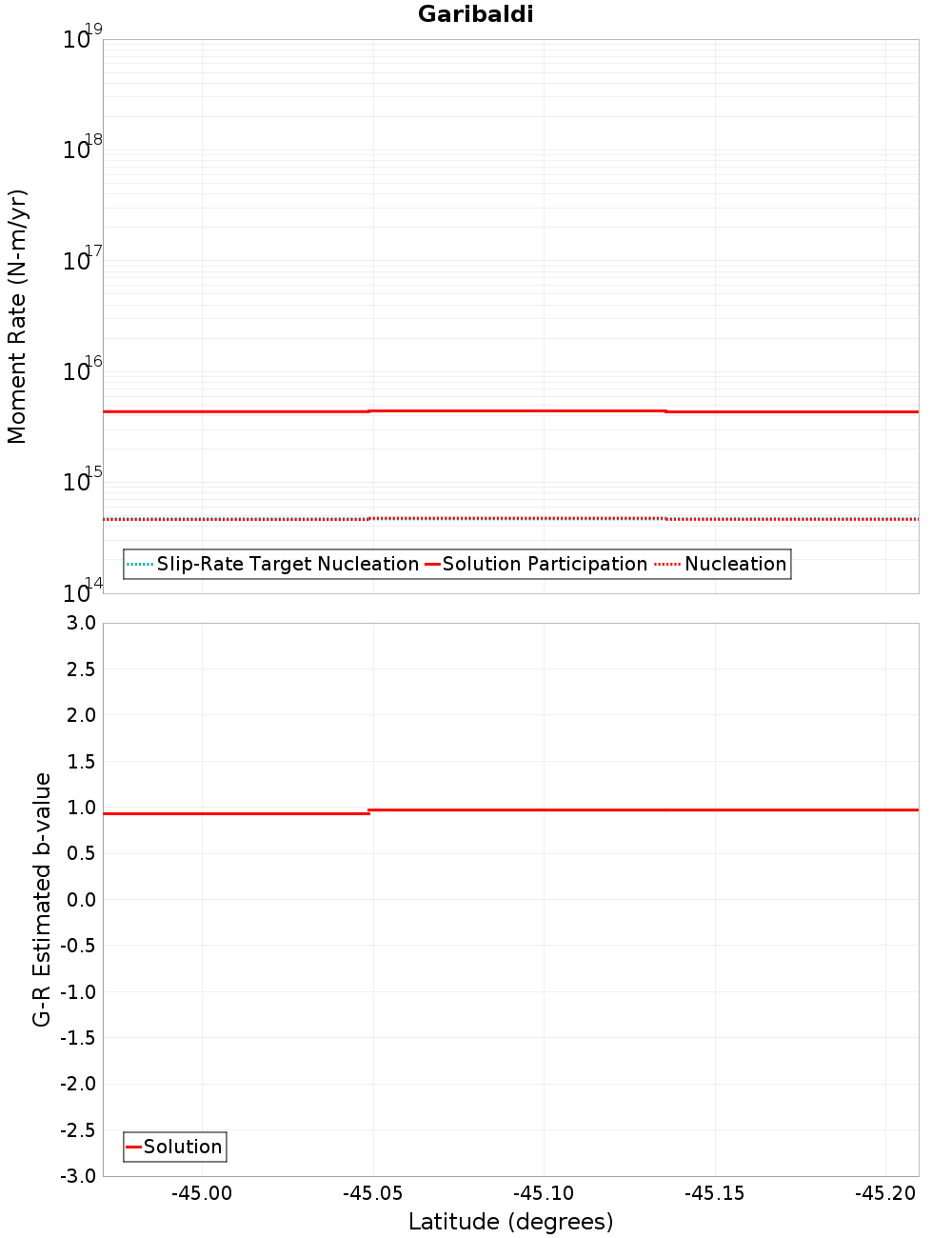

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Blue Lake, 1.08 km away
Omarama Saddle, 3.15 km away
Hawkdun, 3.71 km away
Gimmerburn, 3.79 km away
Raggedy - Blackstone, 6.01 km away
Little Valley, 6.55 km away
Cross Eden, 7.5 km away
Waihemo, 8.5 km away
Long Valley, 11.29 km away
Ranfurly, 12.32 km away
Galloway, 13.11 km away
Goodger, 14.35 km away

Blue Lake, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	true
Co-rupture Count	624
Co-rupture Rate	9.490148E-7

Omarama Saddle, 3.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	true
Co-rupture Count	955
Co-rupture Rate	1.1111669E-5

Hawkdun, 3.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	true
Co-rupture Count	344
Co-rupture Rate	2.3713812E-6

Gimmerburn, 3.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	true
Co-rupture Count	1,970
Co-rupture Rate	7.4046425E-6

Raggedy - Blackstone, 6.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	true
Co-rupture Count	290
Co-rupture Rate	5.299629E-7

Little Valley, 6.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	false
Co-rupture Count	929
Co-rupture Rate	7.4591316E-7

Cross Eden, 7.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waihemo, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	1.08928415E-10

Long Valley, 11.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	false
Co-rupture Count	888
Co-rupture Rate	3.9858674E-6

Ranfurly, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Galloway, 13.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	true
Directly Connected?	false
Co-rupture Count	153
Co-rupture Rate	2.2703528E-6

Goodger, 14.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
