Gimmerburn Details

PropertyValue
Rupture Count9,102
Ruptures Above Sect Min Mag9,099
Ruptures w/ Nonzero Rates452
Magnitude Range[6.99, 8.27]
Length Range[22, 448] km
Total Rate1.3311187E-4 /yr
Multi-Fault Rate6.669825E-5 /yr (50.11%)
Directly-Connected Faults8
All Co-Rupturing Faults49

Table Of Contents

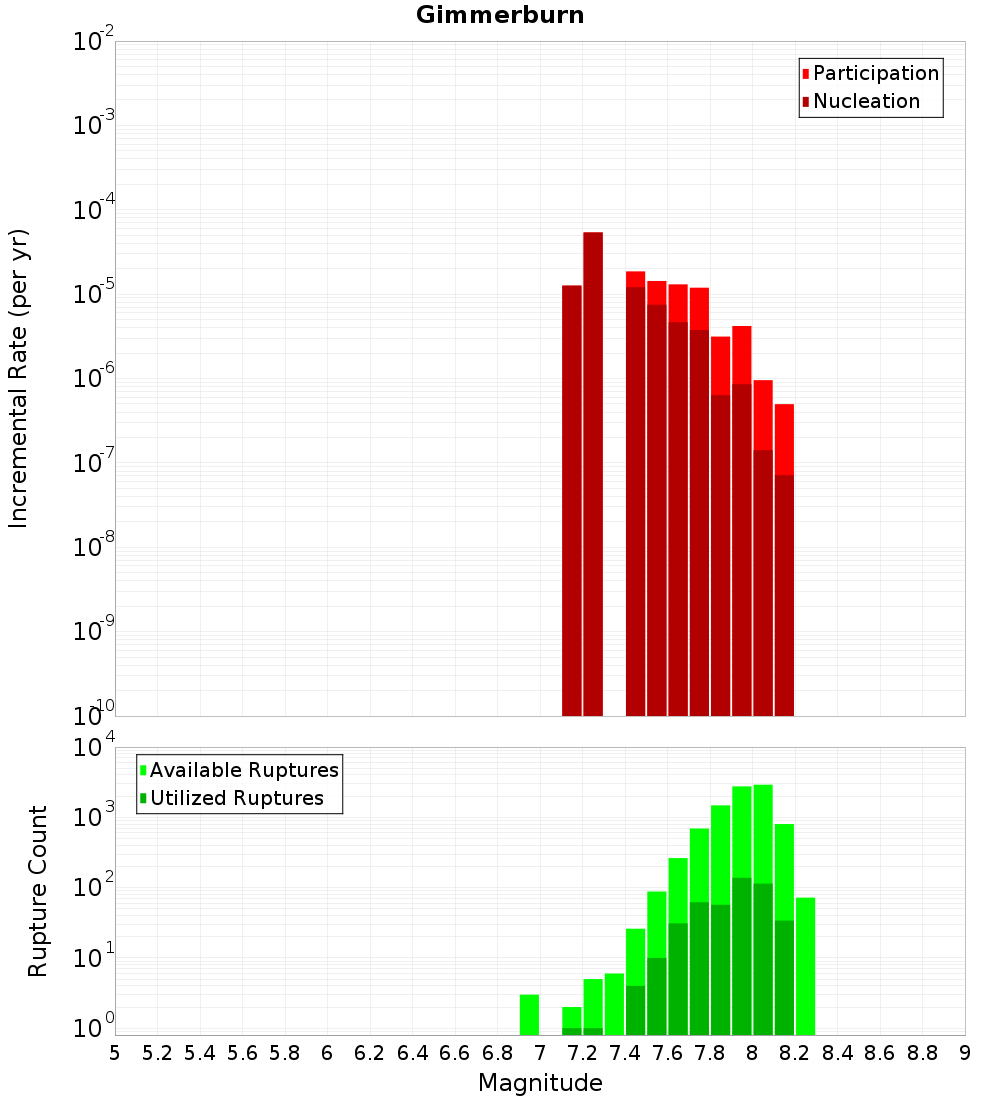

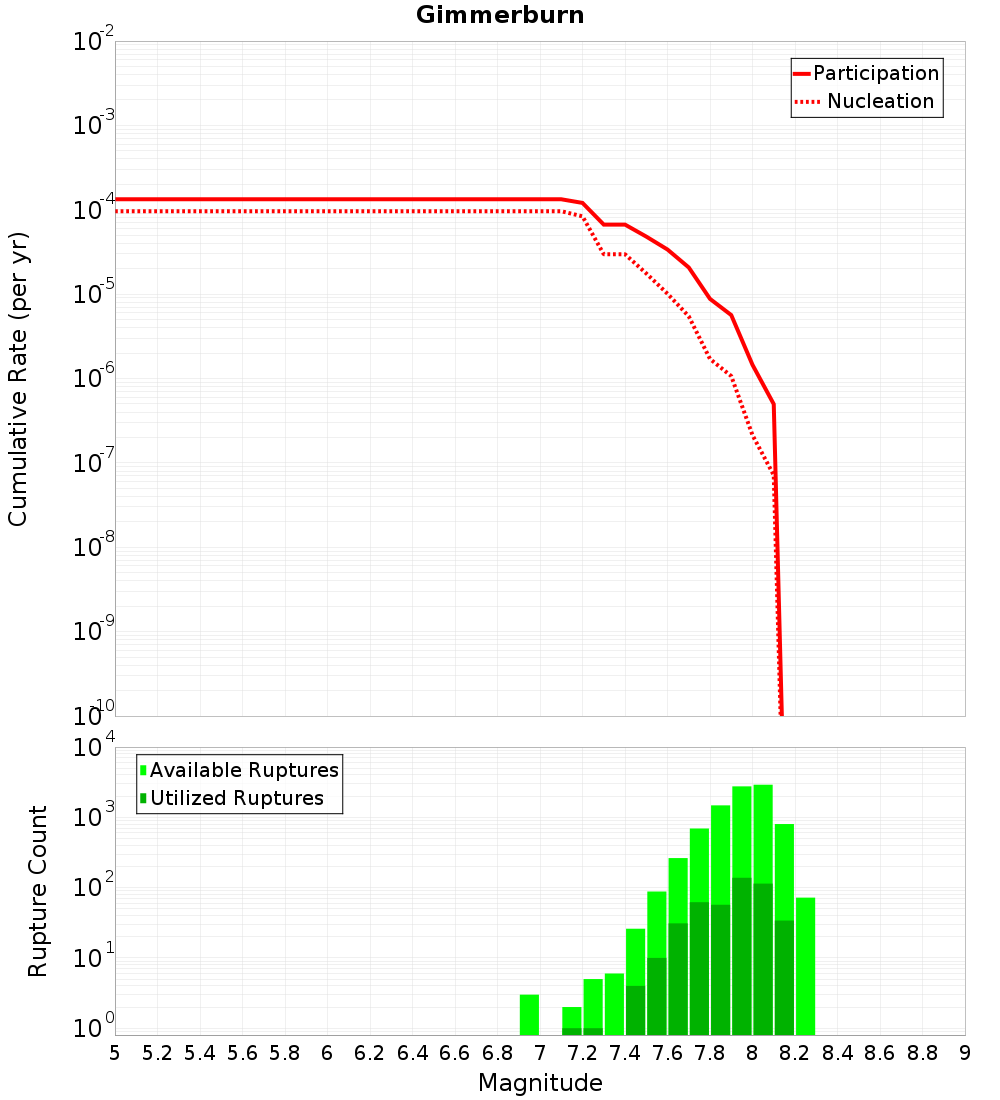

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

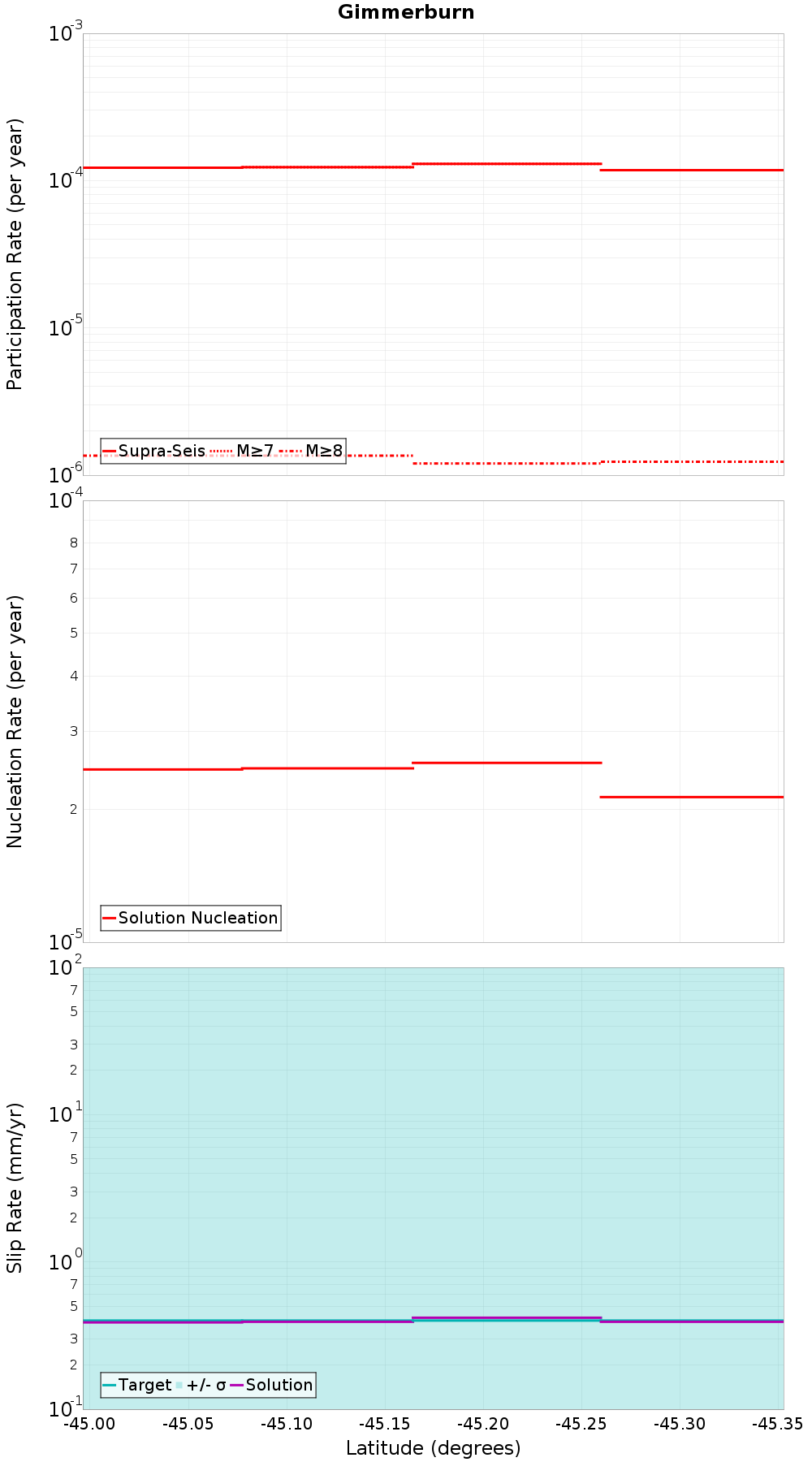

Along-Strike Values

(top)

Along-strike plot

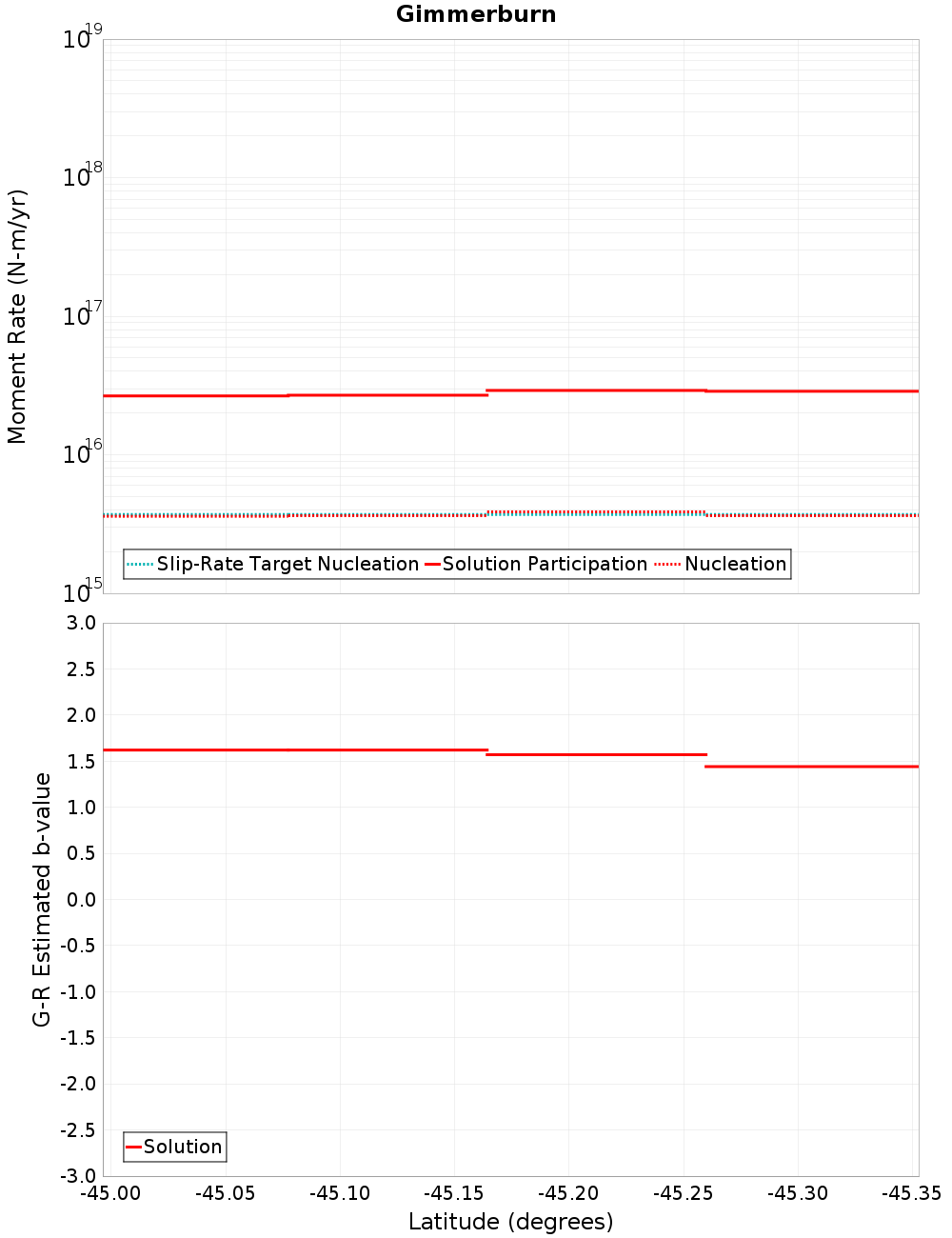

Moment-Rates and b-Values

(top)

Along-strike plot

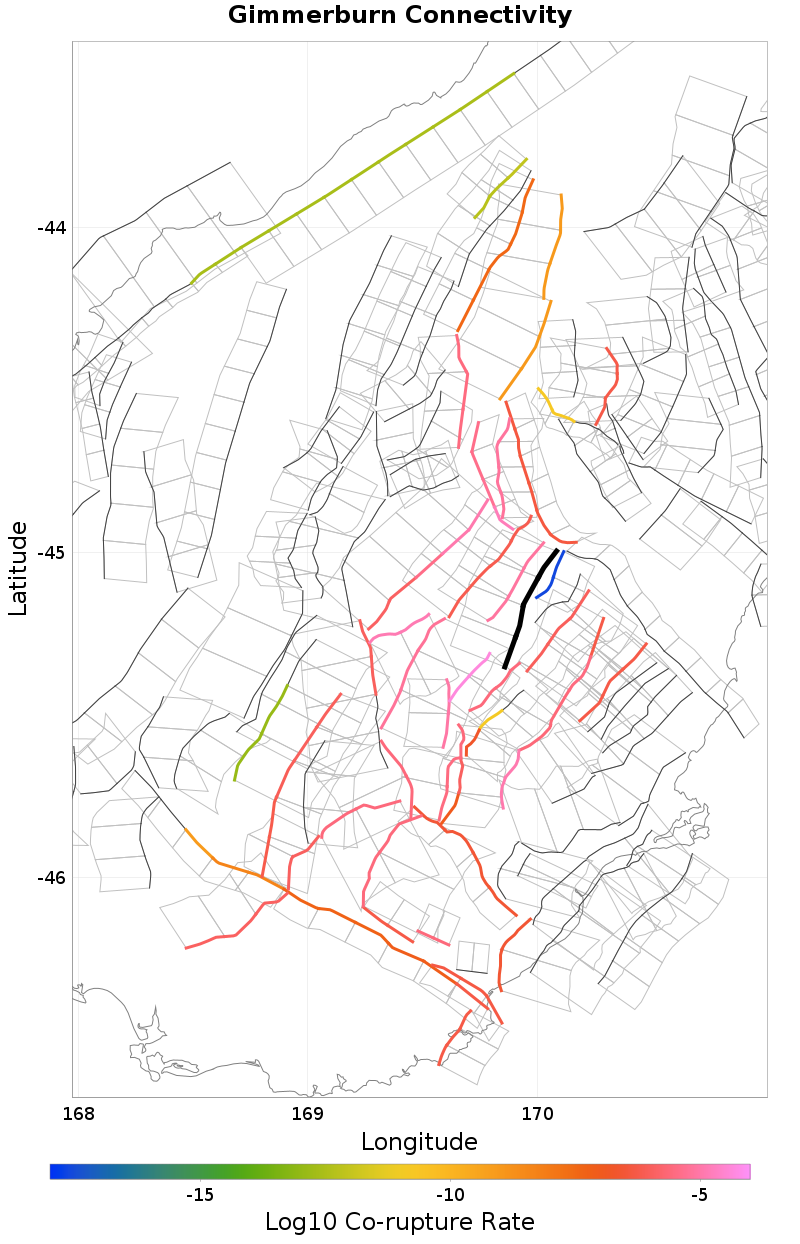

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Little Valley, 0.22 km away
Long Valley, 0.33 km away
Pylap, 2.27 km away
Cross Eden, 2.3 km away
Waihemo, 3.59 km away
Hawkdun, 3.64 km away
Garibaldi, 3.79 km away
Galloway, 4.14 km away
Blue Lake, 4.56 km away
Ranfurly, 4.96 km away
Omarama Saddle, 6.74 km away
Waipiata, 7.59 km away
Raggedy - Blackstone, 10.19 km away
Logan Burn, 10.21 km away

Little Valley, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count4,248
Co-rupture Rate9.815612E-6

Long Valley, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count3,687
Co-rupture Rate4.4283406E-5

Pylap, 2.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count1,692
Co-rupture Rate2.585868E-6

Cross Eden, 2.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count314
Co-rupture Rate2.3408285E-18

Waihemo, 3.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 3.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count3,252
Co-rupture Rate4.1940197E-7

Garibaldi, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count1,970
Co-rupture Rate7.4046425E-6

Galloway, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count757
Co-rupture Rate1.34058E-5

Blue Lake, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?true
Co-rupture Count3,077
Co-rupture Rate1.6065245E-5

Ranfurly, 4.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 6.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?false
Co-rupture Count1,512
Co-rupture Rate6.9877674E-6

Waipiata, 7.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?false
Co-rupture Count41
Co-rupture Rate9.583332E-7

Raggedy - Blackstone, 10.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?false
Co-rupture Count410
Co-rupture Rate6.912844E-7

Logan Burn, 10.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMDZFd3RO
Connected?true
Directly Connected?false
Co-rupture Count589
Co-rupture Rate1.8475669E-7
