Ruby Bay - Moutere Details

PropertyValue
Rupture Count9,112
Ruptures Above Sect Min Mag9,110
Ruptures w/ Nonzero Rates309
Magnitude Range[7.02, 8.56]
Length Range[24, 947] km
Total Rate2.1075002E-5 /yr
Multi-Fault Rate2.1075002E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults68

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

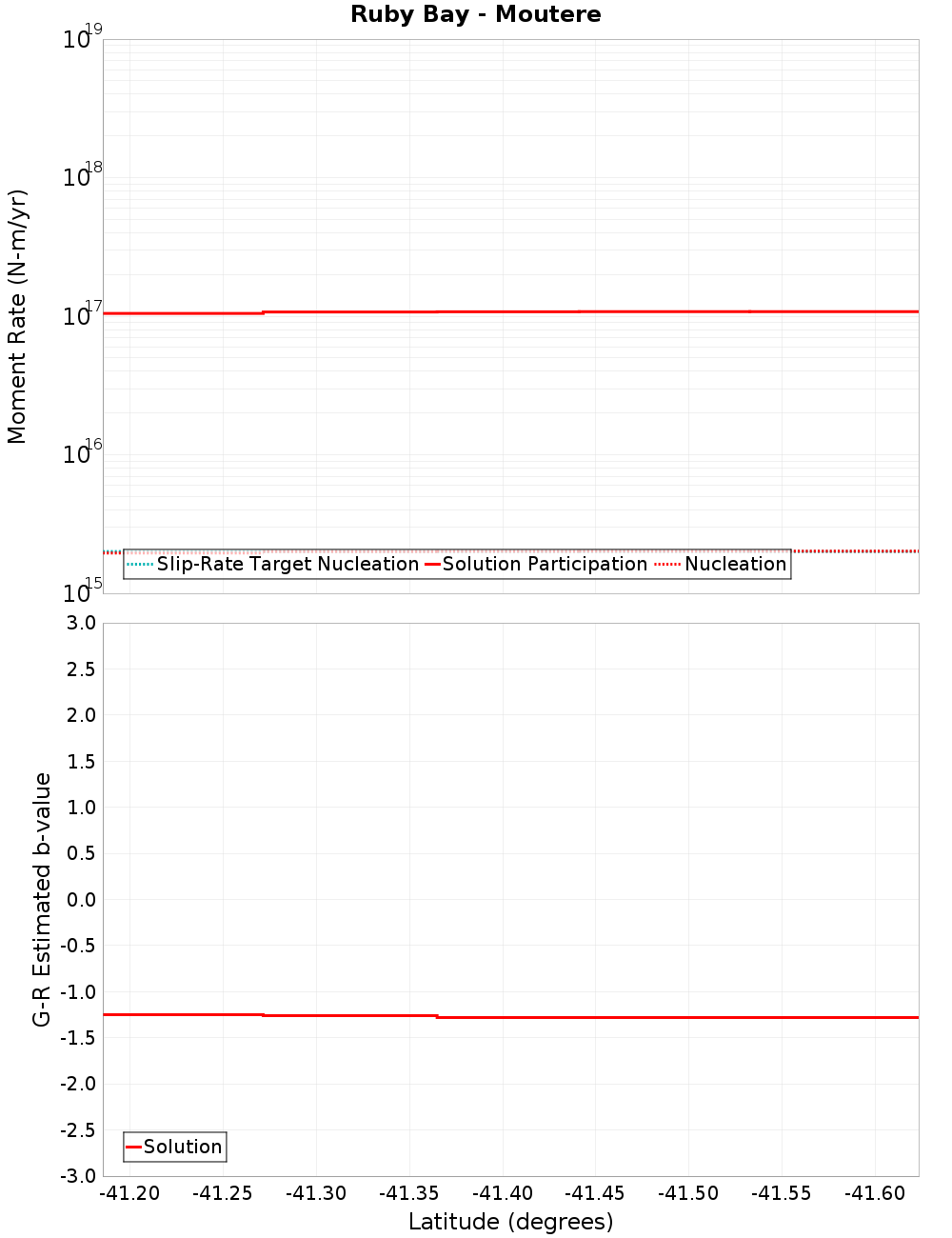

Moment-Rates and b-Values

(top)

Along-strike plot

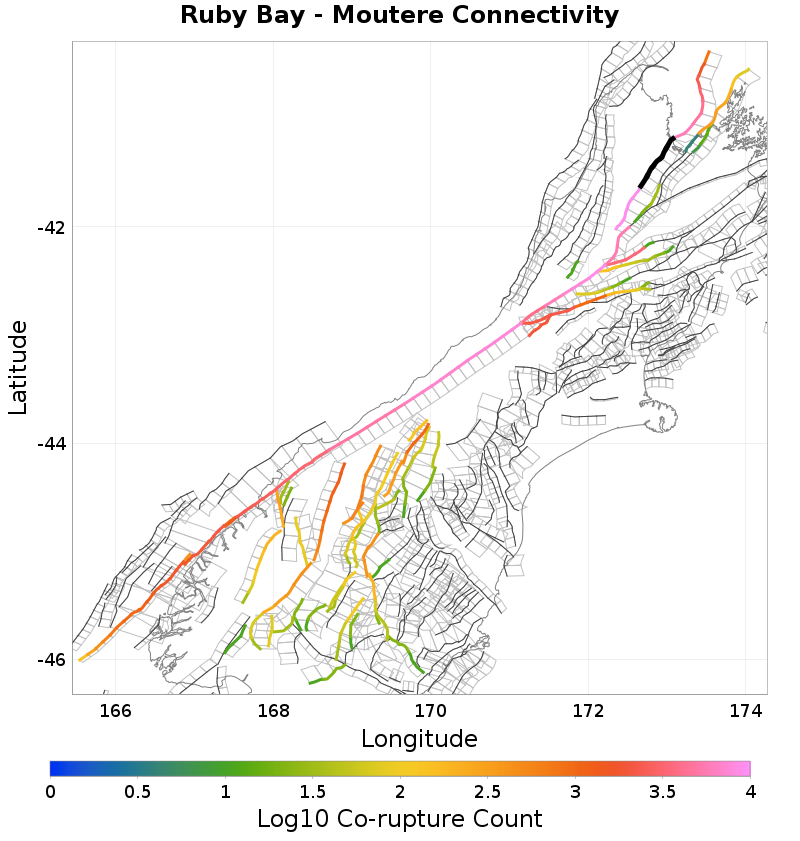

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Surville, 0.09 km away
Tutaki, 3.43 km away
Flaxmore - Waimea - Tahunanui, 9.4 km away
Wairau, 14.99 km away

Surville, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMEJNOTZx
Connected?true
Directly Connected?true
Co-rupture Count5,925
Co-rupture Rate2.8675884E-6

Tutaki, 3.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMEJNOTZx
Connected?true
Directly Connected?true
Co-rupture Count9,010
Co-rupture Rate2.1039545E-5

Flaxmore - Waimea - Tahunanui, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMEJNOTZx
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate3.5457127E-8

Wairau, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0MzcuMEJNOTZx
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
