Hawkswood Details

Property	Value
Rupture Count	6,625
Ruptures Above Sect Min Mag	6,619
Ruptures w/ Nonzero Rates	323
Magnitude Range	[6.81, 8.25]
Length Range	[20, 538] km
Total Rate	5.4369256E-4 /yr
Multi-Fault Rate	5.4369256E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	77

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

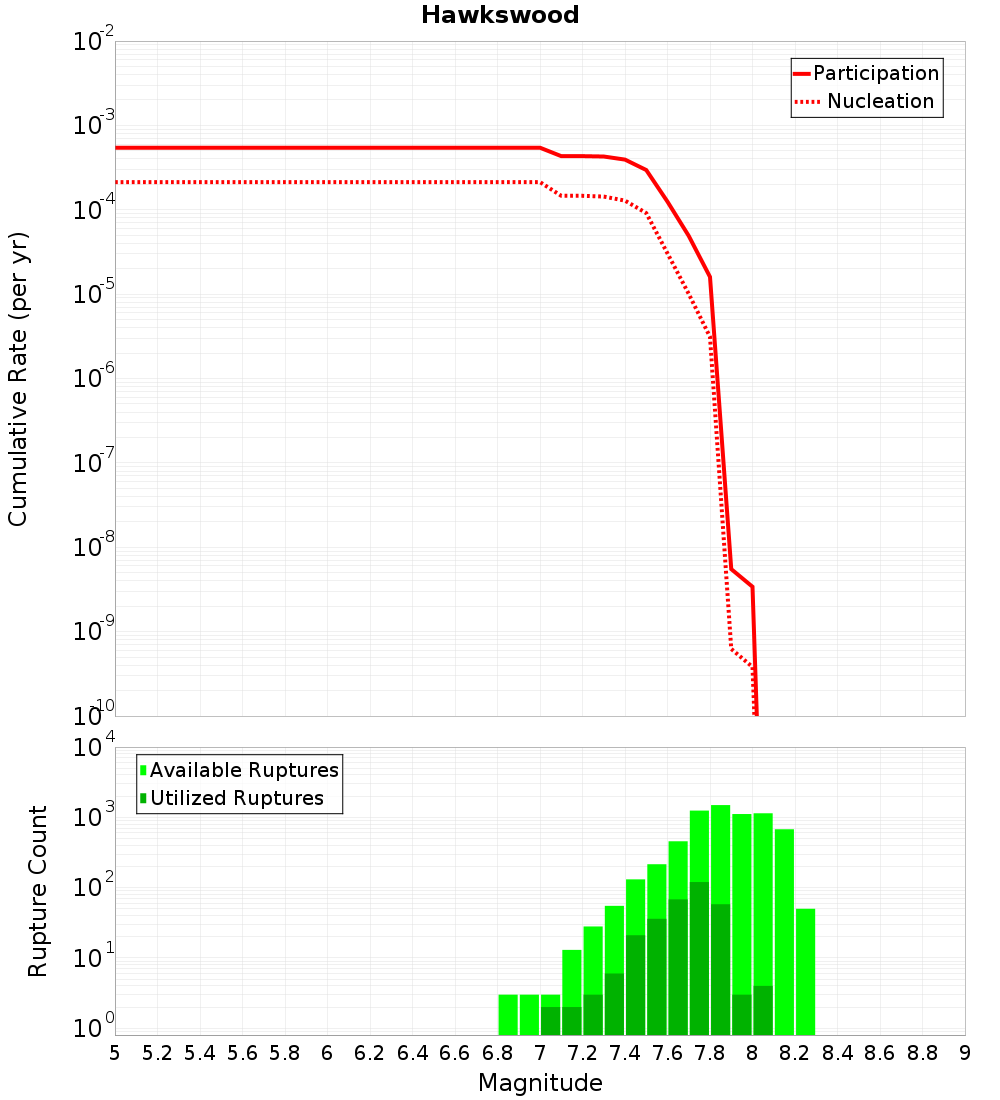

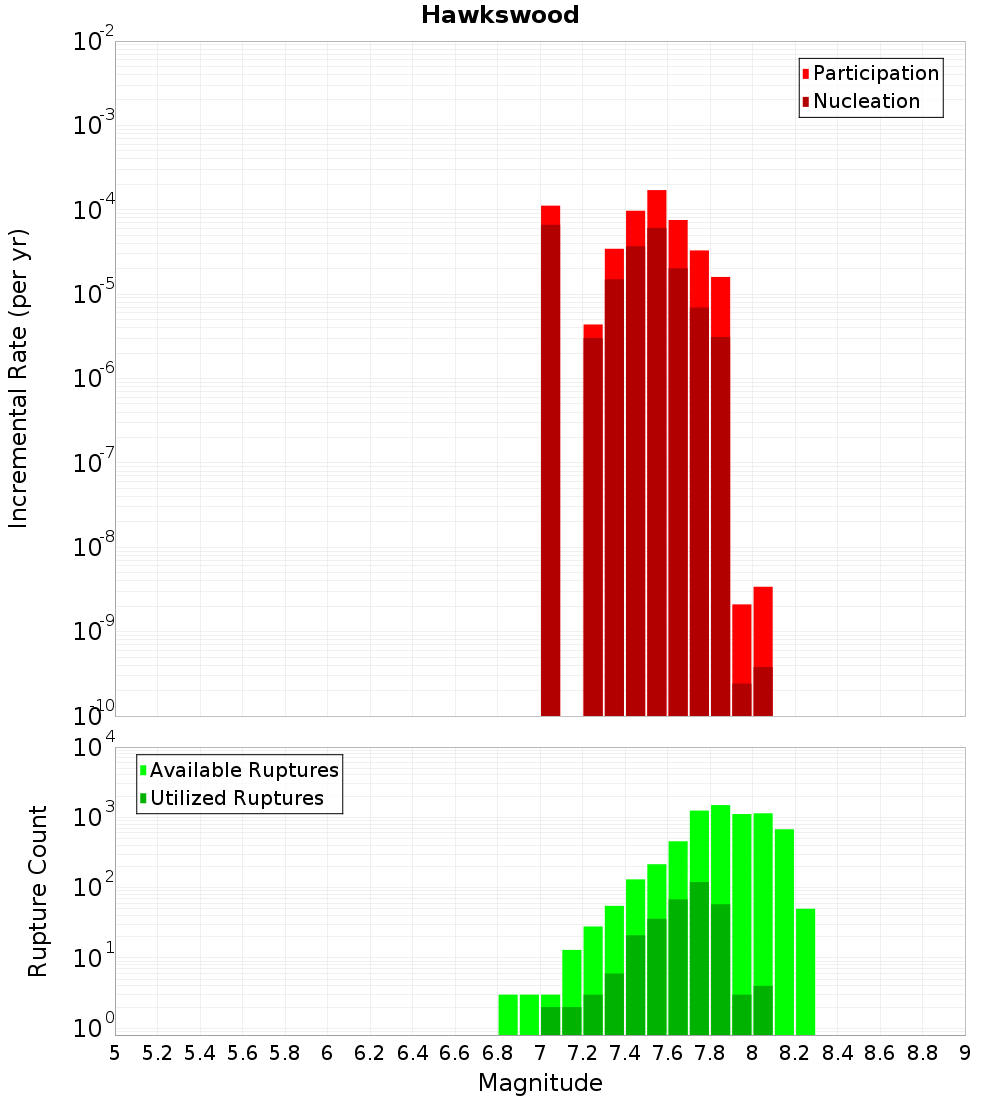

Magnitude-Frequency Distribution

Incremental	Cumulative

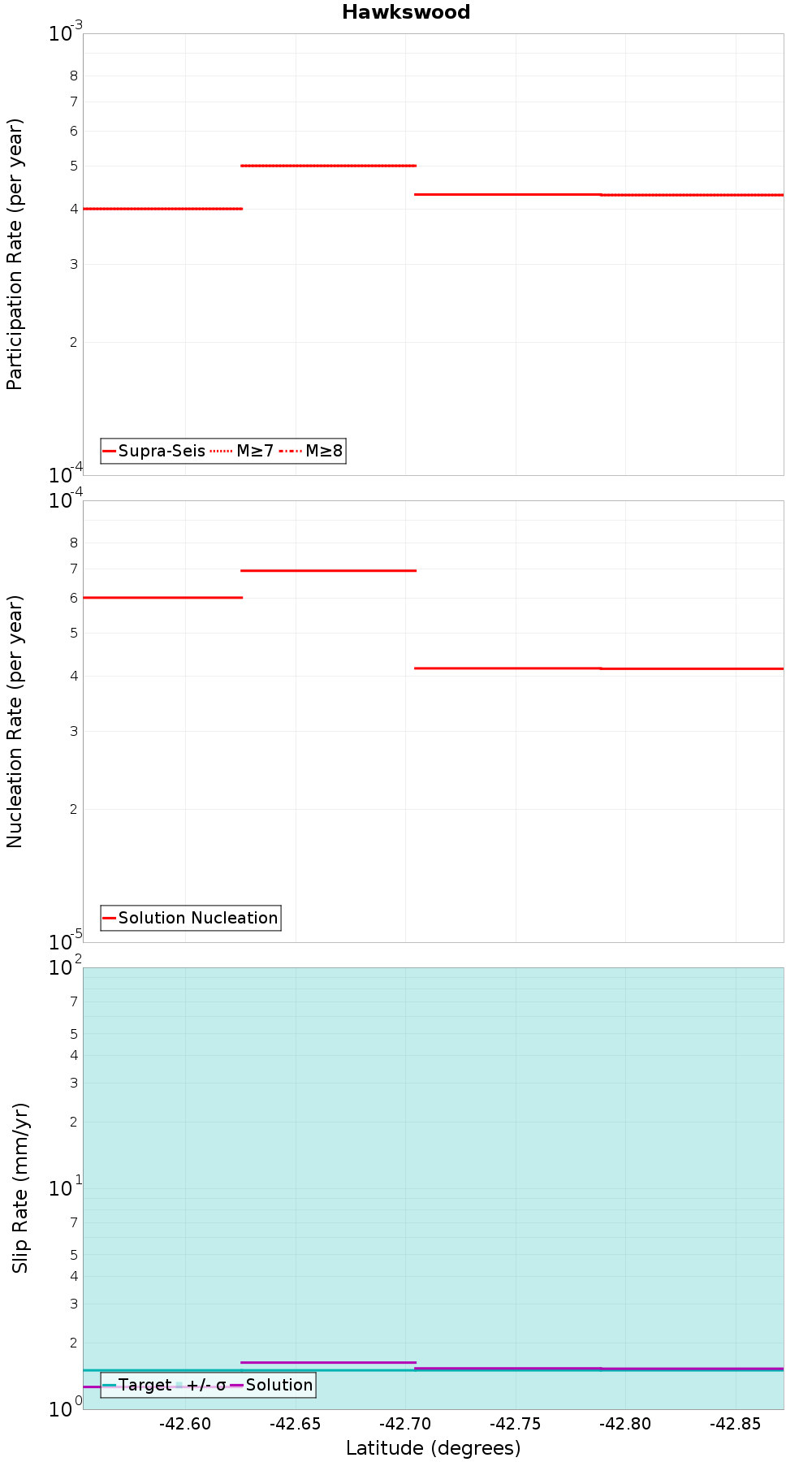

Along-Strike Values

Moment-Rates and b-Values

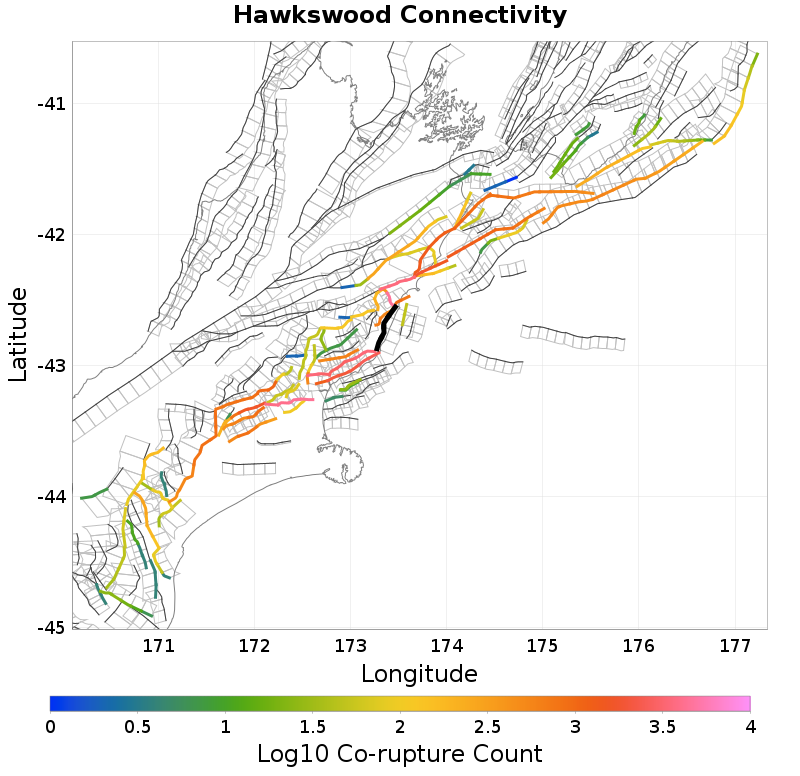

Connectivity

Nearby Sections

Fault Section
Hundalee, 0.87 km away
StoneJug, 2.25 km away
OmihiLwrHuru, 3.06 km away
AmberBlyth, 3.15 km away
Conway Trough West, 4 km away
Kaiwara North, 9.21 km away
Leader: Central, 10.66 km away
Leader: South, 10.66 km away
Conway Trough East, 10.89 km away
The Humps, 11.31 km away
Point Gibson, 11.9 km away

Hundalee, 0.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,426
Co-rupture Rate	2.939092E-4

StoneJug, 2.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	4,518
Co-rupture Rate	2.1459822E-5

OmihiLwrHuru, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	3,422
Co-rupture Rate	8.4786145E-5

AmberBlyth, 3.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	2,735
Co-rupture Rate	3.578994E-4

Conway Trough West, 4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	48
Co-rupture Rate	0.0

Kaiwara North, 9.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leader: Central, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	false
Co-rupture Count	220
Co-rupture Rate	1.4444037E-12

Leader: South, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Conway Trough East, 10.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

The Humps, 11.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	false
Co-rupture Count	124
Co-rupture Rate	2.0205114E-7

Point Gibson, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
