Wanaka Details

Property	Value
Rupture Count	48,659
Ruptures Above Sect Min Mag	48,654
Ruptures w/ Nonzero Rates	1,148
Magnitude Range	[6.97, 8.62]
Length Range	[22, 963] km
Total Rate	1.6214899E-5 /yr
Multi-Fault Rate	1.600029E-5 /yr (98.68%)
Directly-Connected Faults	7
All Co-Rupturing Faults	101

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

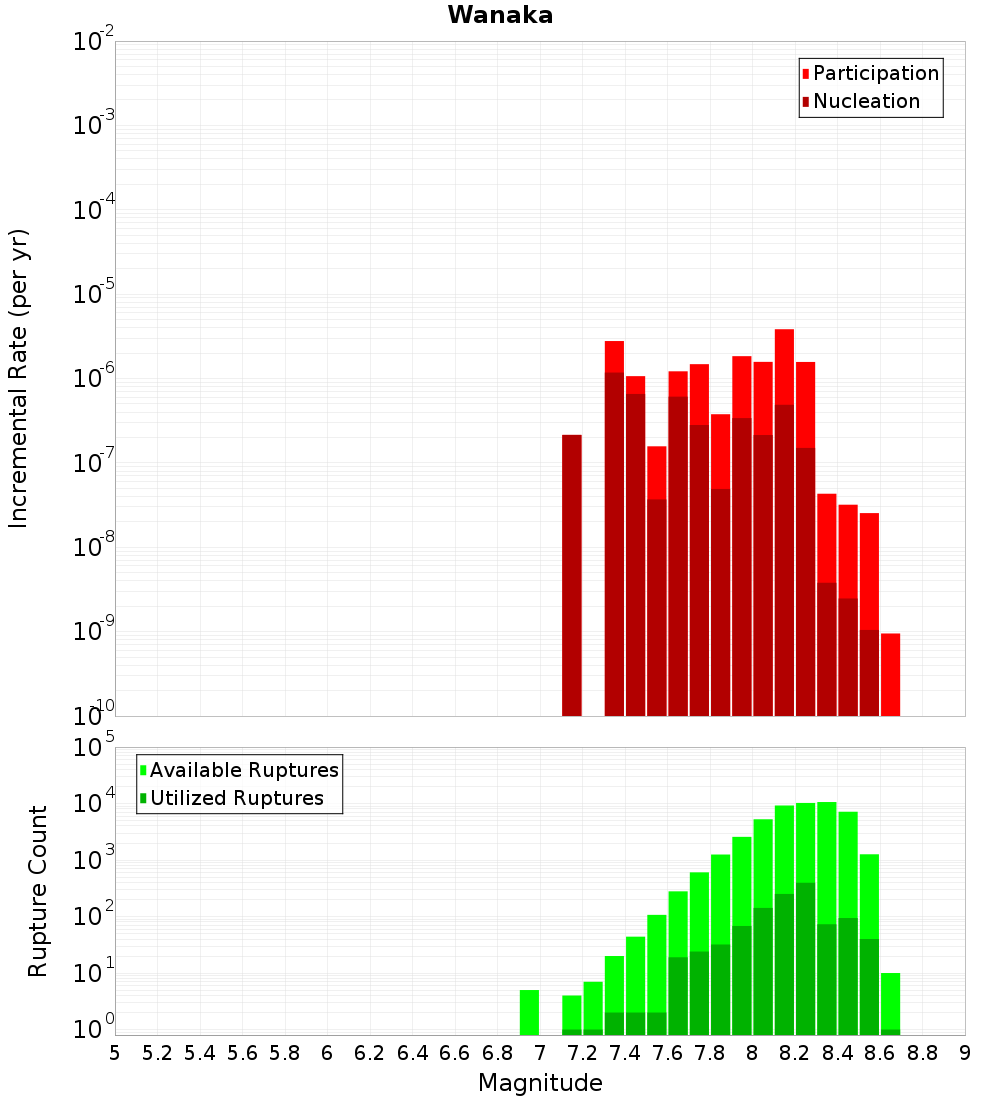

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dingle, 0.06 km away
Cardrona - Hawea, 0.24 km away
Hunter Valley, 0.32 km away
Timaru Creek, 0.46 km away
Motatapu, 1.15 km away
Hopkins, 1.91 km away
NW Cardrona North, 3.89 km away
Barrier Range, 8.72 km away
Dromedary, 10.85 km away
Cluden, 12.39 km away
Grandview, 12.54 km away

Dingle, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	14,477
Co-rupture Rate	7.7669426E-7

Cardrona - Hawea, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	5,704
Co-rupture Rate	1.0378121E-8

Hunter Valley, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	3,511
Co-rupture Rate	6.097852E-7

Timaru Creek, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	5.3907356E-6

Motatapu, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	31,420
Co-rupture Rate	5.637845E-6

Hopkins, 1.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	39,418
Co-rupture Rate	6.133558E-6

NW Cardrona North, 3.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	true
Co-rupture Count	16,631
Co-rupture Rate	4.3736623E-6

Barrier Range, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	false
Co-rupture Count	30
Co-rupture Rate	2.6701464E-8

Dromedary, 10.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	false
Co-rupture Count	7
Co-rupture Rate	1.4208903E-9

Cluden, 12.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	false
Co-rupture Count	64
Co-rupture Rate	4.7499285E-9

Grandview, 12.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDMuMFNQcHoy
Connected?	true
Directly Connected?	false
Co-rupture Count	2,065
Co-rupture Rate	1.2492613E-8
