Ruahine: Central Details

Property	Value
Rupture Count	24,437
Ruptures Above Sect Min Mag	24,434
Ruptures w/ Nonzero Rates	788
Magnitude Range	[6.96, 8.61]
Length Range	[22, 1,129] km
Total Rate	1.9319572E-4 /yr
Multi-Fault Rate	1.9319572E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	120

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

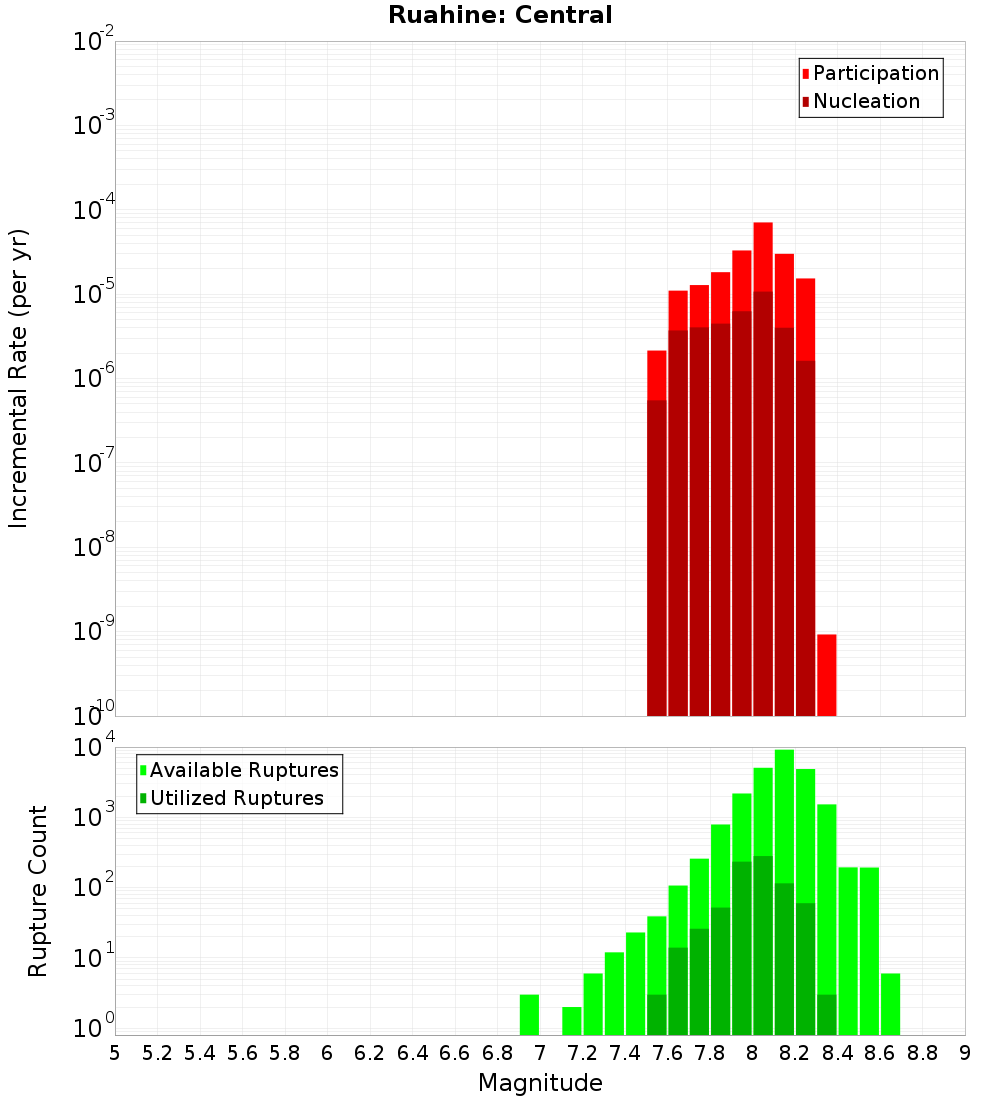

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ruahine: North, 0 km away
Wakarara, 0.11 km away
Ruahine: South, 0.16 km away
Rangefront, 0.2 km away
Mohaka: South, 2.68 km away
Mohaka: North, 7.58 km away
Ruataniwha, 9.9 km away
Patoka - Rangiora, 12.66 km away

Ruahine: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	true
Co-rupture Count	21,826
Co-rupture Rate	1.583285E-4

Wakarara, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	true
Co-rupture Count	183
Co-rupture Rate	1.0838669E-6

Ruahine: South, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	true
Co-rupture Count	16,332
Co-rupture Rate	1.0587957E-4

Rangefront, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,397
Co-rupture Rate	2.734974E-5

Mohaka: South, 2.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	true
Co-rupture Count	7,389
Co-rupture Rate	5.5439392E-5

Mohaka: North, 7.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 9.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	1.6491145E-5

Patoka - Rangiora, 12.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
