Waipukaka Details

Property	Value
Rupture Count	1,394
Ruptures Above Sect Min Mag	1,391
Ruptures w/ Nonzero Rates	319
Magnitude Range	[6.59, 8.20]
Length Range	[14, 467] km
Total Rate	9.3815164E-5 /yr
Multi-Fault Rate	9.3815164E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	59

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

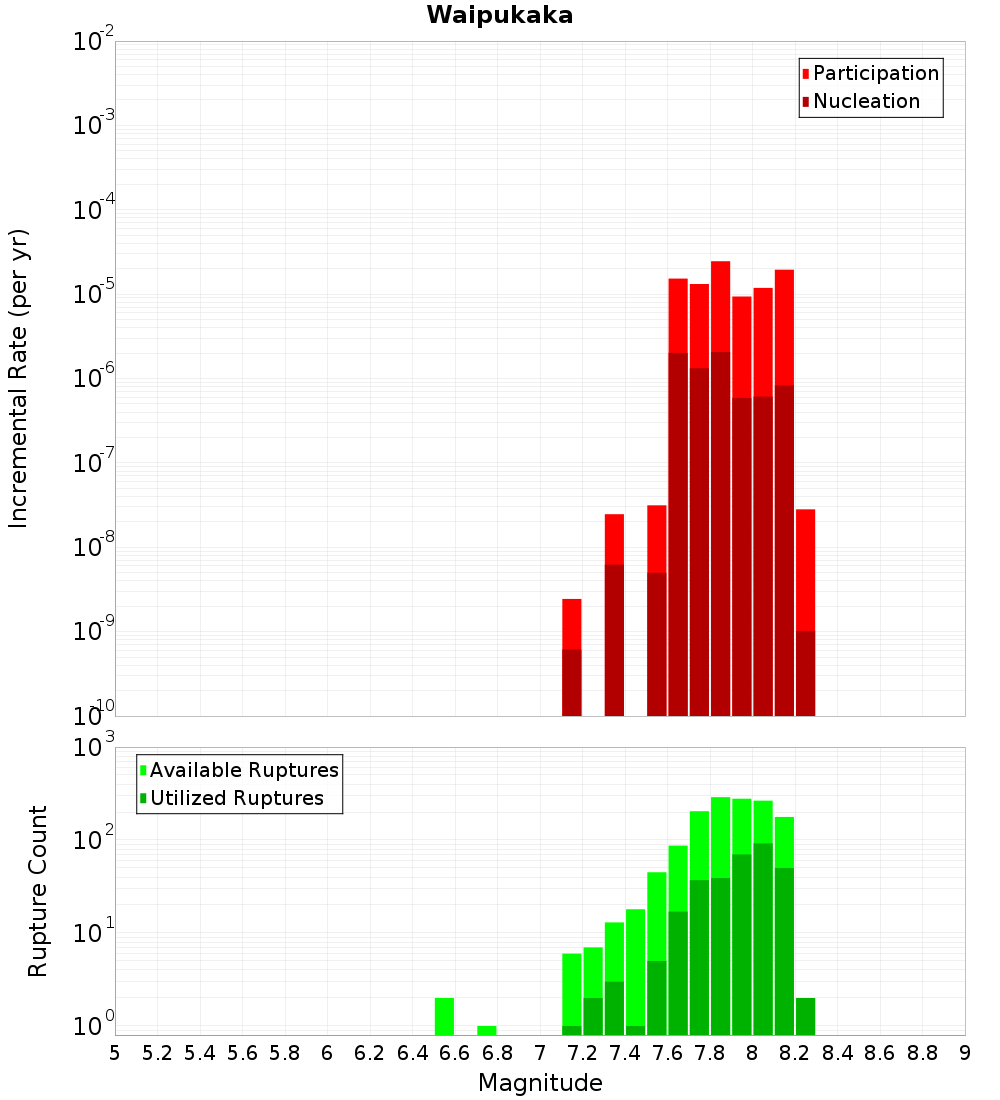

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

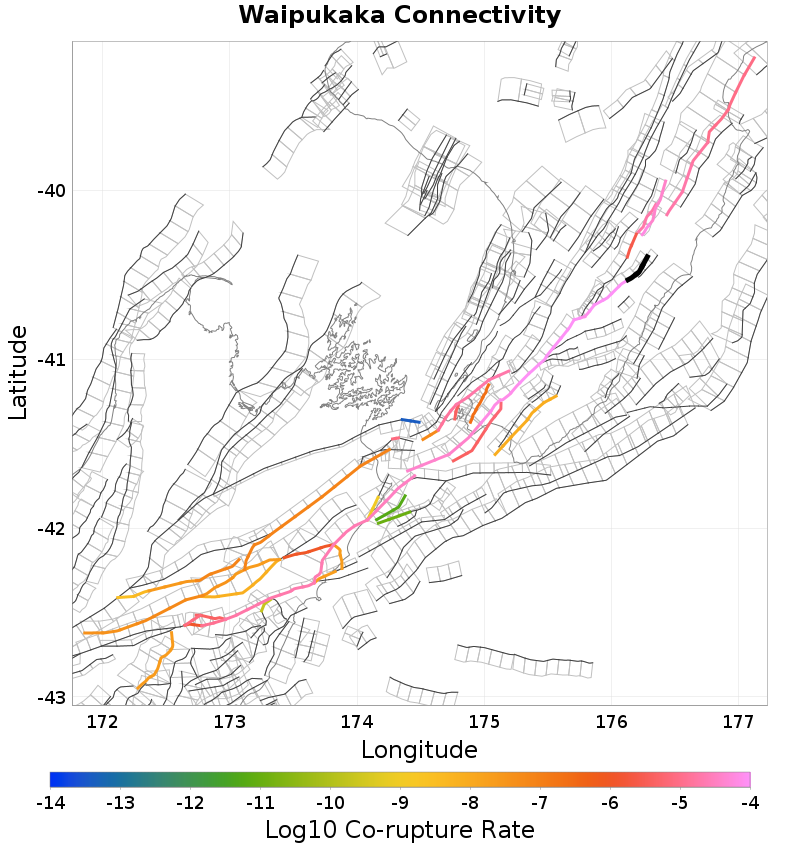

Connectivity

Nearby Sections

Fault Section
Saunders Road, 0.29 km away
Pongaroa - Weber, 2.27 km away
Makuri - Waewaepa, 8.28 km away
Clear Hills - Waikopiro, 10.24 km away
Waitawhiti, 10.86 km away
Waewaepa, 10.91 km away
Oruawharo - Mangatoro, 12.74 km away

Saunders Road, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,377
Co-rupture Rate	9.381273E-5

Pongaroa - Weber, 2.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 8.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 10.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	false
Co-rupture Count	212
Co-rupture Rate	1.9366238E-5

Waitawhiti, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 10.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	2.5568083E-6

Oruawharo - Mangatoro, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDYuMFhZemp3
Connected?	true
Directly Connected?	true
Co-rupture Count	661
Co-rupture Rate	6.191241E-5
