Otaraia Details

Property	Value
Rupture Count	3,493
Ruptures Above Sect Min Mag	3,485
Ruptures w/ Nonzero Rates	512
Magnitude Range	[6.69, 8.47]
Length Range	[17, 864] km
Total Rate	6.5964334E-5 /yr
Multi-Fault Rate	6.5964334E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	103

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

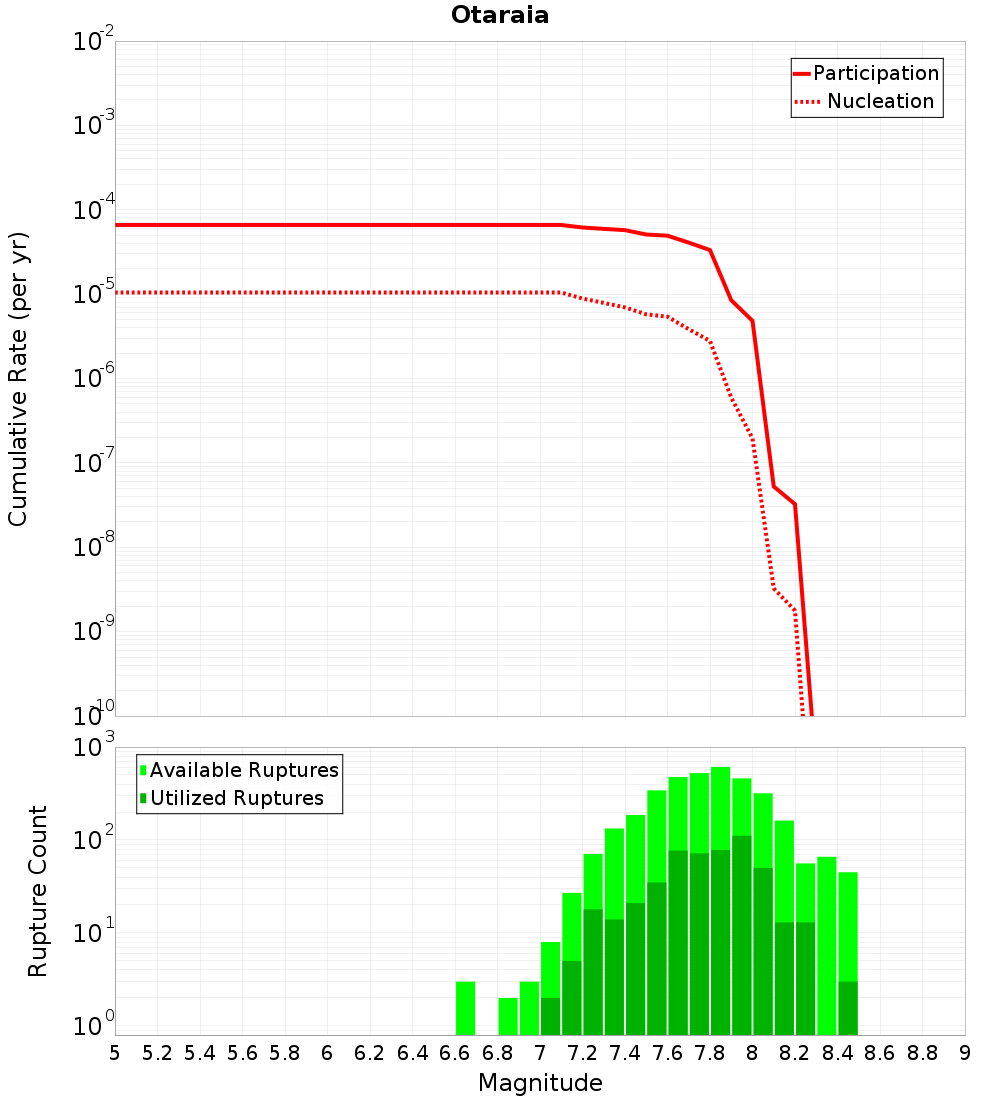

Magnitude-Frequency Distribution

Incremental	Cumulative

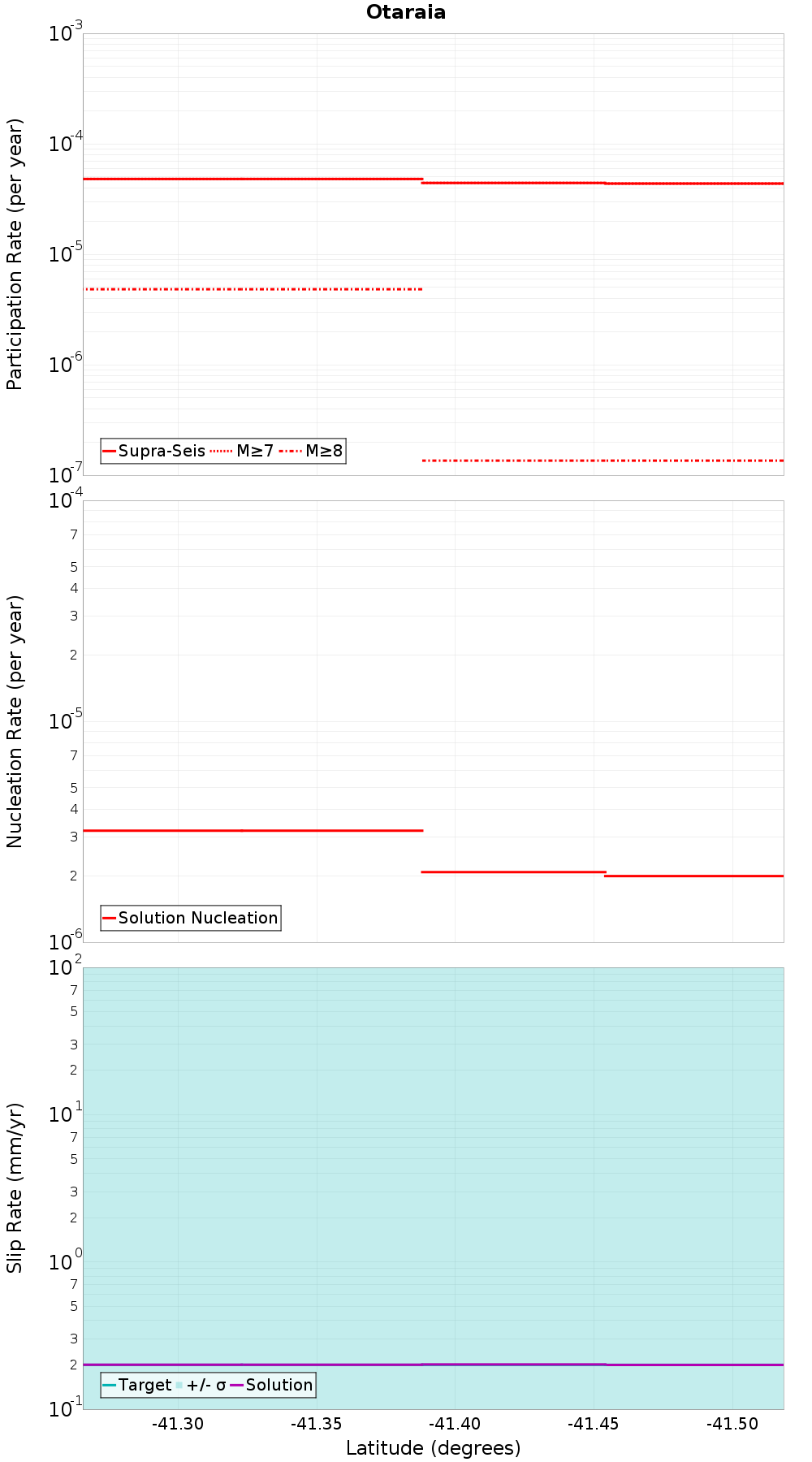

Along-Strike Values

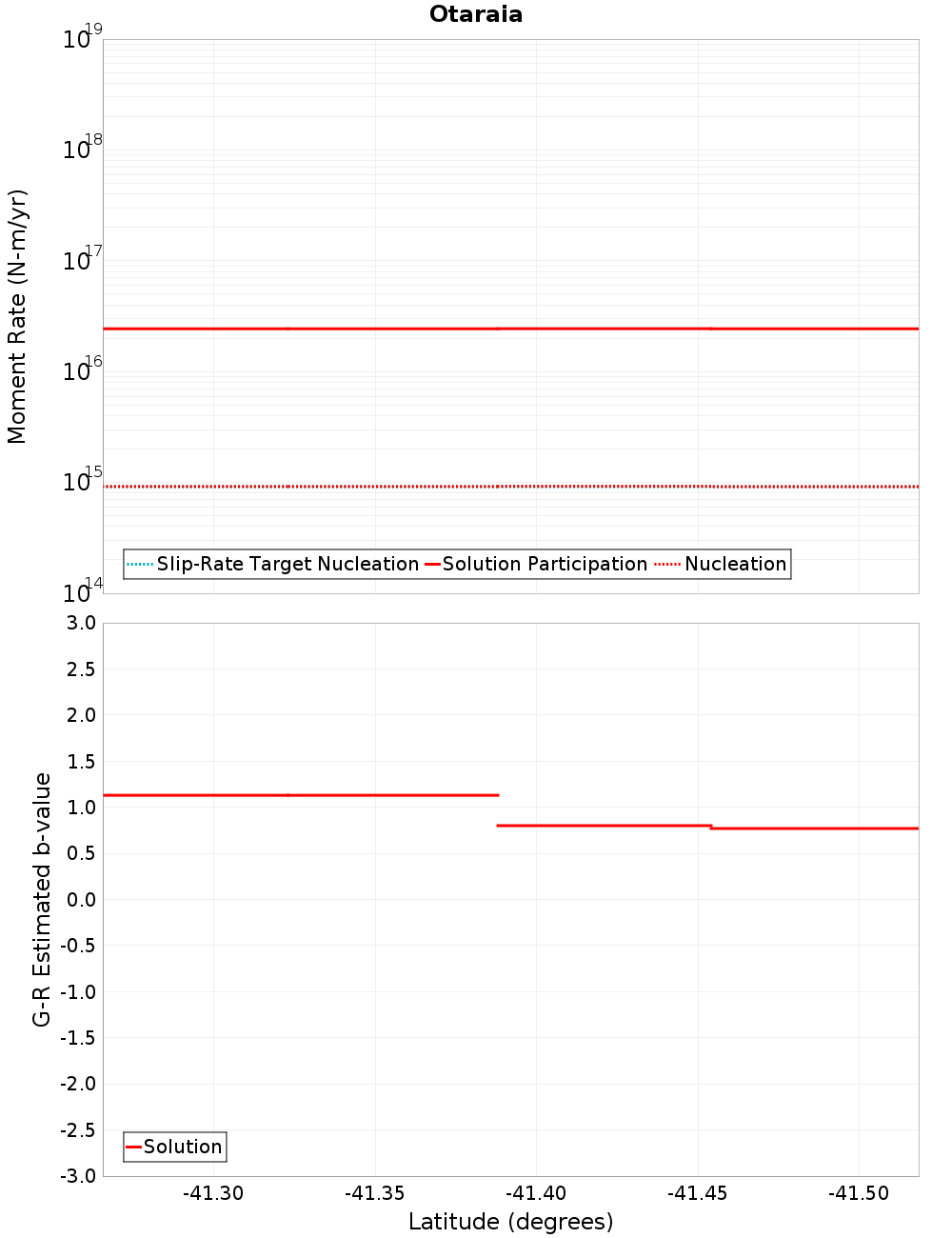

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Dry River - Huangarua: 1, 0.39 km away
Palliser - Kaiwhata, 1.7 km away
Martinborough, 1.89 km away
Bidwill, 3.57 km away
BooBoo, 5.91 km away
Dry River - Huangarua: 2, 7.52 km away
Opouawe - Uruti, 7.95 km away
Wharekauhau, 12.78 km away
Dry River - Huangarua: 3, 13.48 km away
Wairarapa: 2, 13.88 km away

Dry River - Huangarua: 1, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	true
Co-rupture Count	307
Co-rupture Rate	8.2152724E-7

Palliser - Kaiwhata, 1.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	5.3326135E-6

Martinborough, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,492
Co-rupture Rate	1.8125287E-5

Bidwill, 3.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,068
Co-rupture Rate	2.9867359E-5

BooBoo, 5.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,306
Co-rupture Rate	6.350931E-6

Dry River - Huangarua: 2, 7.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	2.146872E-6

Opouawe - Uruti, 7.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	true
Co-rupture Count	1,430
Co-rupture Rate	3.5065397E-5

Wharekauhau, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dry River - Huangarua: 3, 13.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	3.3704825E-6

Wairarapa: 2, 13.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NDguMHpWcDZH
Connected?	true
Directly Connected?	false
Co-rupture Count	168
Co-rupture Rate	1.4935923E-8
