Hollyford Details
| Property | Value |
|---|---|
| Rupture Count | 642 |
| Ruptures Above Sect Min Mag | 640 |
| Ruptures w/ Nonzero Rates | 60 |
| Magnitude Range | [6.89, 8.43] |
| Length Range | [19, 713] km |
| Total Rate | 3.214651E-4 /yr |
| Multi-Fault Rate | 2.3625855E-4 /yr (73.49%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 65 |
Table Of Contents

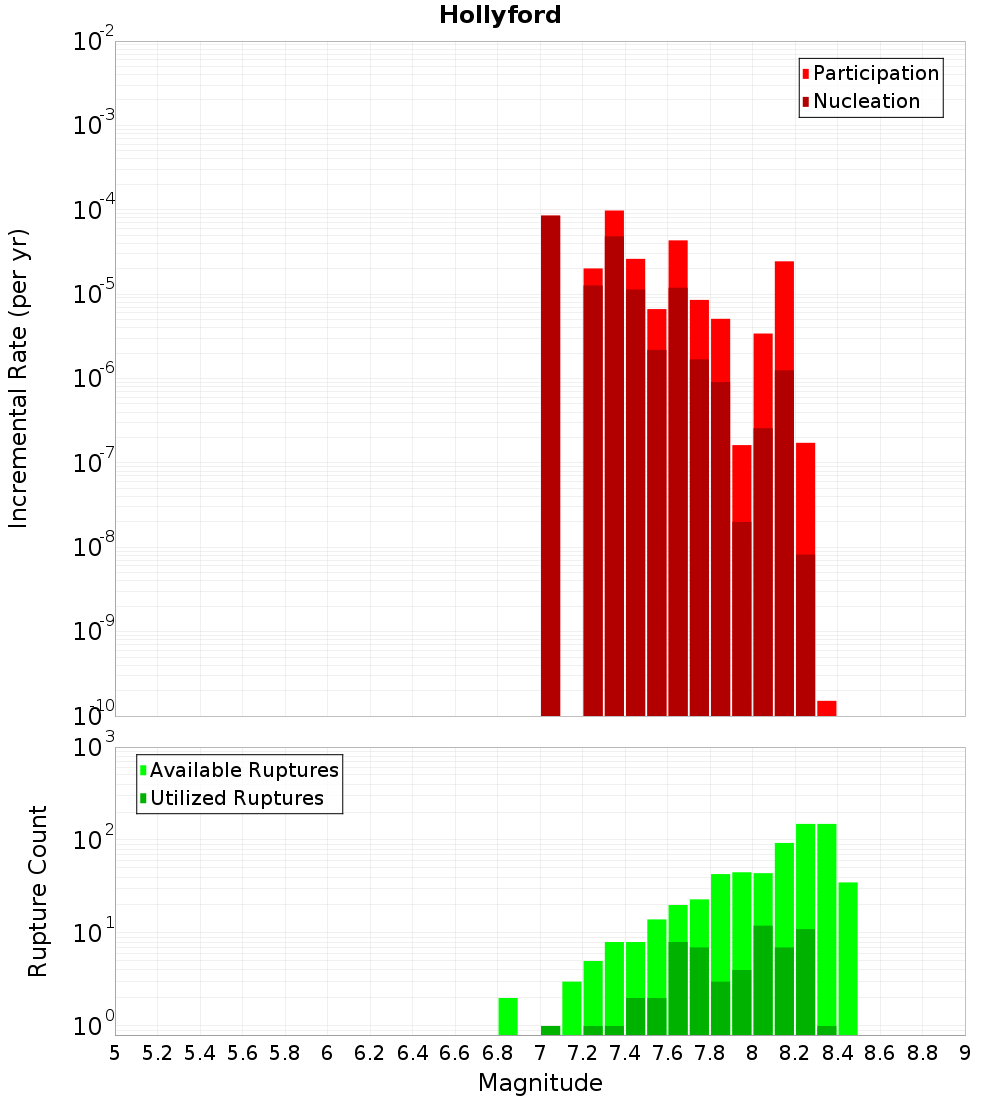

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

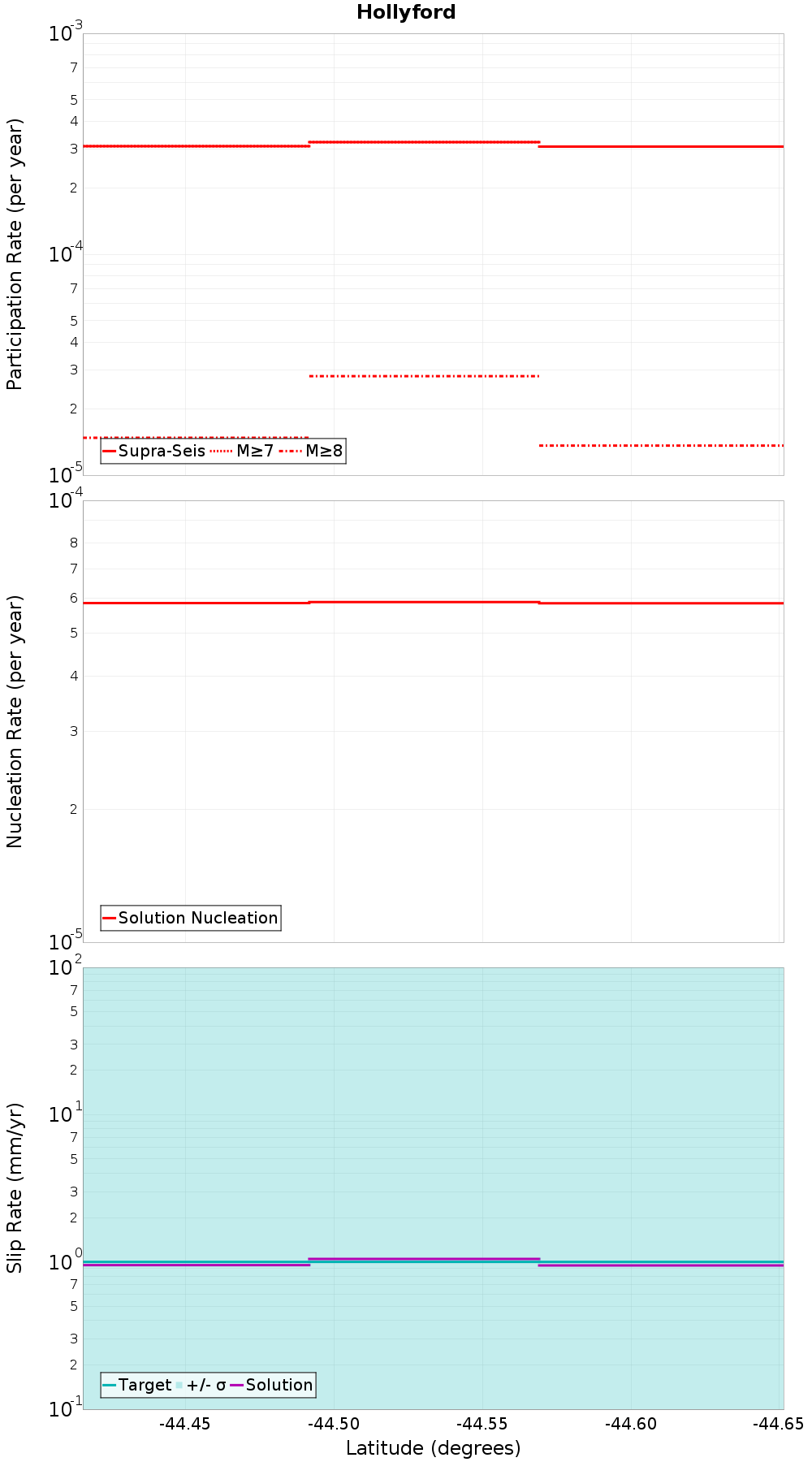

Along-Strike Values
Moment-Rates and b-Values

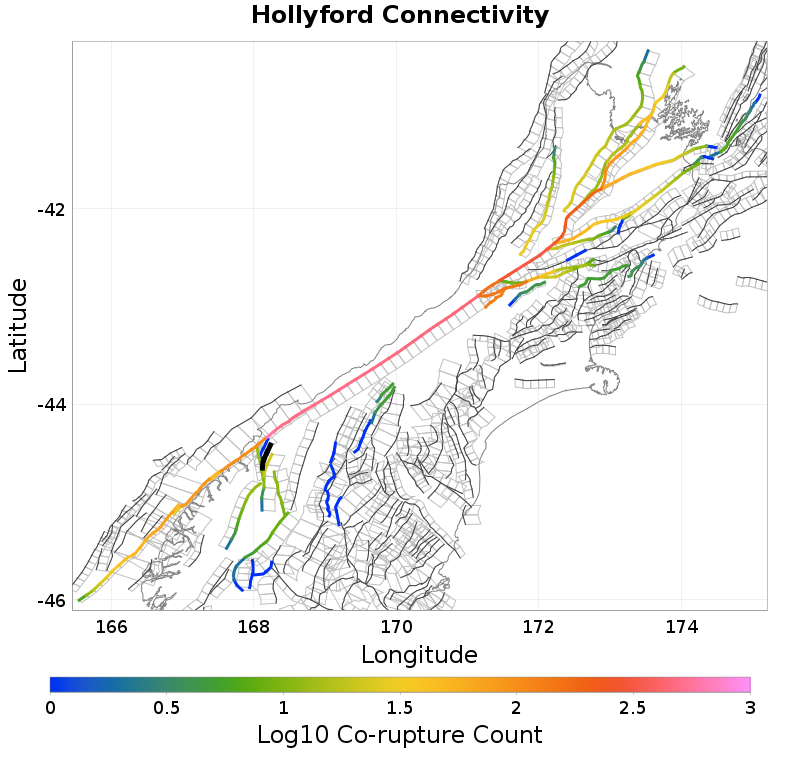

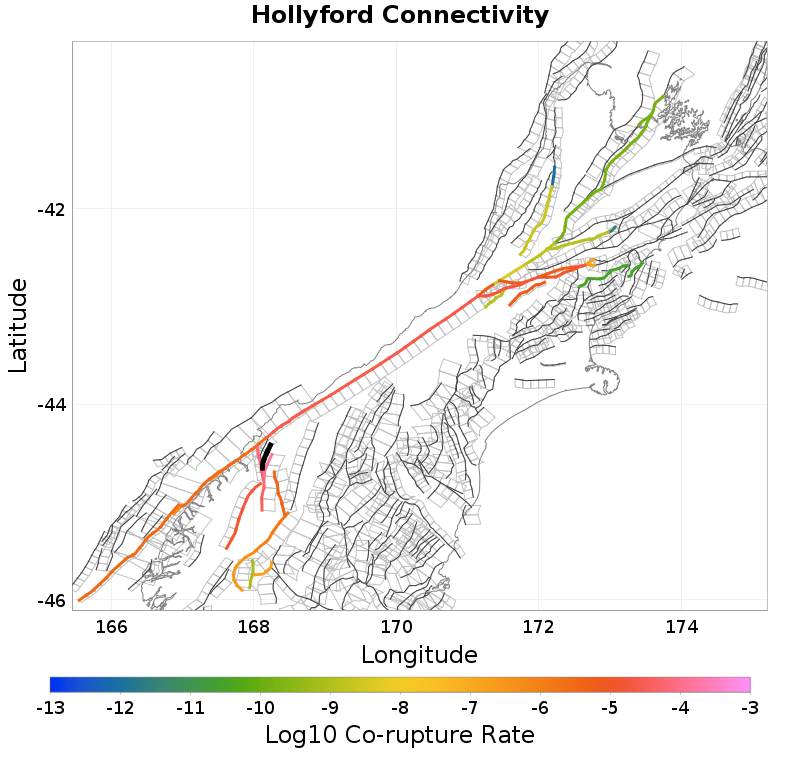

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Madagascar, 0.2 km away |
| Darran, 0.22 km away |
| Alpine: George to Jacksons, 0.23 km away |
| Livingstone, 3.63 km away |
| Skippers, 3.74 km away |
| Barn, 5.52 km away |
| West Wakatipu, 13.88 km away |
Madagascar, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NTAuMFMyVldN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Darran, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NTAuMFMyVldN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 6.0511313E-5 |
Alpine: George to Jacksons, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NTAuMFMyVldN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 606 |
| Co-rupture Rate | 2.7773327E-5 |
Livingstone, 3.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NTAuMFMyVldN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 23 |
| Co-rupture Rate | 1.5966817E-4 |
Skippers, 3.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NTAuMFMyVldN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Barn, 5.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NTAuMFMyVldN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
West Wakatipu, 13.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NTAuMFMyVldN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 11 |
| Co-rupture Rate | 3.9886936E-6 |
