Farewell Details
| Property | Value |
|---|---|
| Rupture Count | 1,648 |
| Ruptures Above Sect Min Mag | 1,637 |
| Ruptures w/ Nonzero Rates | 130 |
| Magnitude Range | [6.76, 8.11] |
| Length Range | [19, 369] km |
| Total Rate | 2.0154372E-5 /yr |
| Multi-Fault Rate | 1.841334E-5 /yr (91.36%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 19 |
Table Of Contents

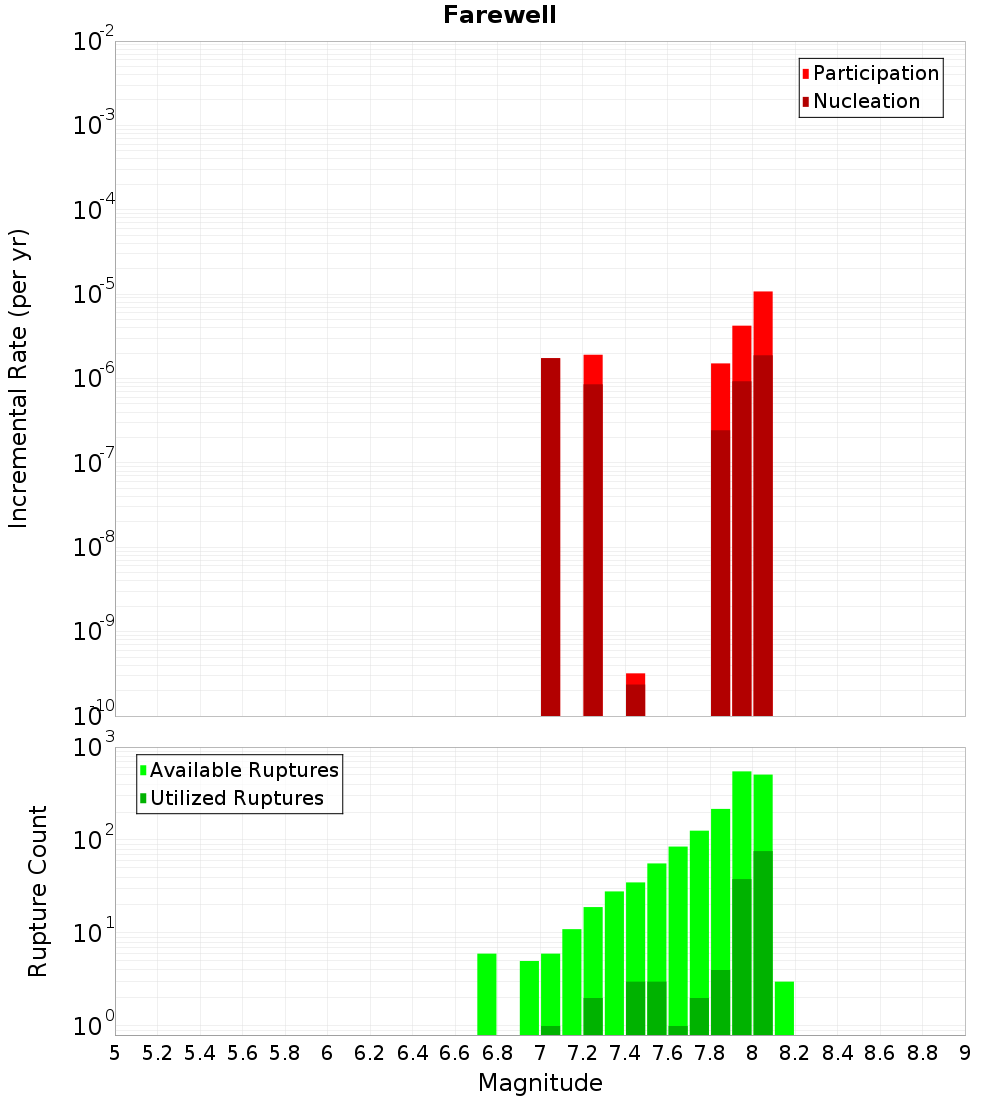

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

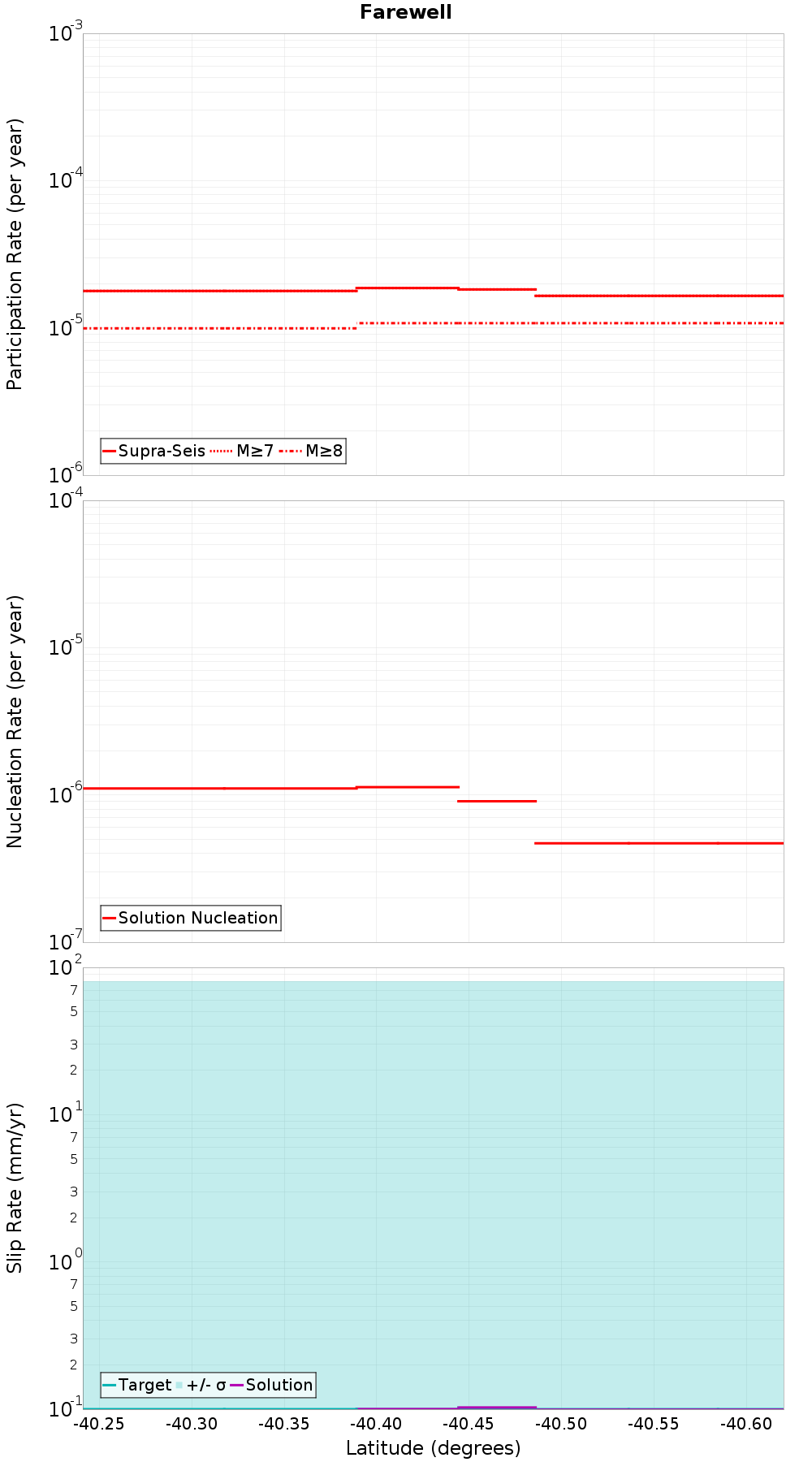

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Wakamarama Offshore, 0.22 km away |
| Wakamarama, 0.23 km away |
| Kahurangi, 0.25 km away |
| Kongahau, 3.83 km away |
Wakamarama Offshore, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjMuME1Ra1dY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 639 |
| Co-rupture Rate | 4.542901E-6 |
Wakamarama, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjMuME1Ra1dY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 144 |
| Co-rupture Rate | 1.4588438E-15 |
Kahurangi, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjMuME1Ra1dY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 670 |
| Co-rupture Rate | 9.184224E-6 |
Kongahau, 3.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjMuME1Ra1dY | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 876 |
| Co-rupture Rate | 7.3160186E-6 |
