Hororata Details

Property	Value
Rupture Count	4,153
Ruptures Above Sect Min Mag	4,139
Ruptures w/ Nonzero Rates	125
Magnitude Range	[6.70, 8.21]
Length Range	[17, 526] km
Total Rate	1.9657711E-4 /yr
Multi-Fault Rate	1.3844884E-4 /yr (70.43%)
Directly-Connected Faults	4
All Co-Rupturing Faults	61

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

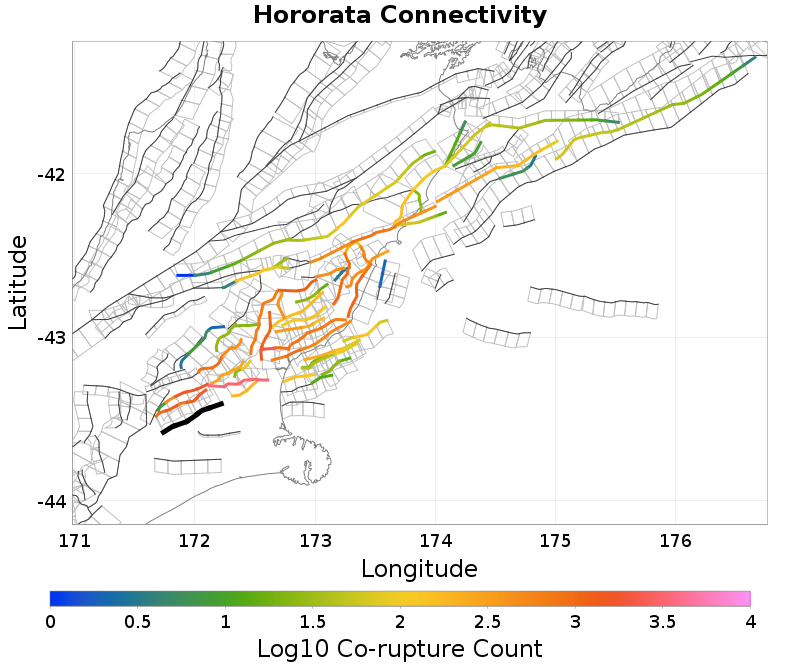

Connectivity
- Nearby Sections

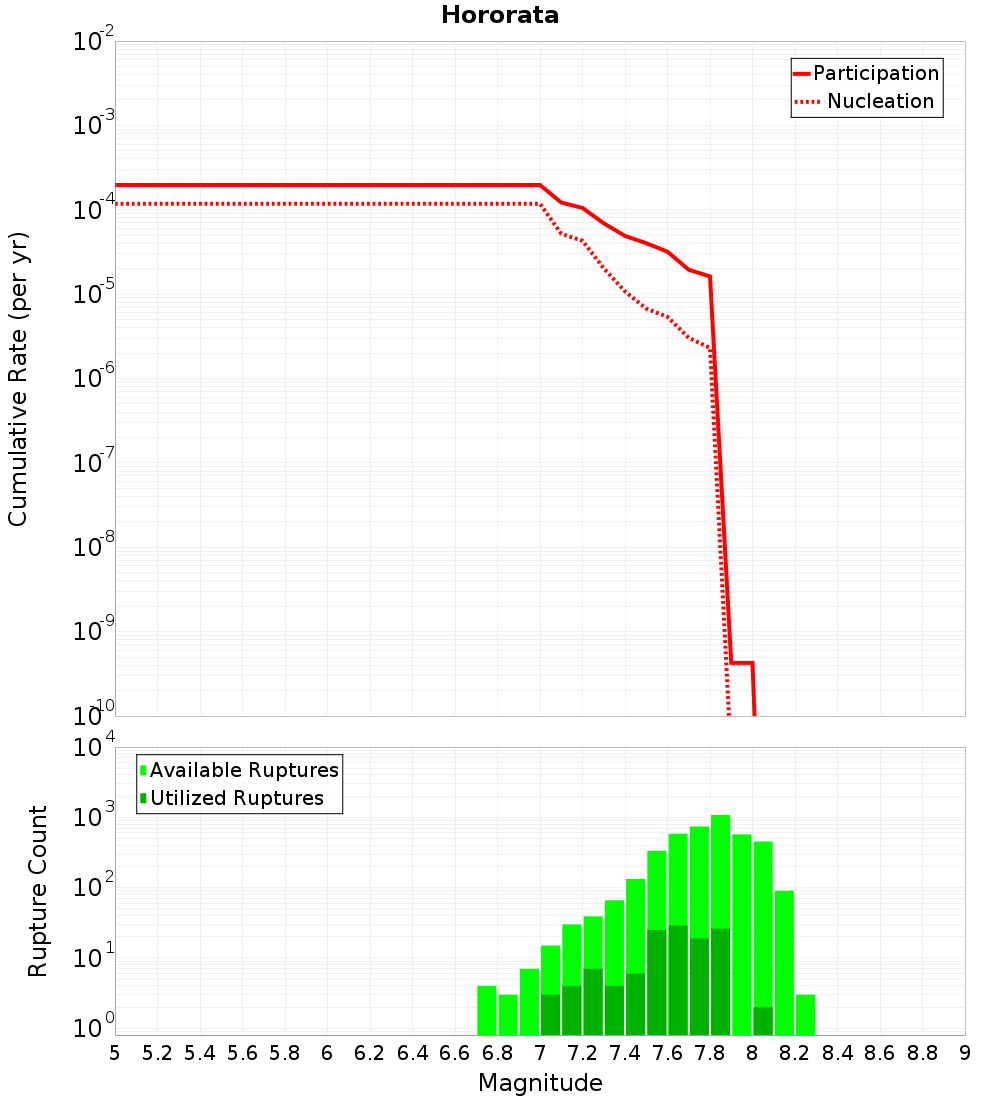

Magnitude-Frequency Distribution

Incremental	Cumulative

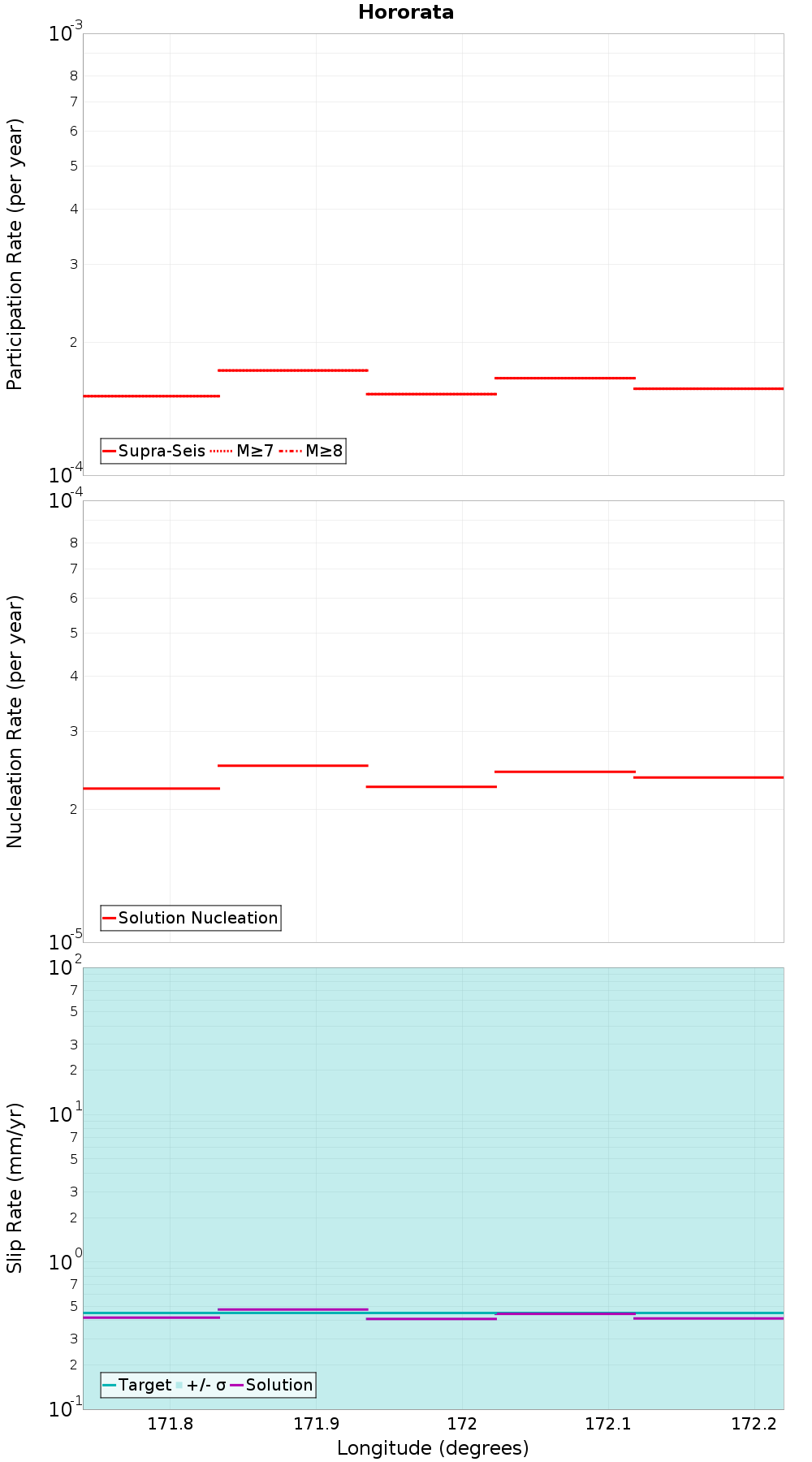

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
High Peak - Sheffield, 0.14 km away
Kowai - View Hill, 0.21 km away
Lees Valley, 5.51 km away
Starvation - Ashley, 6.38 km away
Esk South, 6.48 km away
Springbank, 8.03 km away
Big Ben, 8.05 km away
Knowles Top, 10.03 km away
Greendale, 10.04 km away
Hutt Peel, 10.65 km away
Torlesse, 12.36 km away
Double Hill, 12.7 km away

High Peak - Sheffield, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	true
Directly Connected?	true
Co-rupture Count	2,377
Co-rupture Rate	9.071874E-5

Kowai - View Hill, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	true
Directly Connected?	true
Co-rupture Count	1,604
Co-rupture Rate	1.7987899E-5

Lees Valley, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	true
Directly Connected?	true
Co-rupture Count	1,119
Co-rupture Rate	9.495818E-6

Starvation - Ashley, 6.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	true
Directly Connected?	false
Co-rupture Count	3,481
Co-rupture Rate	3.606523E-5

Esk South, 6.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	2.479791E-5

Springbank, 8.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	true
Directly Connected?	false
Co-rupture Count	190
Co-rupture Rate	5.732999E-6

Big Ben, 8.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 10.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	true
Directly Connected?	false
Co-rupture Count	279
Co-rupture Rate	1.1388499E-5

Greendale, 10.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 10.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Torlesse, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Double Hill, 12.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NjYuMEpCQUJo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
