Ranfurly Details

Property	Value
Rupture Count	418
Ruptures Above Sect Min Mag	418
Ruptures w/ Nonzero Rates	53
Magnitude Range	[7.04, 8.09]
Length Range	[24, 258] km
Total Rate	3.0443061E-5 /yr
Multi-Fault Rate	2.3626691E-5 /yr (77.61%)
Directly-Connected Faults	6
All Co-Rupturing Faults	26

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

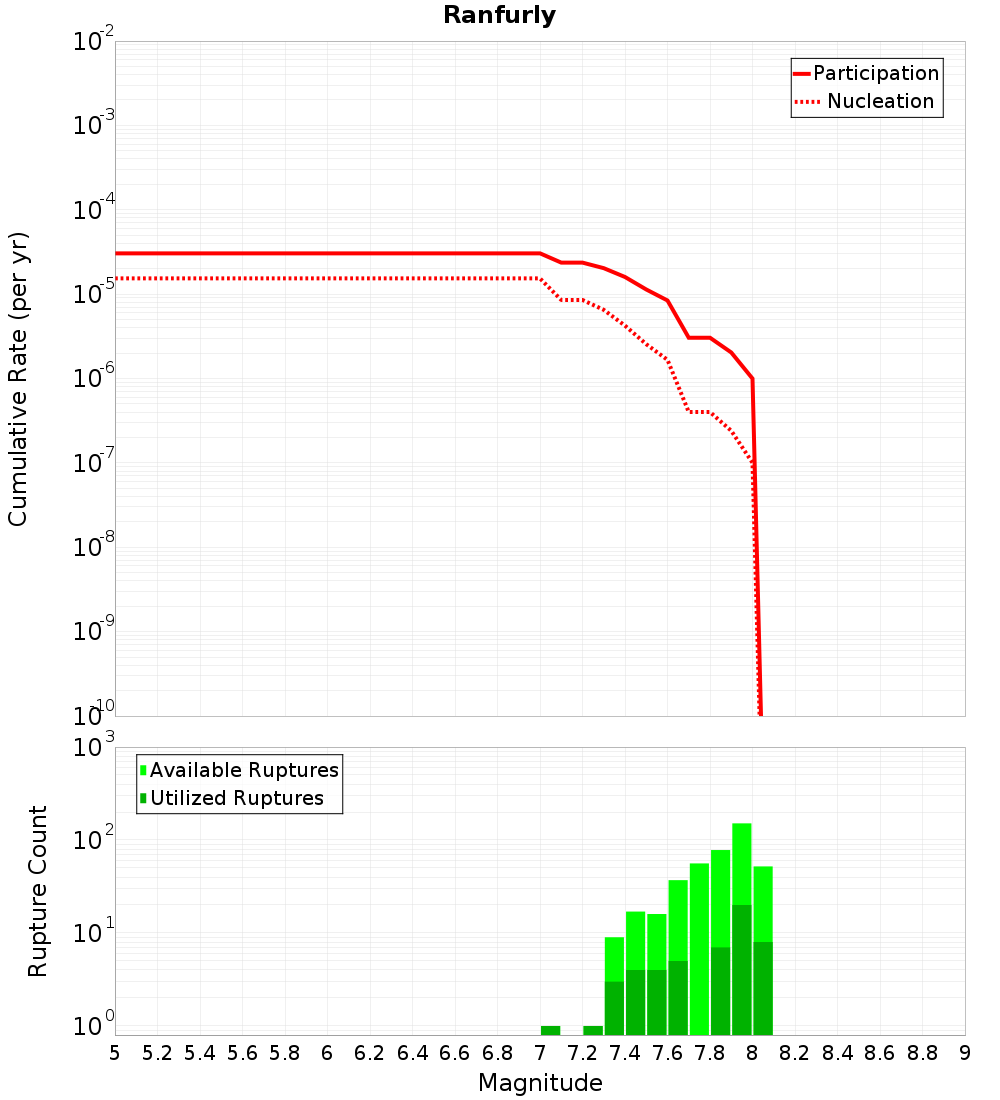

Magnitude-Frequency Distribution

Incremental	Cumulative

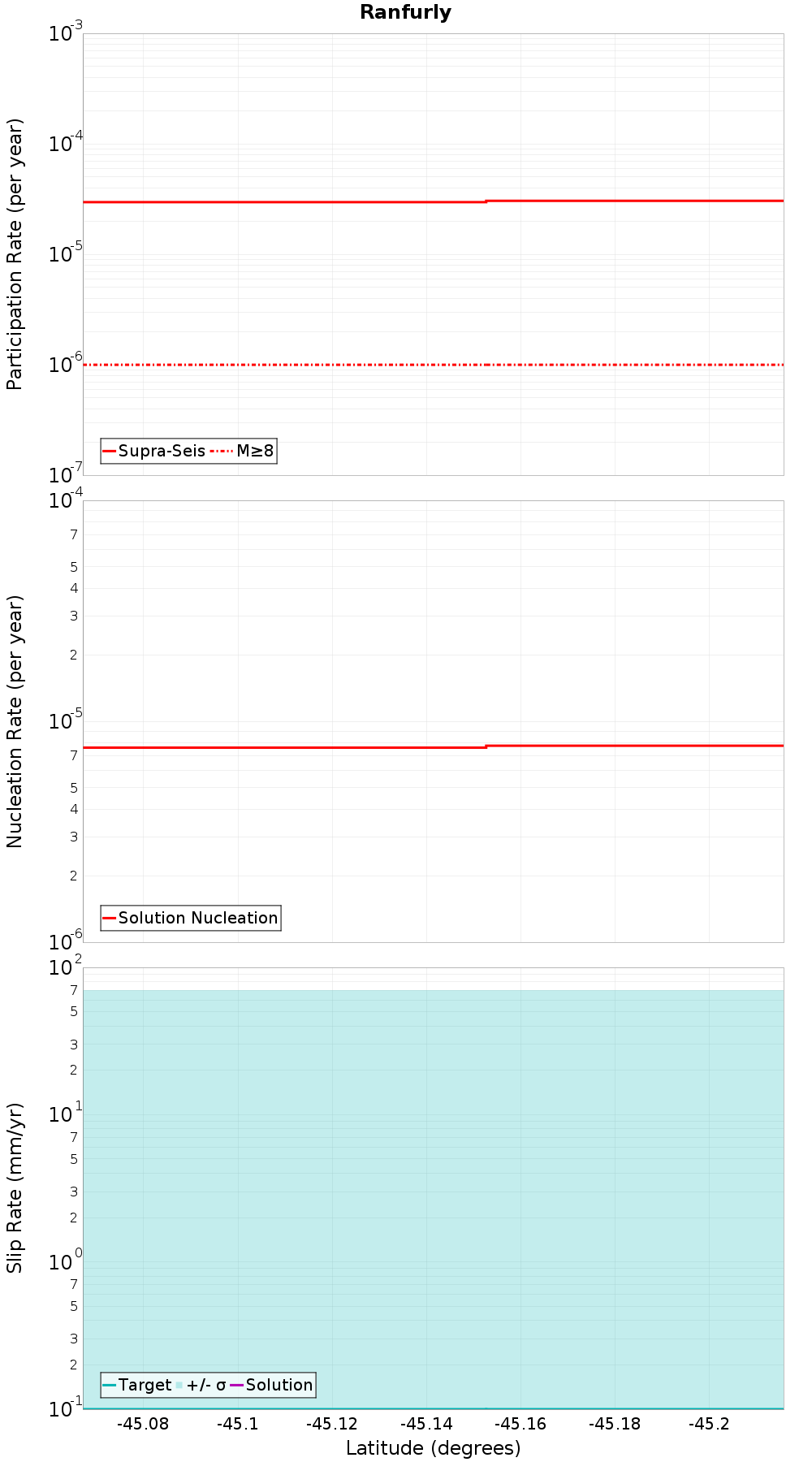

Along-Strike Values

Moment-Rates and b-Values

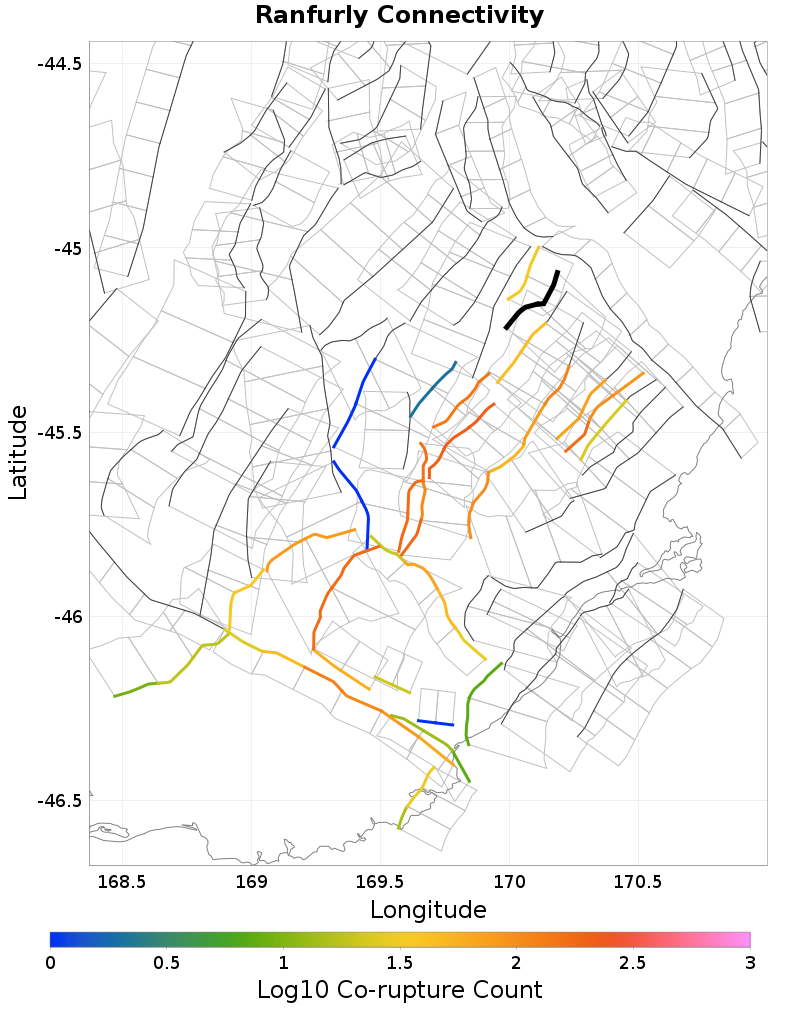

Connectivity

Nearby Sections

Fault Section
Hyde North, 0.06 km away
Horse Flat, 0.12 km away
Billys Ridge, 0.13 km away
Murphys Creek, 0.76 km away
Waipiata, 2.79 km away
Cross Eden, 4.43 km away
Dunback Hill, 4.86 km away
Gimmerburn, 4.96 km away
Waihemo, 5.63 km away
Hawkdun, 10.99 km away
Garibaldi, 12.32 km away
Flat Stream - Glenpark, 13.03 km away
Pylap, 13.83 km away

Hyde North, 0.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	true
Co-rupture Count	117
Co-rupture Rate	2.7104222E-6

Horse Flat, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	true
Co-rupture Count	72
Co-rupture Rate	3.3543174E-6

Billys Ridge, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	true
Co-rupture Count	173
Co-rupture Rate	1.4191377E-5

Murphys Creek, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	true
Co-rupture Count	24
Co-rupture Rate	3.6446324E-6

Waipiata, 2.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	6.859654E-9

Cross Eden, 4.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	true
Co-rupture Count	32
Co-rupture Rate	3.3189465E-6

Dunback Hill, 4.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gimmerburn, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waihemo, 5.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkdun, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garibaldi, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Flat Stream - Glenpark, 13.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pylap, 13.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	false
Co-rupture Count	148
Co-rupture Rate	1.1308063E-6
