Waitawhiti Details

Property	Value
Rupture Count	141
Ruptures Above Sect Min Mag	139
Ruptures w/ Nonzero Rates	54
Magnitude Range	[6.41, 8.12]
Length Range	[10, 416] km
Total Rate	2.2484682E-4 /yr
Multi-Fault Rate	2.2484682E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	27

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

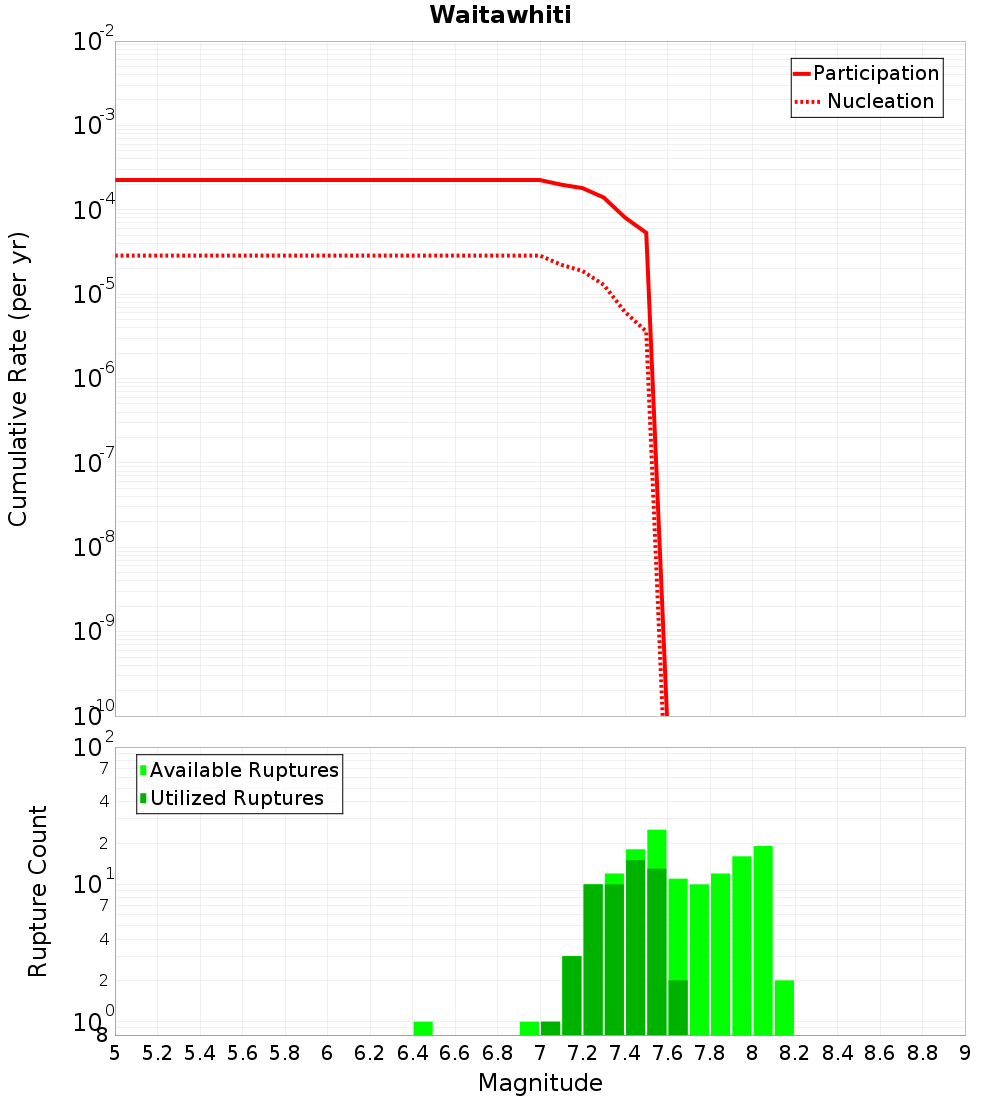

Magnitude-Frequency Distribution

Incremental	Cumulative

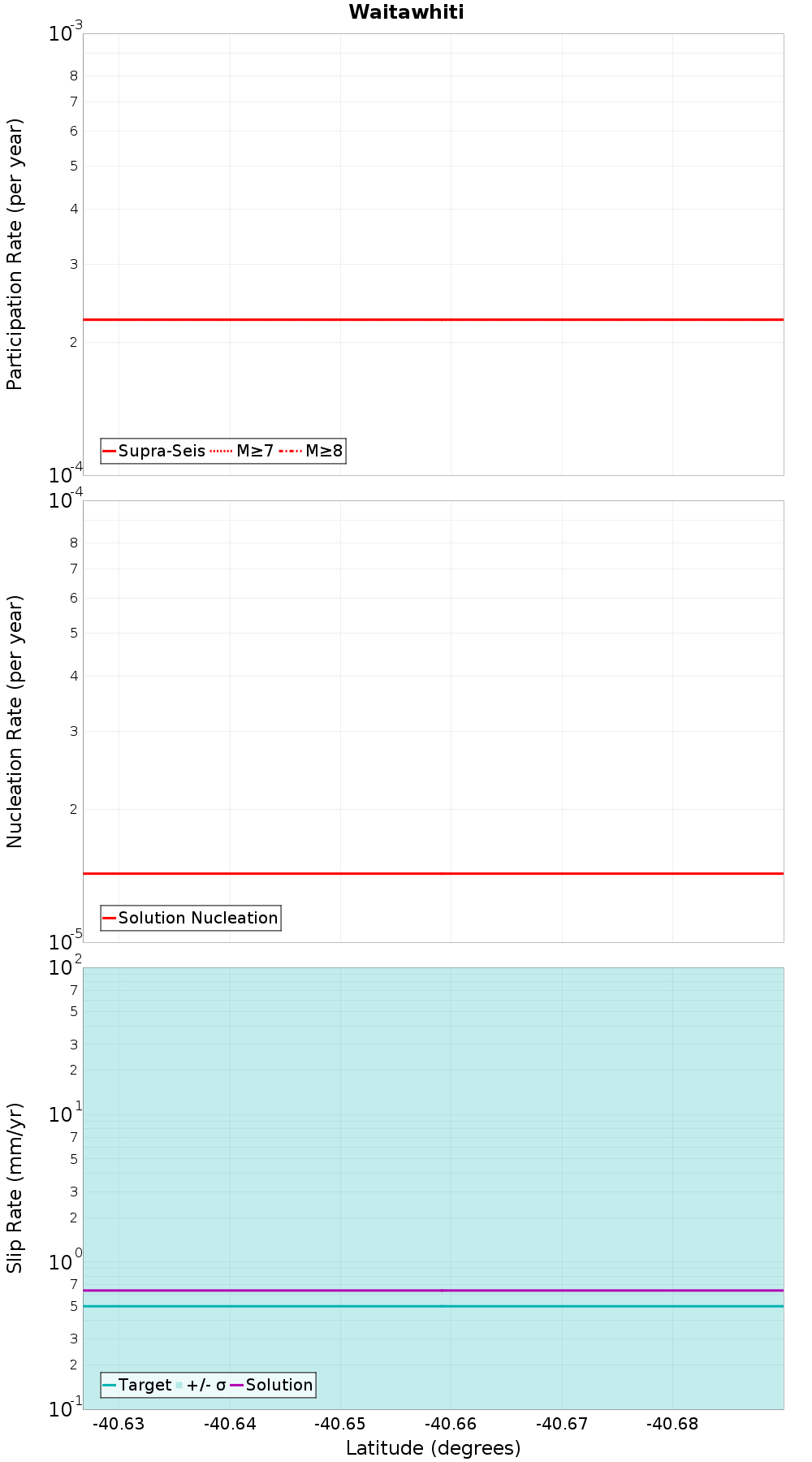

Along-Strike Values

Moment-Rates and b-Values

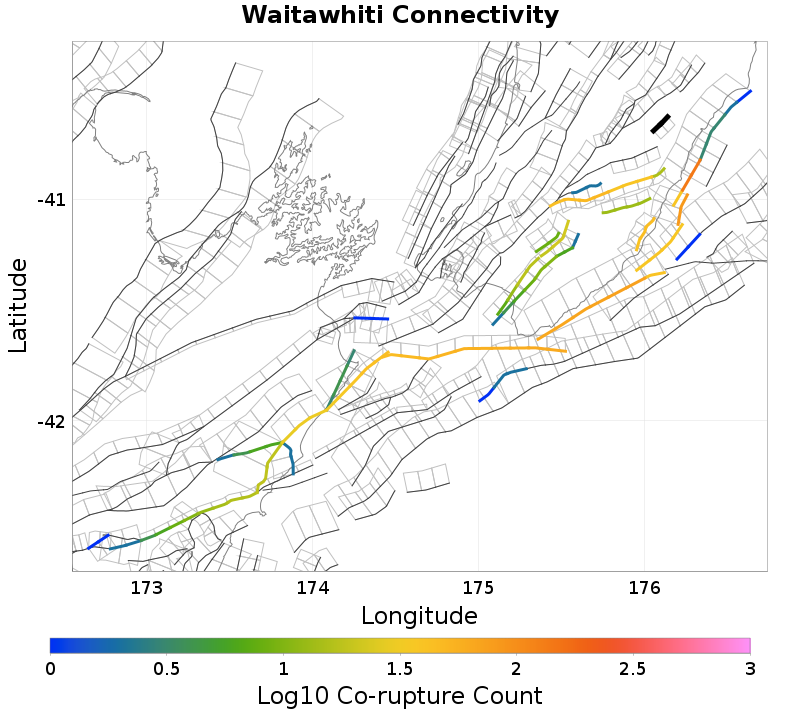

Connectivity

Nearby Sections

Fault Section
Mataikona, 4.15 km away
Mokonui Northeast, 7.82 km away
Saunders Road, 9.29 km away
Waipukaka, 10.86 km away
Mataikona East, 13.71 km away
Pongaroa - Weber, 14.09 km away
Alfredton North, 14.48 km away

Mataikona, 4.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	true
Directly Connected?	true
Co-rupture Count	140
Co-rupture Rate	2.2484682E-4

Mokonui Northeast, 7.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Saunders Road, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona East, 13.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 14.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton North, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0NzAuMDd5dUp3
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
