Whakatane: South Details

Property	Value
Rupture Count	8,955
Ruptures Above Sect Min Mag	8,953
Ruptures w/ Nonzero Rates	758
Magnitude Range	[7.04, 8.59]
Length Range	[26, 1,068] km
Total Rate	4.06361E-4 /yr
Multi-Fault Rate	3.646742E-4 /yr (89.74%)
Directly-Connected Faults	5
All Co-Rupturing Faults	97

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

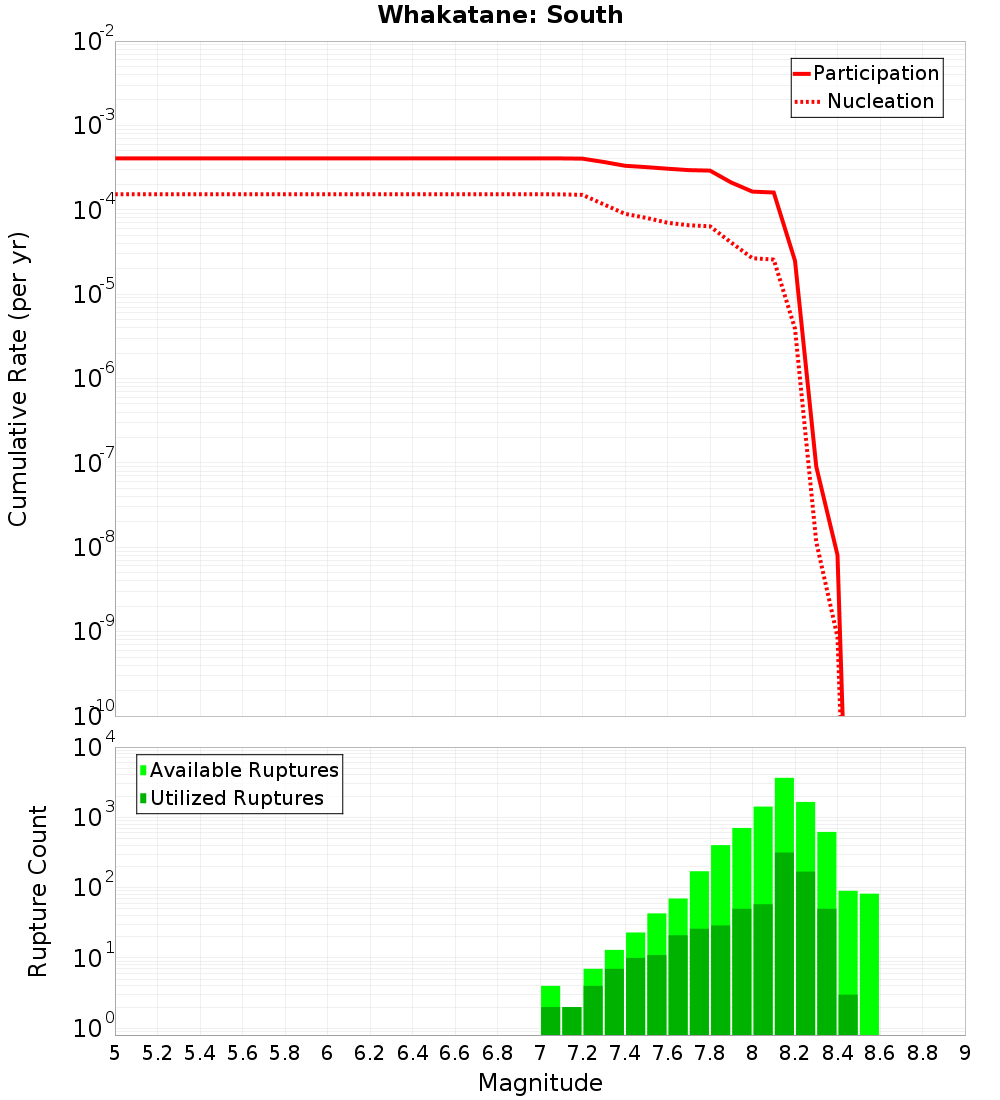

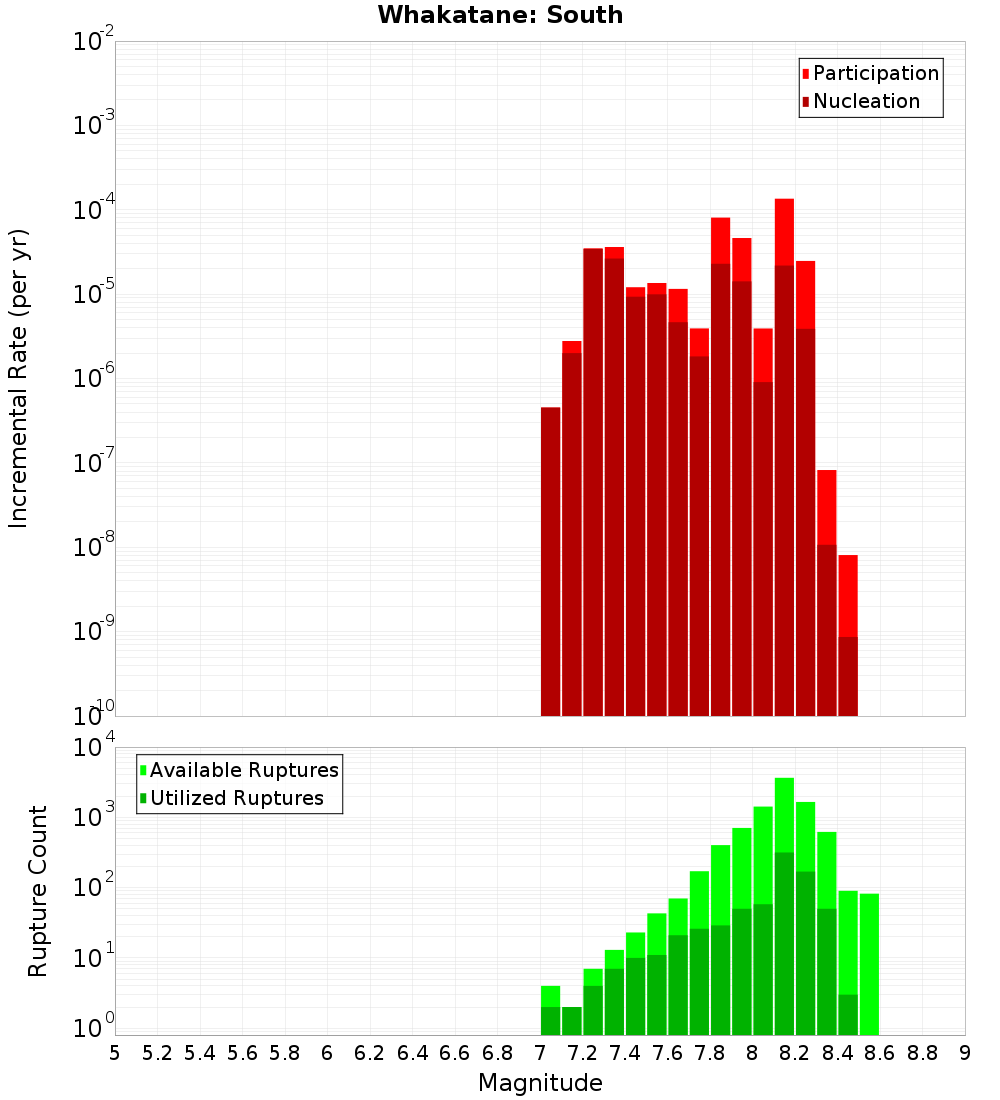

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waimana: South, 0 km away
Whakatane: North, 0 km away
Mohaka: North, 0 km away
Waiohau: South, 4.67 km away
Waimana: North, 5.63 km away
Waiotahi: South, 5.93 km away
Waiotahi: North, 10.09 km away
Waiohau: North, 11.09 km away
Ruahine: North, 11.52 km away
Te Whaiti South, 11.9 km away
Patoka - Rangiora, 12.36 km away
Wheao: South, 14.52 km away

Waimana: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	true
Co-rupture Count	693
Co-rupture Rate	4.4853947E-5

Whakatane: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	true
Co-rupture Count	3,688
Co-rupture Rate	2.879587E-4

Mohaka: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	true
Co-rupture Count	7,813
Co-rupture Rate	2.7812037E-4

Waiohau: South, 4.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	true
Co-rupture Count	1,858
Co-rupture Rate	2.1530452E-5

Waimana: North, 5.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	5.4625884E-6

Waiotahi: South, 5.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	1.20801915E-5

Waiotahi: North, 10.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	6.617552E-6

Waiohau: North, 11.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruahine: North, 11.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	false
Co-rupture Count	1,106
Co-rupture Rate	2.1529875E-5

Te Whaiti South, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	true
Co-rupture Count	186
Co-rupture Rate	9.3445915E-6

Patoka - Rangiora, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	true
Directly Connected?	false
Co-rupture Count	512
Co-rupture Rate	6.4302396E-5

Wheao: South, 14.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTIuMEM0clRy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
