Oruawharo - Mangatoro Details

PropertyValue
Rupture Count2,118
Ruptures Above Sect Min Mag2,108
Ruptures w/ Nonzero Rates52
Magnitude Range[6.66, 8.23]
Length Range[16, 500] km
Total Rate5.316016E-4 /yr
Multi-Fault Rate5.316016E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults63

Table Of Contents

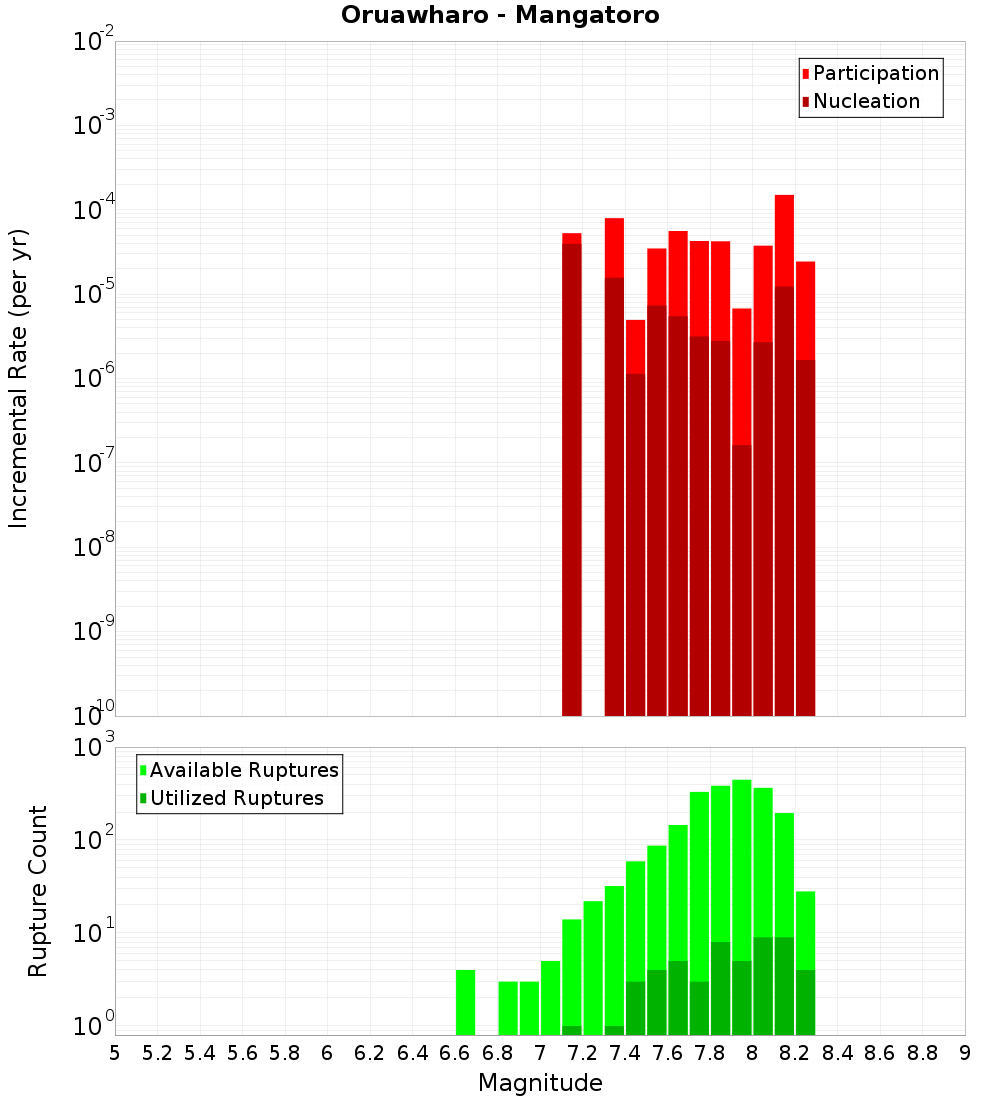

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Clear Hills - Waikopiro, 0.12 km away
Waipukurau - Poukawa, 3.21 km away
Waewaepa, 3.74 km away
Ruataniwha, 5.67 km away
Te Heka, 8.05 km away
Maunga, 8.13 km away
Tukituki Thrust, 9.21 km away
Waipukaka, 12.74 km away
Pongaroa - Weber, 14.66 km away

Clear Hills - Waikopiro, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count315
Co-rupture Rate2.0676041E-5

Waipukurau - Poukawa, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count464
Co-rupture Rate2.603411E-4

Waewaepa, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count1,116
Co-rupture Rate4.0066233E-4

Ruataniwha, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Te Heka, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count260
Co-rupture Rate2.0731528E-5

Maunga, 8.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate4.044513E-5

Waipukaka, 12.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count661
Co-rupture Rate8.950623E-5

Pongaroa - Weber, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
