Riversdale North Details

PropertyValue
Rupture Count1,525
Ruptures Above Sect Min Mag1,519
Ruptures w/ Nonzero Rates49
Magnitude Range[6.68, 8.23]
Length Range[16, 505] km
Total Rate5.06098E-4 /yr
Multi-Fault Rate5.06098E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults41

Table Of Contents

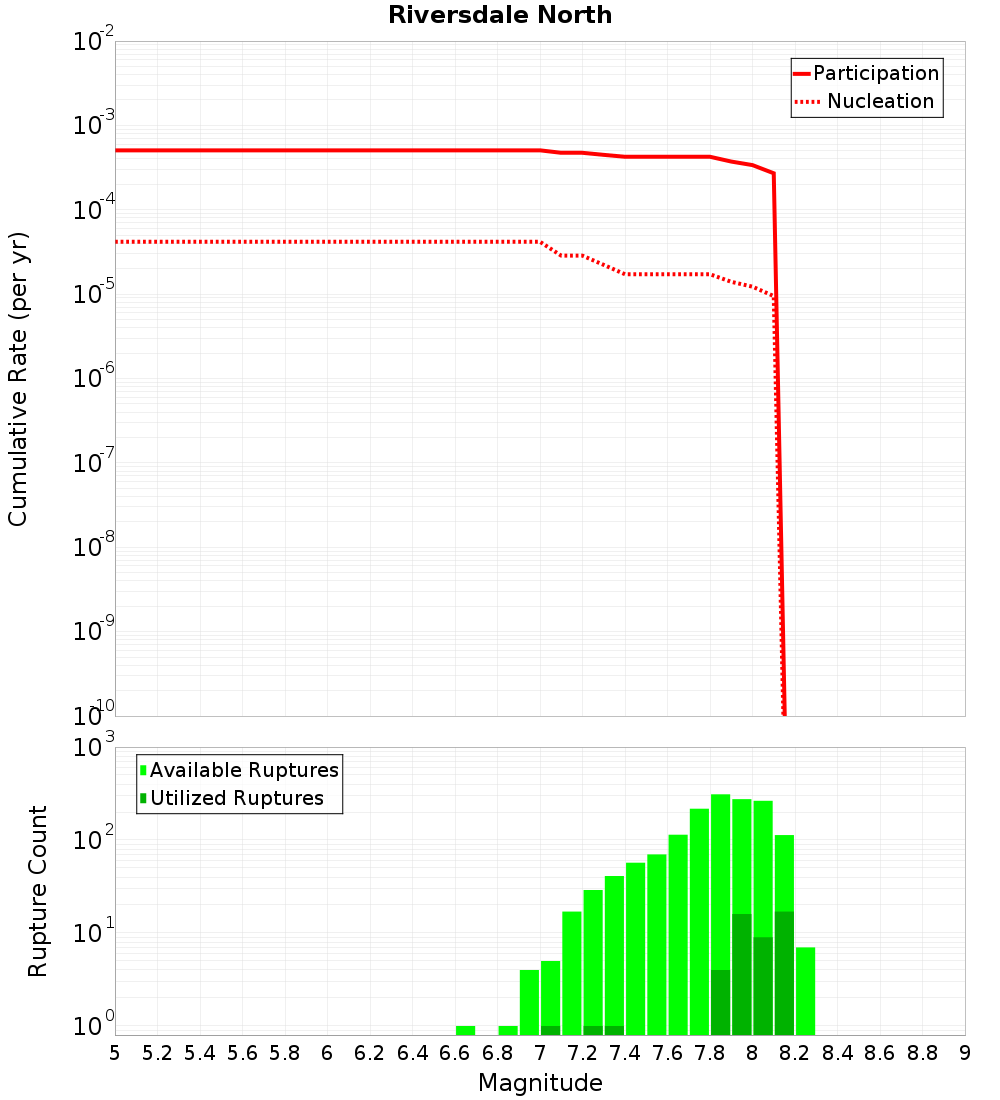

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

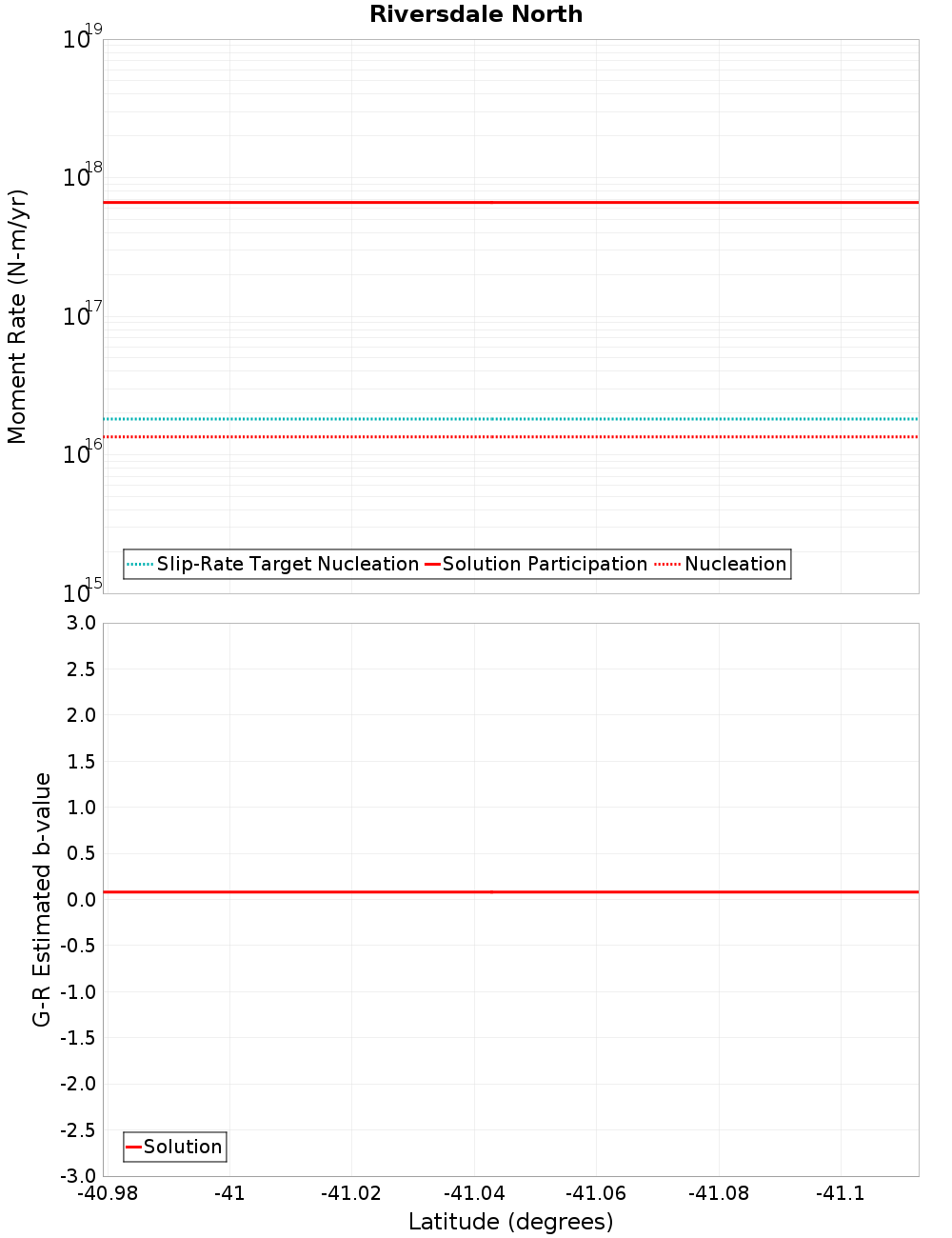

Moment-Rates and b-Values

(top)

Along-strike plot

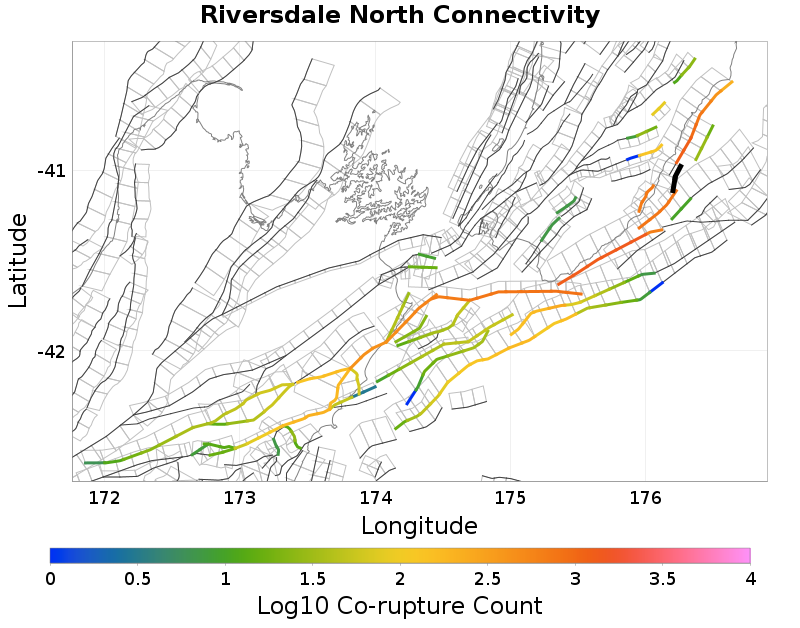

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Riversdale, 1.12 km away
Carterton, 2 km away
Mataikona, 2.18 km away
Uruti Point, 3.13 km away
Kaumingi, 4.3 km away
Whareama Bank, 7.05 km away
Mataikona East, 9.36 km away
Mokonui Northeast, 13.07 km away
Palliser - Kaiwhata, 14.39 km away

Riversdale, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count803
Co-rupture Rate4.335222E-4

Carterton, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count129
Co-rupture Rate1.3059609E-4

Mataikona, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count1,234
Co-rupture Rate3.6727407E-4

Uruti Point, 3.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count719
Co-rupture Rate3.946268E-5

Kaumingi, 4.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whareama Bank, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate0.0

Mataikona East, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Mokonui Northeast, 13.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate8.1590566E-5

Palliser - Kaiwhata, 14.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY0OTMuMDk2a1RQ
Connected?true
Directly Connected?false
Co-rupture Count1,394
Co-rupture Rate4.245074E-4
