Flaxmore - Waimea - Tahunanui Details

PropertyValue
Rupture Count9,537
Ruptures Above Sect Min Mag9,528
Ruptures w/ Nonzero Rates990
Magnitude Range[6.95, 8.56]
Length Range[23, 971] km
Total Rate1.8711324E-4 /yr
Multi-Fault Rate6.3956075E-5 /yr (34.18%)
Directly-Connected Faults7
All Co-Rupturing Faults71

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

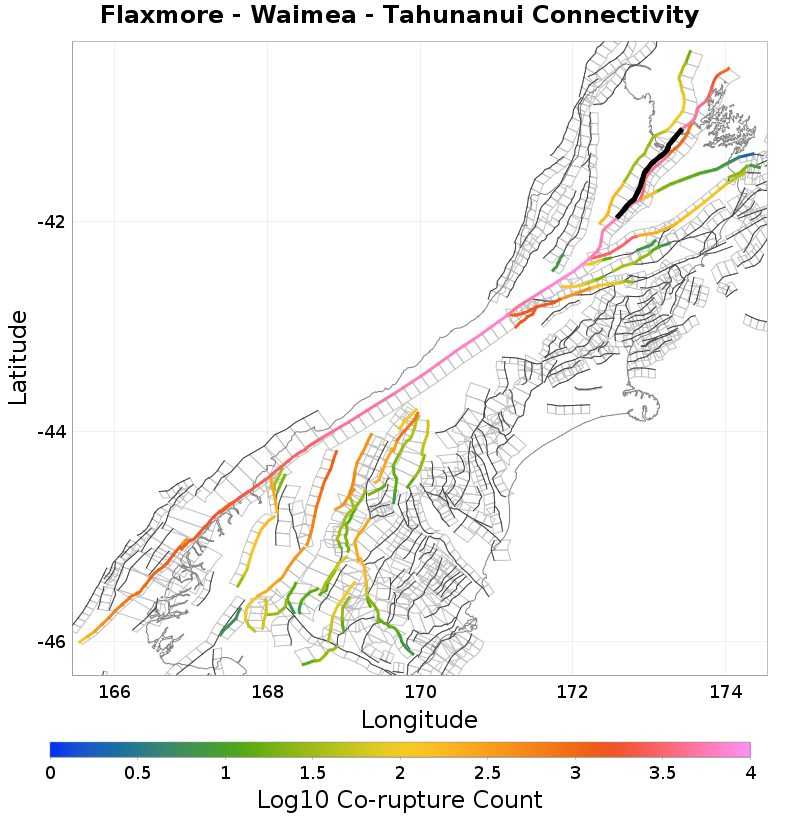

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.45 km away
Whangamoa, 2.28 km away
Tutaki, 2.49 km away
Surville, 8.79 km away
Ruby Bay - Moutere, 9.4 km away
Awatere: Southwest, 12.08 km away

Waimea Offshore, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?true
Co-rupture Count4,756
Co-rupture Rate2.2463706E-5

Wairau, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?true
Co-rupture Count136
Co-rupture Rate5.1329795E-7

Alpine: Springs Junction to Tophouse, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?true
Co-rupture Count5,883
Co-rupture Rate1.275391E-5

Whangamoa, 2.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?true
Co-rupture Count4,716
Co-rupture Rate6.2793297E-6

Tutaki, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?true
Co-rupture Count191
Co-rupture Rate1.5599866E-6

Surville, 8.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?false
Co-rupture Count130
Co-rupture Rate1.8156114E-6

Ruby Bay - Moutere, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?true
Co-rupture Count36
Co-rupture Rate1.7073195E-6

Awatere: Southwest, 12.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?true
Directly Connected?true
Co-rupture Count3,354
Co-rupture Rate2.4573703E-5
