Mt Lawry Details

Property	Value
Rupture Count	428
Ruptures Above Sect Min Mag	427
Ruptures w/ Nonzero Rates	66
Magnitude Range	[6.71, 8.13]
Length Range	[16, 444] km
Total Rate	8.199471E-5 /yr
Multi-Fault Rate	8.199471E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	51

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

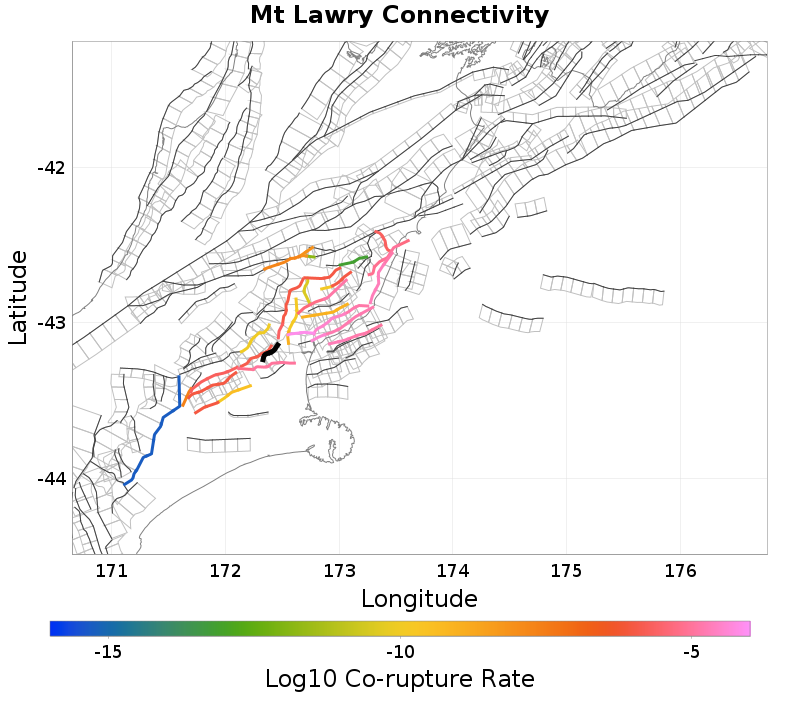

Connectivity
- Nearby Sections

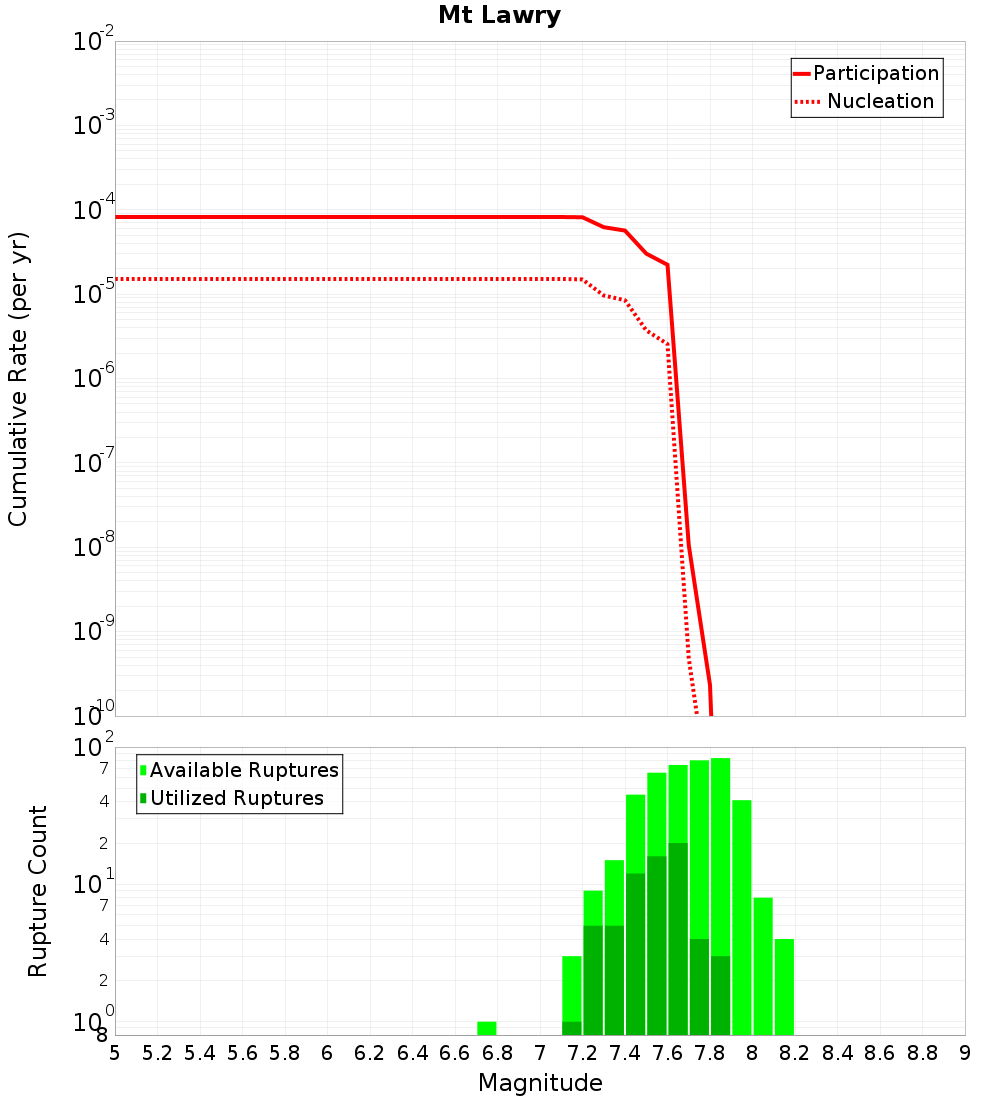

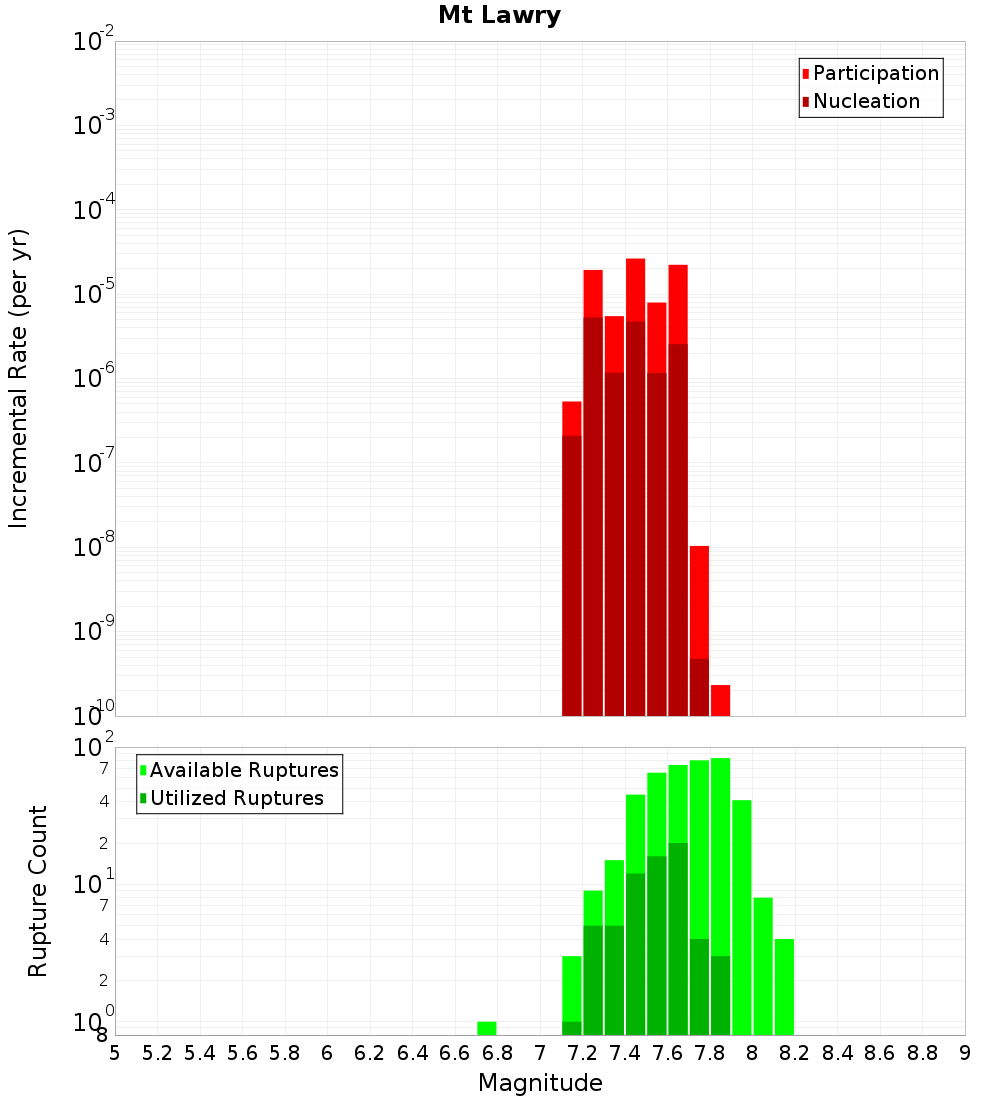

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Starvation - Ashley, 0.17 km away
Springbank, 0.46 km away
Knowles Top, 1.45 km away
Boby Stream, 4.87 km away
Mt Arden, 5.15 km away
Doctors, 7.57 km away
Pancake, 9.34 km away
Lees Valley, 11.49 km away
AmberBlyth, 14.29 km away

Starvation - Ashley, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	225
Co-rupture Rate	9.971222E-6

Springbank, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 1.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	21
Co-rupture Rate	1.2867522E-6

Boby Stream, 4.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	160
Co-rupture Rate	6.965884E-5

Mt Arden, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	true
Directly Connected?	true
Co-rupture Count	232
Co-rupture Rate	2.3753423E-6

Doctors, 7.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	75
Co-rupture Rate	1.0308183E-9

Pancake, 9.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lees Valley, 11.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	9.716203E-11

AmberBlyth, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDQuMG1OcWJ4
Connected?	true
Directly Connected?	false
Co-rupture Count	28
Co-rupture Rate	3.5814275E-5
