Barn Details

Property	Value
Rupture Count	915
Ruptures Above Sect Min Mag	913
Ruptures w/ Nonzero Rates	141
Magnitude Range	[7.27, 8.51]
Length Range	[34, 754] km
Total Rate	8.9762194E-5 /yr
Multi-Fault Rate	6.8559675E-5 /yr (76.38%)
Directly-Connected Faults	2
All Co-Rupturing Faults	38

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

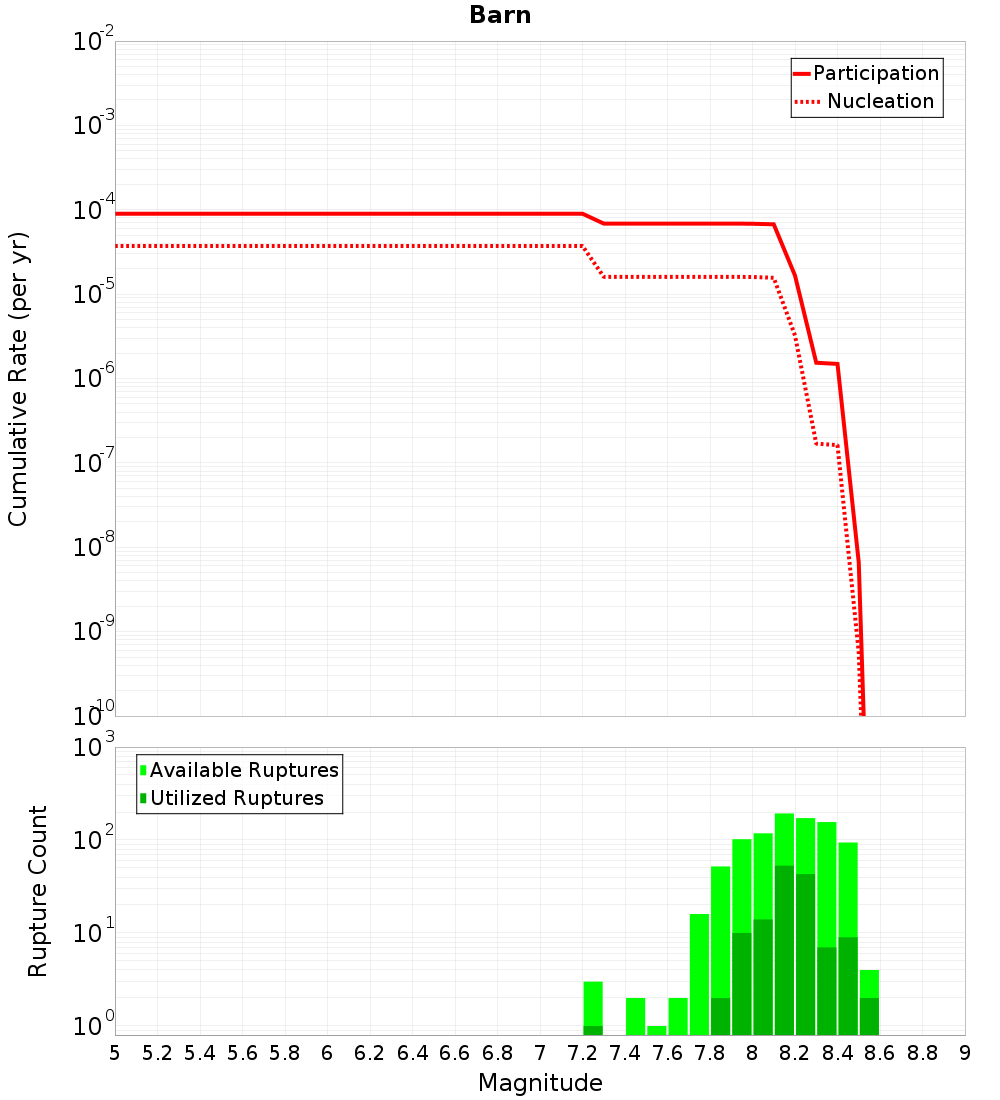

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

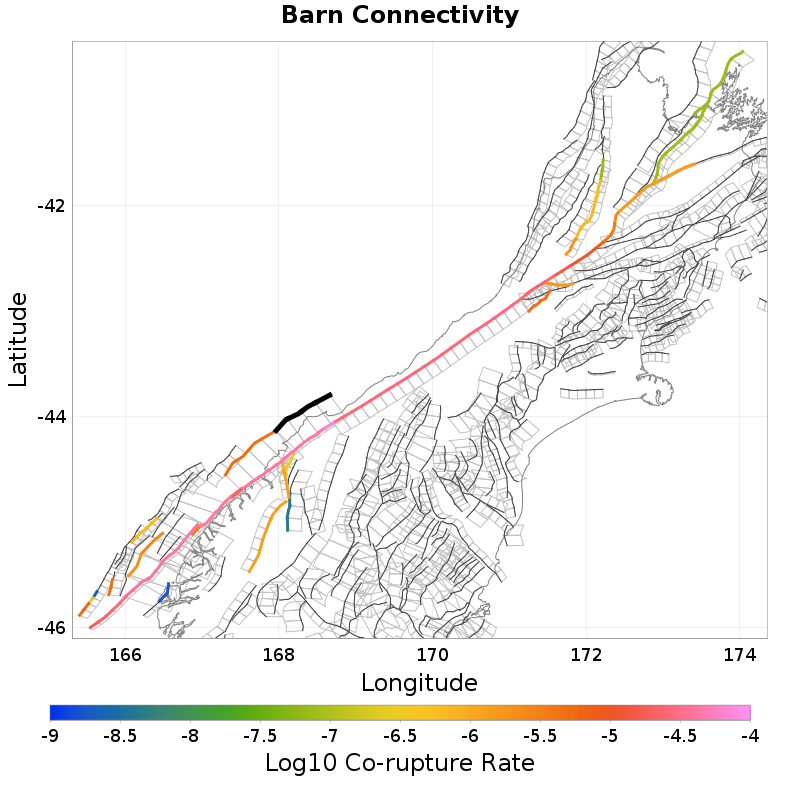

Connectivity

Nearby Sections

Fault Section
Madagascar, 0 km away
Alpine: George to Jacksons, 0.78 km away
Skippers, 2.55 km away
Hollyford, 5.52 km away
Alpine: Jacksons to Kaniere, 8.94 km away
Moonlight North, 10.72 km away

Madagascar, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDUuNW9IRnNy
Connected?	true
Directly Connected?	true
Co-rupture Count	277
Co-rupture Rate	5.0653707E-6

Alpine: George to Jacksons, 0.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDUuNW9IRnNy
Connected?	true
Directly Connected?	true
Co-rupture Count	904
Co-rupture Rate	6.8559675E-5

Skippers, 2.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDUuNW9IRnNy
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	3.0311904E-7

Hollyford, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDUuNW9IRnNy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Jacksons to Kaniere, 8.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDUuNW9IRnNy
Connected?	true
Directly Connected?	false
Co-rupture Count	570
Co-rupture Rate	2.6884483E-5

Moonlight North, 10.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MDUuNW9IRnNy
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
