Volkner 4 Details

PropertyValue
Rupture Count241
Ruptures Above Sect Min Mag241
Ruptures w/ Nonzero Rates48
Magnitude Range[7.13, 8.29]
Length Range[26, 517] km
Total Rate0.0014232476 /yr
Multi-Fault Rate0.0012763109 /yr (89.68%)
Directly-Connected Faults8
All Co-Rupturing Faults38

Table Of Contents

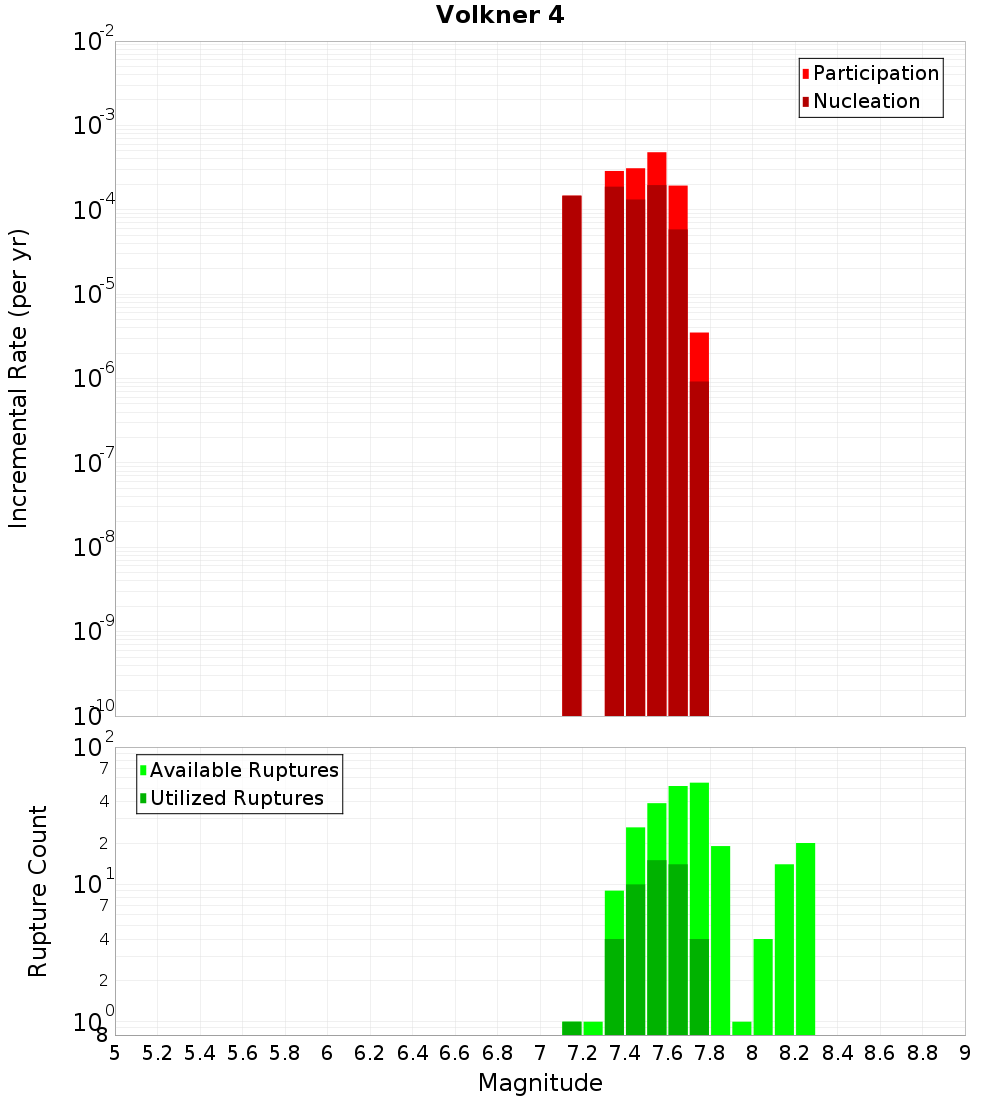

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

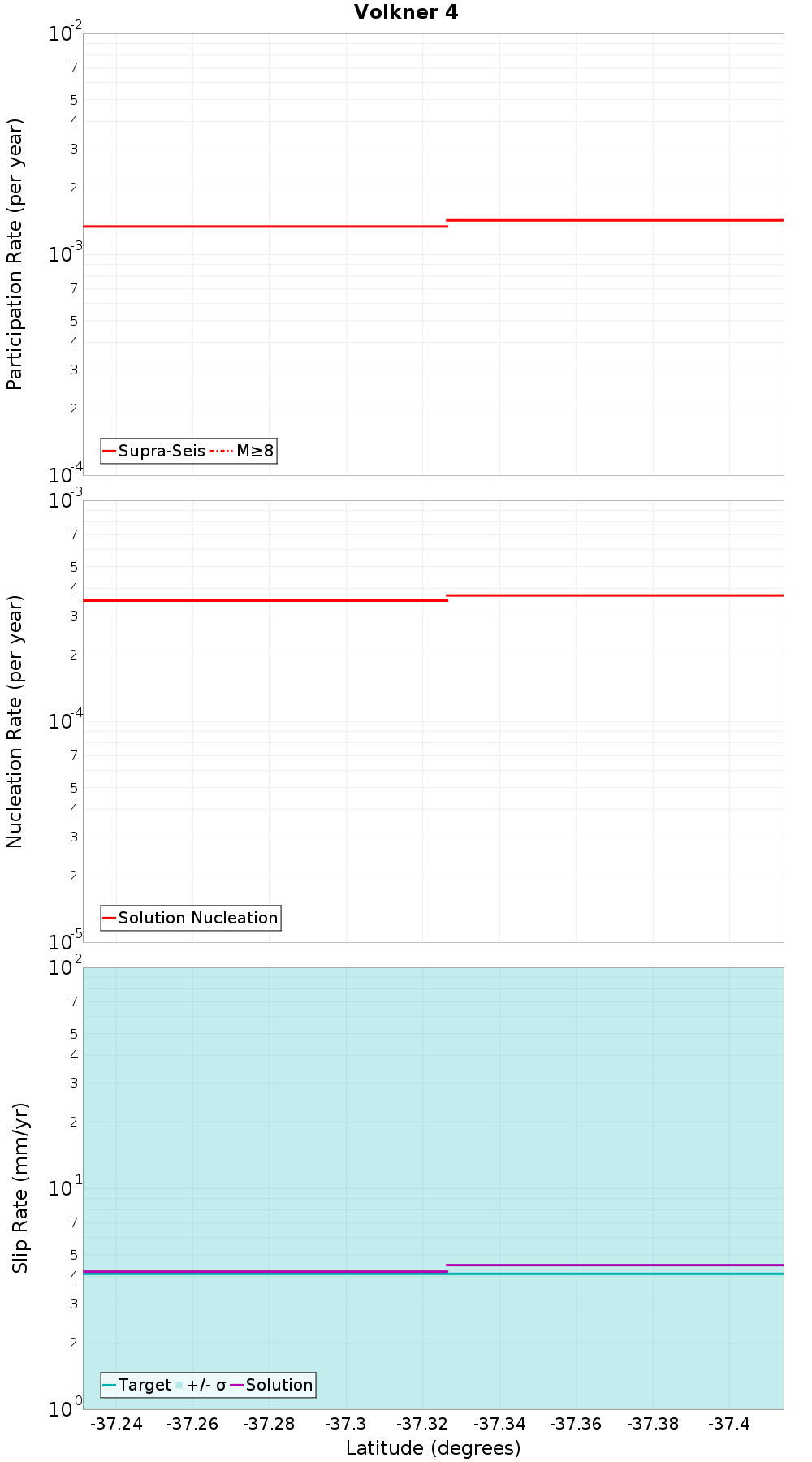

Along-Strike Values

(top)

Along-strike plot

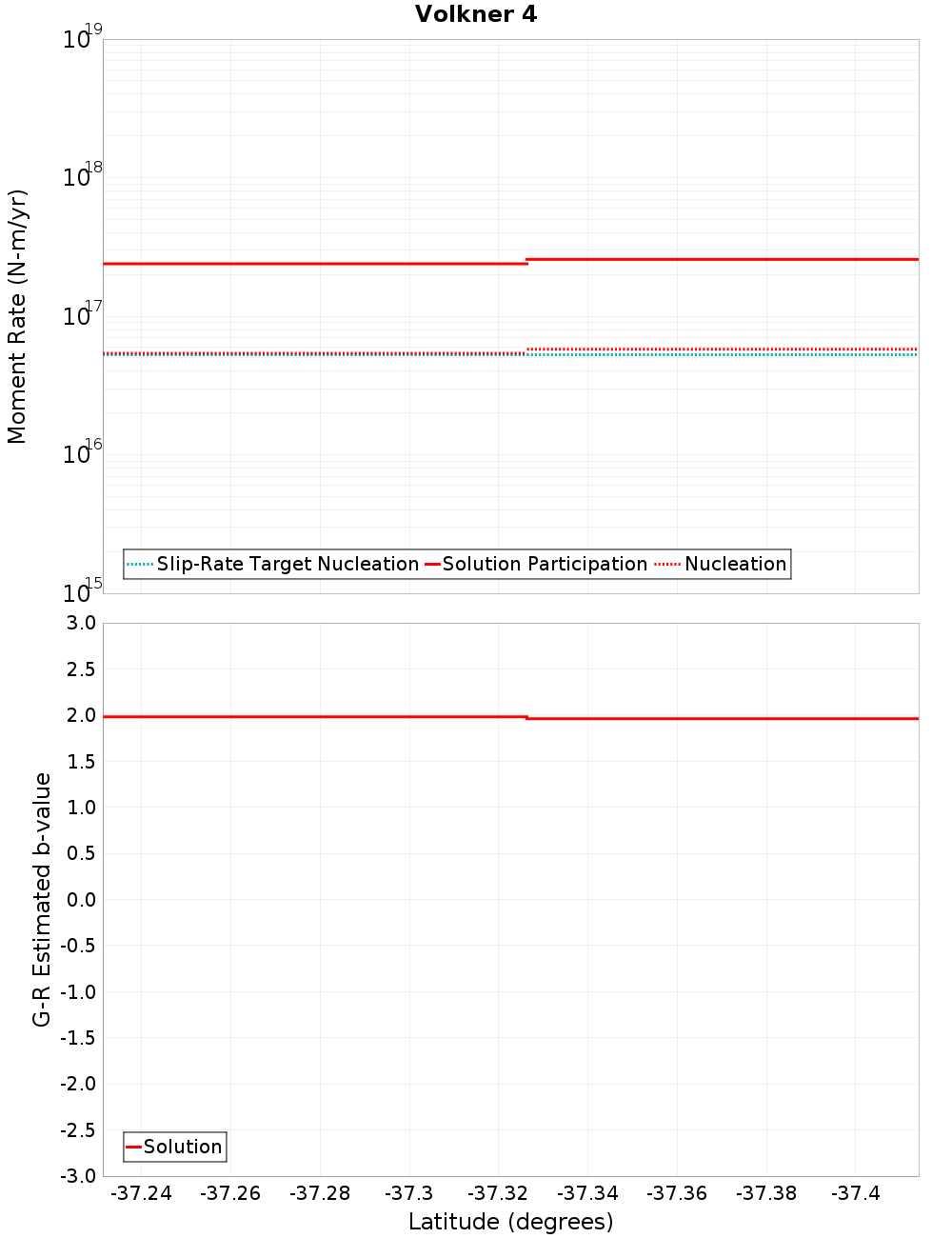

Moment-Rates and b-Values

(top)

Along-strike plot

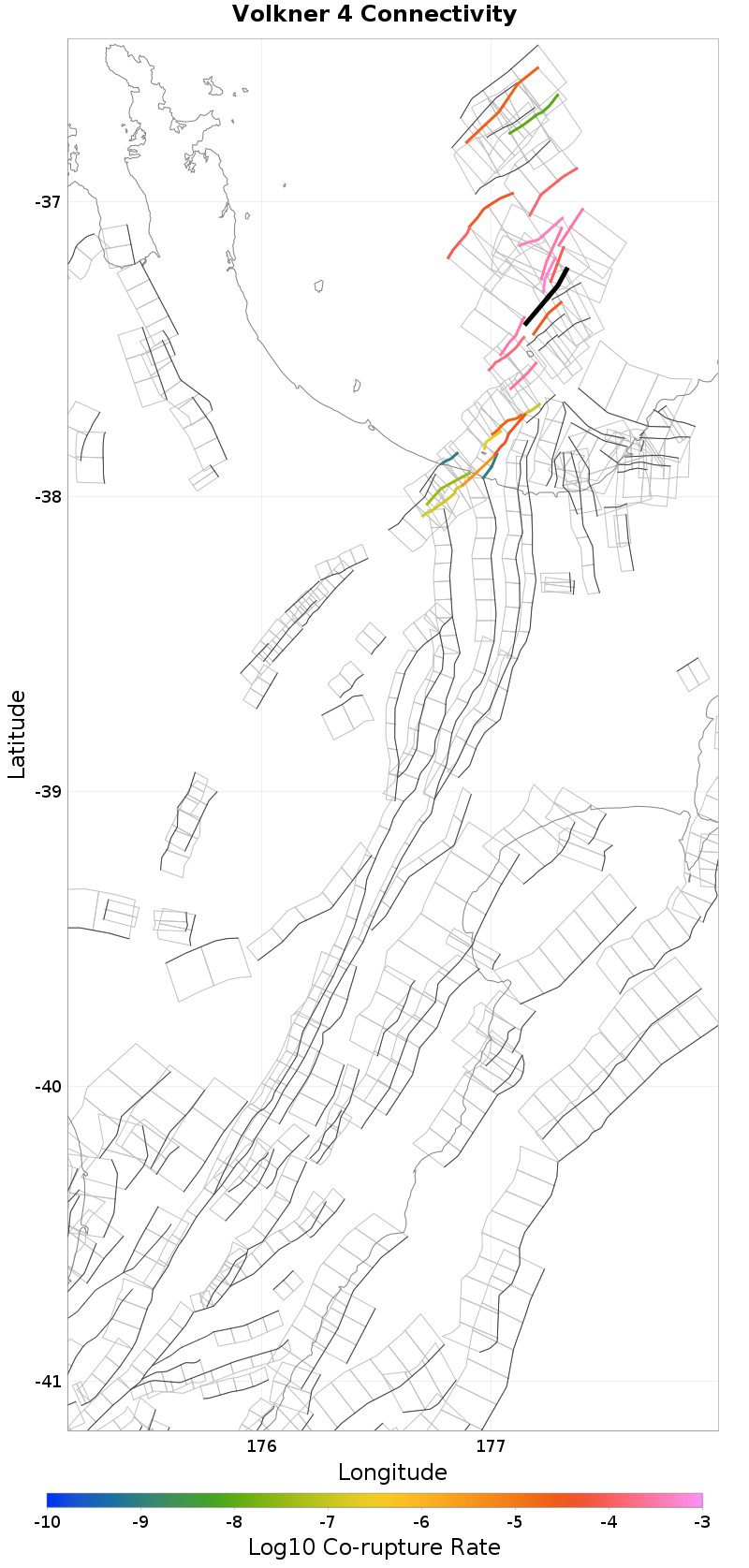

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuakana 7, 0.13 km away
Otara West 3, 0.2 km away
Otara East 1, 0.22 km away
Tuakana 6, 0.33 km away
Volkner 3, 1.38 km away
Otara West 1, 1.39 km away
Te Arawa 3, 1.79 km away
Te Arawa 2, 4.02 km away
Otara West 2, 4.44 km away
Whakaari 4, 5.31 km away
Otara East 2, 5.35 km away
Te Arawa 1, 6.45 km away
Tuatoru 2, 10.03 km away
Tuatoru 1, 11.02 km away
Calypso 2, 11.95 km away

Tuakana 7, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate3.8535665E-5

Otara West 3, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count70
Co-rupture Rate4.2505414E-4

Otara East 1, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate9.0877635E-5

Tuakana 6, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate1.15500465E-4

Volkner 3, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count74
Co-rupture Rate3.117361E-4

Otara West 1, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate5.3380884E-4

Te Arawa 3, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate0.0

Te Arawa 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate3.3579207E-5

Otara West 2, 4.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate2.930301E-4

Whakaari 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count183
Co-rupture Rate1.6287343E-4

Otara East 2, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?true
Co-rupture Count27
Co-rupture Rate2.8088636E-4

Te Arawa 1, 6.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate0.0

Tuatoru 2, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 11.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MjAuMGpNMjNT
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate2.4035192E-4
