Cape Egmont: South Details

PropertyValue
Rupture Count33
Ruptures Above Sect Min Mag29
Ruptures w/ Nonzero Rates11
Magnitude Range[6.92, 7.50]
Length Range[21, 79] km
Total Rate2.3540952E-4 /yr
Multi-Fault Rate1.7426966E-4 /yr (74.03%)
Directly-Connected Faults2
All Co-Rupturing Faults5

Table Of Contents

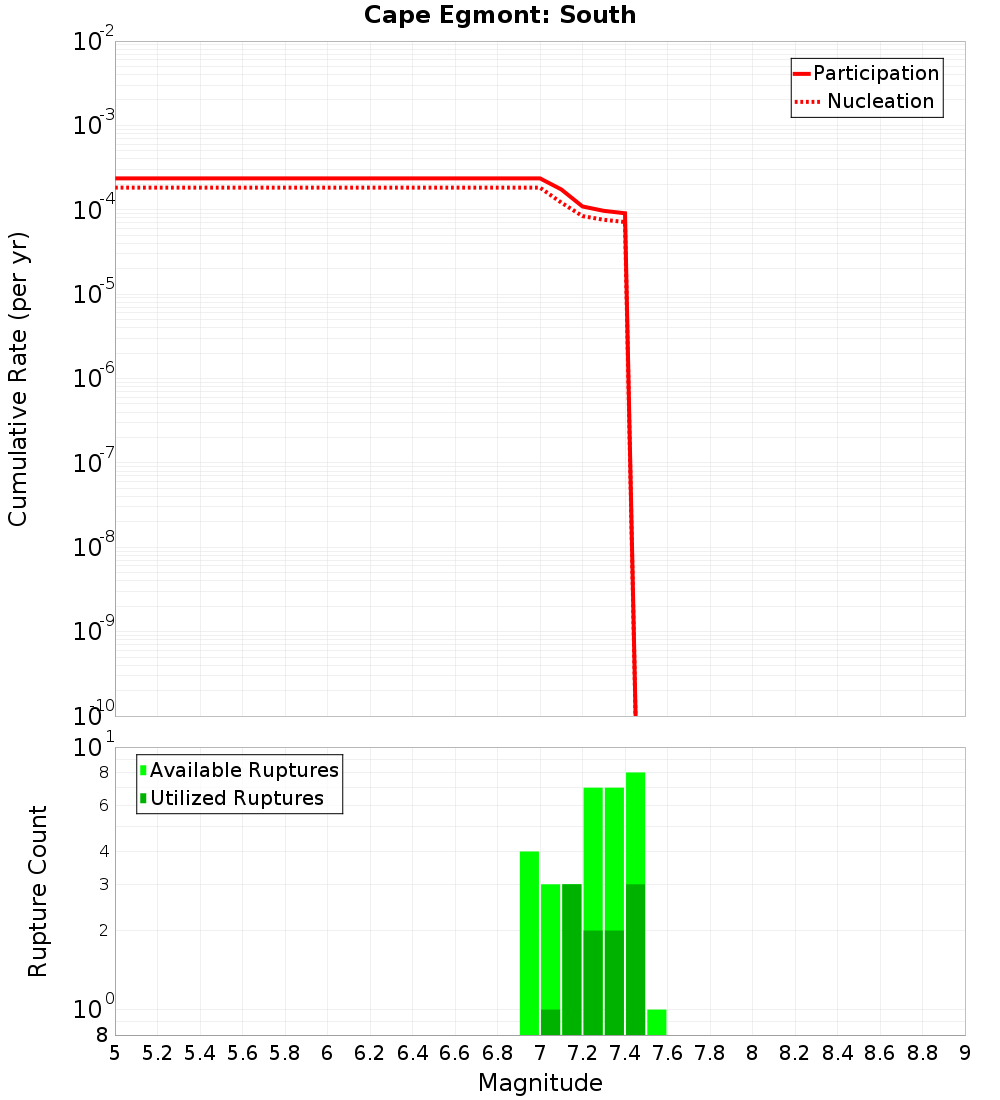

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

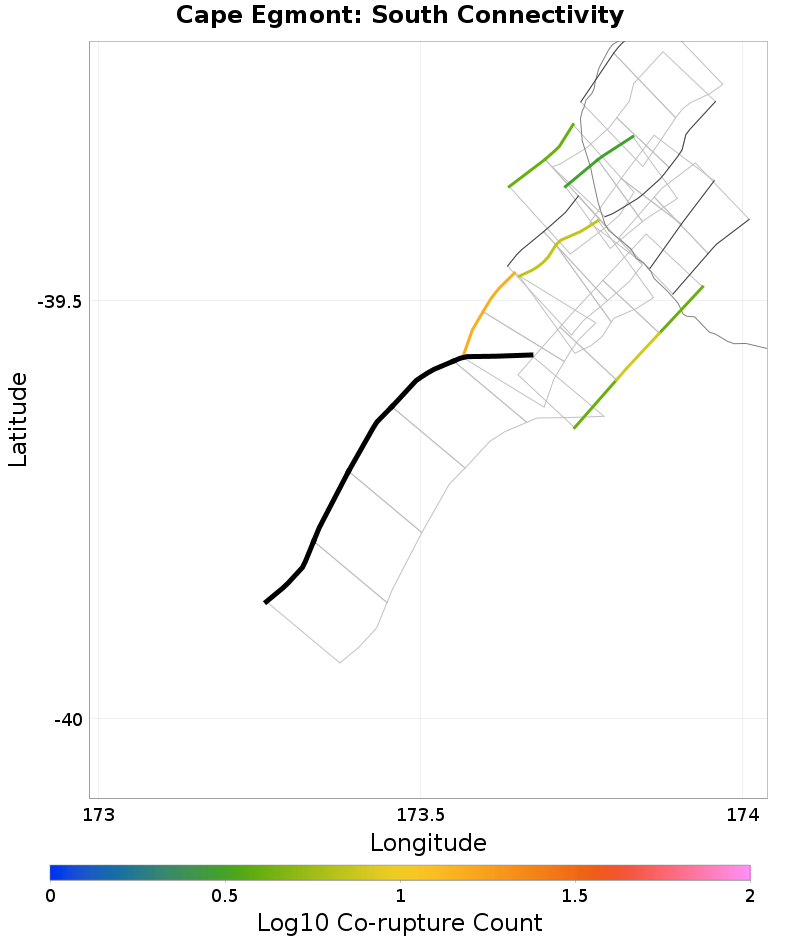

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Cape Egmont: Central, 0.35 km away
Pihama, 0.38 km away
Manahi 1, 7.93 km away
Cape Egmont: North, 10.11 km away

Cape Egmont: Central, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMDZYd2tw
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate9.080867E-5

Pihama, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMDZYd2tw
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate8.3461E-5

Manahi 1, 7.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMDZYd2tw
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Cape Egmont: North, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMDZYd2tw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
