Long Valley Details

PropertyValue
Rupture Count4,026
Ruptures Above Sect Min Mag4,025
Ruptures w/ Nonzero Rates247
Magnitude Range[6.95, 8.18]
Length Range[21, 381] km
Total Rate5.2135638E-5 /yr
Multi-Fault Rate5.2135638E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults46

Table Of Contents

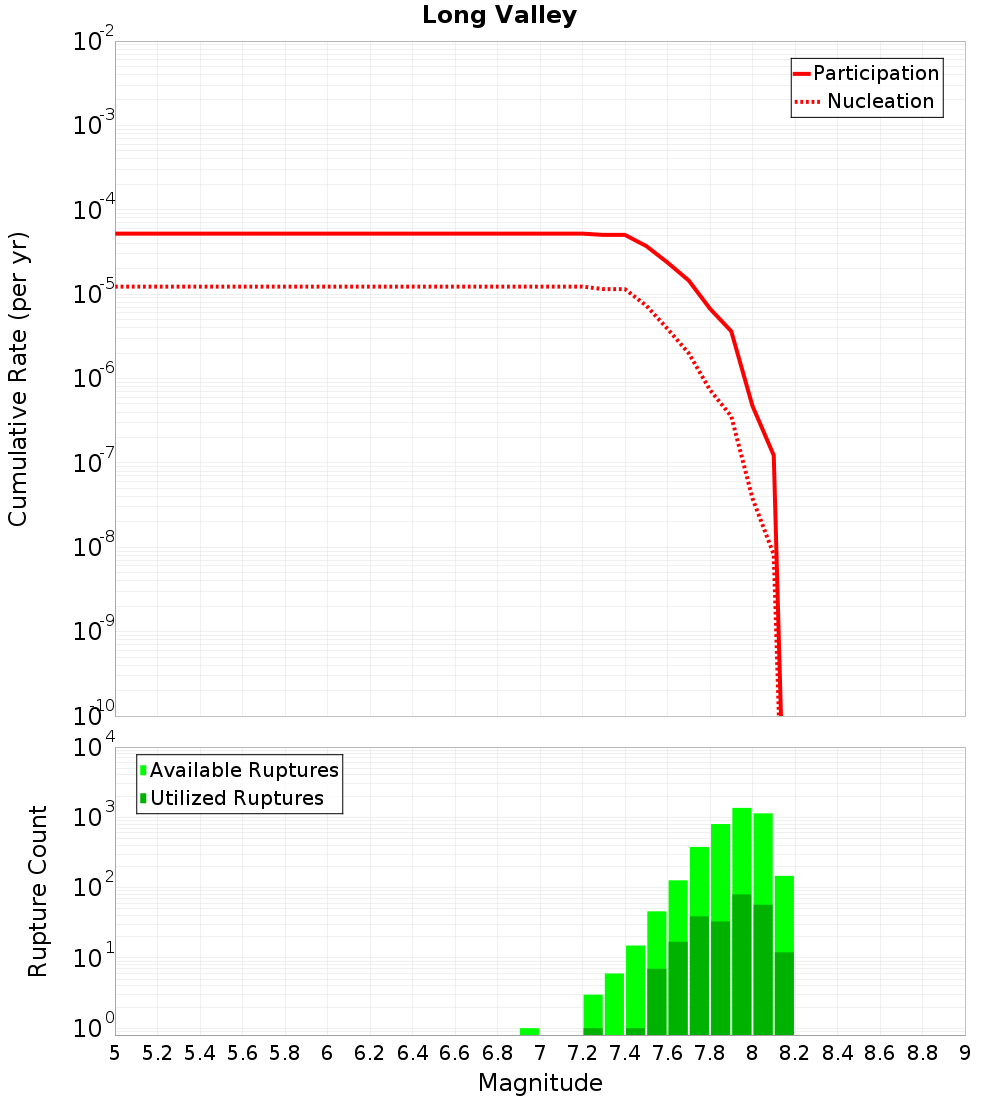

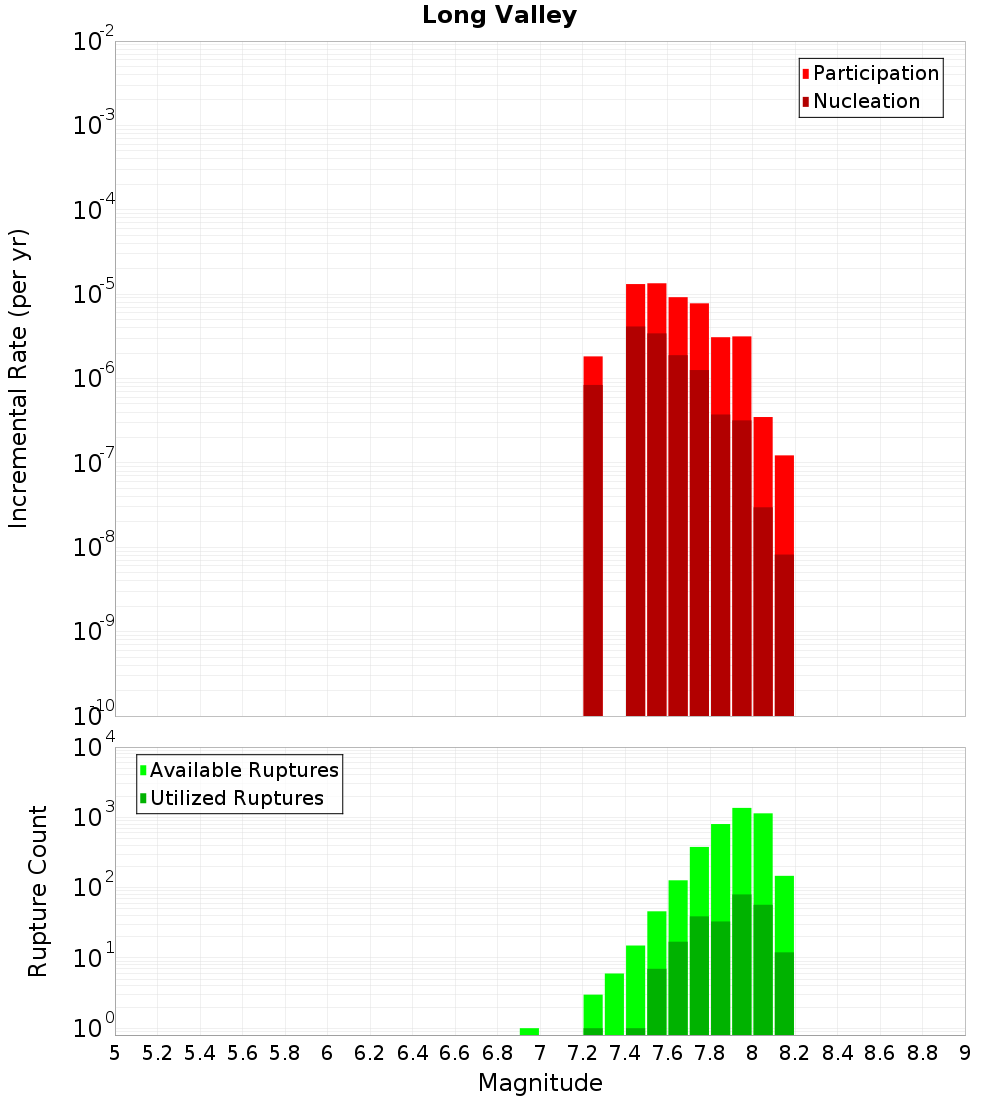

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hyde North, 0.25 km away
Gimmerburn, 0.33 km away
Lake Onslow, 0.52 km away
Beaumont River, 5.05 km away
Little Valley, 5.14 km away
Hyde South - The Twins, 5.35 km away
Pylap, 6.52 km away
Horse Flat, 7.19 km away
Billys Ridge, 11.13 km away
Garibaldi, 11.29 km away
Logan Burn, 12.01 km away
Waipiata, 12.3 km away
Galloway, 13.99 km away
Nichols Rock, 14.93 km away

Hyde North, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate1.2203652E-5

Gimmerburn, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?true
Co-rupture Count3,687
Co-rupture Rate3.77535E-5

Lake Onslow, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?true
Co-rupture Count983
Co-rupture Rate4.8721586E-6

Beaumont River, 5.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?true
Co-rupture Count1,485
Co-rupture Rate2.913412E-6

Little Valley, 5.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?true
Co-rupture Count1,286
Co-rupture Rate6.4680544E-6

Hyde South - The Twins, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?true
Co-rupture Count615
Co-rupture Rate9.733743E-6

Pylap, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?false
Co-rupture Count134
Co-rupture Rate1.632487E-6

Horse Flat, 7.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate6.61065E-7

Billys Ridge, 11.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garibaldi, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?false
Co-rupture Count888
Co-rupture Rate3.215214E-6

Logan Burn, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?false
Co-rupture Count218
Co-rupture Rate5.4691895E-7

Waipiata, 12.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate9.710509E-7

Galloway, 13.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate1.2720821E-7

Nichols Rock, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzEuMFhzR3B1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
