Alpine: Caswell - South George Details
| Property | Value |
|---|---|
| Rupture Count | 40,265 |
| Ruptures Above Sect Min Mag | 40,260 |
| Ruptures w/ Nonzero Rates | 2,018 |
| Magnitude Range | [6.61, 8.61] |
| Length Range | [15, 1,129] km |
| Total Rate | 0.0036042058 /yr |
| Multi-Fault Rate | 0.0036042058 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 127 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

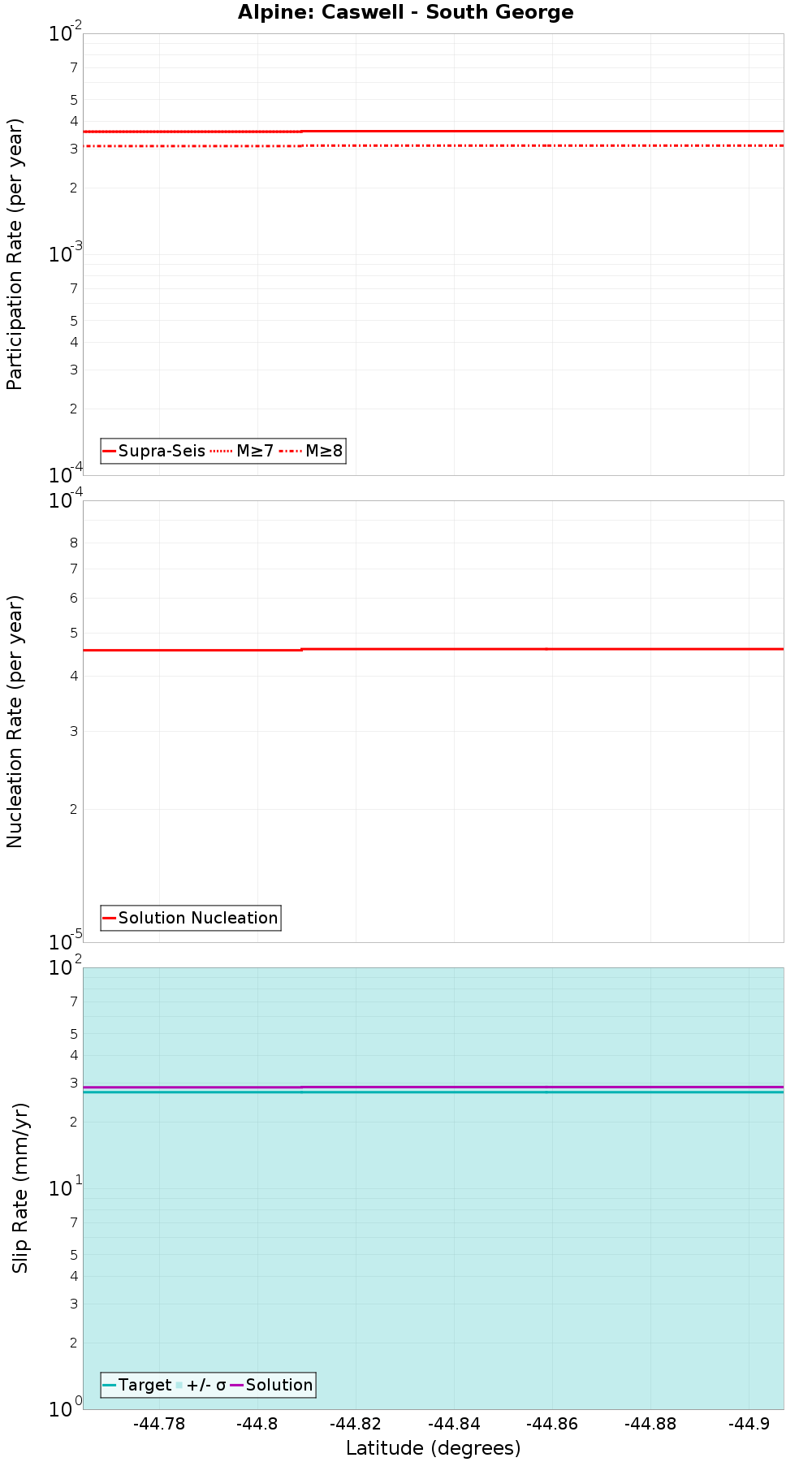

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: Caswell, 0 km away |
| Alpine: George landward, 0.03 km away |
| Alpine: George seaward, 0.03 km away |
| Central Wedge 1 & 2 & 3, 2.34 km away |
| Madagascar, 12.23 km away |
Alpine: Caswell, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 36,420 |
| Co-rupture Rate | 0.003577984 |
Alpine: George landward, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20,557 |
| Co-rupture Rate | 0.0011011328 |
Alpine: George seaward, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 19,859 |
| Co-rupture Rate | 0.00248683 |
Central Wedge 1 & 2 & 3, 2.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,856 |
| Co-rupture Rate | 1.1554146E-12 |
Madagascar, 12.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
