Marlborough Slope 11 Details
| Property | Value |
|---|---|
| Rupture Count | 97 |
| Ruptures Above Sect Min Mag | 94 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.45, 8.10] |
| Length Range | [10, 395] km |
| Total Rate | 1.3762648E-4 /yr |
| Multi-Fault Rate | 1.3762648E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 15 |
Table Of Contents

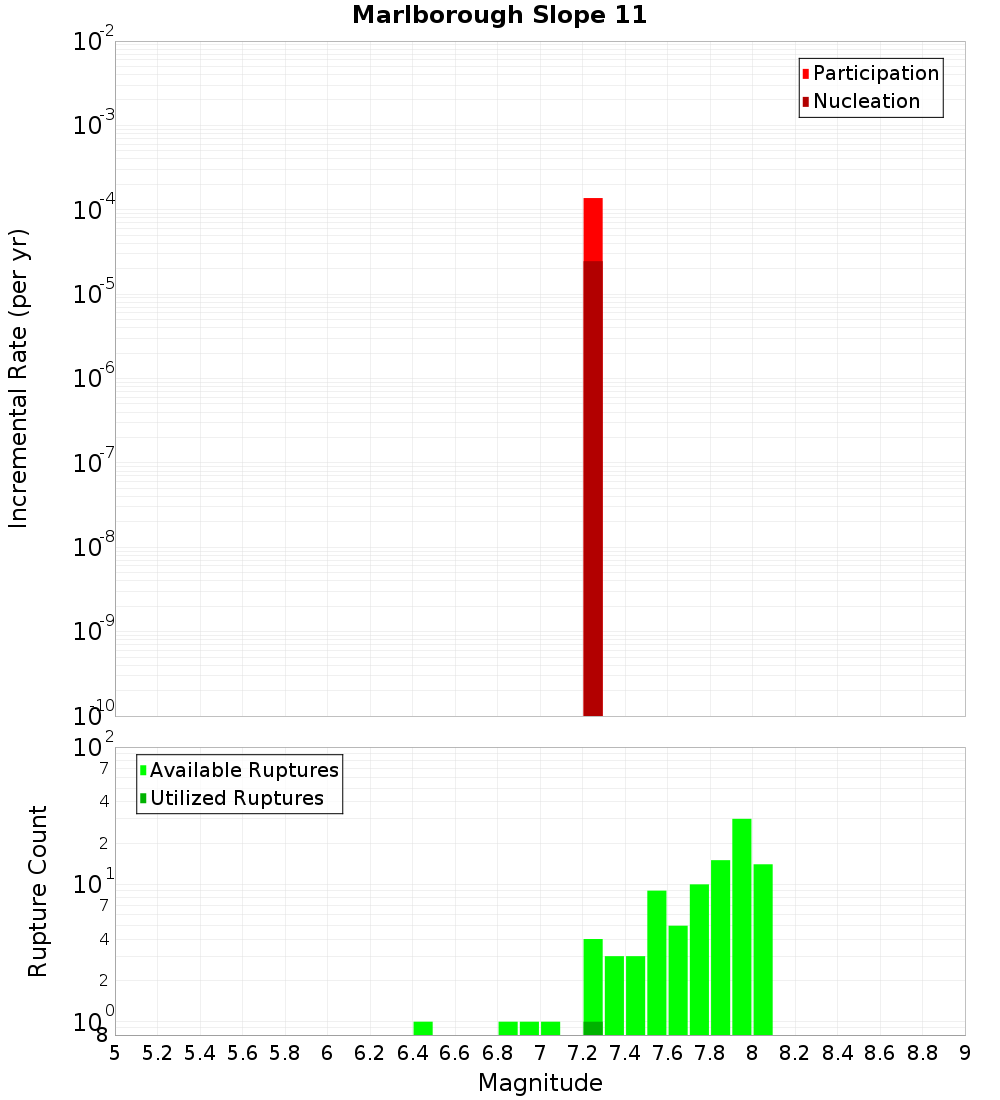

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

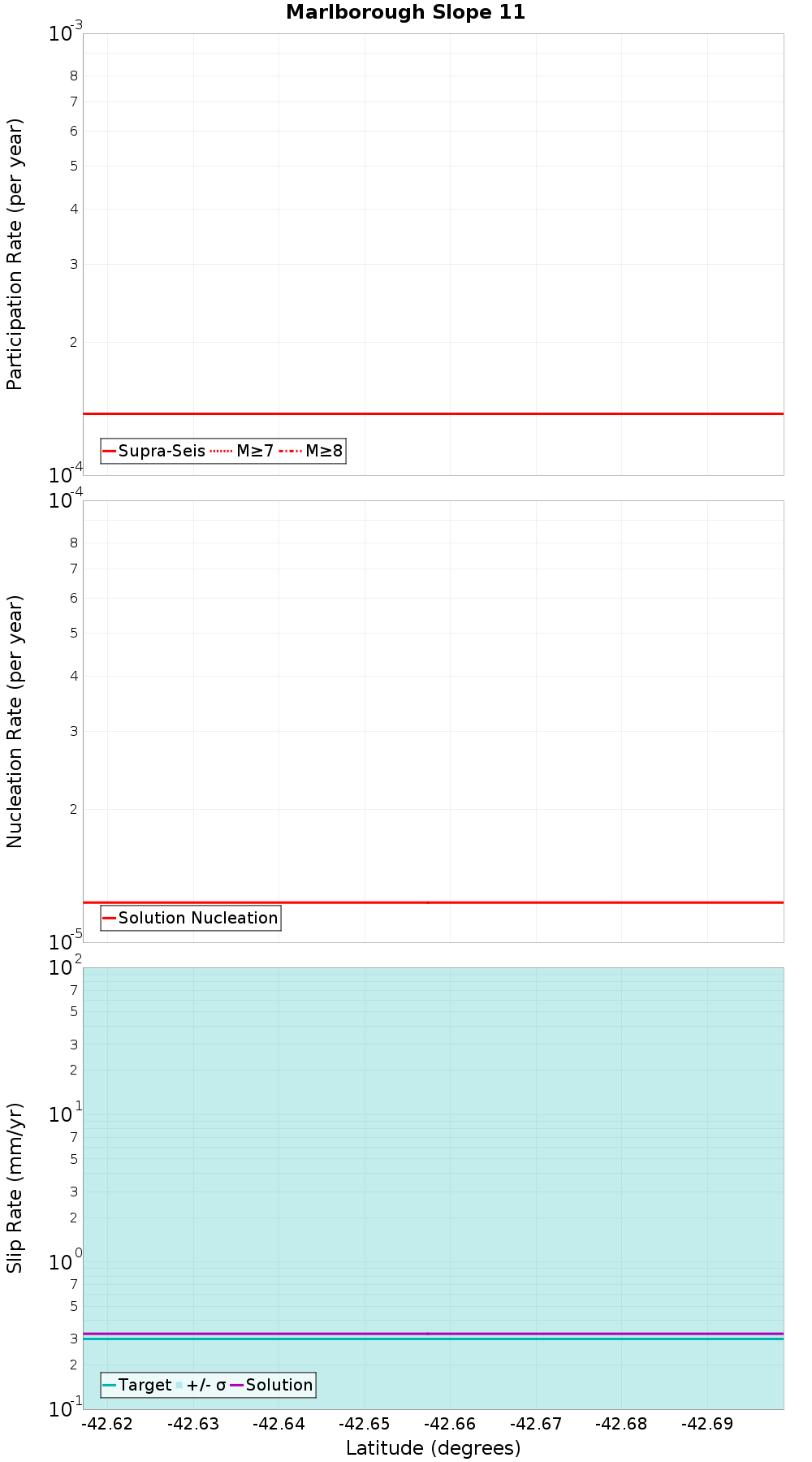

Along-Strike Values
Moment-Rates and b-Values

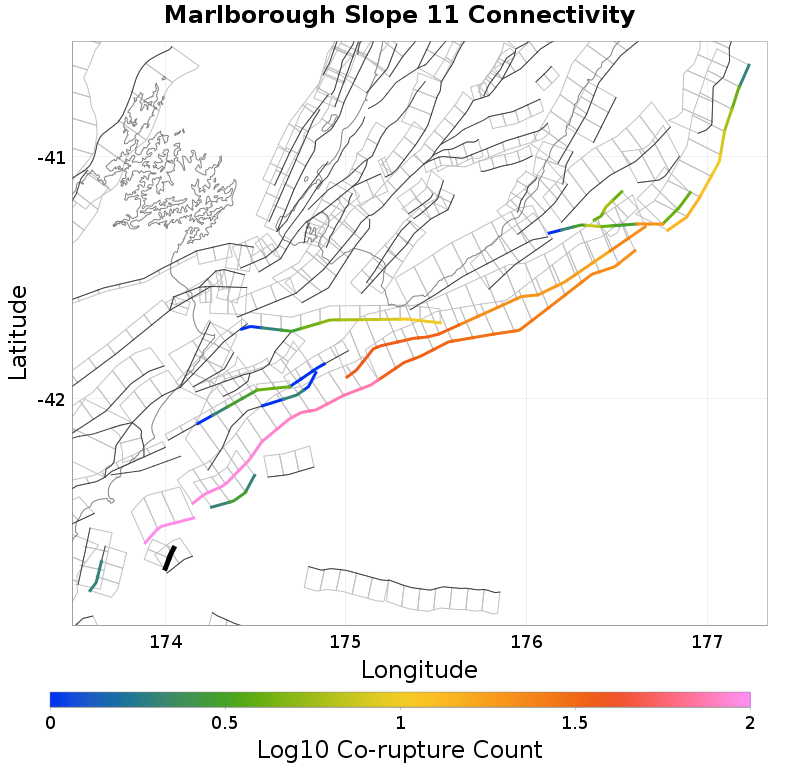

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Marlborough Slope 9, 1.67 km away |
| Conway Trough East, 8.46 km away |
| Marlborough Slope 2, 9.5 km away |
Marlborough Slope 9, 1.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Conway Trough East, 8.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.3762648E-4 |
Marlborough Slope 2, 9.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1MzguMEszWVFm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 95 |
| Co-rupture Rate | 1.3762648E-4 |
