Te Rapa 1 Details
| Property | Value |
|---|---|
| Rupture Count | 7,170 |
| Ruptures Above Sect Min Mag | 7,163 |
| Ruptures w/ Nonzero Rates | 131 |
| Magnitude Range | [6.57, 8.52] |
| Length Range | [15, 946] km |
| Total Rate | 3.610989E-4 /yr |
| Multi-Fault Rate | 3.610989E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 97 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

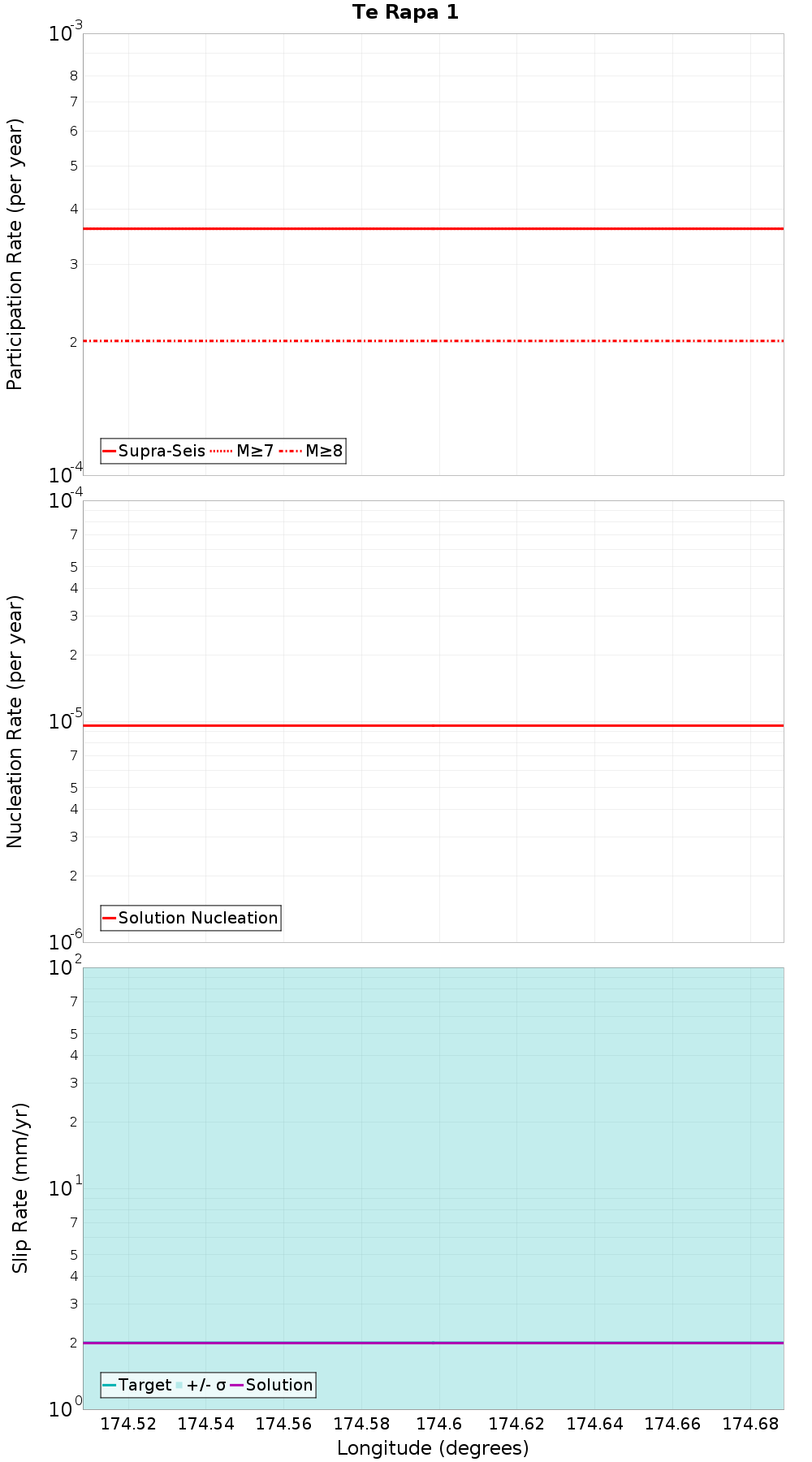

Along-Strike Values
Moment-Rates and b-Values

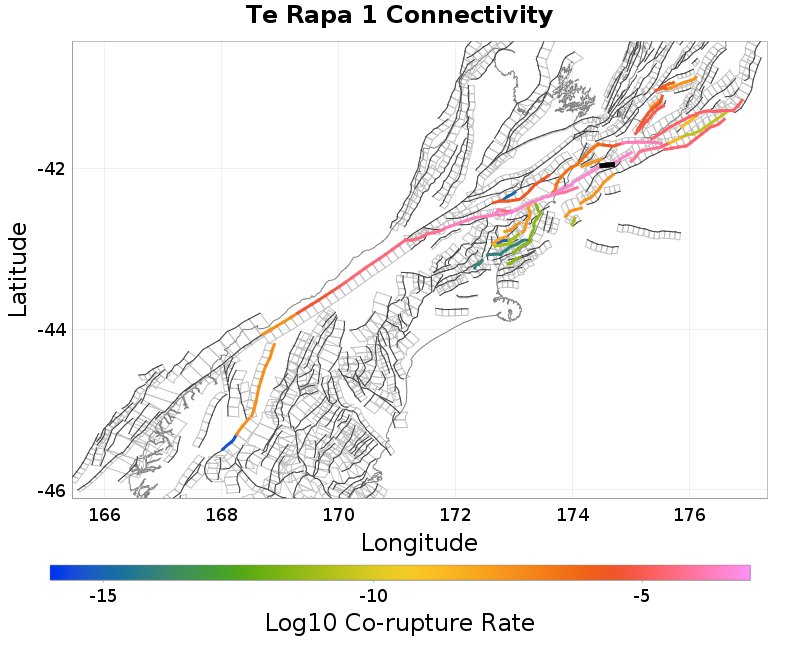

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hope: Te Rapa, 0 km away |
| Te Rapa 2, 0 km away |
| Upper Slope, 0.13 km away |
| Kekerengu Bank, 3.06 km away |
| Campbell Bank, 3.64 km away |
| Wharanui, 5.8 km away |
| Chancet, 8.16 km away |
Hope: Te Rapa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NTYuMHFFbnBN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,906 |
| Co-rupture Rate | 3.610989E-4 |
Te Rapa 2, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NTYuMHFFbnBN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,817 |
| Co-rupture Rate | 3.5132896E-4 |
Upper Slope, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NTYuMHFFbnBN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Kekerengu Bank, 3.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NTYuMHFFbnBN | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 71 |
| Co-rupture Rate | 2.661843E-8 |
Campbell Bank, 3.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NTYuMHFFbnBN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Wharanui, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NTYuMHFFbnBN | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chancet, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NTYuMHFFbnBN | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 2.660848E-8 |
