Cloudy 1 Details

PropertyValue
Rupture Count3,121
Ruptures Above Sect Min Mag3,115
Ruptures w/ Nonzero Rates216
Magnitude Range[6.61, 8.54]
Length Range[11, 905] km
Total Rate2.687361E-4 /yr
Multi-Fault Rate2.687361E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults107

Table Of Contents

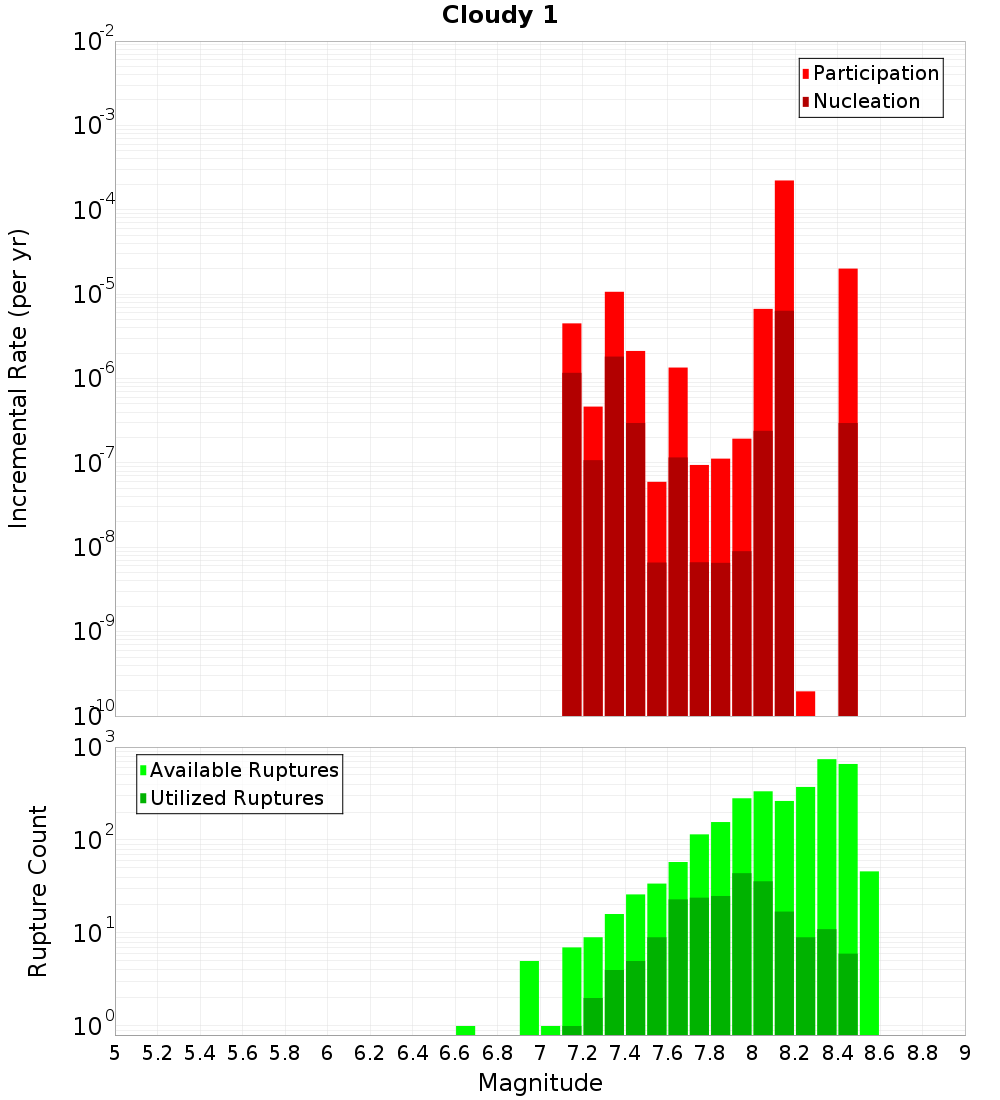

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Vernon 3, 0 km away
Cloudy 2, 0 km away
Vernon 2, 0 km away
Awatere: Northeast 2, 0.04 km away
Cloudy 3, 2.84 km away
Vernon 4, 3.49 km away
Wairau 3, 4.88 km away
Vernon 1, 7.79 km away
Wairau 2, 8.19 km away
Ohariu South 1, 10.78 km away
Wairarapa: Needles, 10.84 km away
Needles East 2, 12.81 km away
Wairau, 12.85 km away

Vernon 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Cloudy 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Vernon 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?true
Co-rupture Count1,258
Co-rupture Rate2.6262842E-5

Awatere: Northeast 2, 0.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?true
Co-rupture Count1,863
Co-rupture Rate2.4247325E-4

Cloudy 3, 2.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Vernon 4, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 4.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 7.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?false
Co-rupture Count259
Co-rupture Rate6.434082E-6

Wairau 2, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu South 1, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?true
Co-rupture Count1,596
Co-rupture Rate2.3898535E-4

Wairarapa: Needles, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles East 2, 12.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2
Connected?true
Directly Connected?false
Co-rupture Count62
Co-rupture Rate1.6026792E-9
