Falstone Details
| Property | Value |
|---|---|
| Rupture Count | 599 |
| Ruptures Above Sect Min Mag | 597 |
| Ruptures w/ Nonzero Rates | 22 |
| Magnitude Range | [6.83, 8.16] |
| Length Range | [18, 308] km |
| Total Rate | 1.2405247E-5 /yr |
| Multi-Fault Rate | 1.2405247E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 44 |
Table Of Contents

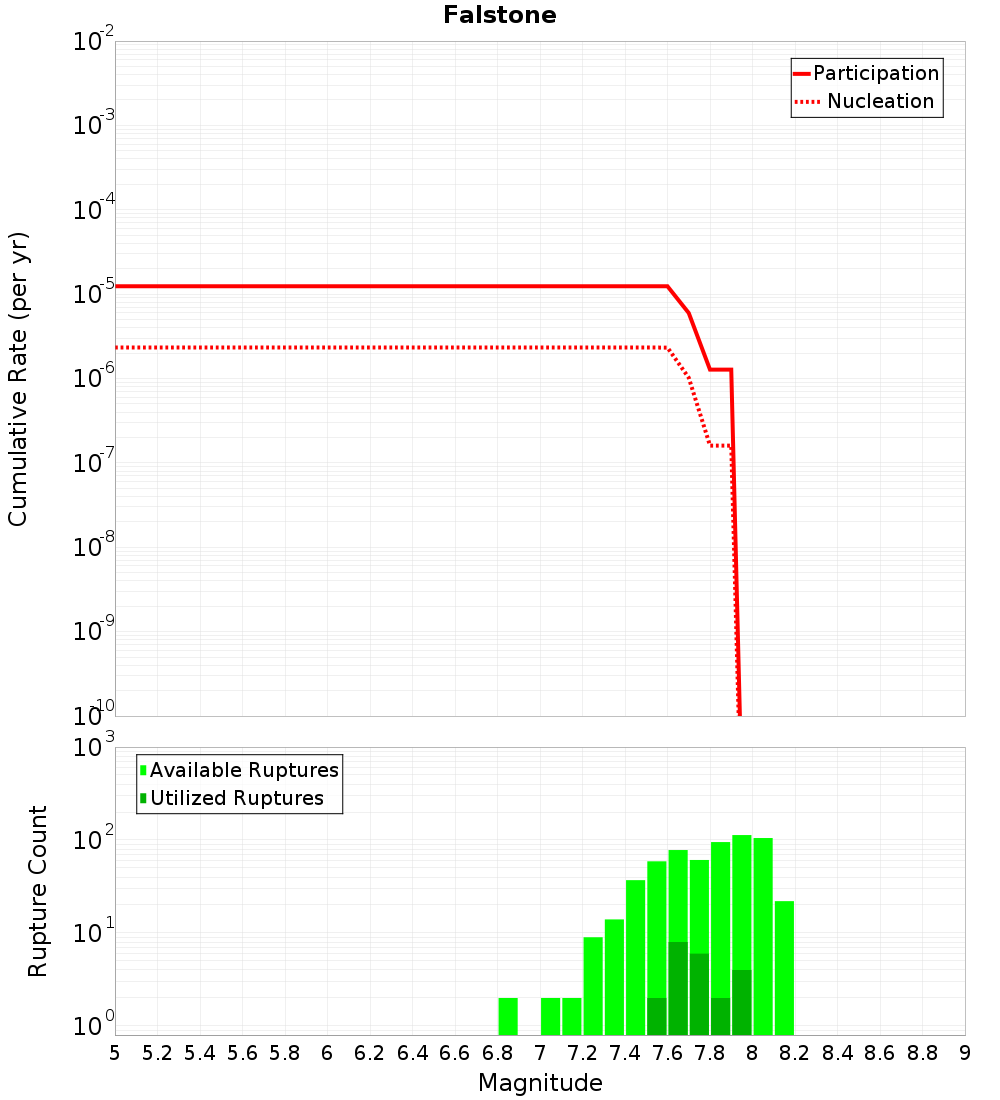

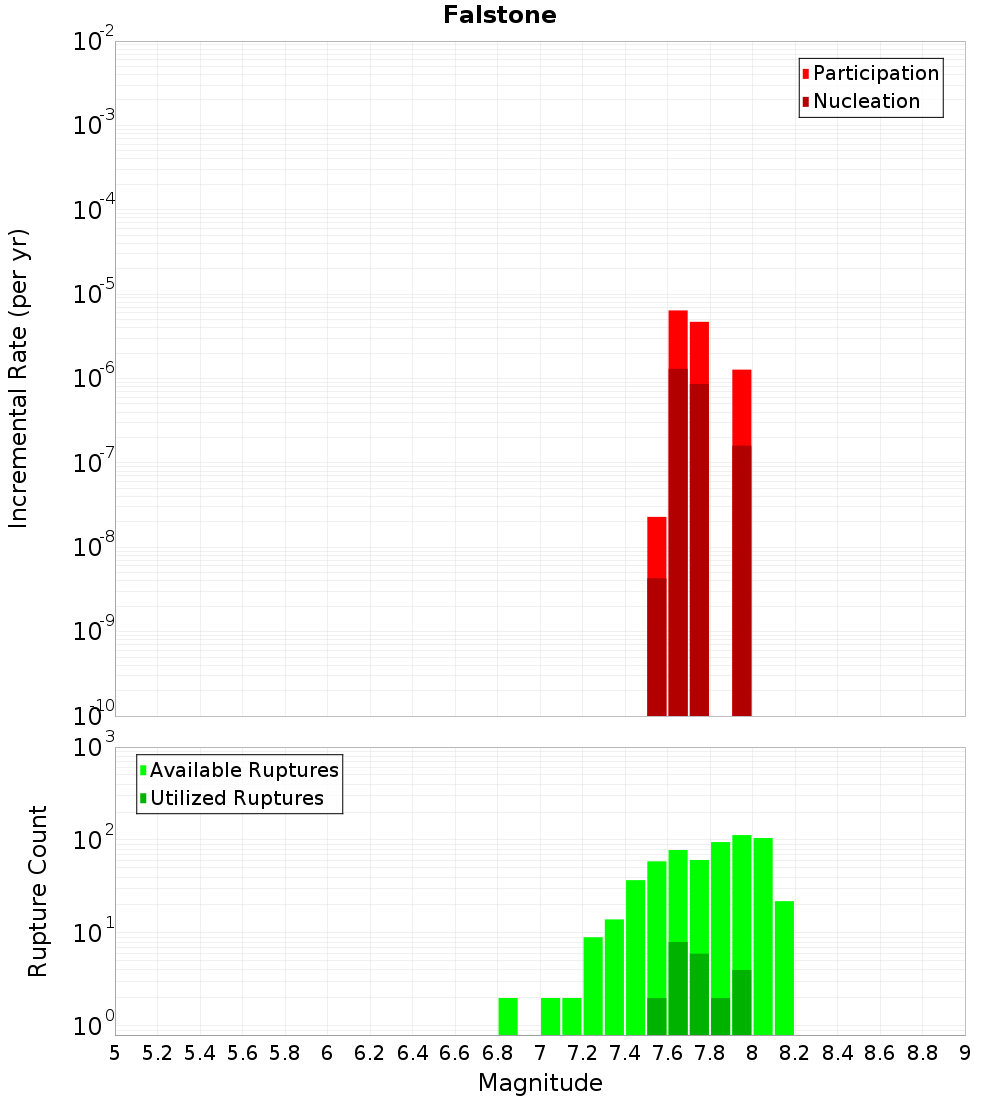

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

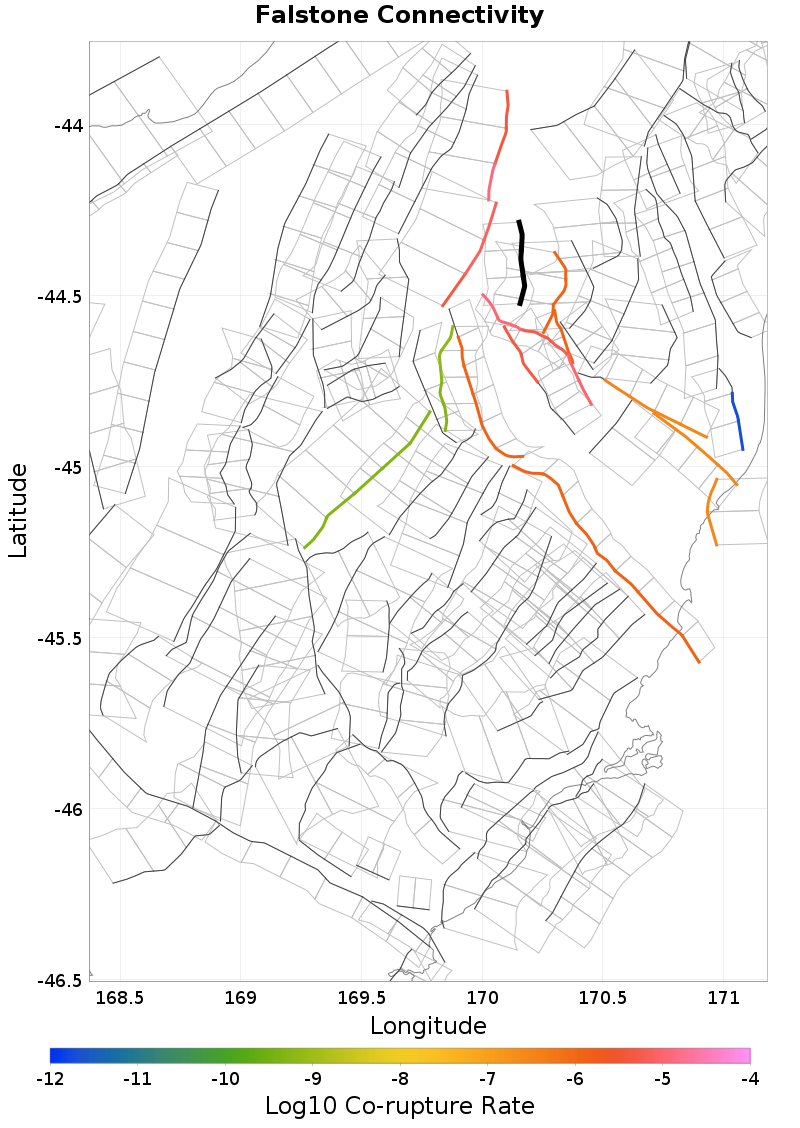

Connectivity
 |  |
|---|
Nearby Sections
Gibson, 1.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 49 |
| Co-rupture Rate | 1.2440644E-6 |
Fern Gully, 2.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 487 |
| Co-rupture Rate | 1.11611835E-5 |
Hawkdun, 3.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 397 |
| Co-rupture Rate | 1.2734522E-6 |
Middle Range, 5.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 103 |
| Co-rupture Rate | 4.656578E-6 |
Omarama Saddle, 6.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 41 |
| Co-rupture Rate | 6.493674E-10 |
Mt Sutton, 7.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ostler South, 8.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 54 |
| Co-rupture Rate | 7.9063175E-6 |
Waitangi, 11.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.2434135E-6 |
Ostler North, 11.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 138 |
| Co-rupture Rate | 1.210094E-5 |
Grampian, 12.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dryburgh, 14.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Blue Lake, 14.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjIuMHdLaXA2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
