Hurunui Peak Details

PropertyValue
Rupture Count3,443
Ruptures Above Sect Min Mag3,443
Ruptures w/ Nonzero Rates94
Magnitude Range[7.09, 8.45]
Length Range[28, 781] km
Total Rate1.4911969E-4 /yr
Multi-Fault Rate1.4850945E-4 /yr (99.59%)
Directly-Connected Faults5
All Co-Rupturing Faults86

Table Of Contents

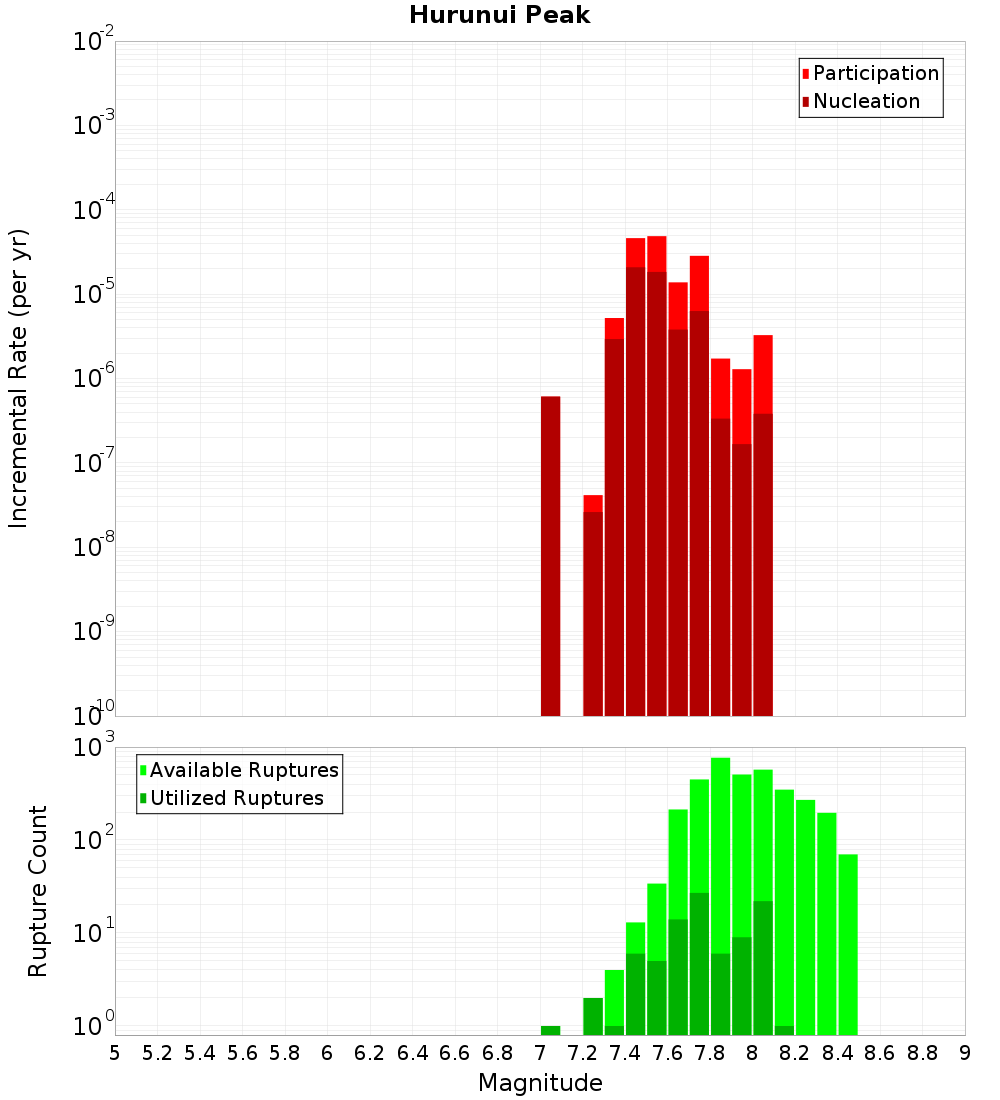

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

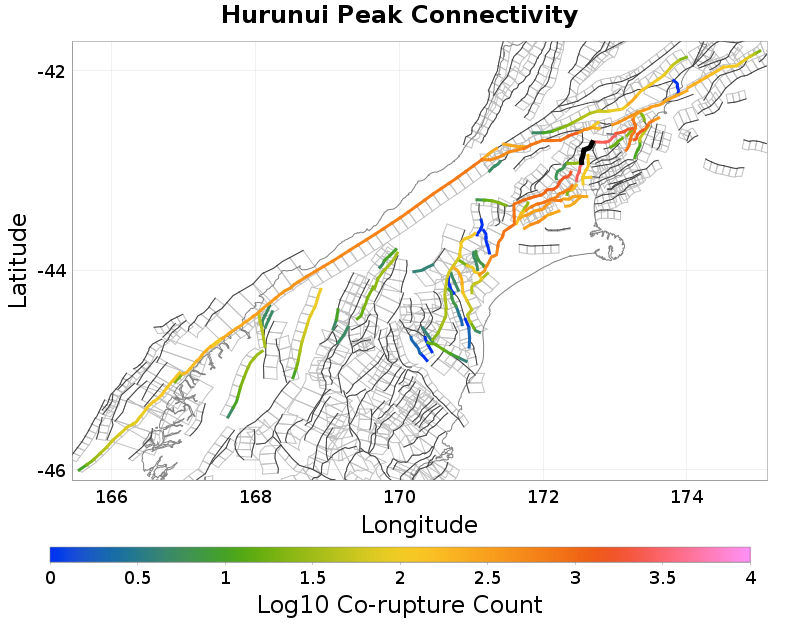

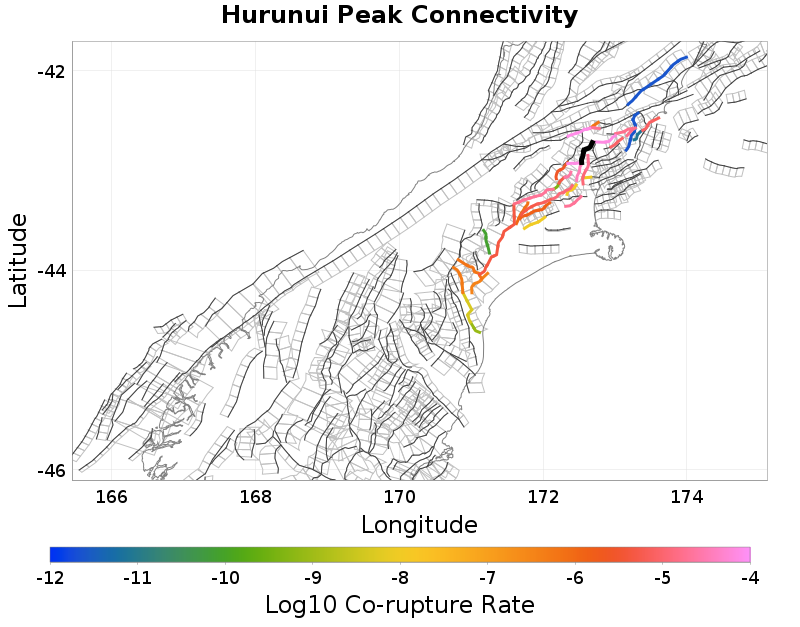

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Virginia, 0.28 km away
Mt Arden, 0.35 km away
Mt Culverden, 1.53 km away
Balmoral, 2.6 km away
Esk North, 4.03 km away
Doctors, 5.51 km away
Kakapo, 5.94 km away
Pancake, 8.97 km away
Lowry, 9.05 km away
Hope: Hanmer NW, 10.96 km away
Hope: Hope River, 11.86 km away
Kaiwara South, 12.73 km away
Hope: Kakapo-2-Hamner, 12.99 km away
Hope: Hamner SW, 14.89 km away

Virginia, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count25
Co-rupture Rate7.1120434E-5

Mt Arden, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count2,465
Co-rupture Rate3.40156E-5

Mt Culverden, 1.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count2,613
Co-rupture Rate6.7826E-5

Balmoral, 2.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 5.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count125
Co-rupture Rate1.8519715E-5

Kakapo, 5.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count1,326
Co-rupture Rate7.5044656E-5

Pancake, 8.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate2.570235E-6

Lowry, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count106
Co-rupture Rate6.4731887E-7

Hope: Hope River, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 12.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count377
Co-rupture Rate7.1842755E-5

Hope: Hamner SW, 14.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count228
Co-rupture Rate1.856929E-5
