Maungatua - North Taieri Details

PropertyValue
Rupture Count83
Ruptures Above Sect Min Mag82
Ruptures w/ Nonzero Rates21
Magnitude Range[7.12, 8.03]
Length Range[26, 205] km
Total Rate1.5659045E-5 /yr
Multi-Fault Rate1.5659045E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults19

Table Of Contents

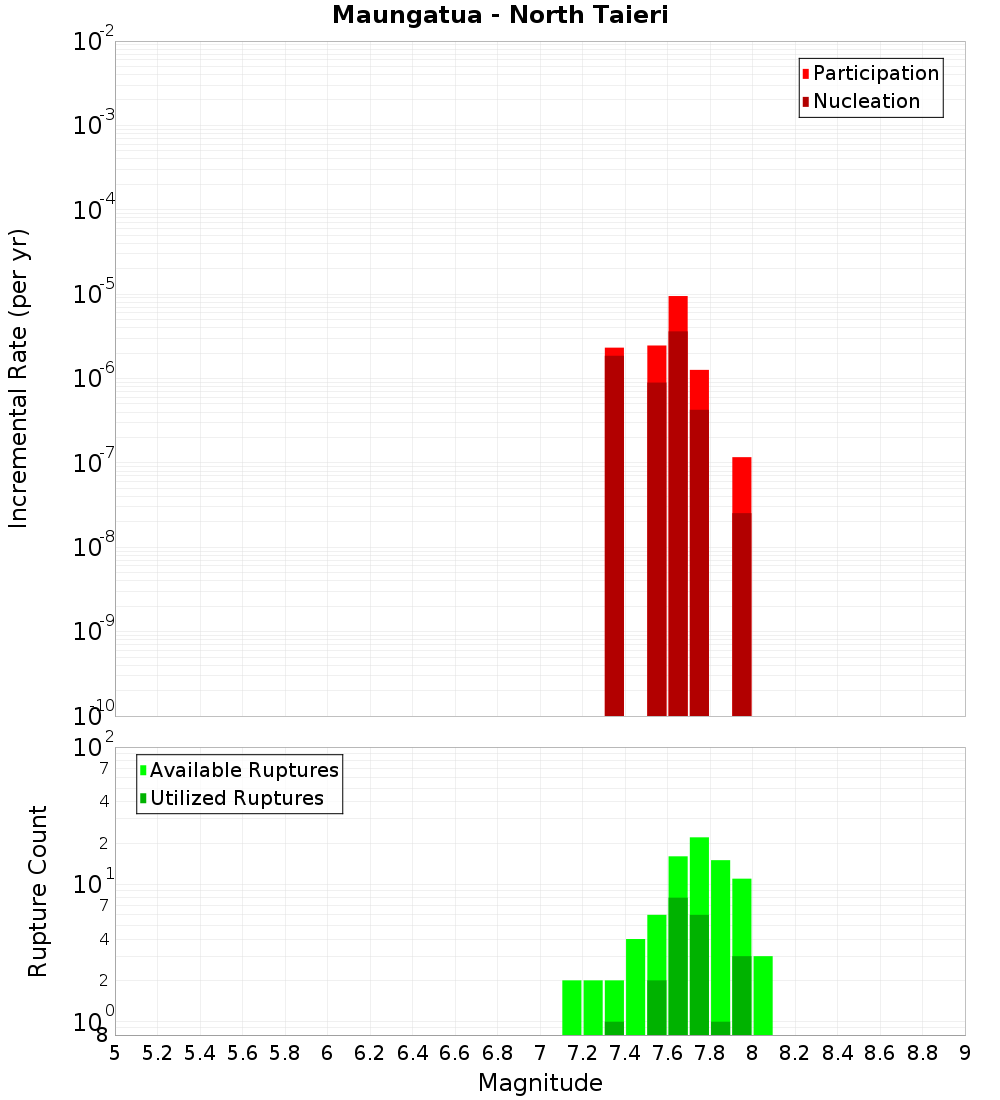

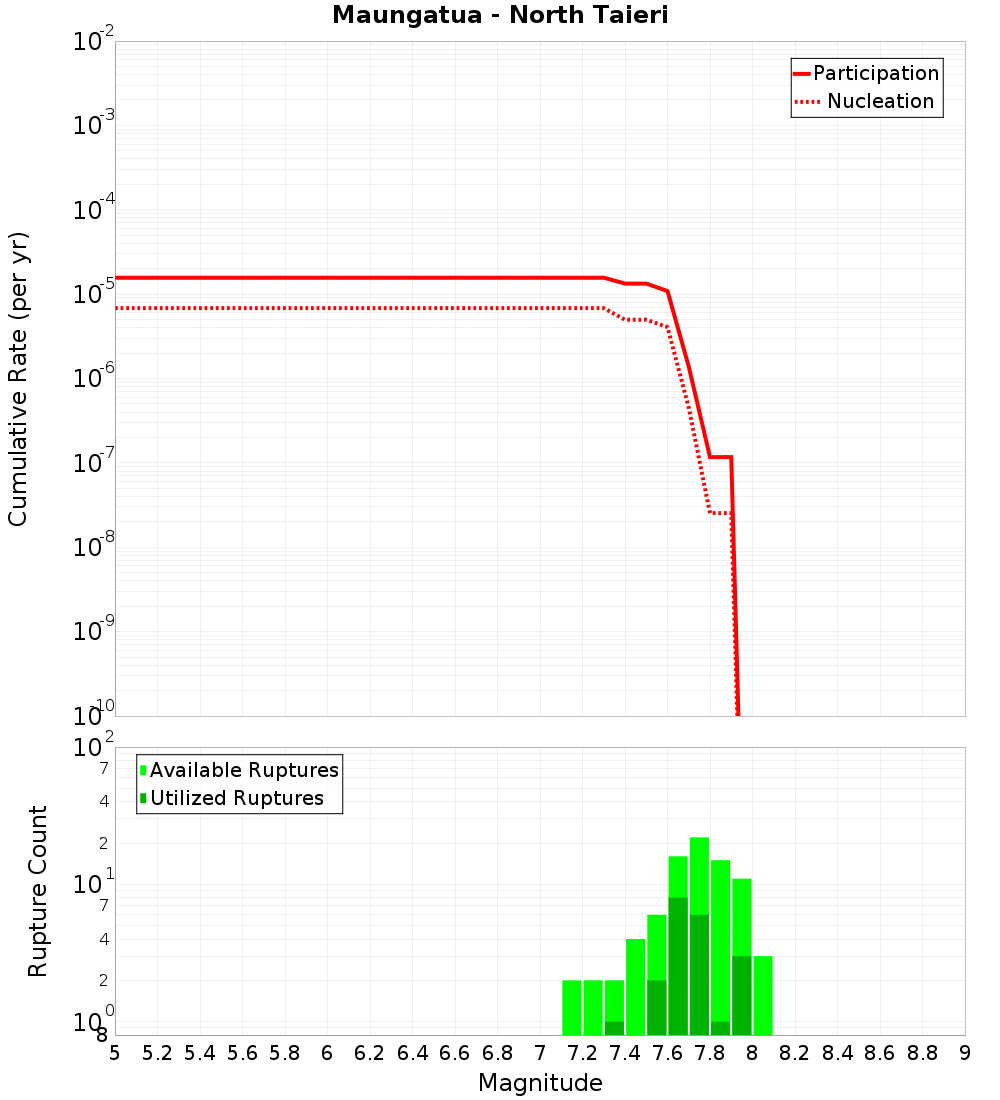

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

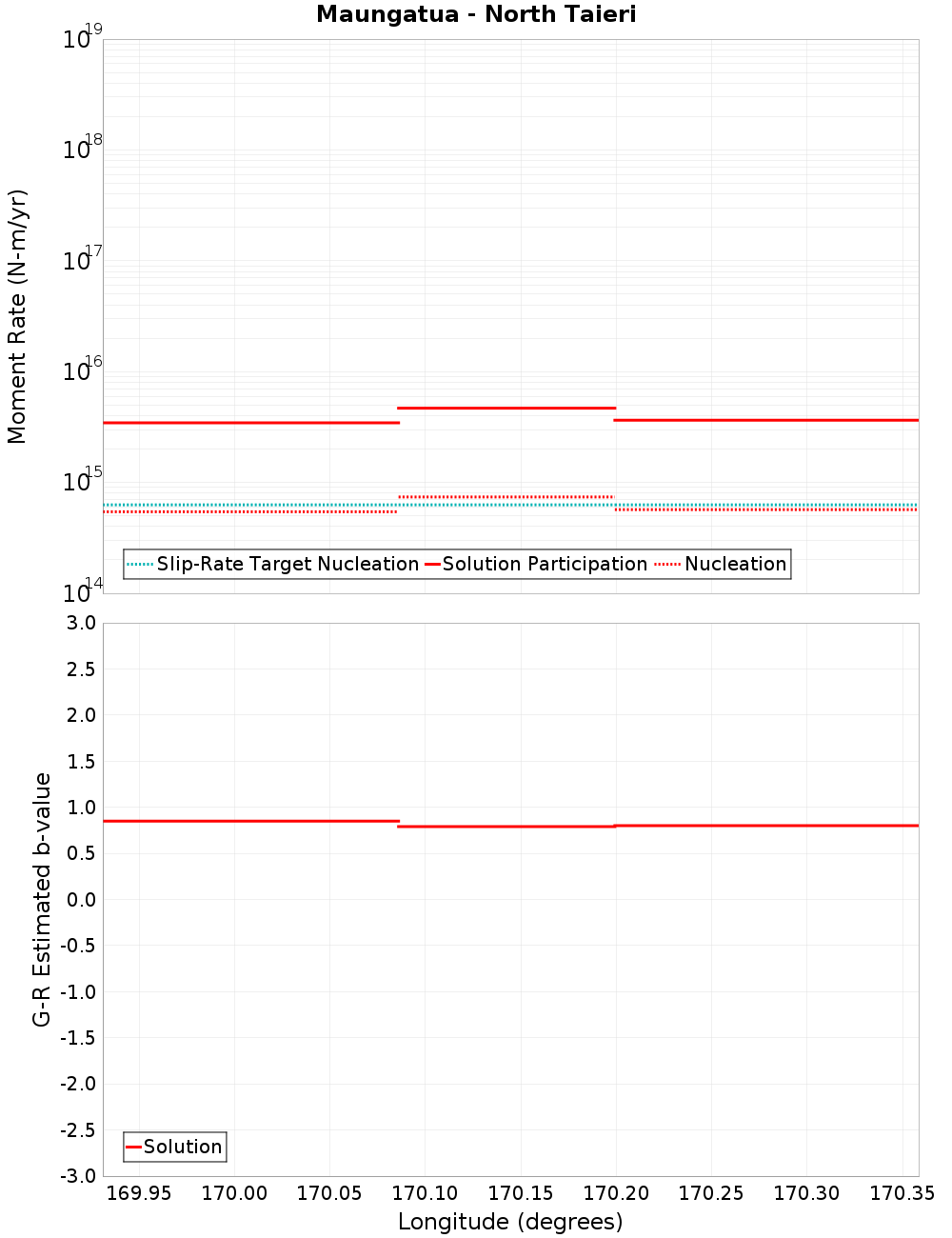

Moment-Rates and b-Values

(top)

Along-strike plot

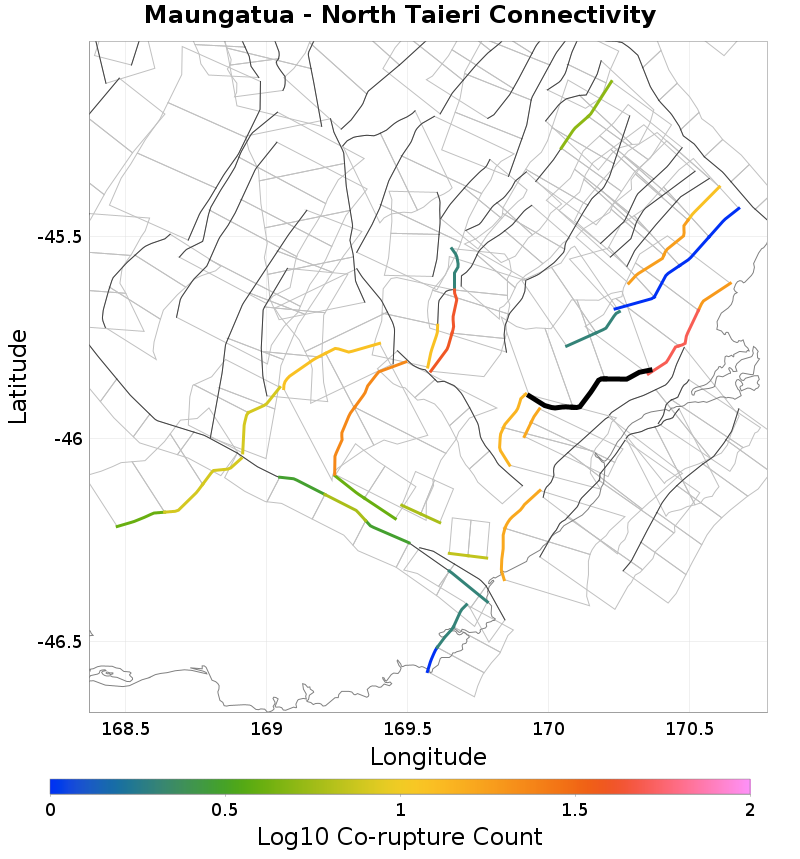

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Sliver Stream - Merton, 0.13 km away
Beaumont River, 0.31 km away
Waitahuna 1, 0.31 km away
Logan Burn, 0.95 km away
Waitahuna 2, 1.55 km away
Titri North, 5.52 km away
Titri Central, 7.17 km away
Nichols Rock, 8.44 km away
Hyde South - The Twins, 9.58 km away
Kaikorai, 10.06 km away
Flat Stream - Glenpark, 11.66 km away
Green Island, 13.31 km away
Pylap, 14.96 km away

Sliver Stream - Merton, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count50
Co-rupture Rate1.3751081E-6

Beaumont River, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate1.247897E-7

Waitahuna 1, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count14
Co-rupture Rate5.2333767E-6

Logan Burn, 0.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate1.1473141E-5

Titri North, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri Central, 7.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate6.8671513E-9

Hyde South - The Twins, 9.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikorai, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Flat Stream - Glenpark, 11.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate6.731965E-9

Green Island, 13.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pylap, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
