Rangitaiki 1 Details

PropertyValue
Rupture Count5,405
Ruptures Above Sect Min Mag5,402
Ruptures w/ Nonzero Rates32
Magnitude Range[6.52, 8.35]
Length Range[9, 631] km
Total Rate7.1971834E-4 /yr
Multi-Fault Rate7.1971834E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults67

Table Of Contents

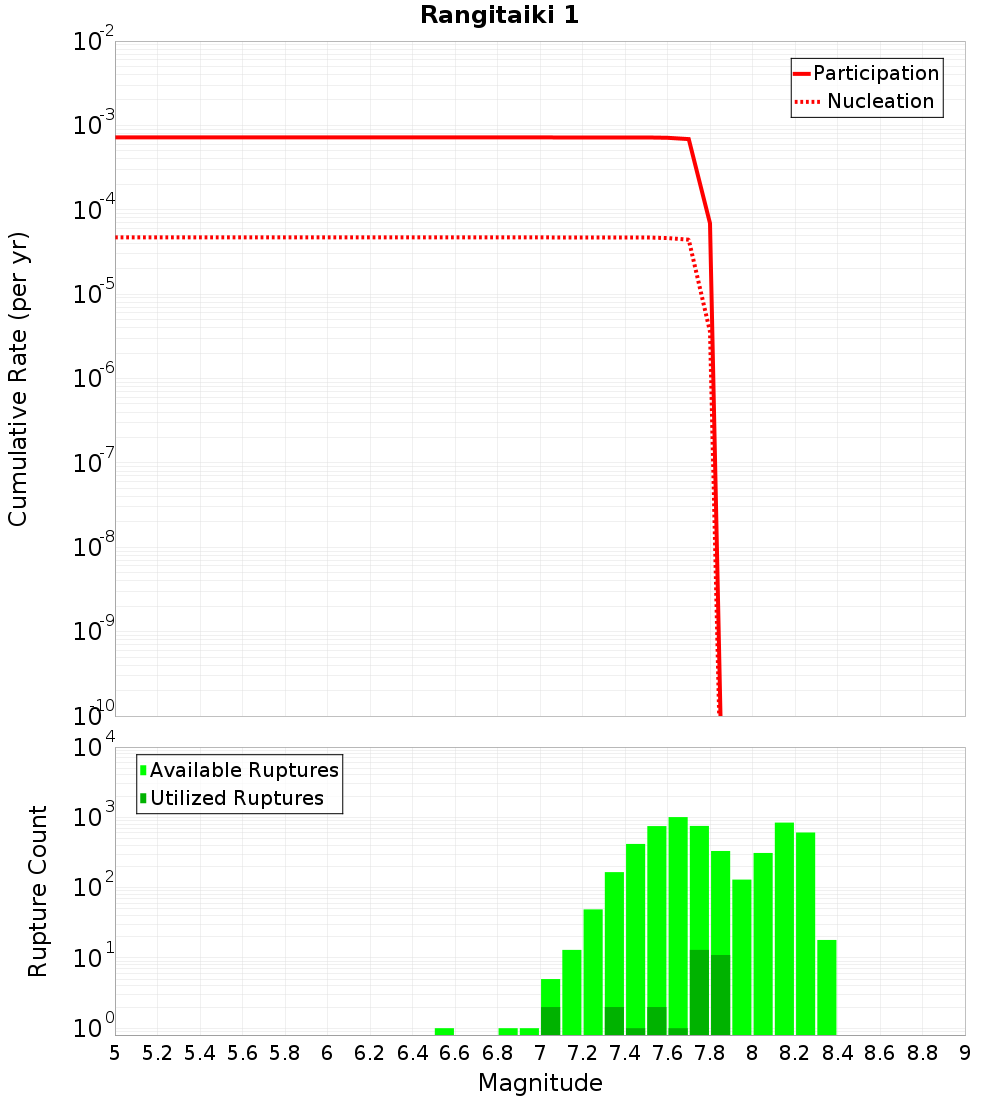

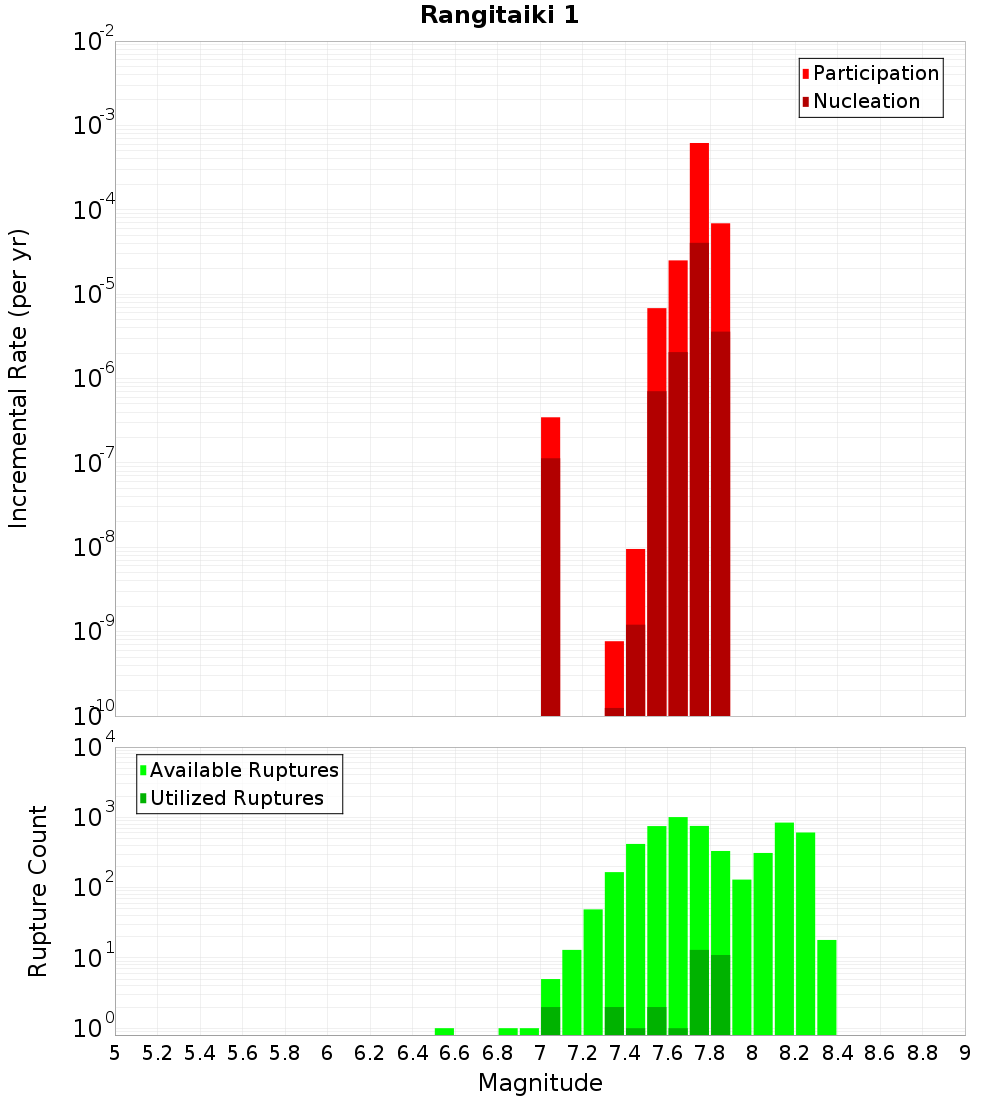

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

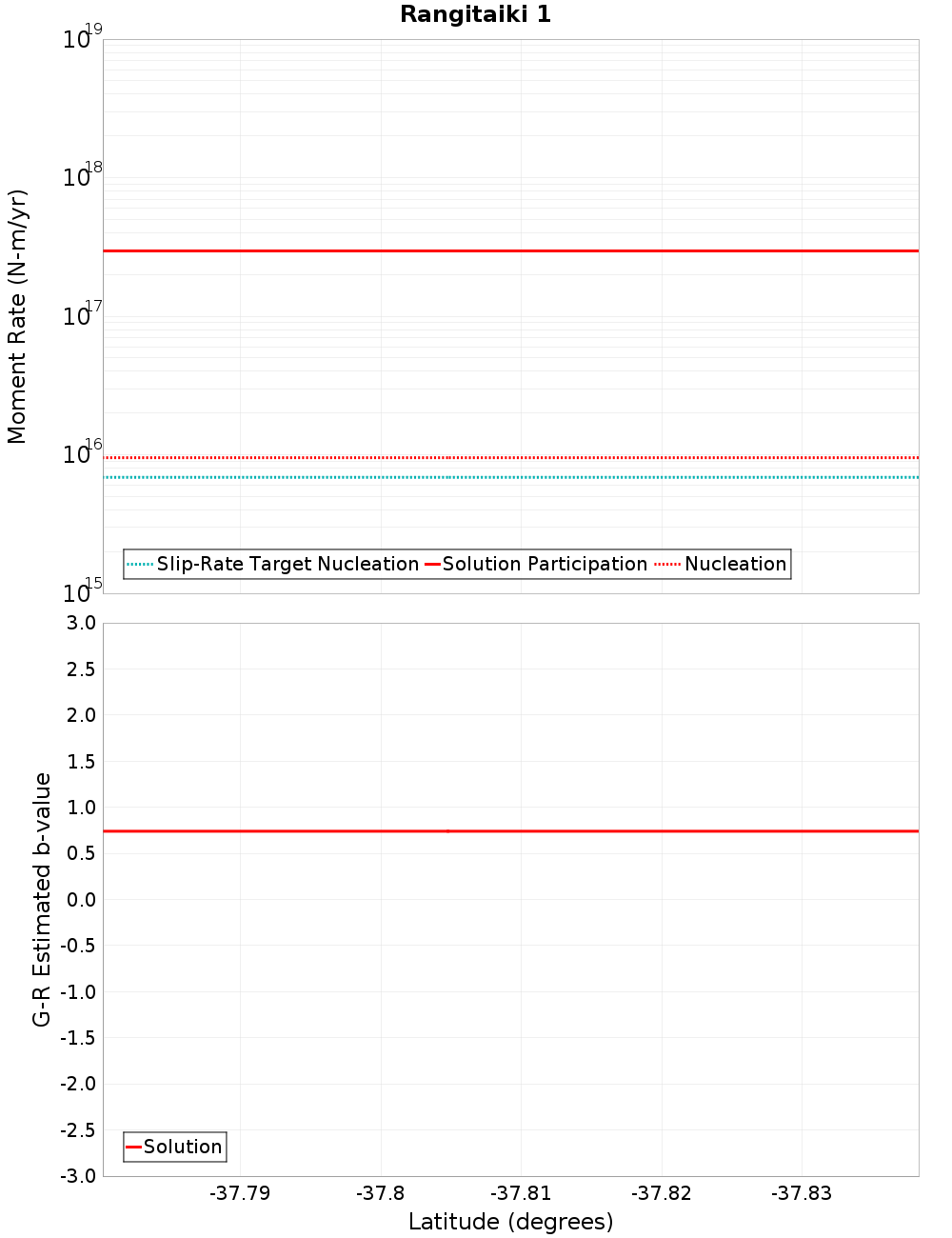

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Keepa, 4.87 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count2,803
Co-rupture Rate6.389482E-4

White Island 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?true
Co-rupture Count7,342
Co-rupture Rate7.6819875E-4

Keepa, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count364
Co-rupture Rate0.0

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count1,184
Co-rupture Rate2.6747902E-4

Edgecumbe Coastal, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count2,379
Co-rupture Rate3.7856688E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count1,841
Co-rupture Rate2.623467E-4

White Island 2, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count1,372
Co-rupture Rate2.0911568E-4

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count754
Co-rupture Rate0.0

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count2,319
Co-rupture Rate2.4310776E-4

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count484
Co-rupture Rate1.824545E-12

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NjUuMFcycnY2
Connected?true
Directly Connected?false
Co-rupture Count137
Co-rupture Rate8.565191E-9
