Wheao: North Details

Property	Value
Rupture Count	10,335
Ruptures Above Sect Min Mag	10,333
Ruptures w/ Nonzero Rates	32
Magnitude Range	[6.57, 8.40]
Length Range	[11, 681] km
Total Rate	8.416438E-5 /yr
Multi-Fault Rate	8.416438E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

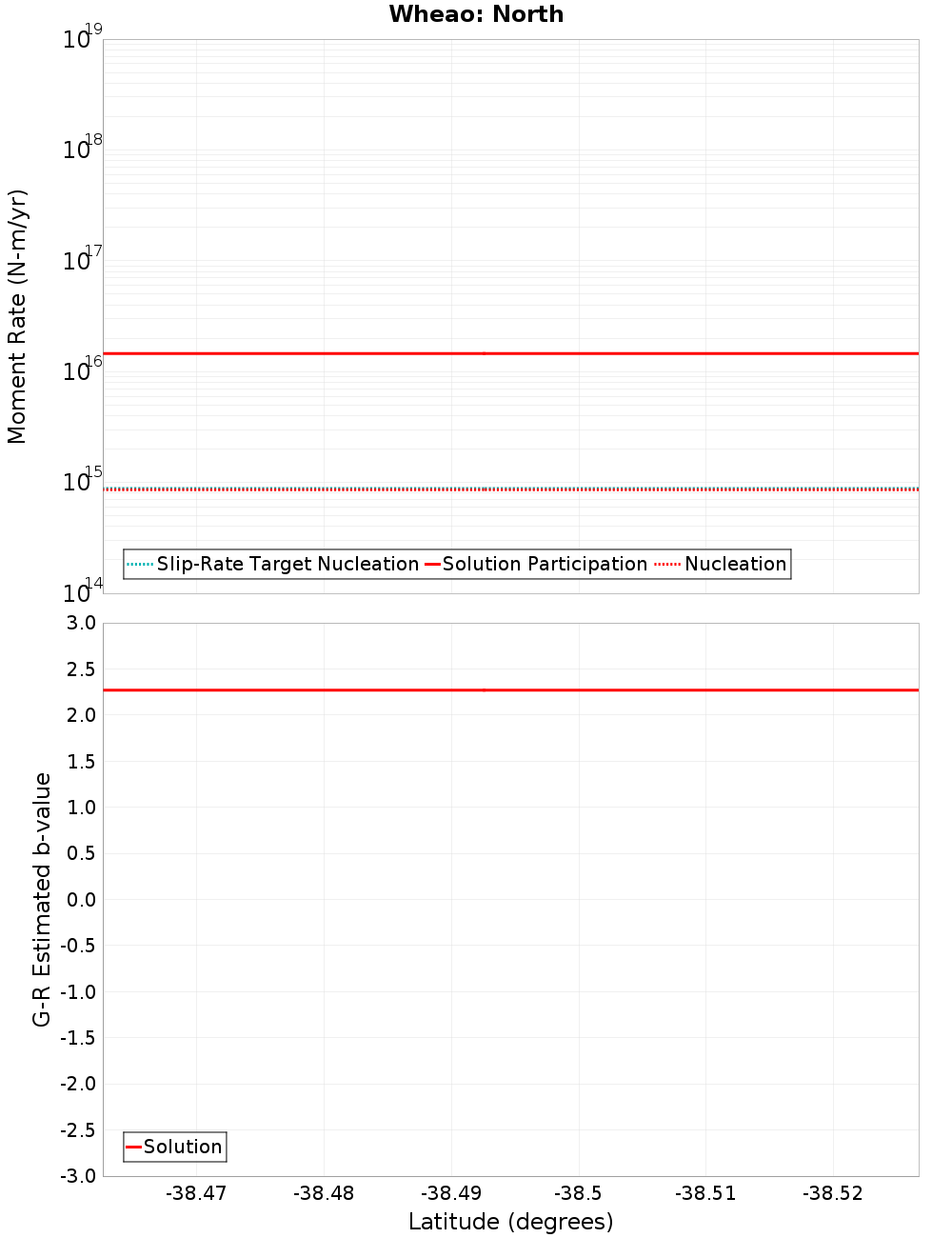

Moment-Rates and b-Values

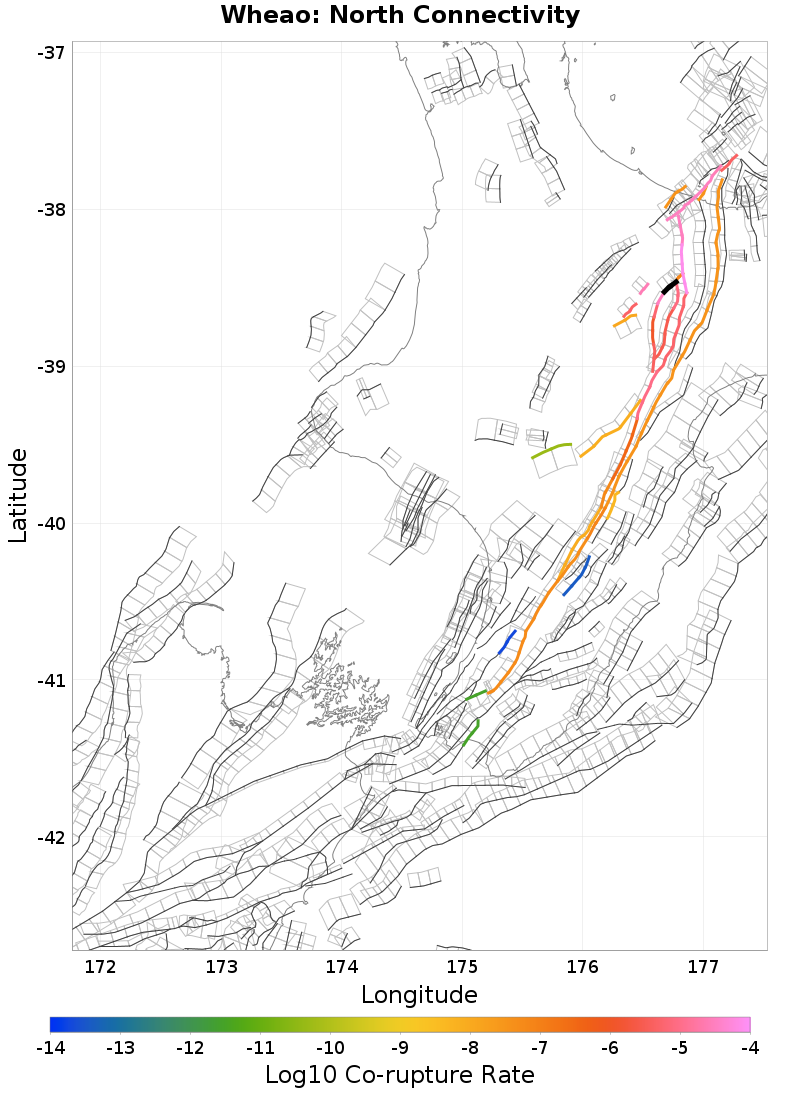

Connectivity

Nearby Sections

Fault Section
Wheao: South, 0 km away
Te Whaiti North, 0 km away
Te Whaiti South, 0 km away
Waiohau: North, 2.44 km away
Waiohau: South, 10.36 km away
Kaingaroa 3, 12.16 km away

Wheao: South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NzMuMExVc05E
Connected?	true
Directly Connected?	true
Co-rupture Count	9,427
Co-rupture Rate	3.3971213E-5

Te Whaiti North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NzMuMExVc05E
Connected?	true
Directly Connected?	false
Co-rupture Count	63
Co-rupture Rate	7.560279E-8

Te Whaiti South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NzMuMExVc05E
Connected?	true
Directly Connected?	true
Co-rupture Count	477
Co-rupture Rate	8.002701E-6

Waiohau: North, 2.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NzMuMExVc05E
Connected?	true
Directly Connected?	true
Co-rupture Count	9,050
Co-rupture Rate	7.6150296E-5

Waiohau: South, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NzMuMExVc05E
Connected?	true
Directly Connected?	false
Co-rupture Count	430
Co-rupture Rate	5.212028E-6

Kaingaroa 3, 12.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1NzMuMExVc05E
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	2.5462781E-5
