Paddys Ridge Details

PropertyValue
Rupture Count7,506
Ruptures Above Sect Min Mag7,505
Ruptures w/ Nonzero Rates91
Magnitude Range[6.95, 8.51]
Length Range[21, 771] km
Total Rate1.1542408E-5 /yr
Multi-Fault Rate1.1542408E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults75

Table Of Contents

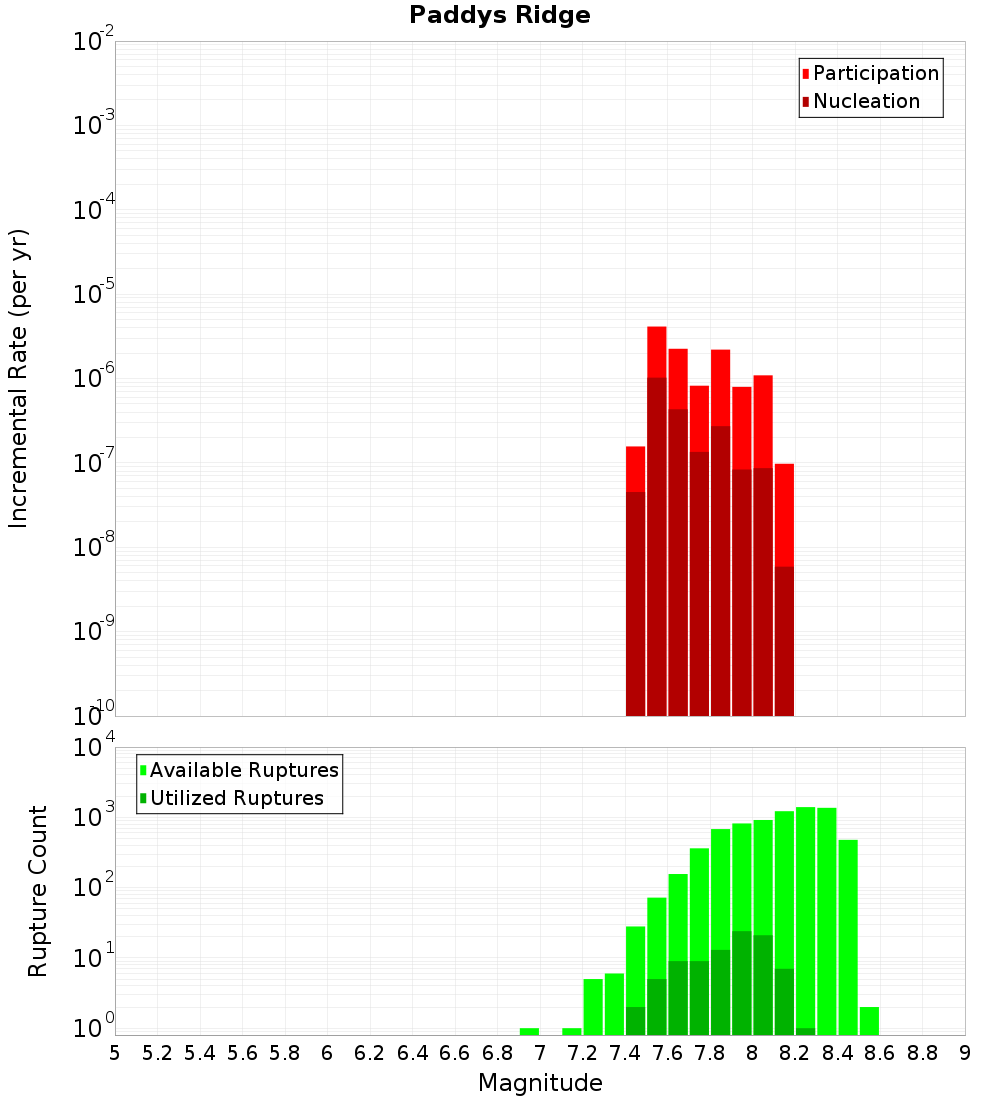

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

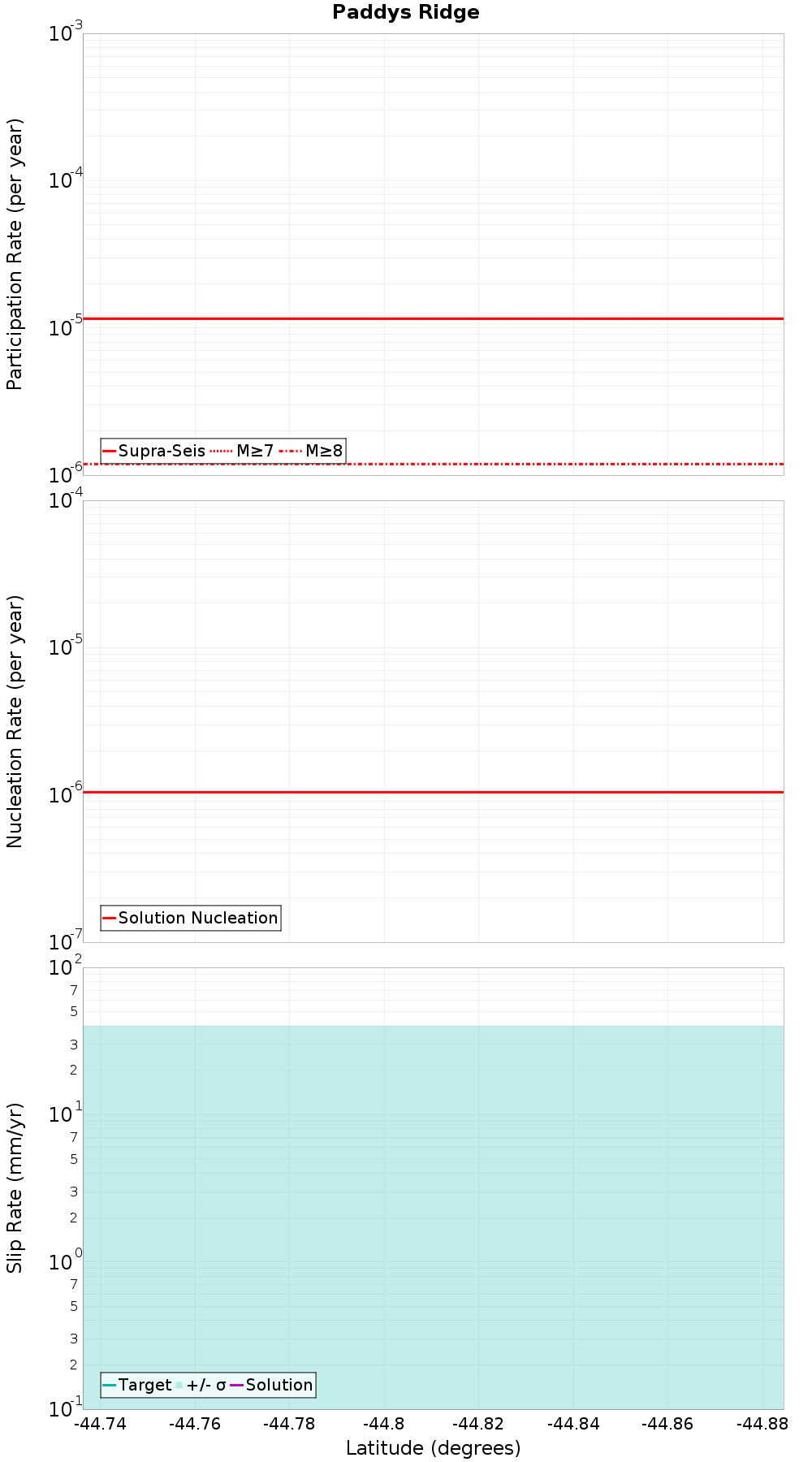

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pisa, 0.29 km away
Roaring Meg, 0.41 km away
NW Cardrona South, 1.01 km away
Cardrona - Hawea, 1.23 km away
NW Cardrona North, 1.63 km away
Dunstan, 5.61 km away
Cluden, 5.99 km away
Motatapu, 10.98 km away
Goodger, 11.59 km away
Grandview, 12.33 km away
Lindis River, 13.84 km away

Pisa, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?true
Co-rupture Count3,759
Co-rupture Rate1.305878E-6

Roaring Meg, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?true
Co-rupture Count4,193
Co-rupture Rate1.9568358E-6

NW Cardrona South, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?true
Co-rupture Count804
Co-rupture Rate4.3875125E-6

Cardrona - Hawea, 1.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?true
Co-rupture Count6,842
Co-rupture Rate7.006586E-10

NW Cardrona North, 1.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?false
Co-rupture Count246
Co-rupture Rate3.5580902E-7

Dunstan, 5.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?true
Co-rupture Count413
Co-rupture Rate5.198059E-6

Cluden, 5.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?true
Co-rupture Count356
Co-rupture Rate1.1498262E-5

Motatapu, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate0.0

Goodger, 11.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

Grandview, 12.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?false
Co-rupture Count92
Co-rupture Rate0.0

Lindis River, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1ODIuMEJaTFZQ
Connected?true
Directly Connected?false
Co-rupture Count89
Co-rupture Rate1.0047469E-6
