Tuakana 7 Details

PropertyValue
Rupture Count20
Ruptures Above Sect Min Mag20
Ruptures w/ Nonzero Rates13
Magnitude Range[7.06, 7.69]
Length Range[21, 109] km
Total Rate0.0012181223 /yr
Multi-Fault Rate9.4414485E-4 /yr (77.51%)
Directly-Connected Faults2
All Co-Rupturing Faults10

Table Of Contents

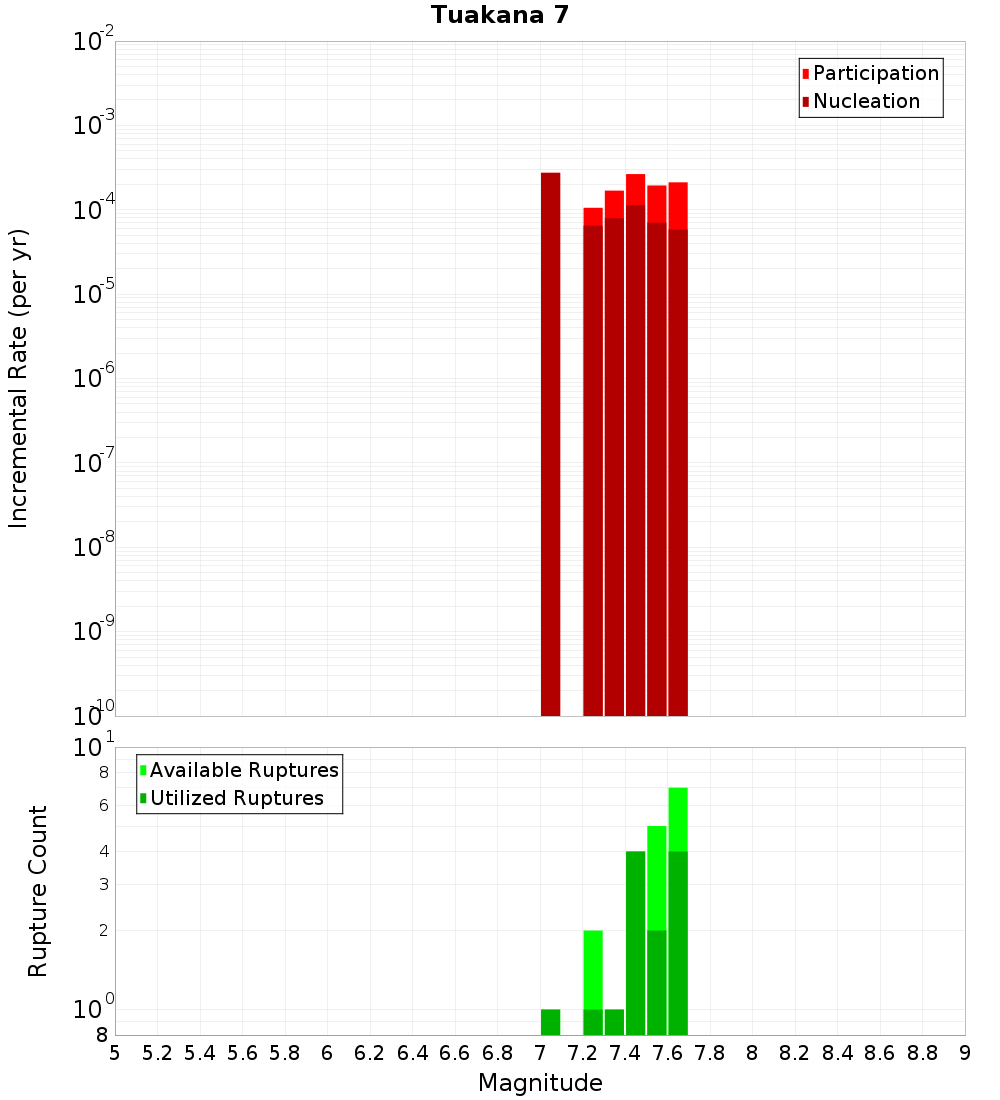

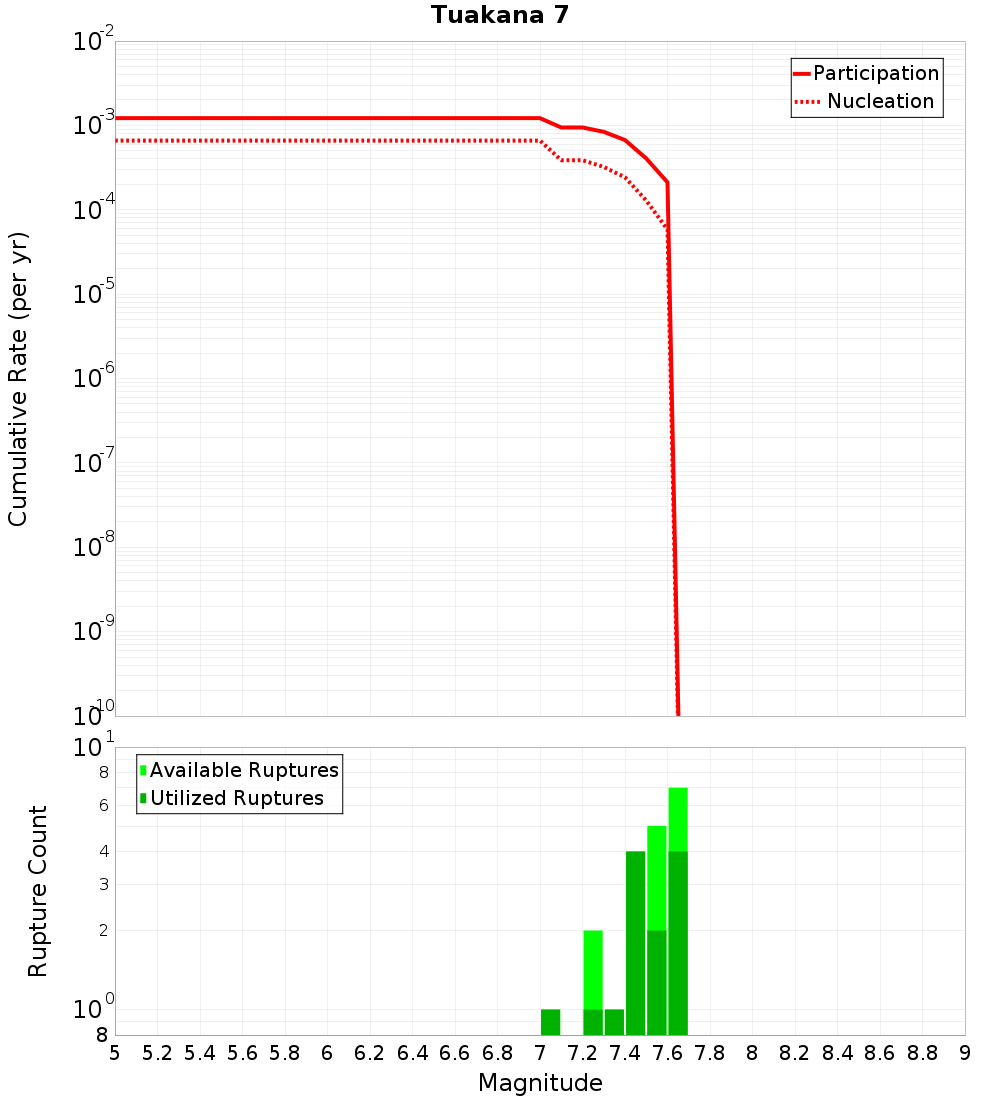

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Volkner 4, 0.13 km away
Otara West 2, 0.26 km away
Otara West 1, 0.36 km away
Tuakana 6, 0.39 km away
Tauranga Trough East 2, 0.69 km away
Tauranga Trough West 2, 6.47 km away
Volkner 3, 9.15 km away
Tuatoru 2, 12.24 km away
Otara West 3, 14.6 km away

Volkner 4, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.2974085E-4

Otara West 2, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate1.3385362E-4

Otara West 1, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 6, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate7.755235E-4

Tauranga Trough East 2, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate7.0797274E-4

Tauranga Trough West 2, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate2.5829483E-8

Volkner 3, 9.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate1.2224754E-6

Tuatoru 2, 12.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 3, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTY1OTAuMFpkenc1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
